Fireproof Flexible Natural Gas Hose for Colombia Market

Product Overview

Description

PVC Gas Hose with Blue Strip

Dimension: CFM3/8”xM1/2”,F1/2"xM3/8

Lenghts: 60/80/100/120/150/200CM

Applications: LPG,CNG

Max Working Temperature: <60℃

Max Working Pressure: 6Mpa;

Quality Certificates: ISO9001-2008;

Guarantee: 5 years;

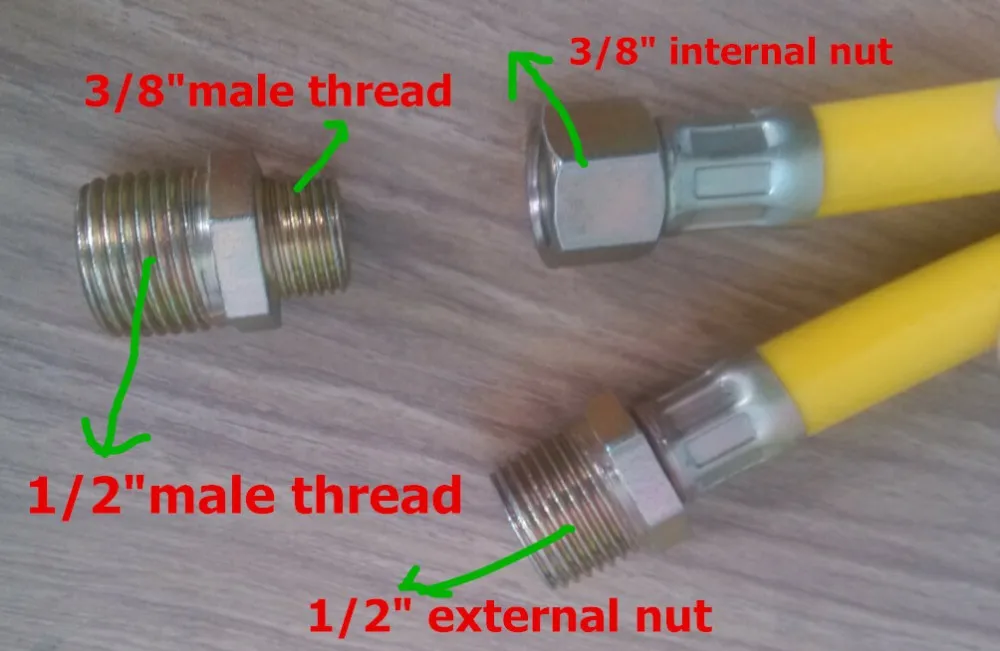

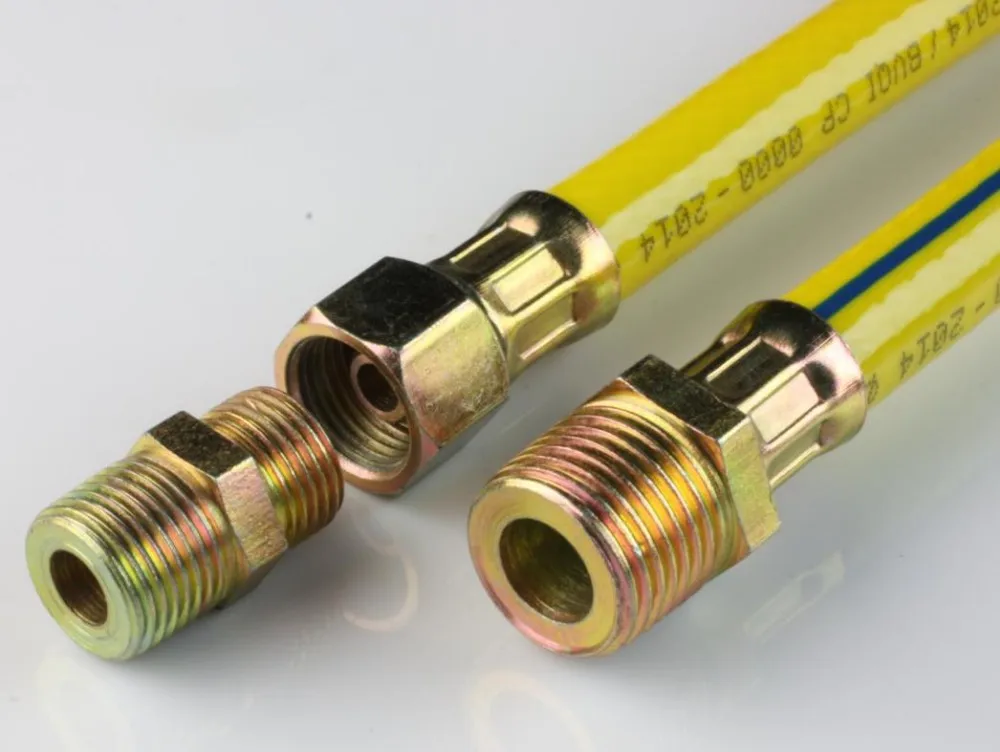

Material and Dimensions of Hose Parts:

No.	Name	Material	Dimension	Qty	Length

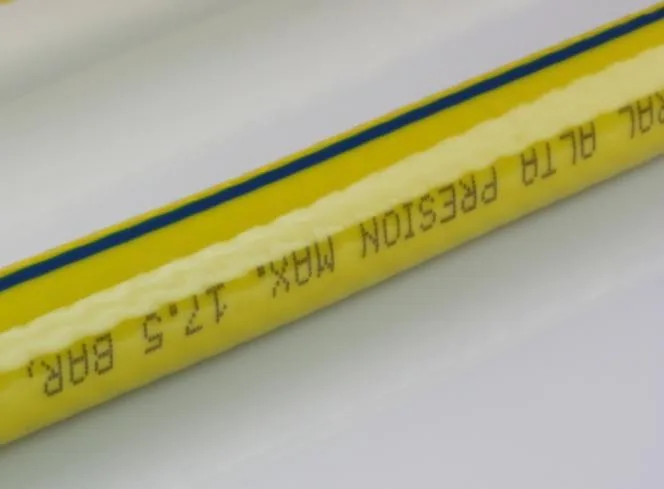

1	Tube with blue strip	Double Layer PVC	8.5*14mm	As Length	100cm 120cm 150cm
2	3/8” Female Nut	Iron/brass-plated	5/8”-18NF(19*20*10.1)	1pc
3	3/8” Core	Iron/brass-plated	8.7*5.5*27.5mm	1pc
4	3/8”X1/2” Male Nipple	Iron/brass-plated	1/2”NPT-14 to 5/8”-18NF	1pc
5	1/2” Male Nipple	Iron/brass-plated	1/2”NPT-14	1pc
6	Sleeves	Iron/brass-plated	16.2*18.5*0.6mm	2pcs

Testing we do on Hoses:

1) Leakage Testing: Piece by piece, Tested under 10bar for 3 second, no leakage!

2) Tensile Testing: Sampling tested by hanging100KGS object for 5 minutes, no loose!

3) Burst Pressure Testing: Sampling tested in burst machine,by increasing pressure to 50bar, no broken!

Terms and Conditions:

1) MOQ: total quantities no less than 5000pieces and the total amount  no less than USD5000 each order;

2) Payment term: 30% deposit before production and the balance paid against copy of B/L;

3) Loading port: Yiwu, Ningbo or Shanghai port, China;

4) Delivery time: 35-40 days after deposit;

5) Price term: EXW, FOB, CNF or CIF

Our Services:

1) Put your logo on ours hose or packing.

2) Produce hoses as your drawings or samples.
