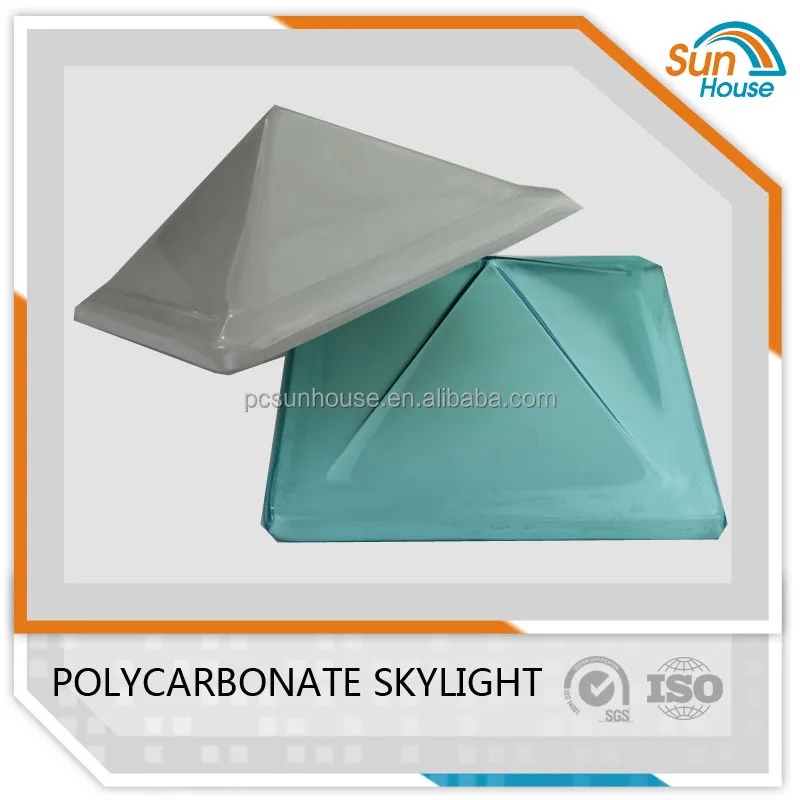

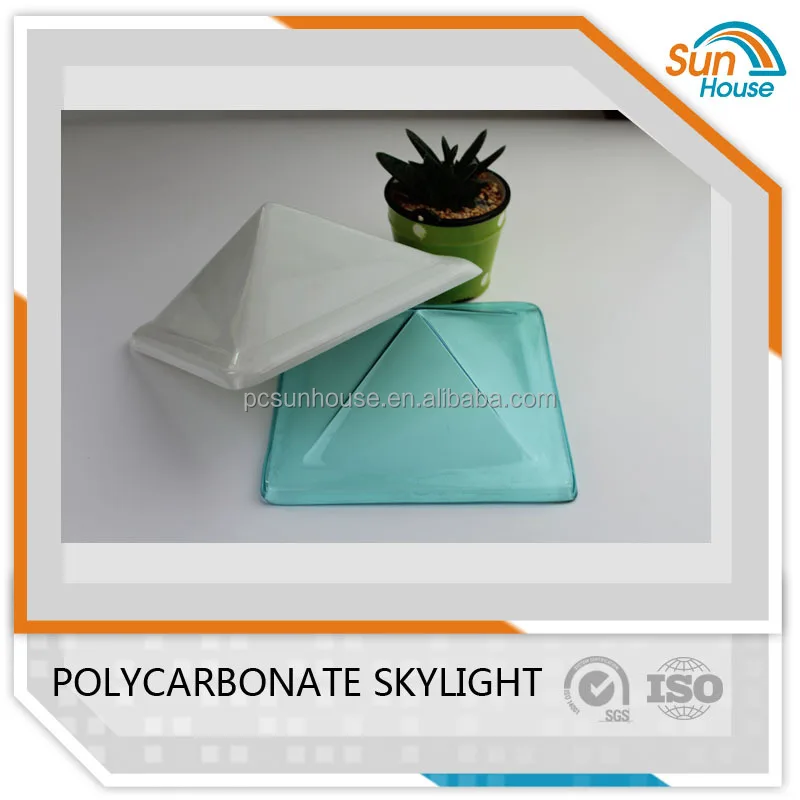

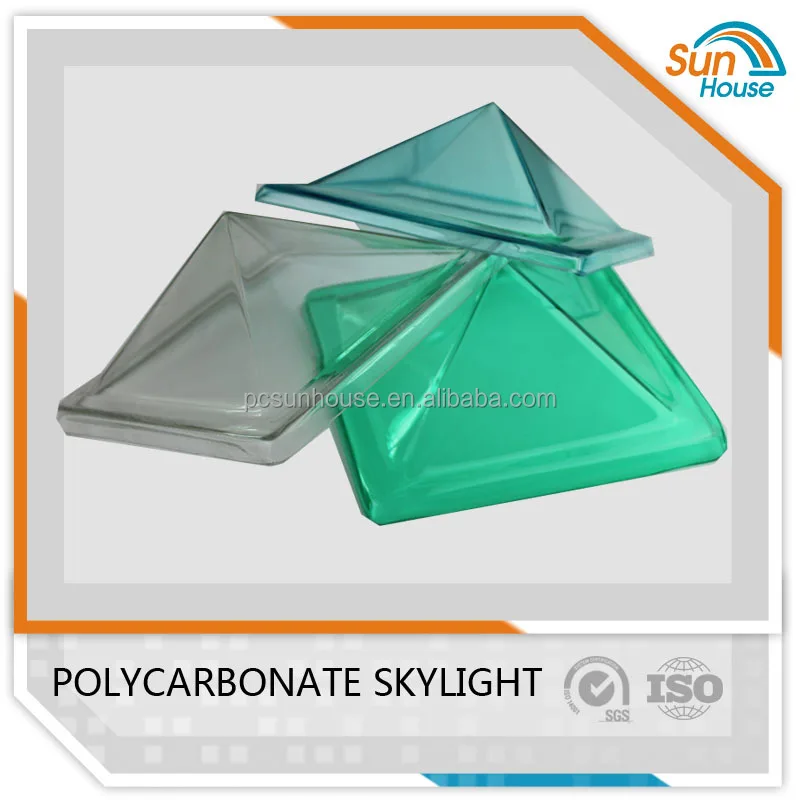

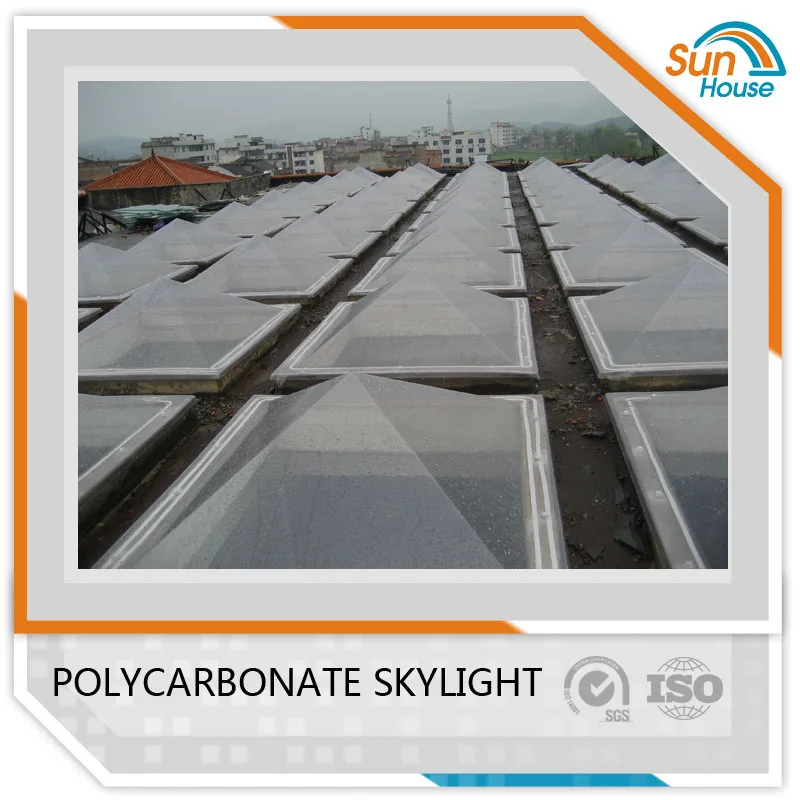

polycarbonate pyramid skylight soofing polycarbonate dome skylight

Product Overview

Description

SUNLON  skylight panels is made from high-polymer engineering plastics and introduced advanced technology from Germany and Japan. PC general solid sheets are extruded anti-UV solid sheets, which can absorb 98% harmful UV, and double-face anti-UV solid sheets, which can fully obstruct from the UV.



Production Application

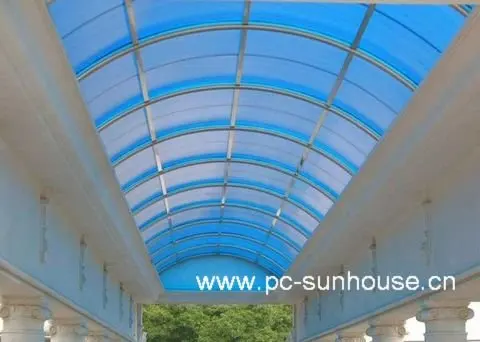

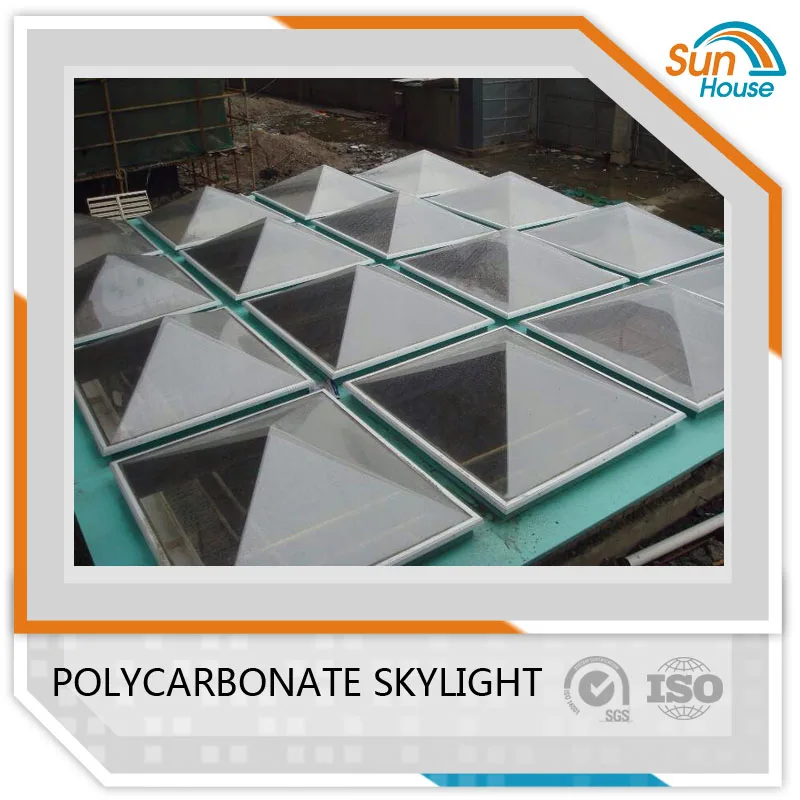

 Skylight in residence, workshop and warehouse, swimming-pool, gymnasium and greenhouse;
 Shed for passageway, corridor and parking;
 Sound-insulation walls of Expressway;
 Screen decoration,advertisement light box,  LED electronic screen.

Characteristic:High impact strength,Good transparency, Light weight,Anti-UV treatment,Weather resistance, Sound insulation,Fire proof, Thermoformed and cold bending



Technical Data



1	Impact Strength	J/m	50
2	Thermal Expansion	mm/m·	0.065
3	Heat Conductivity	W/·	0.21
4	Service Temperature		-40 ~ +120·
5	Tensile Strength	N/mm	≥69.1
6	Bending Strength	N/mm2	68
7	Bending Elastic Modulus	Mpa	2120
8	Tensile Stress at Break	Mpa	≥130
9	Elongation at Break	%	130
10	Effect of Sound Proof	dB	35 decibel decrease for 6mm solid sheet

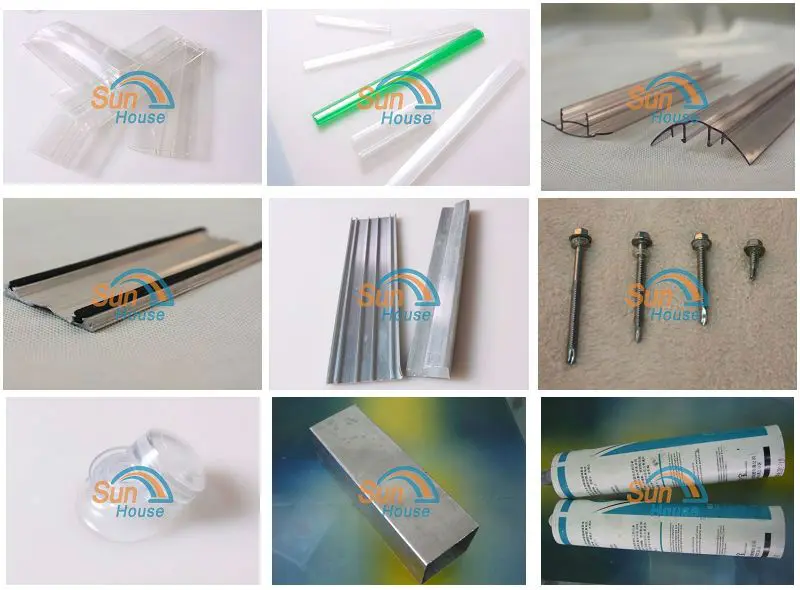

Installation Accessories

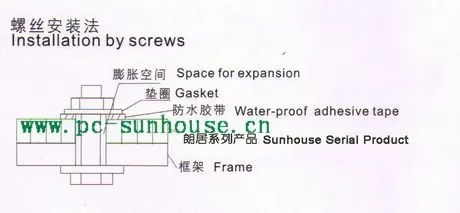

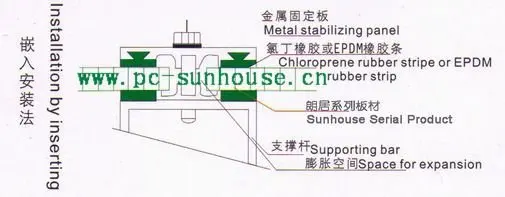

 Installation Method



Factory view and Certificate
