COFDM two way communication 2.4GHz Ethernet wireless radio

Product Overview

Description

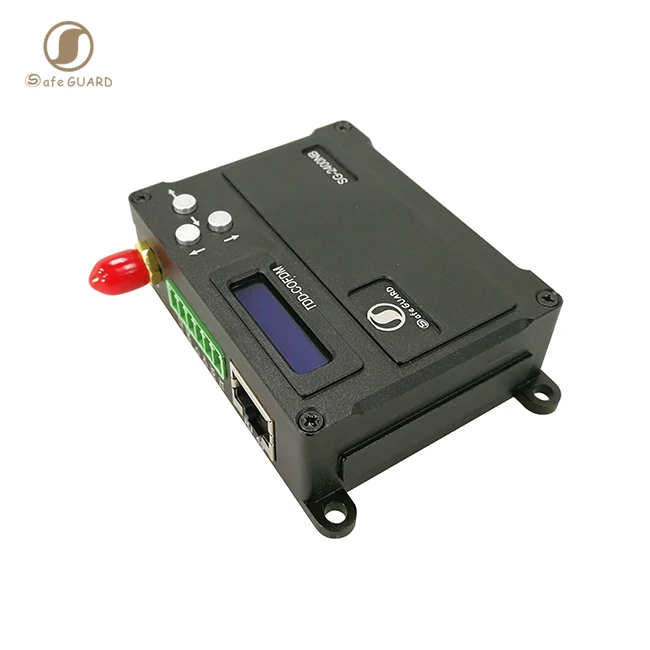

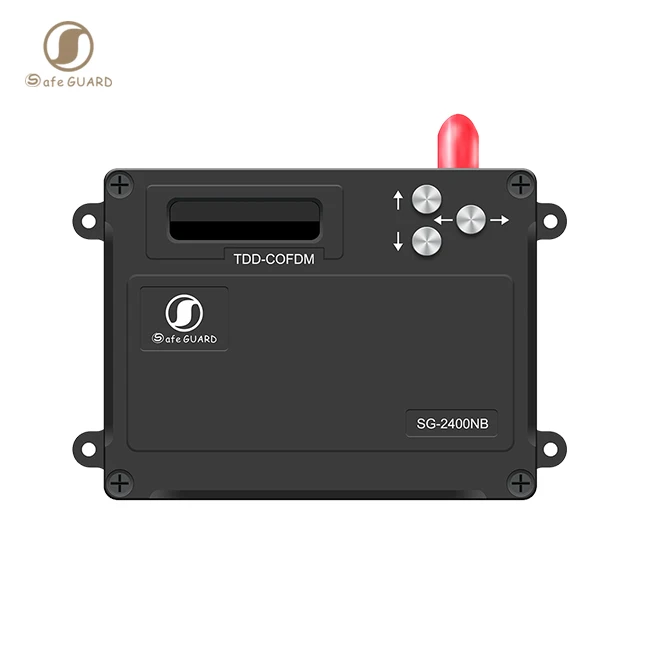

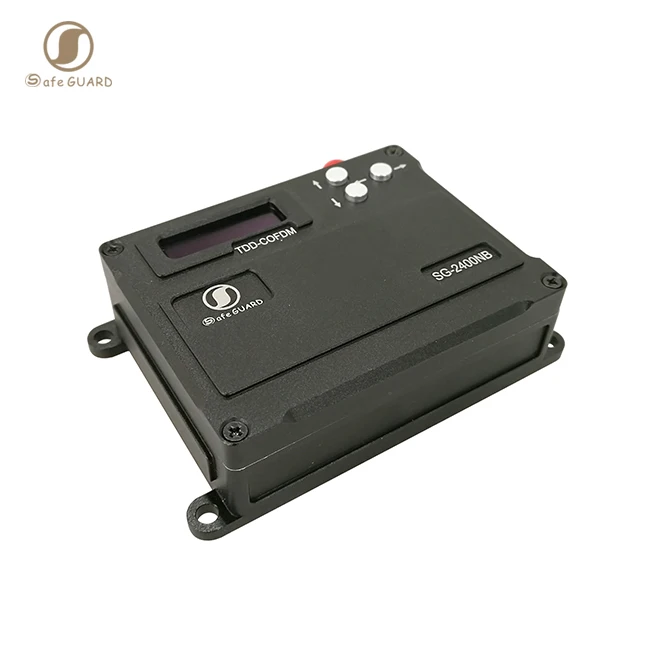

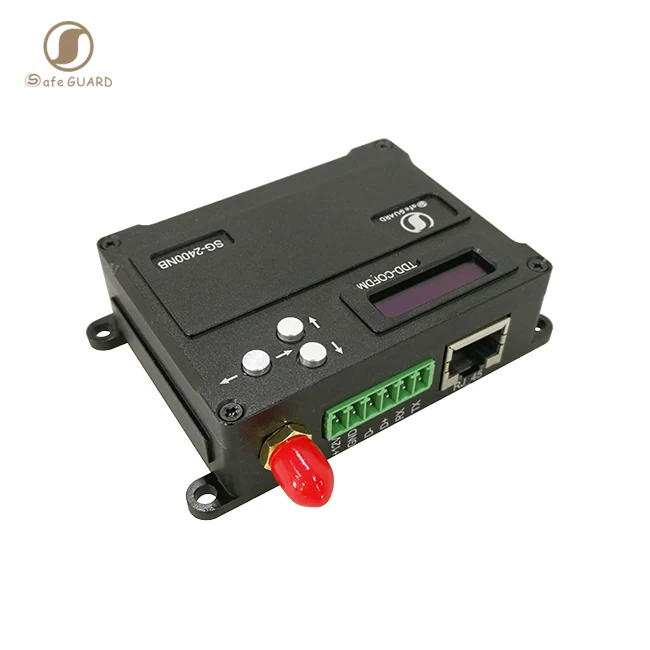

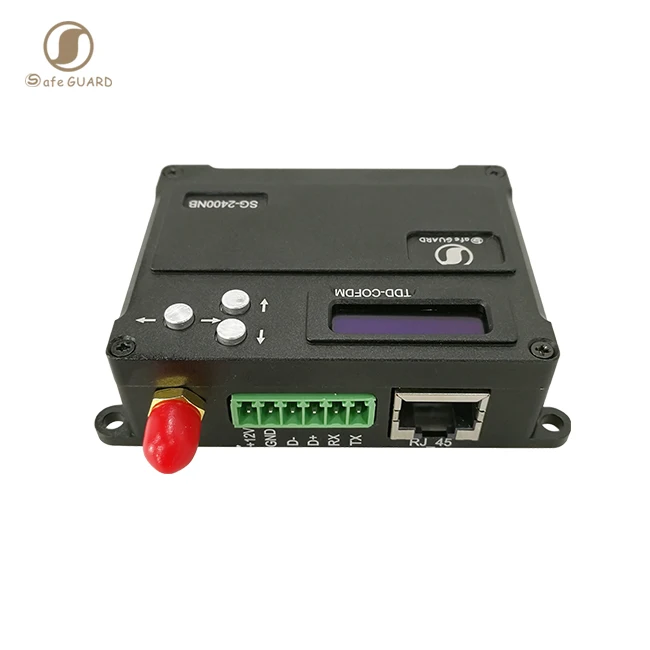

COFDM two way communication 2.4GHz Ethernet wireless radio



SFGT-2400NB









  SFGT-2400NB TDD_COFDM are the new developing products of our company.It is wireless transmission equipment for our latest Mini pure digital.The use of advanced time division processing , TDD bidirectional  network transmission and the leading COFDM modulation technology combined, provide complete bi-directional encryption (AES_128 and user-defined password) network data transmission channel,anti multipath, high speed mobile data, voice the perfect product. H.264 codec technology as the core,assigning channel resources through slot control, through the sub-carrier frequency flexibly assigned to multiple user terminals,within the same frequency maximized realized access multiple endusers multiple access. In the NLOS and high speed movement realize real-time two way transparent information transmission, Multiple wireless networks can be integrated with each other layout large network coverage.





Radio interface:







Features:



1) Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology
2)The baud ratre can Up to 921600bps maximum.
3) Smart settings,simple operation, easy to use;
4) Support transparent PTP&PMD network technology
5) Safety with AES 128 bit, and user-defined password;
6) Support non line of sight ( NLOS ) high-speed mobile transmission
7) Provide standard RS-232&RS-485 + RJ45 ethernet
8) Transmit/receive video audio,data and other multimedia signals simultaneously
9) Support high standards of Industrial and military level applications
10) The small volume, light weight, easy to carry, the radiating aluminum casing
11) High clear OLED digital display, the interface simple and easy operation







Specifications:



Model	SFGT-2400NB
Power supply	DC7V~17V
	6W consumption
Ethernet	10/100BaseT,Auto-MDI/X,IEEE802.3
	TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Output frequency	2100~2500MHz,in step 1MHz adjustable (Other frequencies can be customized)
Output rf power	30dBm
Bandwidth	4MHz/8MHz
Encryption mode	128bit AES(or 256bit AES)
Error correction mechanism	32bit of CRC,ARQ
Modulation	TDD_COFDM
Parameter control method	Through OLED control panel to modify parameters
Working temperature	-40°C~85°C

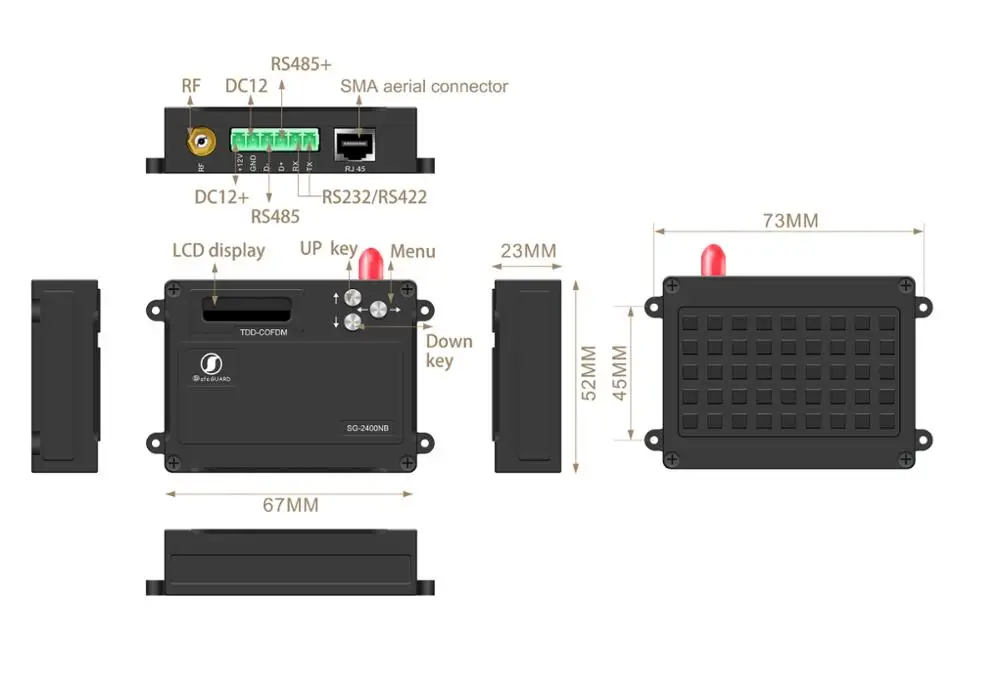

Dimension	75mm*51mm*22mm
Weight	135g







Product application:

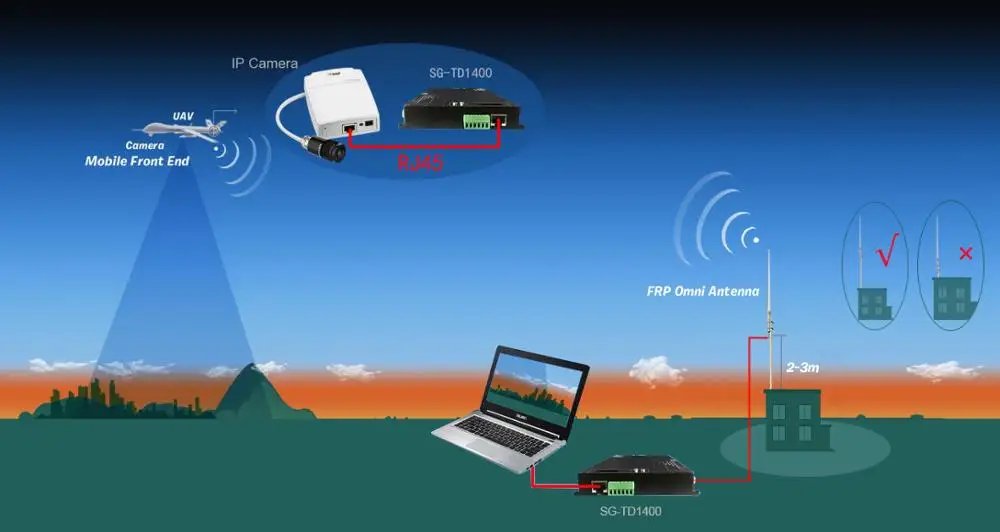

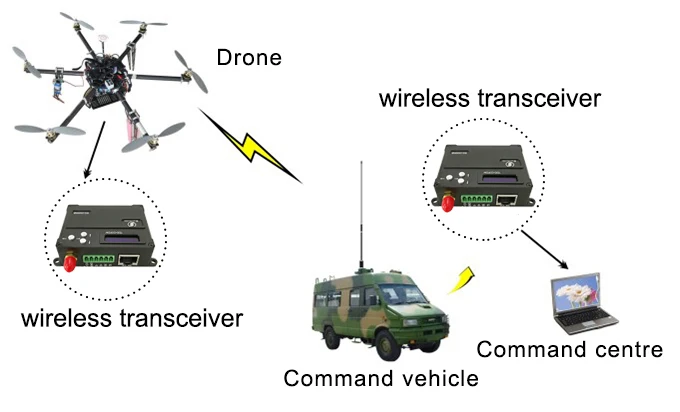

 As its super small volume, light weight especially suitable for application in UAV, High-speed Radio, build network and etc..
