pvc marble sheet extrusion machine / pvc marble board extrusion machine / pvc faux marble sheet production line
- Category: >>>
- Supplier: Qingdao Zhongsu Machinery Manufacture Co. Ltd.
Share on (60302072882):
Product Overview
Description
pvc marble sheet extrusion machine / pvc marble board extrusion machine / pvc faux marble sheet production line
BRIEF INSTRUCTION
PVC Artificial Marble Board Production Line is made and designed by our company through many years experience involving in manufacutrring PVC free foamed board production line and PVC Artificial Marble Board .

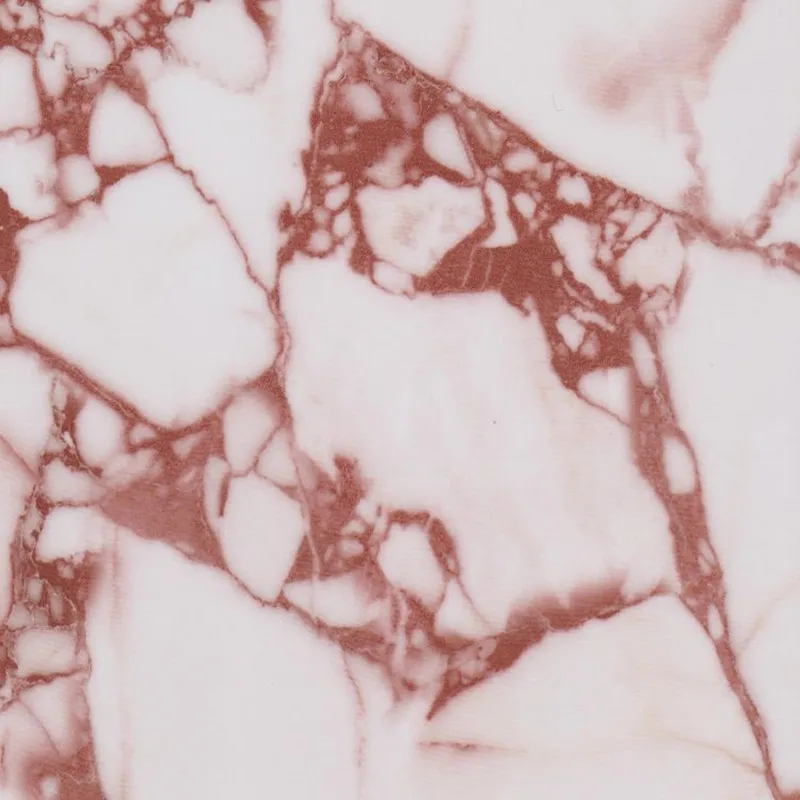

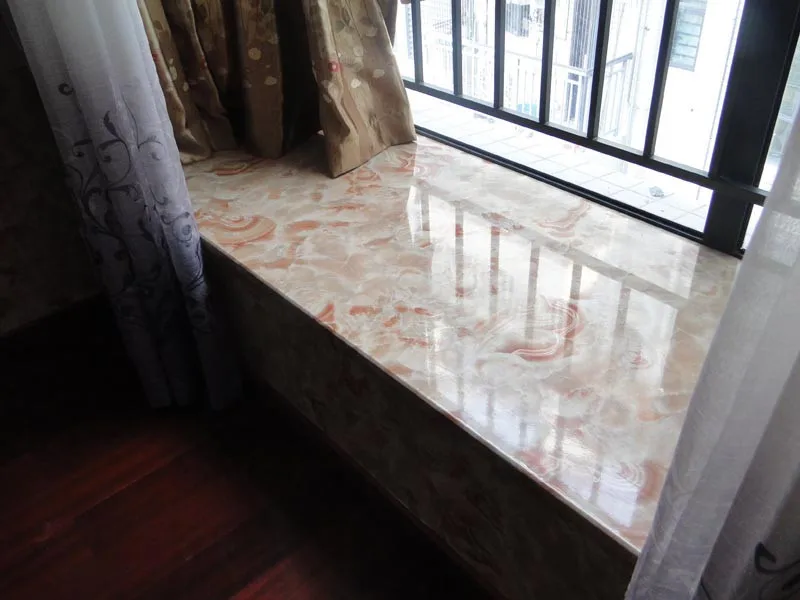

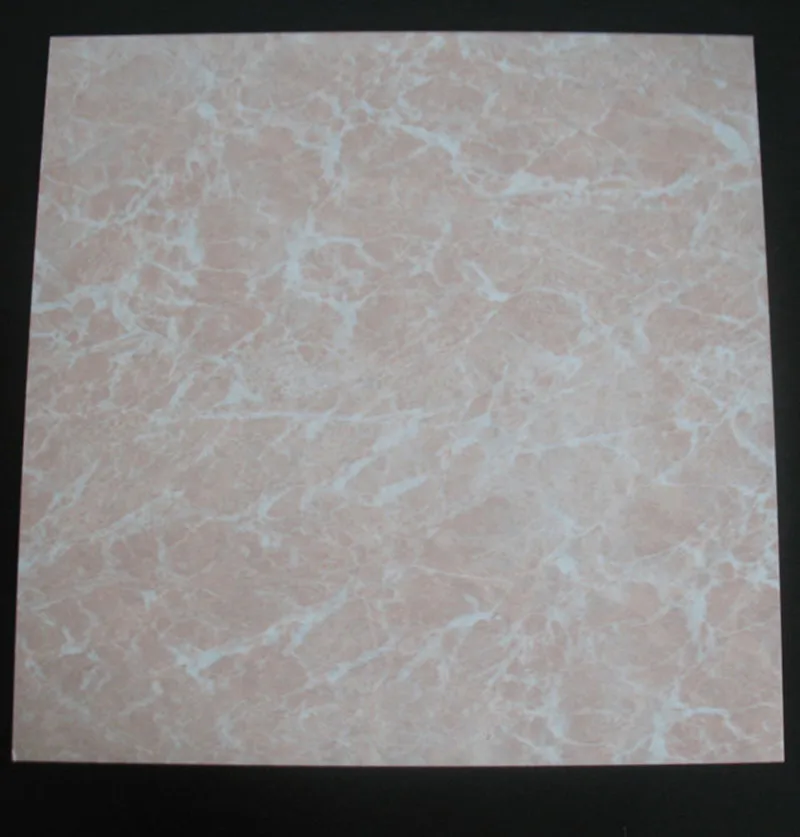

PHOTOS OF PVC ARTIFICAL MARBLE BOARD
MAIN APPLICATION OF BOARD
Decoration :such as indoor floor / wall panel etc.
Advantages of PVC Artificial Marble Board
1, Environment friendly
2, Recycled available
3, Water proof
4, Anti-corrosion
5, Deformation hard .
FLOW CHART OF PRODUCING
Crusher (crushing the edge of board trimmed) → Miller (milling the scraps into powder → Mixer (mixing the main materials and additives) → SJSZ 80- 156 Twin Conical Screws Extruder → Mould → Lamination unit → Three-calender unit → Cooling Bracket → Hual-off Machine → Cutter → Stacker .
CONFIGURATION
| Components | Amount |
| 1,Conical double screw extruder SJSZ-80/156 | 1 set |
| 2,Extruder Mould | 1 set |
| 3,Three-calender | 1 set |
| 4,Cooling bracket | 1 set |
| 5,Haul-off unit | 1 set |
| 6, Dropper for the finished product | 1 set |
| 7, Control system | 1 set |

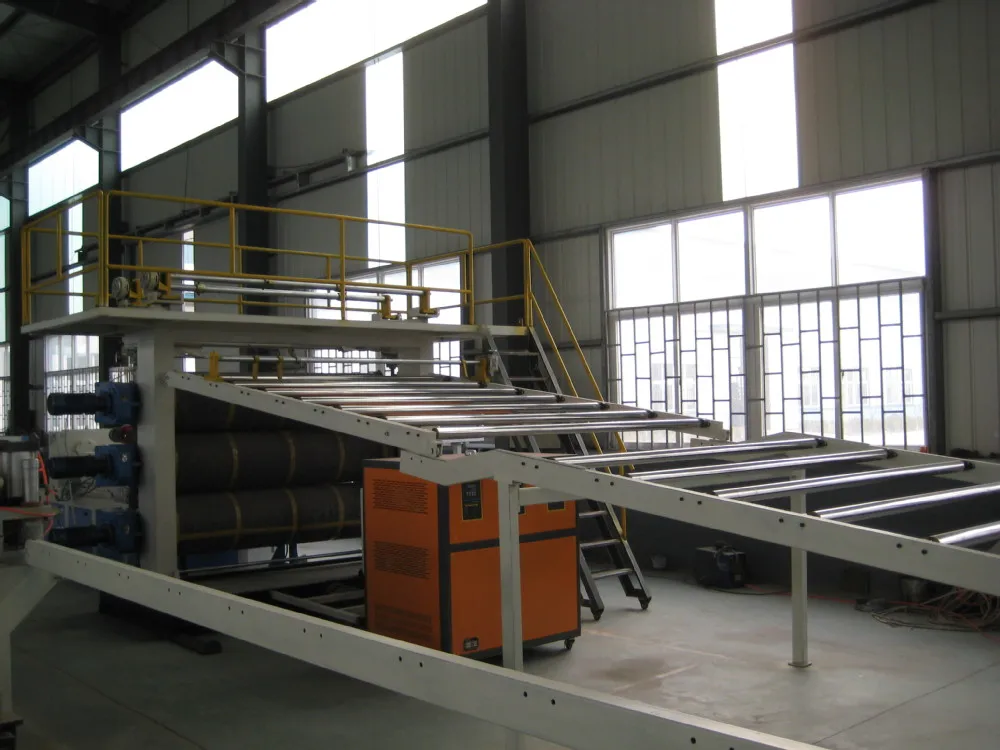

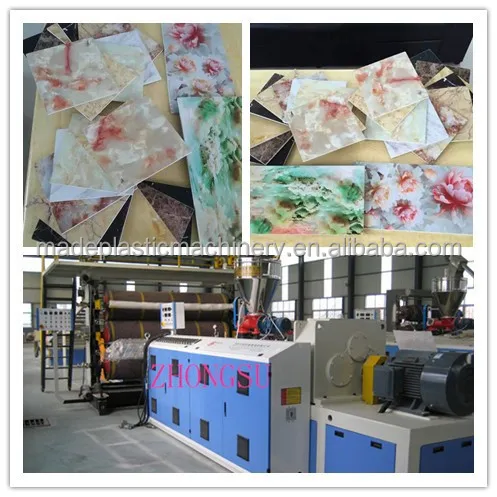

Phtoto of Whole Line
Main Technique Parameter

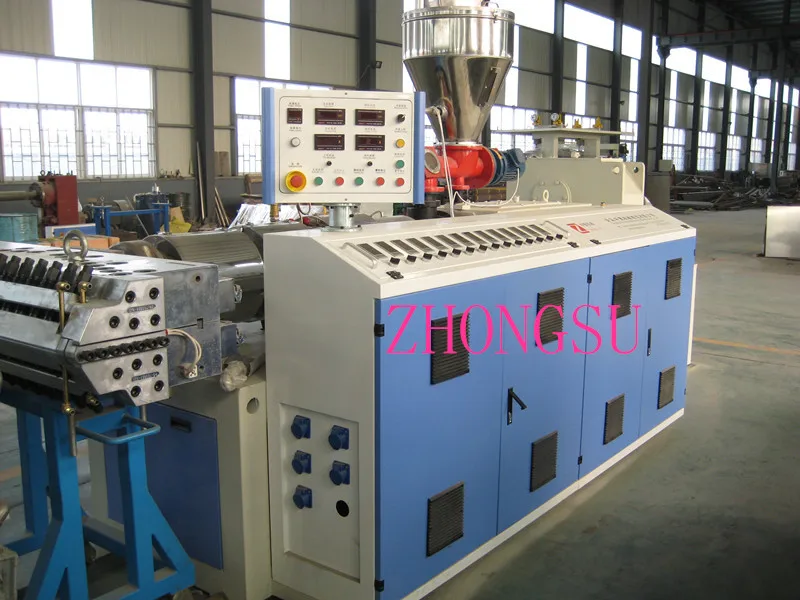

1,Conical double screw extruder SJSZ-80/156
a) Output: 300-400kg/h
b) Transmission system:
High torque output vertical reducer gear box
Structure: vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi,with gear grinding technical treatment and cementite

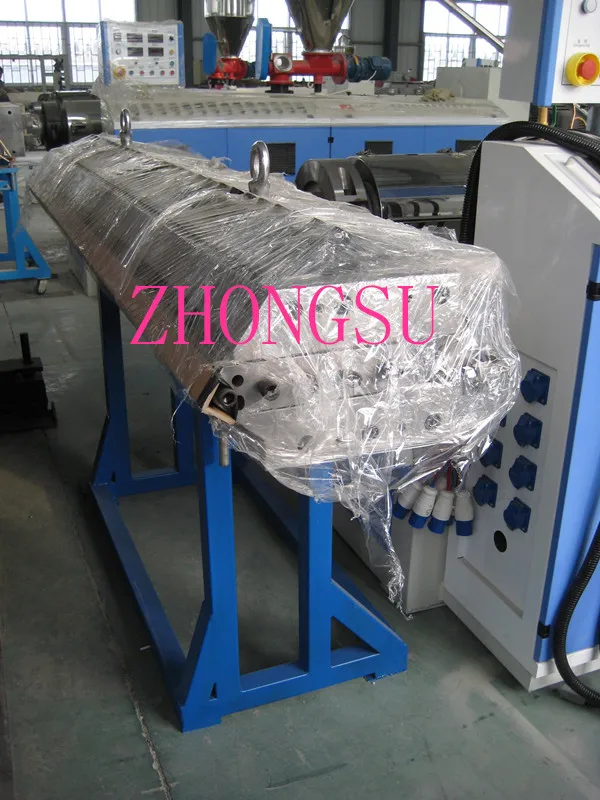

2,Extruder Mould
a) Structure: special design for PVC board
b) Width of die: 1400mm
c)Thickness: 2-5mm
d) Material: 5CrNiMo, high quality alloy

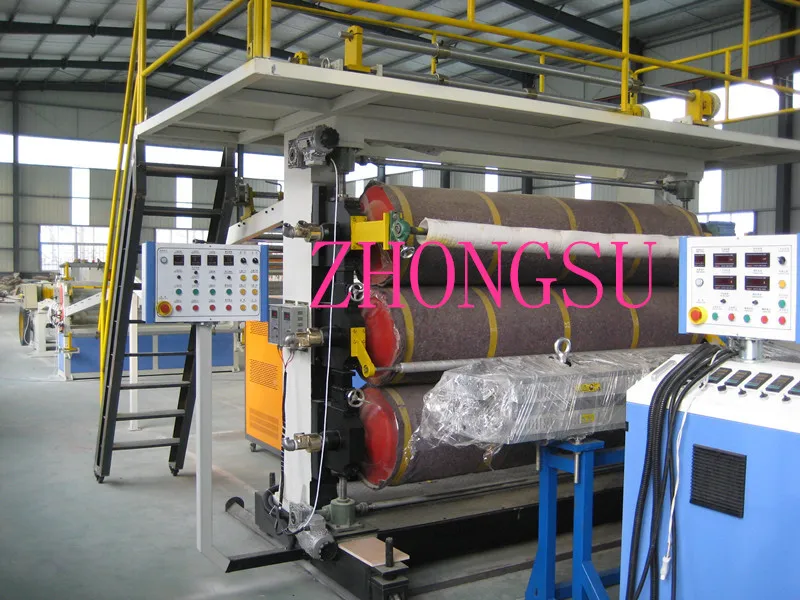

3,Three-calender unit
Calender diameters: 320mm
Calender length:1220mm (or according to customers' requirements)
4,Cooling bracket
a) Total length of roller bracket 5000mm
b) Cooling Roller
Diameter: Ø63mm
Length: 1320mm

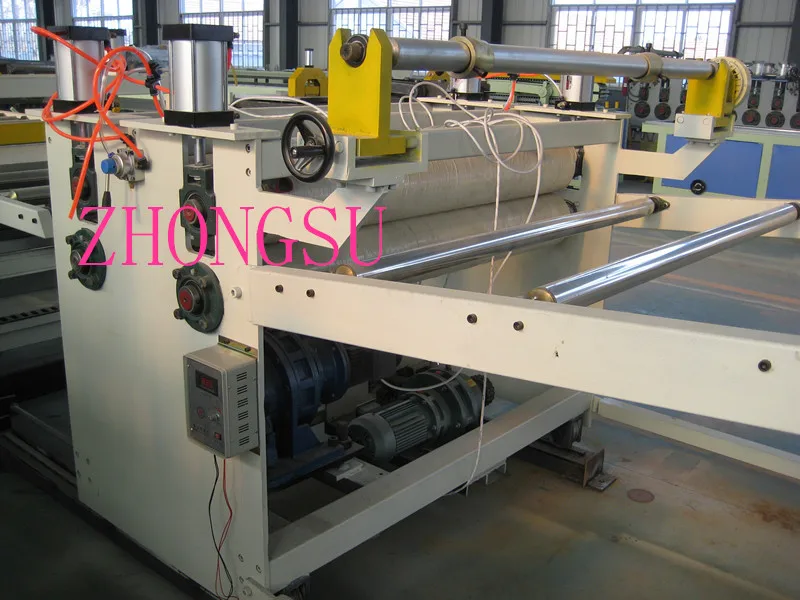

5, Haul-off unit
Max. pulling width:1450mm
Max pulling thickness: 10mm
Pair roller qty: 2 pairs
Driven motor power:0.75kw
6, Cutter & Stacker
Rack type synchronize pressing unit
Special design flat cutting motor: 2.2kW
With non-pole cylinder left and right moving system
Auxiliary Equipments

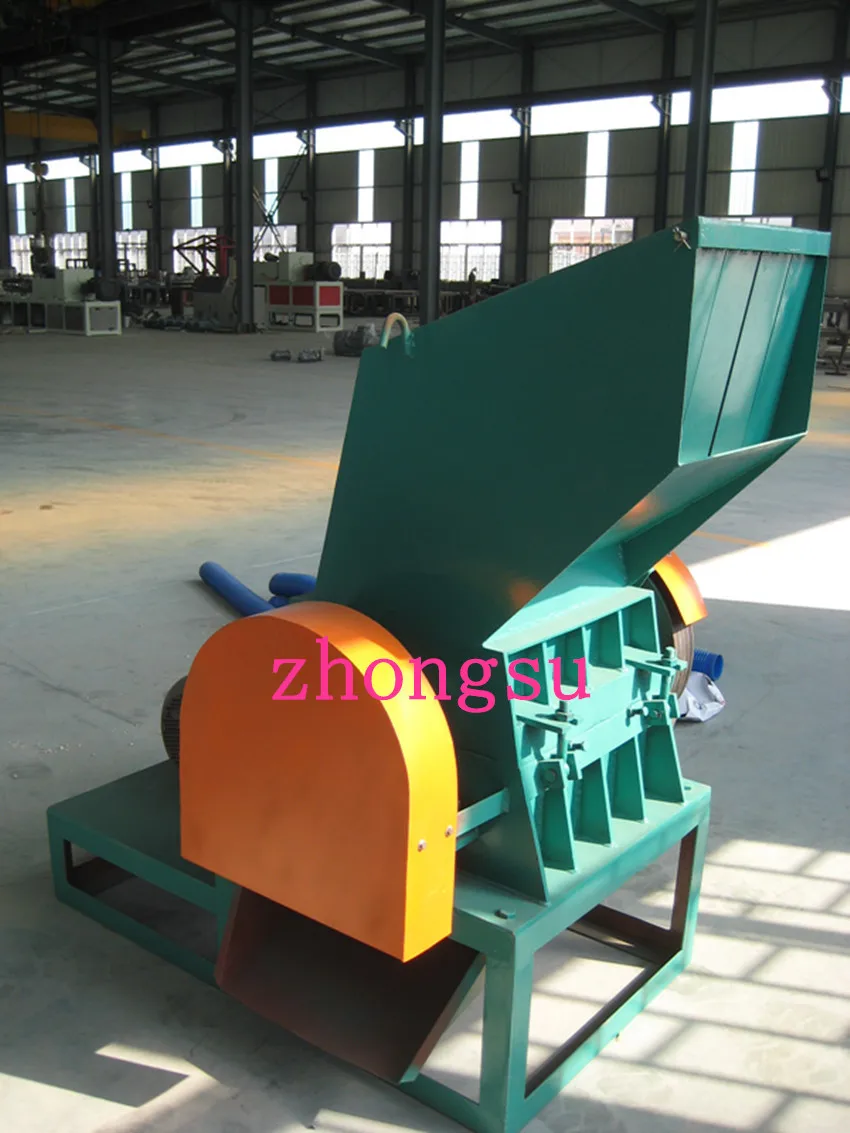

1, Crusher
Application : crushing the edge trimmed from PVC WPC Foam Board into scraps .
2, Miller
Appication milling the PVC WPC Foam Scraps into powder
3, Mixer
Application : mixing the main materials with other addtives
4, Air Storage Tank
Application : storaging the tank for air cylinder
5, Compressor
Application : producing the air for air cylinder
After Sales Services
1, Final commissioning and training at buyer’s factory.
2, The seller will send 2 or 3 engineers to make the final commissioning and training. All the charges (round air ticket charge, food, lodging and other local charges) have to be borne by the buyer.
3, US$ 100 for each engineer per day out of China should be paid by buyer
4, Both parties will negotiated the time for the final inspection and training according to the conditions between both sides.
