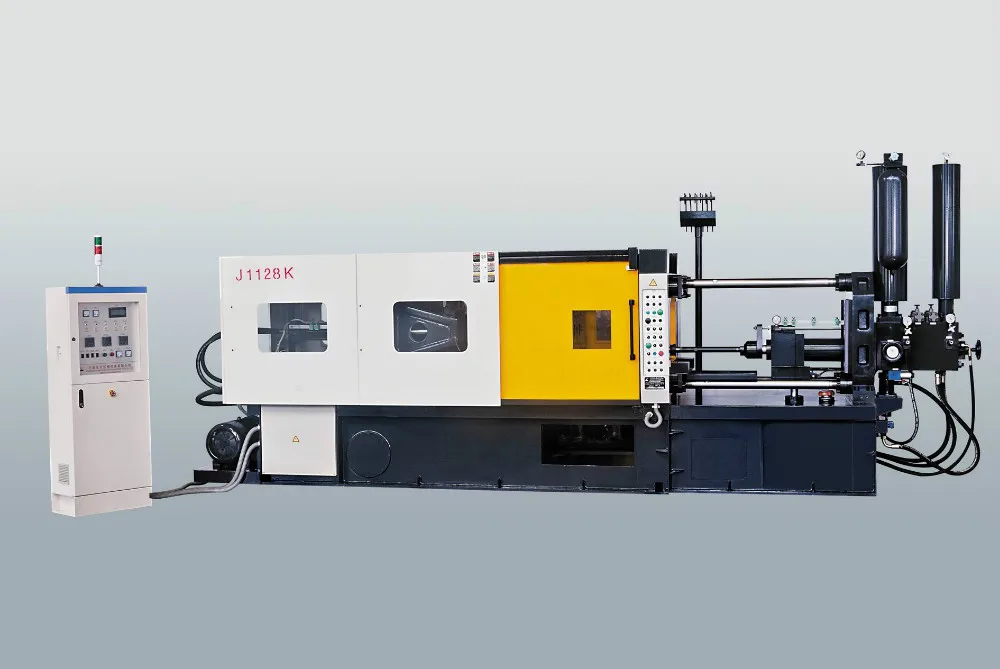

J1128K, this cold chamber aluminum die casting machine is equiped with Mitsubishi PLC and screen,
YUKEN electronic valve,
SUNNY vane pump.......
J2118K, 280ton/2800Kn horizontal cold chamber die casting machine, is suitable for die casting of non-ferrous metal with low melting point, such as aluminum, znic and copper. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.
This aluminum die casting machine is equipped with programmable logic controller (PLC) and Graphics operation terminal (person-machine interface) that are imported from Japan. The simple operating interface and proportional relief and flow control valves ensure easy operation of parameter and program setup. Die locking adopts crank expanding structure, 4-rod pilot elastic framework and has excellent rigidity, Advanced double-loop and 4-steps hydraulic injecting system that is constant and effective; maximum injection rate over 6m/s and minimum boosting time less than 20ms. The machine is superior in performance, and offers reliable an somooth operations, it owns trouble diagnosis and shooting function, it is an advanced type of die casting machine within our xountry at present.
1. 280T Cold chamber aluminum / brass die Casting Machine
2.Suitable for aluminum,zinc and copper alloy
3.PLC and person-machine interface
4.4-rod pilot elastic framework for excellent rigidity
5.Proportional relief and flow control valves
6.PLC and person-machine interface
7.Efficiency: maximum injection rate over 6m/s
8.Minimum boosting time less than 20ms
Specifications and Parameters of J1128K aluminum die casting machine
SUBJECT
UNIT
J1128K
Die lock force
kN
2800
Size of moving platen (HXV)
mm
930X900
Inner space between bars(HXV)
mm
610X580
Thickness of die block(Min./Max.)
mm
280/680
Stroke of moving platen
mm
480
Ejection stroke
mm
110
Ejection force
kN
150
Injection force
kN
340
Injection stroke
mm
425
Diameter of shot sleeve
mm
50
60
70
Fluid metal dosage per shot(AL)
kg
3.1
Injection pressure (Min.~Max.)
MPa
88-173
Max. projecting area of casting
cm2
318
Dry cycle
s
10
Pipe line pressure
MPa
13
Motor power
kW
18.5
Machine weight
kg
12500
Overall dimensions(LXWXH)
mm
6600X1700X2900
FAQ:
1.Q:Are you a manufacturer of a trade company?
A:We are a manufacturer.And we have our own Export rights.
2.Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?
A:It 's no problem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .
3.Q:Are you make the mould?
A:Yes ,we can not only help to make the mould but also help to design the mould according to your request .
4.Q:How about your warranty and after-sales services?
A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
5.Q:How about your packing ?
A:Generally ,the machines are in nude packing and the spare parts are in wooden cases.
Q:What is your production capacity per machine ?
If some problems and questions pls tell us with no heisitate.
