Product Overview
Description
Automatic pneumatic filling machine for cream ointment ,liquid wash ,shampoo liquid soap

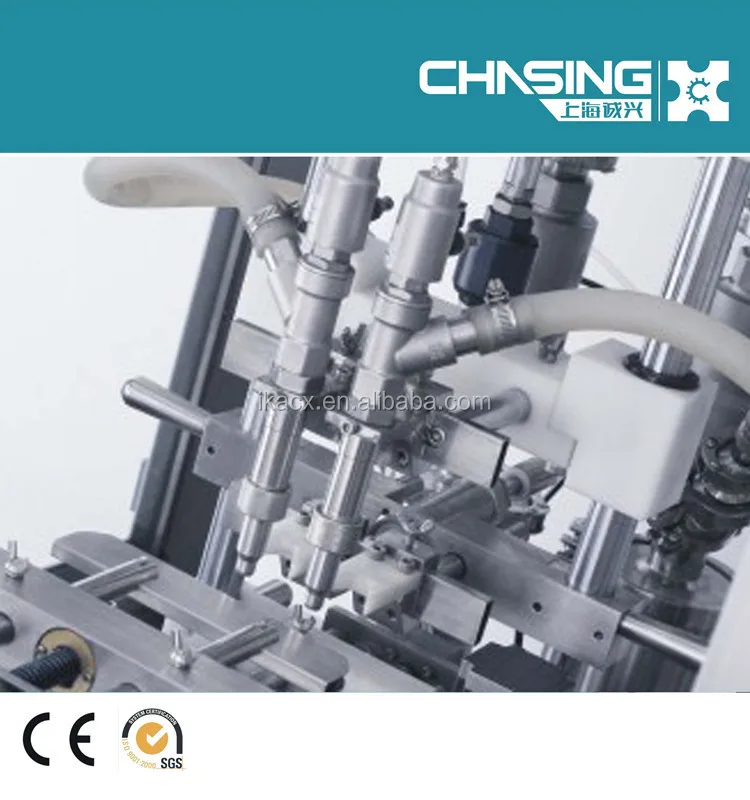

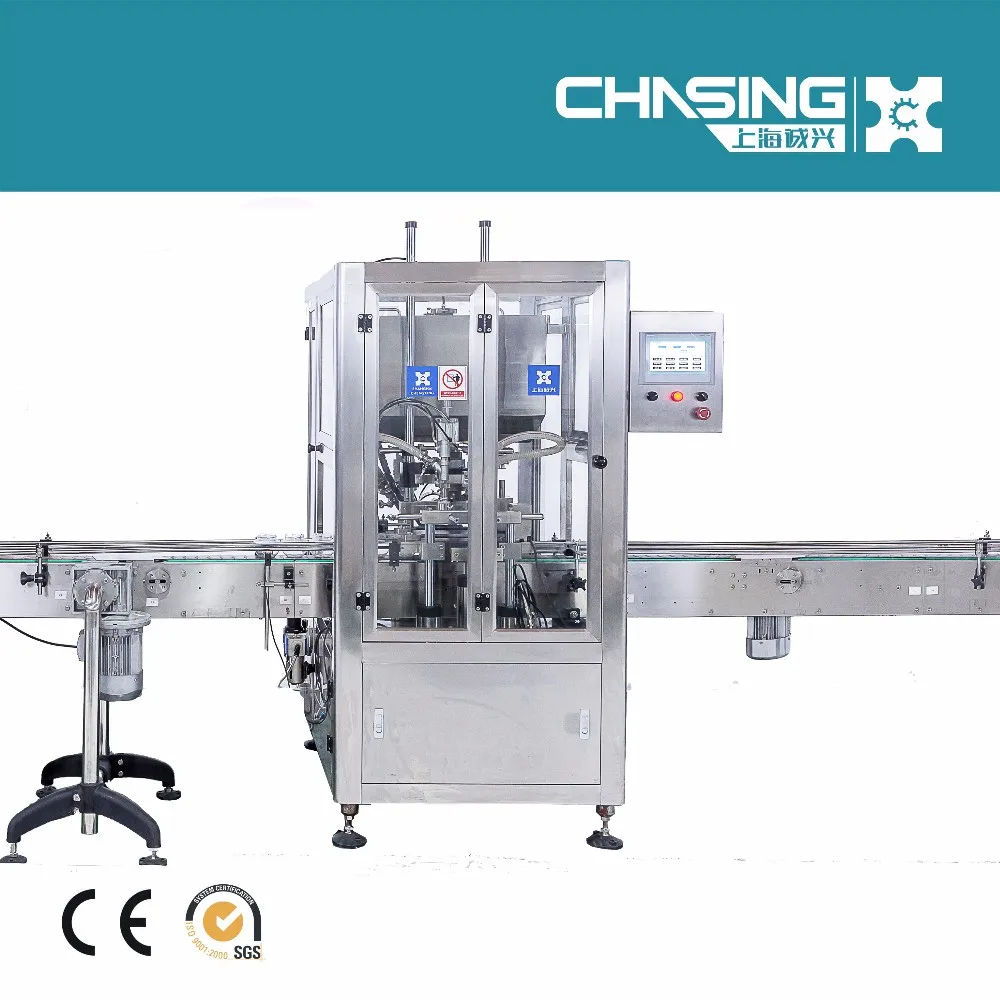

(1)CYZ-2 Doubel heads autoamtic filling machine is a small type autoamtic filling machine which use Panasonic servo motor as dynamic .It could ensure exclusiverly high quality filling precision.capacity could reach 30-70bottles/min.It is suitable to fill cream,lotion,shampoo,body lotion ,liquid detergent and other liquid products.
compare with simalar produts on the market,this machine shows best efficiency and precision.Its operation is much easier and wider range of application .it has great flexibility on produts switch and higher level of sanitary.
Technical parameter
Model:CYZ-2
filling range:10-350ml,30-1000ml,80-2500ml
power source:220v 50Hz 1phase
filing speed:20-60b/min
air pressure:4-6Mpa
power:1.1kw-2kw
suitable bottles shape:diameter:30-100mm,height:30-260mm

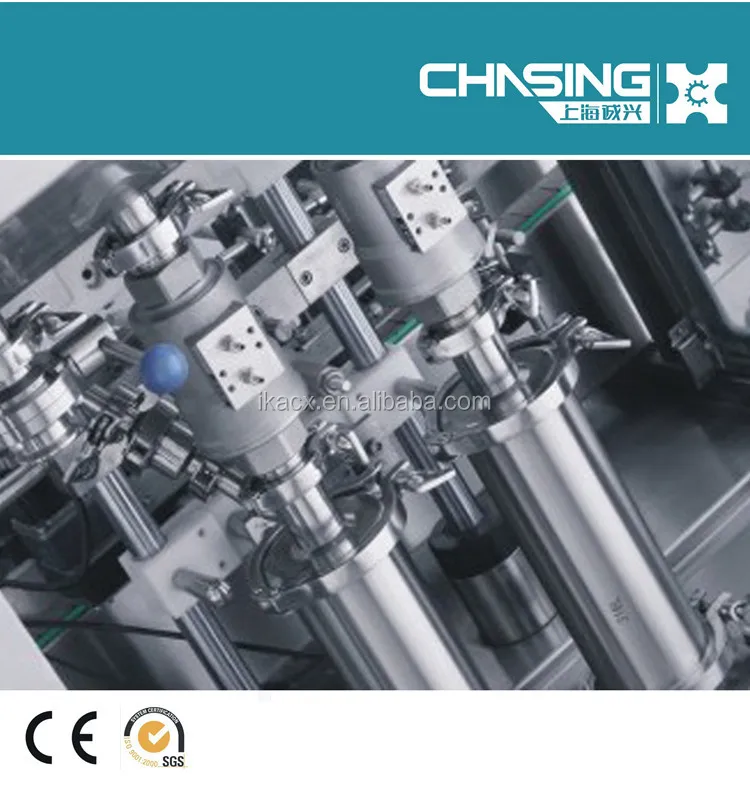

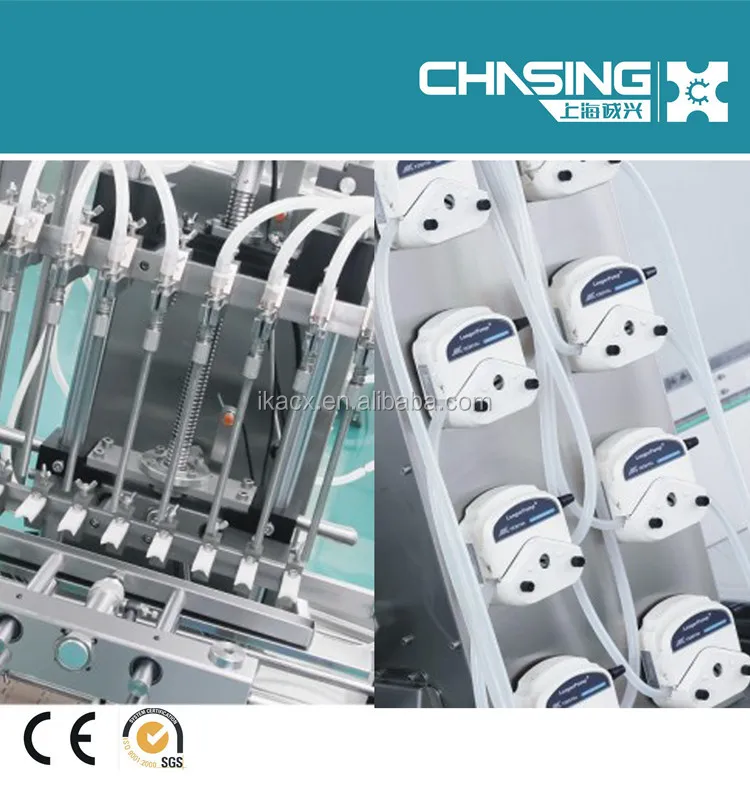

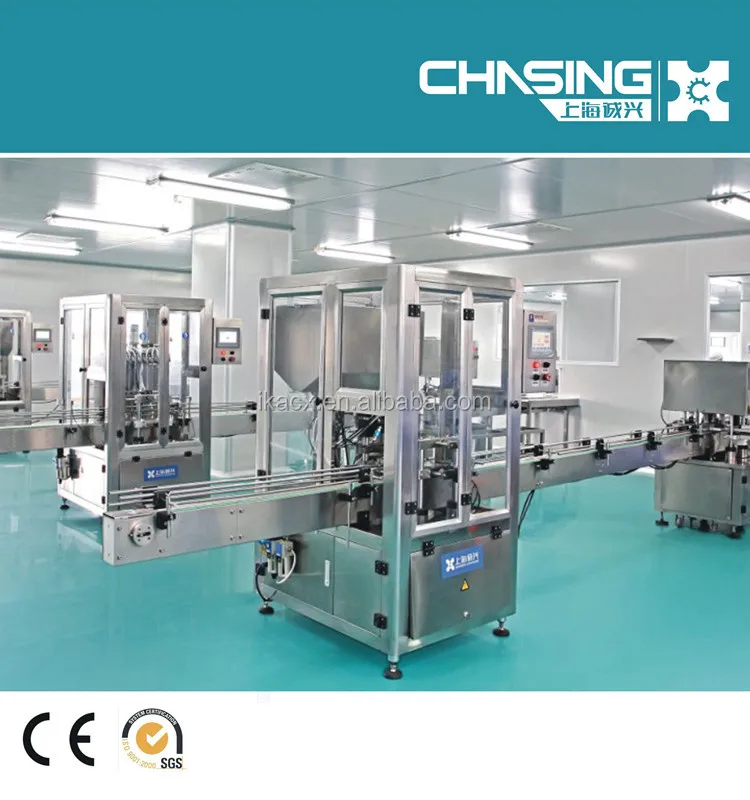

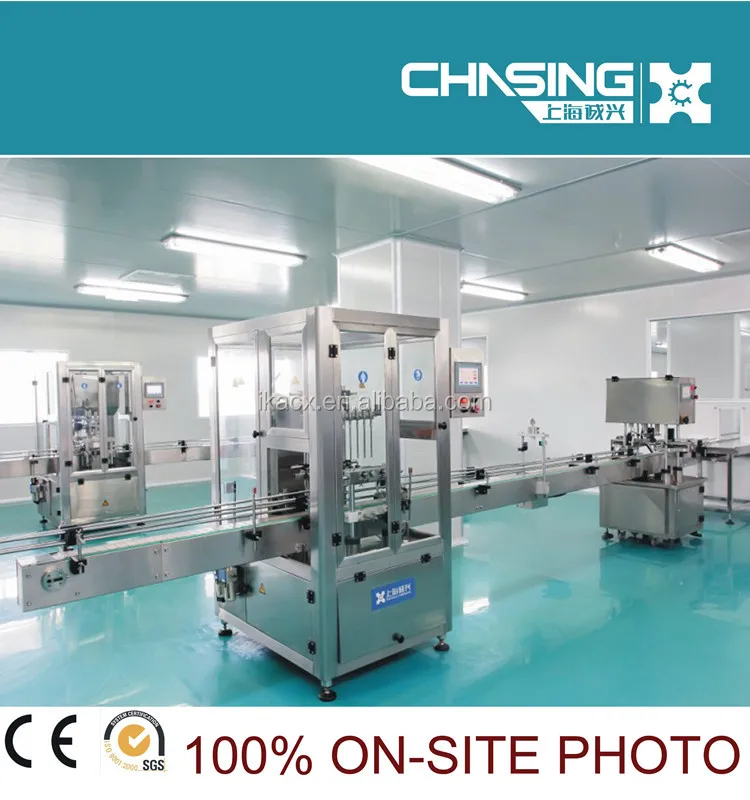

(2)CRZ-4 CRZ-8 4head and 8head filling machine are suitable to fill liquid product with low viscosity and different types of bottles.It is widely used in daily chemicals,pharmacy industrials .It could connetct with capping machine and labeling machine to complete flow production line .
It uses Germany Siemens PLC ,user interface to ensure outstanding quality and durable stable performance.
When adjust filling volume,customer only need to change value on the touch screen .It is convenient and precise .
Photoelectric counting,PLC contorl,not bottle no filling.
Technical parameter
FillLING VOLUME :10-500ml
power source:220v 50Hz 1Phase (other can be customed)
Filling speed:10-60b/min
air pressure:4-6Mpa
Power:0.5kw
suitabel bottle shapa: diameter:30-100mm ,Height:30-230mm

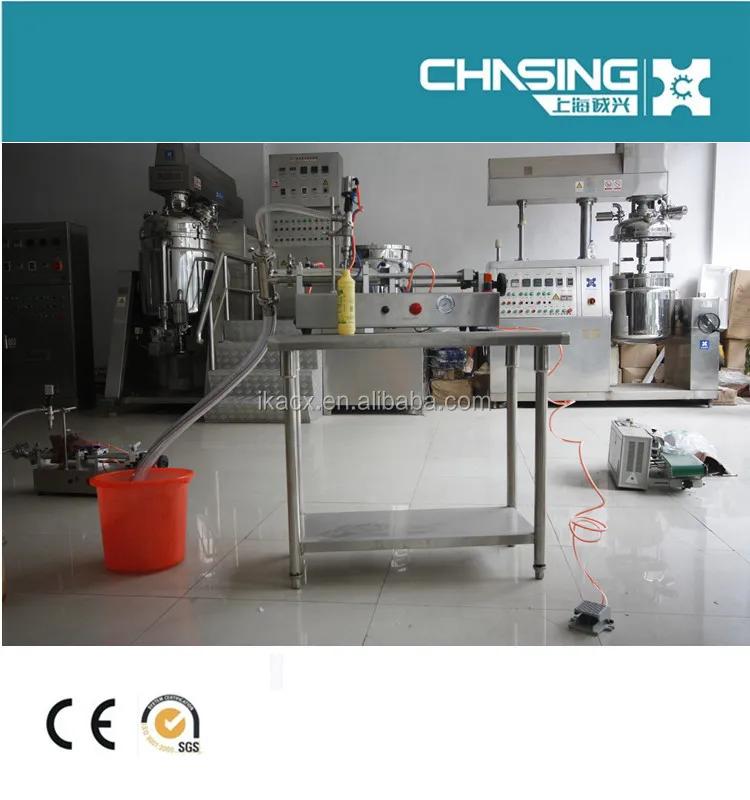

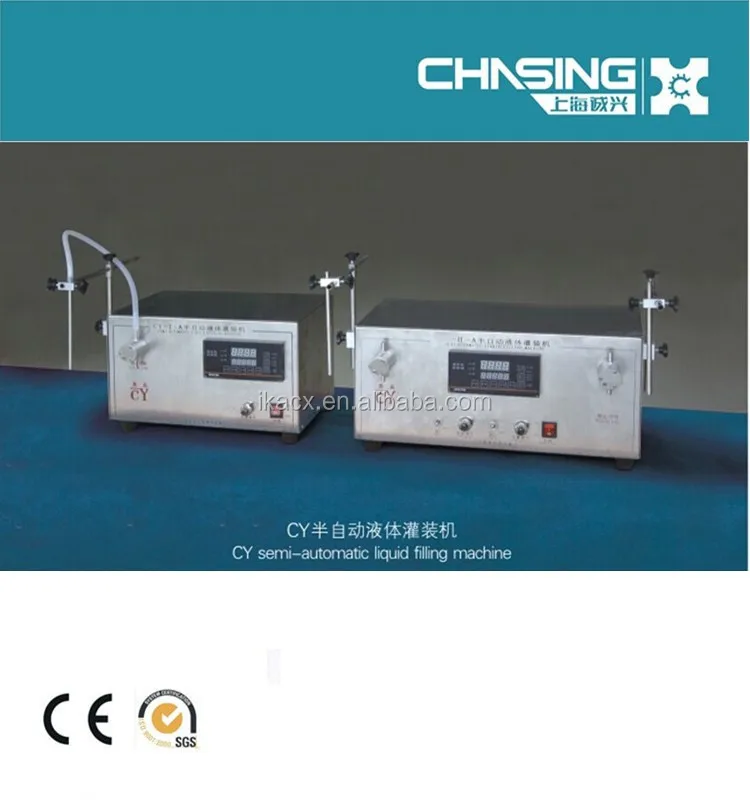

(3)Semi-auto self-suction liquid filling machine
| Model | Filling range | theory filling range | Air consuption | filling speed | filling pressure |
| SGZ/SQZ-6 | 5-60ml | 25-60ml | 19L/min | 0-50bottle/min | 6kg |
| SGZ/SQZ-12 | 10-120ml | 50-20ml | 25l/min | 0-50bottle/min | 6kg |
| SGZ/SQZ-25 | 25-250ml | 100-250ml | 30L/min | 0-50bottle/min | 6kg |
| SGZ/SQZ-50 | 50-500ml | 200-500ml | 45L/min | 0-50bottle/min | 6kg |
| SGZ/SQZ-100 | 100-1000ml | 300-1000ml | 120L/min | 0-50bottle/min | 6kg |
| SGZ/SQZ-200 | 200-2000ml | 400-2000ml | 250L/min | 0-50bottle/min | 6kg |
| SGZ/SQZ-500 | 500-5000ml | 1000-5000ml | 428L/min | 0-50bottle/min | 6kg |

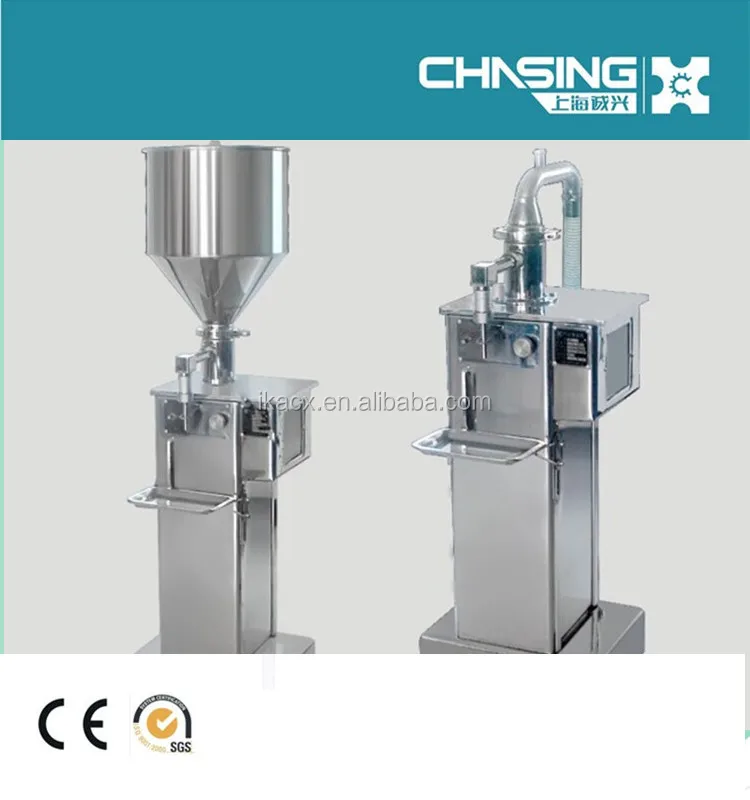

(4)semi-auto paste filling machine
| filling range | 20-200ml | 100-600ml | 300-1000ml |
| filling speed | 20-60bottle/min | 20-60bottle/min | 20-60bottle/min |
| air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| working pressure | 0.1-0.5MPA | 0.1-0.5Mpa | 0.1-0.5Mpa |
| air consuption | 0.035(M3 /min) | 0.035(m3/ min) | 0.035(m3/ min) |
| filling precision | +-1.5% | +-1.5% | +-1.5% |
| size | 450*450*1600(mm) | 450*450*1600(mm) | 450*450*1600(mm) |
Pls note that ,according to your requirement ,We can match best machine and make good programs for you .
Hope we can establish Win-Win situation !
Filling machine as following :
Packaging & Shipping
Wooden case
Our Services
Pre-sale service:
Made up of several excellent sales engineers and focused on recommending and selecting suitable products for customers.
Technical support:
With a good background of education, many years of experience, provide the user with equipment confirmation, system project plan and technology update and product upgrade and other services.
Project manager:
Conduct order tracking and execute one-to-one service to customers until the product is delivered to customers.
Engineering services:
Fast and professional engineering installation and after-sales service team, ensure every equipment, every project can smoothly deliver users.
Our clients as following:
Warmly welcome to vist our factory and company(Our factory in Shanghai):

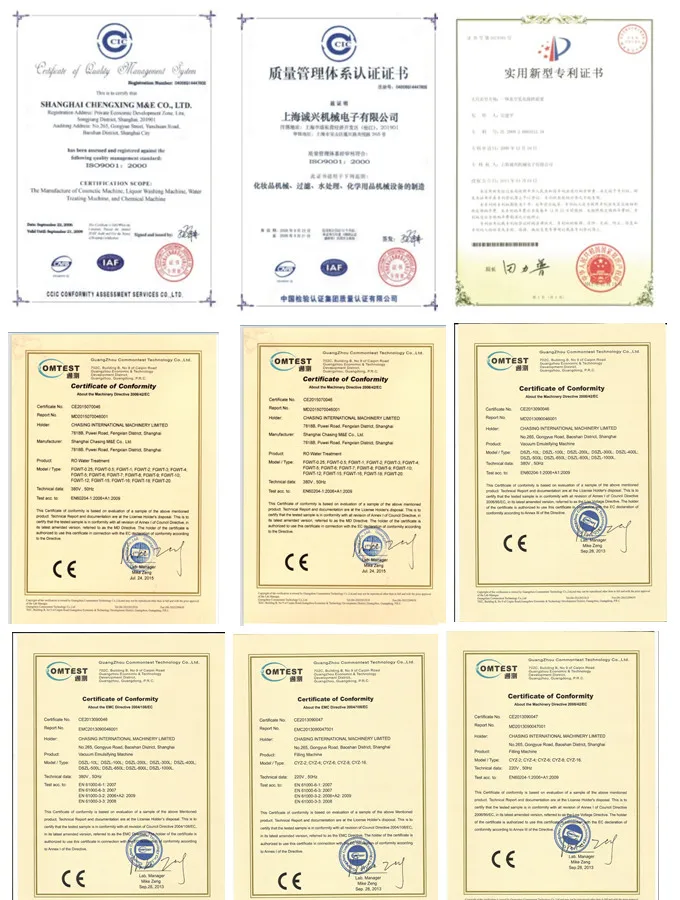

CE Certification as following :
