Product Overview

Description

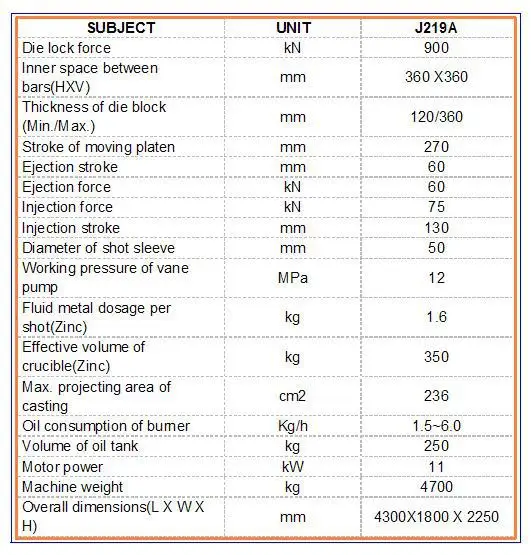

Zinc / Hot chamber die casting machine  J219A



The project	The unit	J219A
Die locking force	KN	900
Stroke of moving plate	mm	270
Inner space between the bars(H*V)	mm	360*360
Thickness of die block (Min./Max.)	mm	120/360
Injection force	KN	75
Injection stroke	mm	130
Injection Postion	mm	0,-60
Ejection force	KN	60
Ejection stroke	mm	60
Diameter of shot sleeve	mm	60
Max.projection area of casting	cm2	236
Working pressure of vane pump	MPa	12
Motor power	KW	11
Dosaage of fluid metal per shot (Zinc)	kg	1.6
Effective volume of crucible(Zinc)	kg	350
Oil consumption of burner	kg/h	1.5~6.0
Volume of oil tank	kg	250
Machine weight	kg	4700
Overall dimensions (L*W*H)	mm	4300*1800*2250

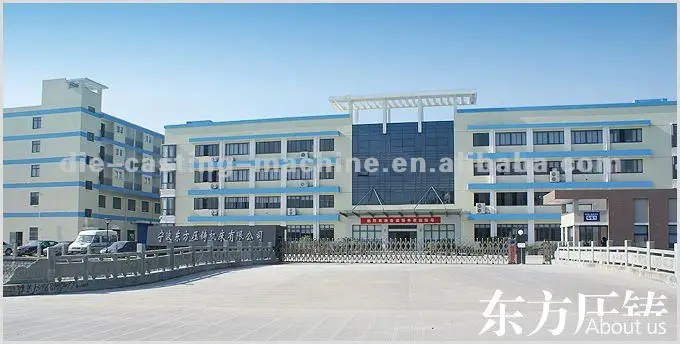

Strategy of the Company



In Ningbo Dongfan Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 30 years, we always have perisistently pursue to provide perfect cold/ hot chamber die cast machine and sincere service.  We are devoted ourselves to higher and better die cast technology in die casting are in China.





* With a history of over  37  years                        * Factory Area : 40,000 square meters

*Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center            * Main Machines: 100sets

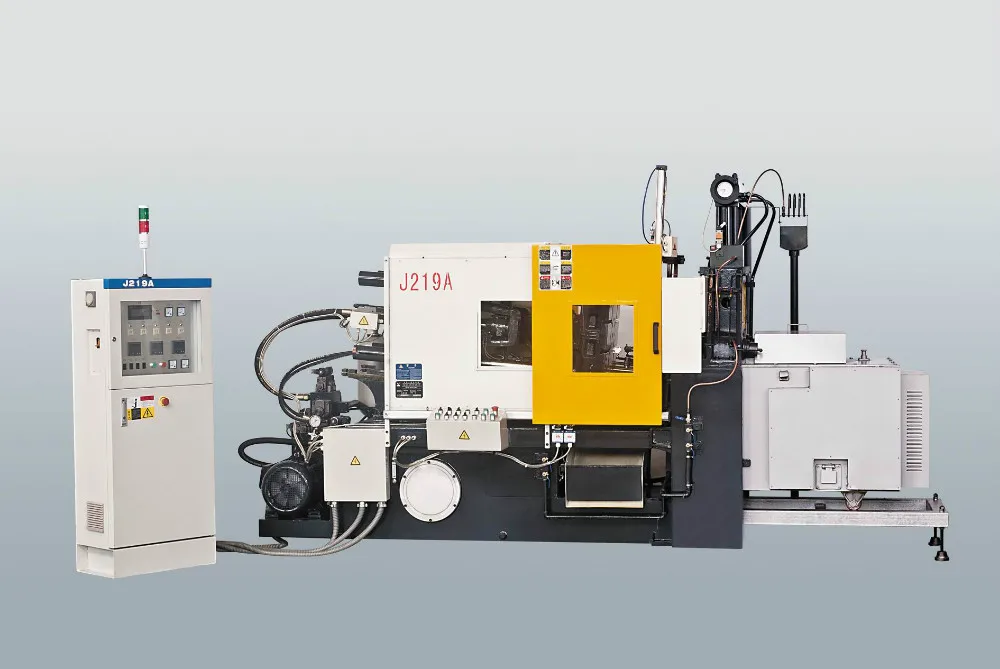

J219A 88ton hot chamber Machine features

1.880kN/88T Hot Chamber Die- Casting Machine

2.Sutiable for zinc and lead alloy

3.PLC and person-machine interface

4.3-moment locking module to protect module and die

5.3-pot automatic lift structure to keep more balance and convenient

6.Constant and effective Hydraulic boosting to make  injection rate over 6m/s





The machine could process low melting point metal of colored alloy of zinc and lead, which are widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.

Hydraulic pressure is controlled by flow and pressure proportion value, speed and pressure can be regulated, Hydraulic boosting is constant and effective, injection rate over 6m/s.3-pot automatic lift structure make module lift more balanced and convenient.

The machine adopt 3-moment locking module, low pressure effectually protect module and die.

The machine is equipped with electronics and hydraulic pressed parts of import. The machine it is controlled by program which is stable and reliable.





FAQ:

Q:Are you a manufacturer of a trade company?

A:We are a manufacturer.And we have our own Export rights.



Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .



Q:How is your delivery time?

A:Generally ,we can dilivery the machine within 7-10 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.



Q:How about the payment terms?

A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.



Q:How about your warranty and after-sales services?

A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.



Q:How about your packing ?

A:Generally ,the machines are in nude packing and the spare parts are in wooden cases.
