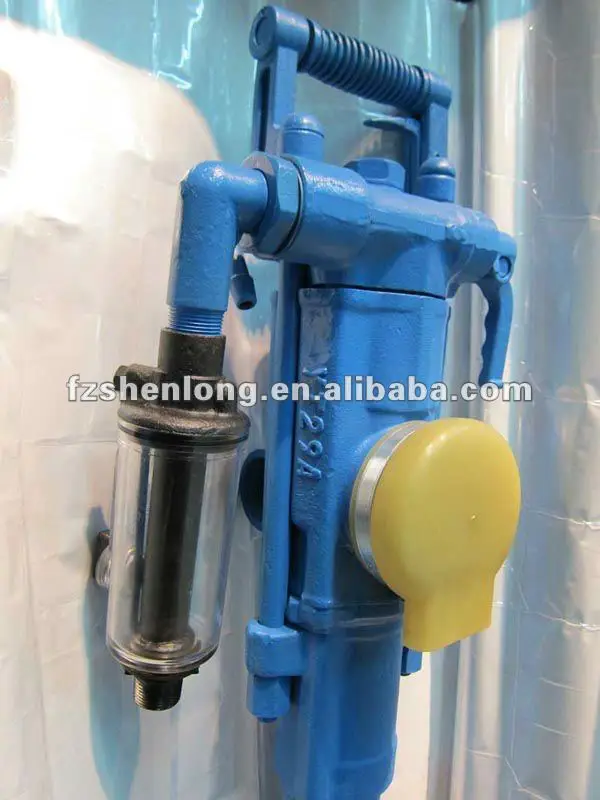

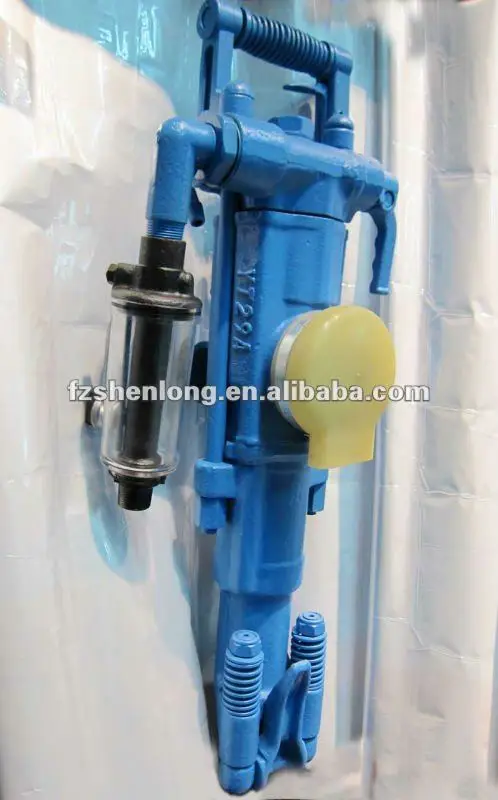

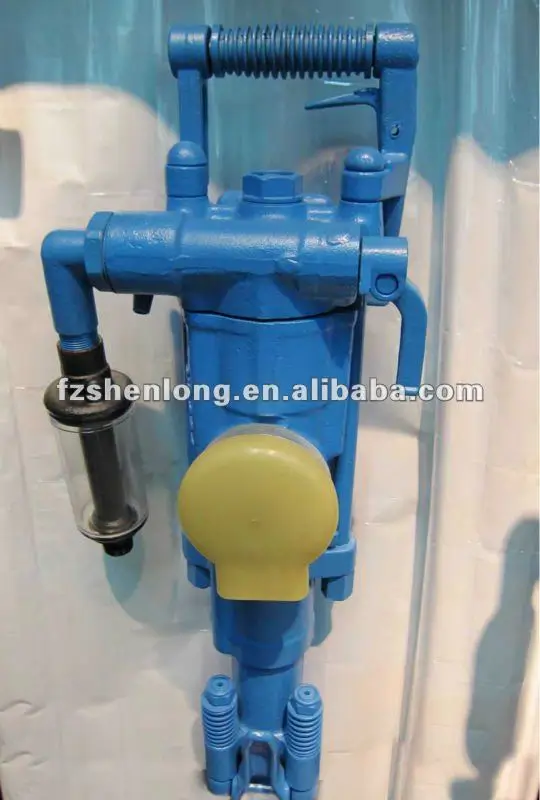

YT29A pneumatic hammer drill

Product Overview

Description



YT29A Air Leg Rock Drilling  Machine





The YT29A rock drill is the most strongest, powerful and highly efficient rock drill in the range It gives improved productivity and drill steel economs and can be used on all rock formation and in all kinds of applications.





Description



Weight  26 KG

All length  660MM

Air consumption  82L/S

Drilling Frequency  40HZ

Air pipe inner Dia. 25MM

Water pipe inner Dia. 13MM

Drilling Hole Dia. 34-42MM

Drilling Depth 5M

Shank Size 22X108mm

Air pressure 0.63Mpa

FT160 Air leg:

Weight  17KG

Length 1800MM



Pushing stroke 1370MM

FY250 Oil Reservoir:

Weight 1.2KG

Oil capacity 250ML
