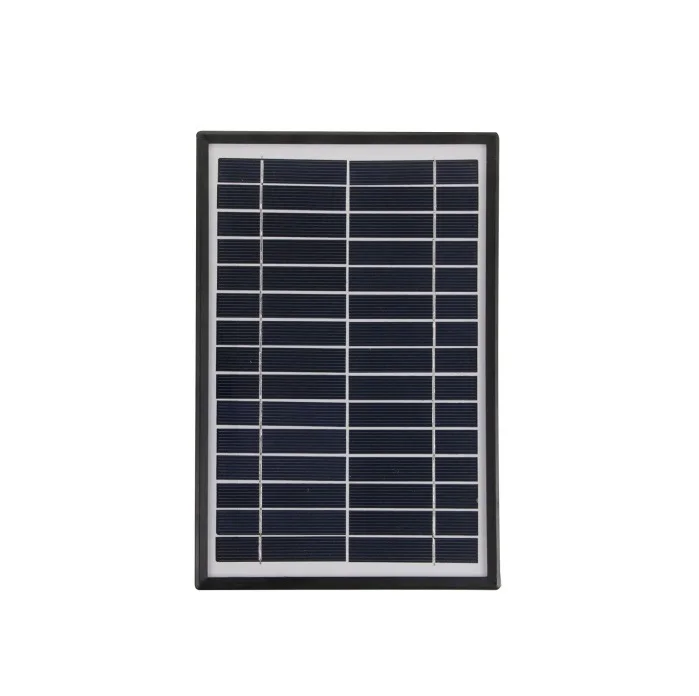

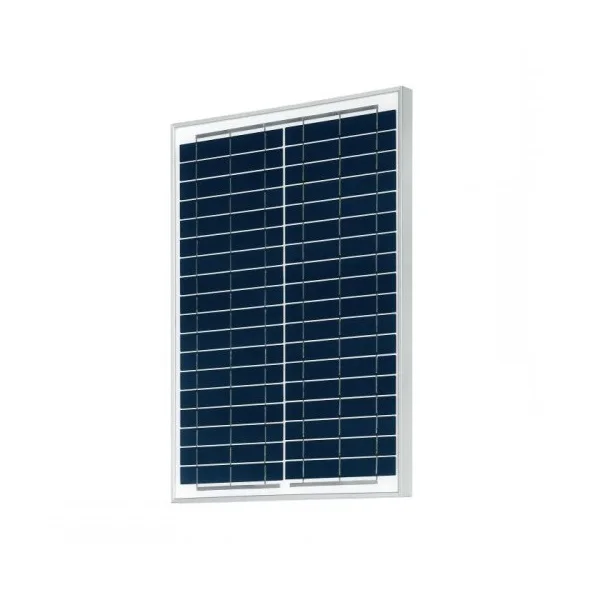

sun power 25 Watt mono solar panel 12v poly solar panel 25w

Product Overview

Description

25watt white color frame PV Solar Panel applied to DC LED street lights camping picnic caravan RV Boat greenhouse



Features





1. High cell efficiency with quality silicon materials for long term output stability and reliability.



2. Strictly quality control ensure the stability and reliability, totally 23 testing procedure to do quality control



3 . High transmittance low iron tempered glass with enhanced stiffness and impact resistance



4. PET sheet imported from Toyo Japan with advanced encapsulatiing material, laminated in totally automatically



machine by experienced technician.



5. excellent performance in harsh weather



6. Outstanding electrical performance under high temperature and low irradiance conditons





Specifications:




Specifcation
Reted power	25W
Voc	22.41V
Vop	17.9V
Short circuit current (Isc)	1.54A
Working current (Iop)	1.4A
Output Tolerance	±3%
Temperate coefficient of Isc	(010+/- 0.01 )%/ ℃
Temperate coefficient of Voc	- (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc	-0.47%/℃
Temperature range	-40℃to +80℃
Frame	Heavy duty aluminum
Kind of connection	waterproof junction box, can be customized
Guarantee of power	90% within 10 years 80% within 25 years
Kind of glass and its thickness	Low Iron, high transparency tempered glass of 3.2mm
SLA Battery Voltage	12V
Dimensions (L x W x H)mm	520*365*18(20.47*14.37*0.71in)
