Heavy duty 5 ton hand pallet jack Ningbo China SBA50, High Quality 5000kg Long Fork Hand Pallet Truck Price

Product Overview

Description

  5 ton heavy duty hand pallet jack truck CE,from Ningbo China

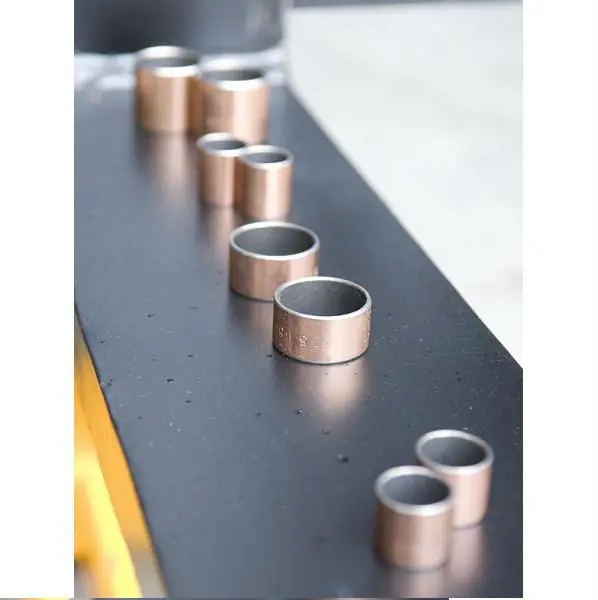

1.with copper bushings,no need to add grease,reduce maintenance cost.



2. With entry roller,adjustable pushing rod



3. Frame

strenghthen part



round tip



longer welding



4.Wheels can be in Nylon,Polyurethane and Rubber material



5. Main color can be as per customer's request



Model	SBA-50
Load capacity/rated load	Q(kg)	5000
Load centre distance	c (mm)	500
Tyre size,front	mm	Φ200
Tyre size rear	mm	Φ80
Lifting height	h 3(mm)	207
Lowered height	h 13(mm)	88
Overall length	l 1(mm)	1620
Fork dimensions	s/e/l	57/160/1220
Distance between fork-arms	b 5(mm)	685











Our advantages:
1) More than 24 years experience team in manufacturing, service.



2) With ISO certificates service and quality is before profit



3) Sample order is welcomed



4) CE/TUV, ISO certificates



5) Free maintenance design



6) Fast delivery time within 30days



7) Optimized round fork tips ensures easy operation



8) 54mm fork thickness ensures high capacity



9) Curve design on the fork tips help pallets entry in/out





















1.  Question: The forks can’t be lifted to the max. lift height?



           Cause: hydraulic oil is not enough



        Solution:  Add appropriate filtrated working oil.



 2.  Question: The forks can’t return to the lowest position?



      Cause  a): Too much hydraulic oil.



      Cause  b):  Some parts are deformed or blocked.



    Solution a):  Take out appropriate working oil.



    Solution b):  Replace the parts or repair.







3. Question: The forks can’t drop after lifted?



     Cause  a):  The control valve is abnormal.



     Cause  b):  The parts are deformed or damaged.



   Solution a):  Readjust the unloading device.



   Solution b):  Replace the damaged and deformed  parts.



 4. Question:  Hydraulic oil leakage?



     Cause  a):   The oil seal is unavailable.



     Cause  b):   The pump core and the surface of the plunger is damaged or worn.



      Cause c):   The coupled places become loosend.



   Solution a):   Replace the oil seal.



   Solution b):   Replace the core, plunger and the damaged parts.



   Solution c):   Fasten the loosened place again.



5. Question:  The fork can’t be lifted



     Cause  a):   The viscosity of the working oil is too high, or there’s no working oil.



     Cause  b):   There’s impurity in the oil.



      Cause c):   The valve is abnormal.



   Solution a):   Check the hydraulic oil or replace it.



   Solution b):   Clear up and add new working oil.



   Solution c):   Readjust the unloading device



 6. Question:  The forks drop immediately after they are lifted; the handle returns or the forks drop markedly after they are lifted



        Cause:   The valve of oil pump is blocked by abnormal matter.



        Solution:   Open the control valve and take out the parts. Then re-install the parts after they are cleaned.
