Автоматическая одноразовая Термоформовочная Машина для пластиковых лотков/лоток для полиэтиленовых семян/формовочная машина для разделения лотков для обедов

Product Overview

Description



Product Description



Automatic disposable plastic tray thermoforming machine/polyethylene seed tray/divided lunch tray forming machine







Outline:

1. A combination of mechanical, electric and pneumatic components;

2. The whole system is controlled by micro-PLC, it can be operated in man-interface;

3. It combines the material sending, heating forming, shaping into one process;

4. It has three operation models: manual, semi-automatic, automatic.

5. The  normal working speed is around 2-6 second/cycle.



Applied range:

 1. It mainly used for BOPS, HIPS, PS, PVC, PET plastic sheet film to heating, forming, cutting, counting, stacking.

 2. It can produce the productions like food containers, trays, bowls, lids etc, such as, food grade boxes, fast food boxes, snack tray, supermaket tray, oral liquid tray and so on.



Main technical parameters



Forming area                                           510*575mm

Maximum forming height                          100mm

Thickness range of sheet                         0.1-1mm

Air flow                                                  3m3/min

Heating plate power                                12Kw

Mould plate heating power                      4.8Kw

Air pressure                                             0.8MPa

Max. sheet roller diameter                       710mm

Water consumption                                  10(liters/min)

Power                                                       3-NAC380V+/-10%

Weight                                                      2200Kg

Dimension                                                 2150*1450*2300mm

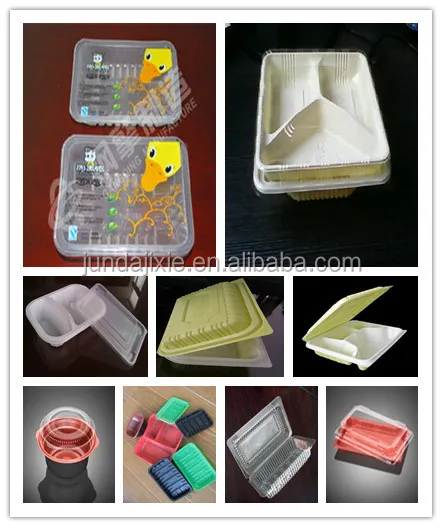

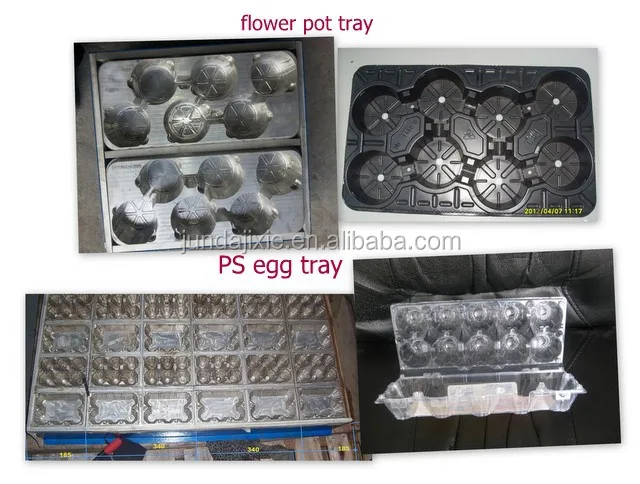

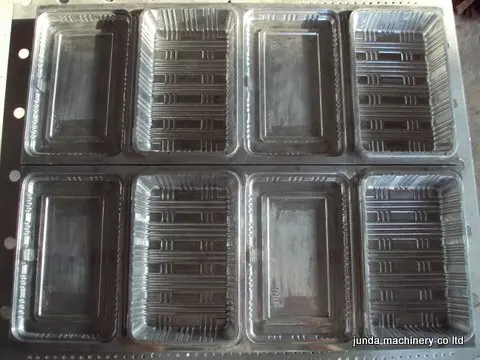

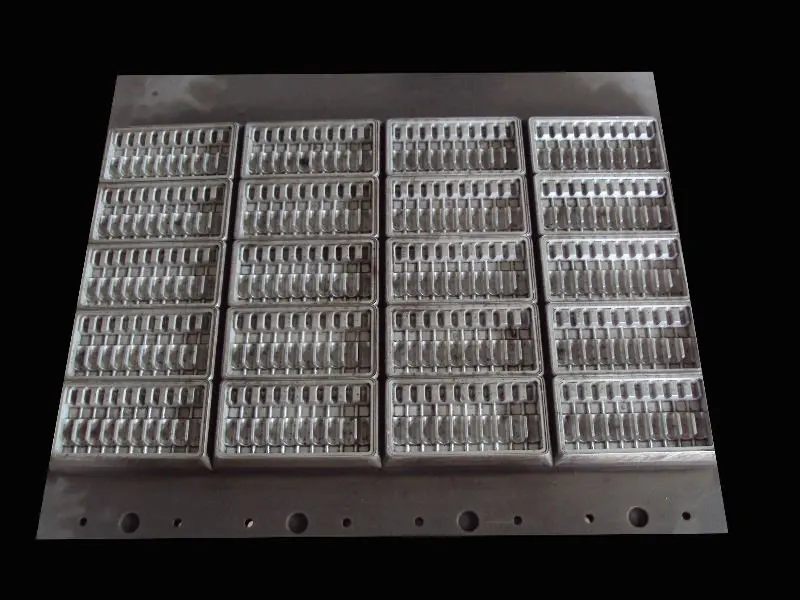

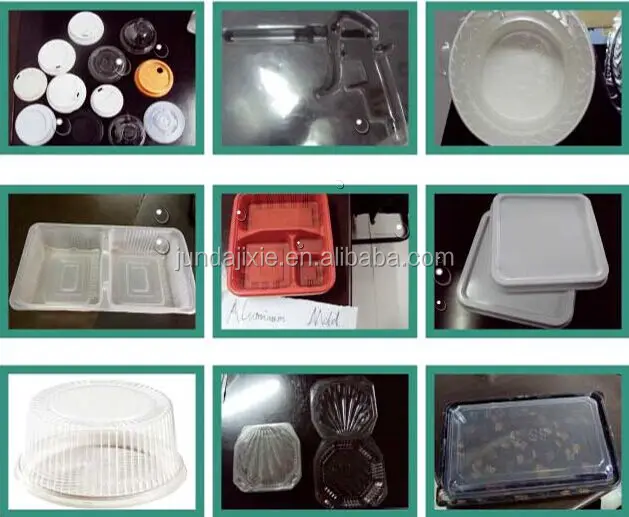

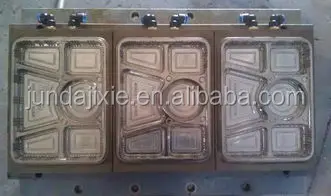

Mould pictures and sample pictures





Packaging & Shipping



Sterilized in wooden packaging shipment



Company Description



Company brief information

Ruian JunDa mechinery co. Ltd specialized in manufacturer of plastic packaging machinery. Now the main production series are thermoforming ,vacuum forming series, a comprehensive and eficient type of positive and negative pressure molding series and related products.And the machines produce the production likefood containers, snack trys, cup, bowls and other industry packaging......



Certification for mechines

Our services



1. Terms of Payment: 40% advance payment by T/T upon signing the contract.60% balance by the T/T before shipment.

2. Installation and Start-up: 1 or 2 technicians will be assigned to coordinate installation, commissioning and training, cost for flight and suitable accommodation & food will be charged additionally. for cup machine noromally one week and cup line will be two weeks.

3. Samples will be first making drawing for customer checking and confirmation then starting mould production ,machine quotation based on FOB Ningbo Port.

4. Delivery time:     30 days after deposit reached.

5. Warranty:   12 months limited warranty. Starting from the date of machine arrival buyer's place excluding wear parts.
