rebar shear line 600

Product Overview

Description

 Rebar Cutter/ Rebar shear line

Products Introduction : This machine may cut both grade1,grade 2,grade 3 and grade 4 deformed steel bars, it's a automatic processing and steel production line with high quality cutting, transportation, storage, processing together.Widely used in road, rail and nuclear power construction and other fields.



CHARACTERISTIC



1,CNC control, automatic cut, stock and distribute the bars (patent).

2,Germany PLC and CNC to ensure high cutting quality.

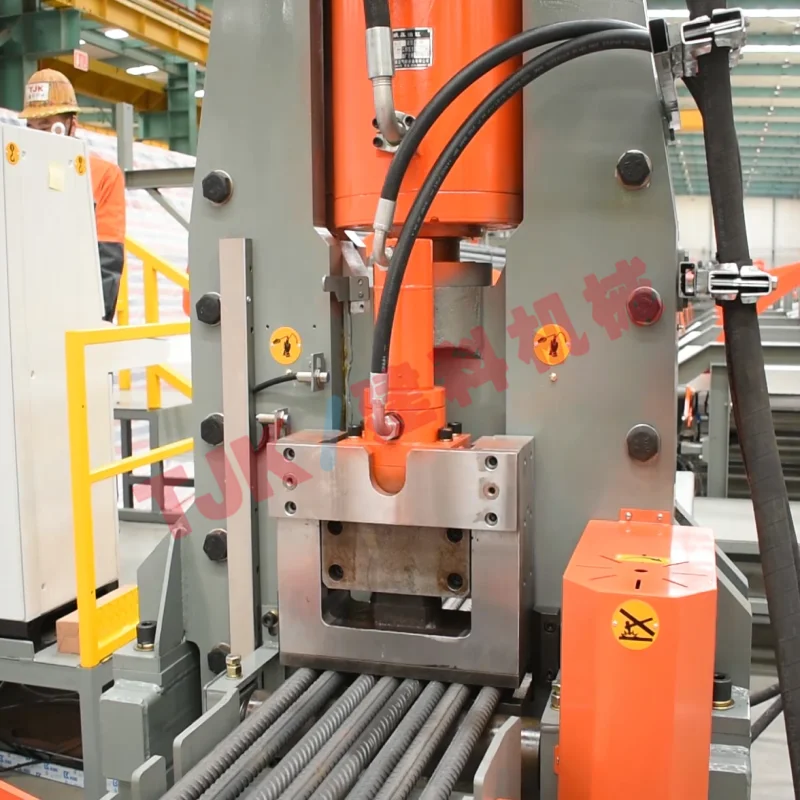

3,Hydraulic guillotine system.

4,Multiple baffle for quick positioning and high efficiency (patent).

5,Gradient guillotine with high capacity (patent).

6,Bi-side descharge (patent).

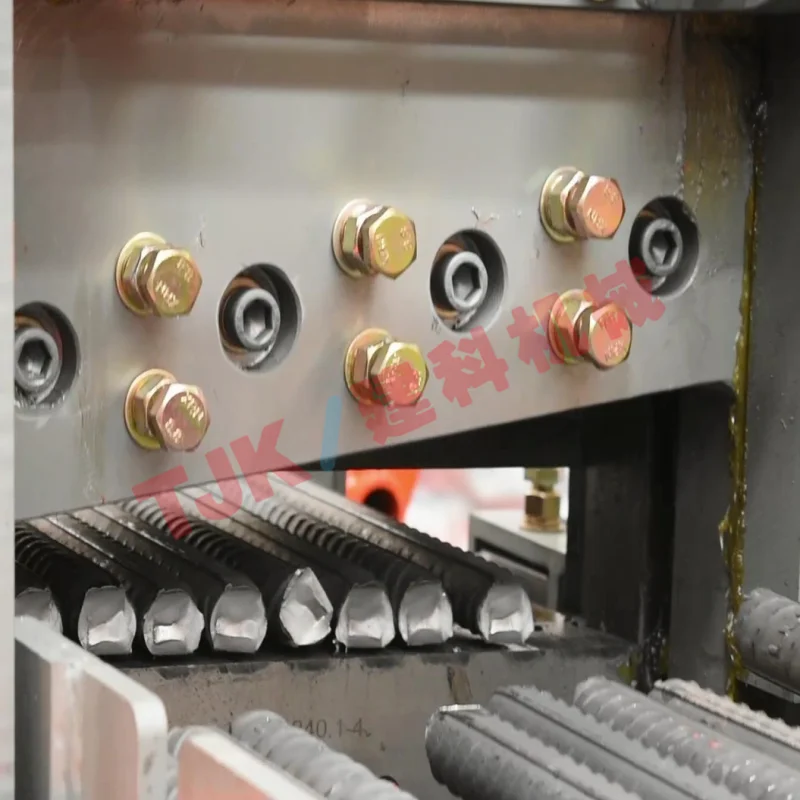

7,Groove blade.

8,6 in-feed units and safety monitors.

9,Variable frequency control on in-feed conveyor.

10,Control systems: SIEMENS, MITSUBISHI, PANASONIC.



TECHNICAL DATA





Model	GJW-150	GJW-200	GJW-300	GJW-600
Shear capacity(T)	150	200	300	600
Installed power(kw)	40	54.3	94.3	120
Conveyor speed(m/min)	90	40-80	40-80	40-80
Cut to length accuracy	6-8	14	14	14
Cut to length	±2	±2	±2	±2
Cut to length accuracy	800-12000	1500-12000	1500-12000	1500-12000
Shear blade width	600	410	510	650
Collecting pockets nos.	8*2	6*2	8*2	8*2
Convery loading capacity	800	800	800	1200
Pressed air(mpa)	0.5	0.6	0.6	0.6
Operation temperature	0-40	0-40	0-40	0-40
Operation humidity	30-85	30-85	30-85	30-85
Bar size(mm)	10.12.16.20.40. 50.22.25.28.32	10.16.22.28.32. 40.14.20.25.30	10.16.22.28.32.40 50.14.20.25.30	16.22.28.32.40 50.20.25.30
Nos.to be sheared(pcs)	20.14.12.8.4.3	20.12.8.4.2.1	26.18.10.8.6.3.1	20.14.12.8.4.3

TJK is a leading manufacturer for Reinforcement Steel Processing Machines: Stirrup bending, Cut & Bend, Mesh Welding, Cage Welding, Lattice Girder and Tunnel Lining, Tunnel segment machines etc.

 Founded in 2002, TJK was listed in Shenzhen Stock Exchange in 2020, Stock Code: 300823. we have a total build up factory area of 270,000 square meters which located in Tianjin, China and have more than 600 employees. We enjoy more than 85% of the domestic market share, and we have operated in more than 102 countries and regions.

 At TJK, innovation focuses on customer needs. Our strength lies in offering more suitable, more flexible and more competitive solutions for the customers all over the world in time.
