Product Overview

Description

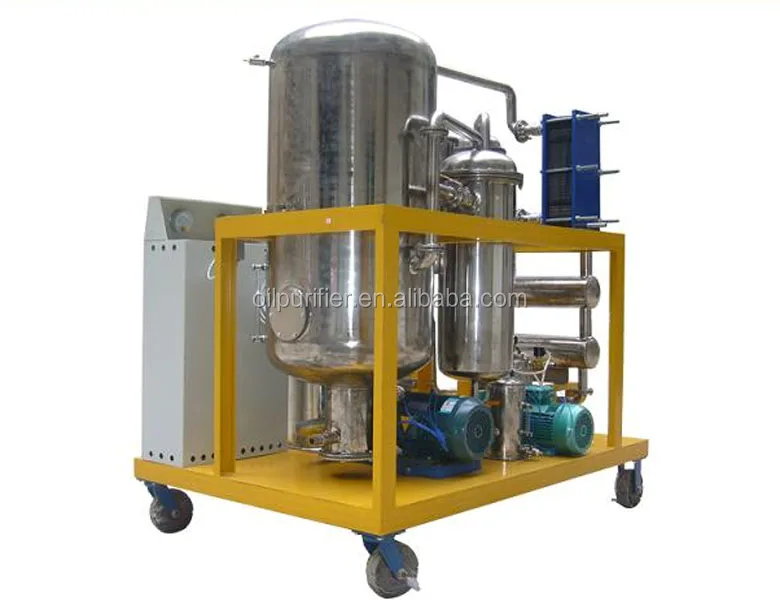

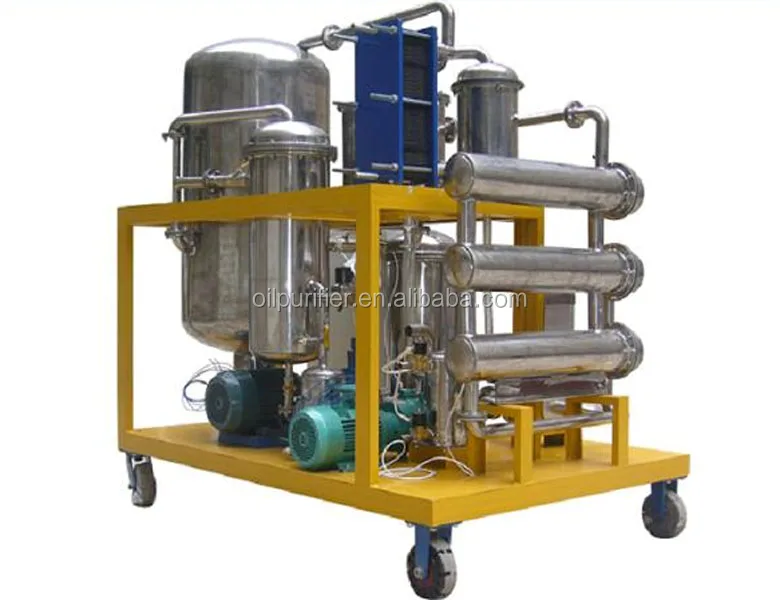

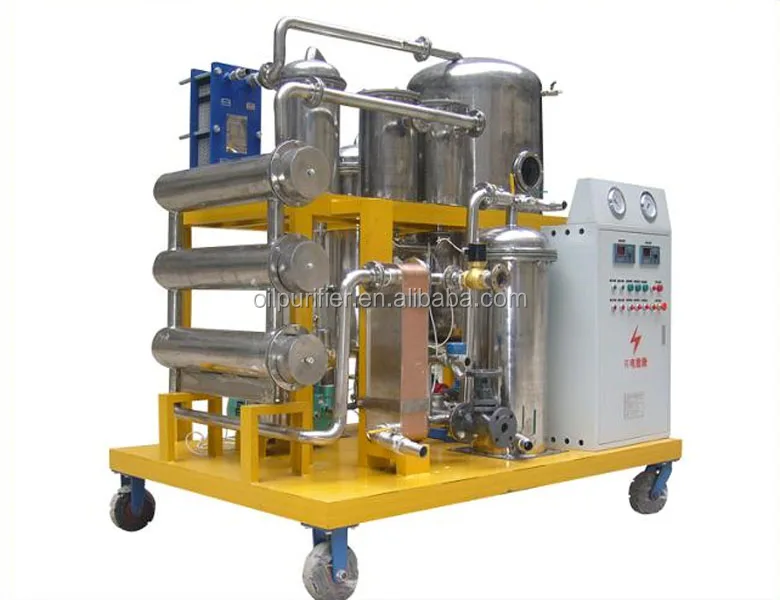

                                          Waste Cooking Oil Recycling System Series COP

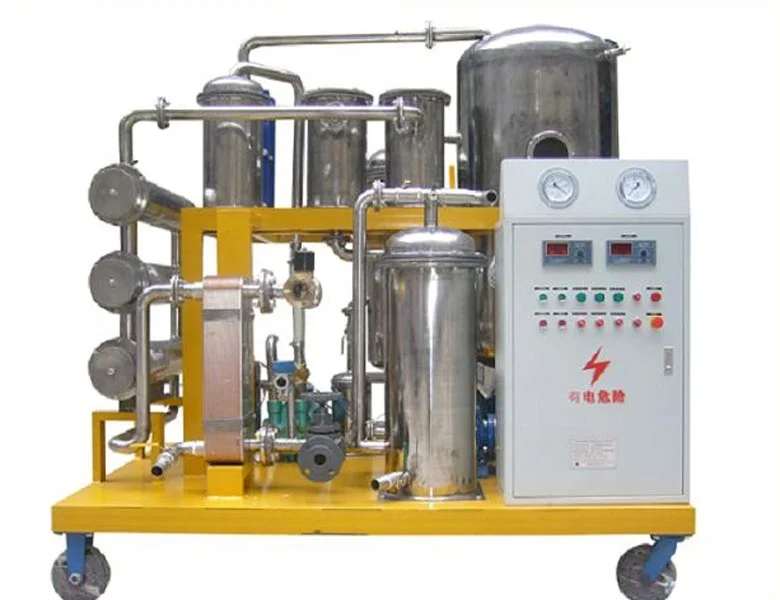

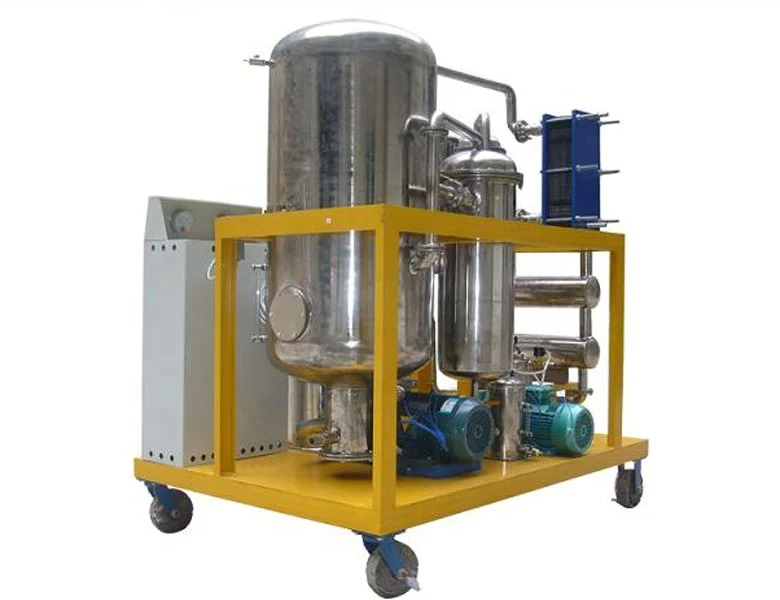

Waste Cooking Oil Purifier,UCO Disposal System for Bio Diesel Application

The COP High Vacuum Cooking Oil Purification System is especially designed to remove water, gases and particulates from waste cooking oils, vegetable oils, palm oil, rapeseed oil, sunflower seed oil, olive oil, peanut oil coconut oil, etc.



This machine can rapidly remove water, particulate matters, impurities and gas, air, volatile matter (for example ethyl alcohol, gasoline, ammonia and so on) from waste oil completely.



Features

1. With the strong ability to filter the impurity, which can filter the particles completely.
2. It has the back flush system, which can clear impurities and clean filters automatically.
3. Advanced dielectric condensation device
4. This machine installs the new pressure protector, which can control the temperature automatically; also it can drain water on line by the water–separator device. So it is easy to control this machine.
5. We adopt the high quality filter materials, which has a good function in anti-corrosive, thermostable, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
6. The unique degas and dewater system: Using the Stereo-Evaporation technical, which can separate the water and gas from the oil quickly by the Multi-level water-oil separation technology.

Advantages

According cooking oil nature, the used cooking oil/vegetable oil includes high water, more acid matter, much impurities and offensive odor.

This machine adopts Plate Pressure system can separate the sundry matters and water from the oil quickly, and break the oil emulsification effectively.





Technical Parameter



Parameters		Unit	COP-10	COP-20	COP-30	COP-50	COP-100	COP-200	COP-300
Flow Rate		L/H	600	1200	1800	3000	6000	12000	18000
Working Vacuum		Mpa	-0.06 ~ -0.095
Working Pressure		Mpa	≤0.4
Temp Range		℃	0 ~ 100
Power Supply			380V/ 50HZ/ 3P (as per request)
Working Noise		dB	≤75	≤75	≤75	≤78	≤78	≤80	≤80
Heating Power		KW	18	24	24	30	54	90	120
Total Power		KW	19.5	25.5	25.5	32	57	98	130
Inlet/Outlet Diam		MM	25	25	25	32	42	50	60
Weight		KG	450	550	600	750	850	1200	1500
Size	Length	MM	1260	1260	1500	1600	1750	1900	2100
	Width	MM	900	900	1050	1150	1250	1700	1700
	Height	MM	1500	1600	1650	1700	1800	2000	2100
AFTER TREATMENT
Water Content		PPM	≤100
Filter Precision		μm	≤5
Cleanliness		NAS	NAS 1638 Class 5 - 7



The dimension and weight will be changed with changing the technical specification.

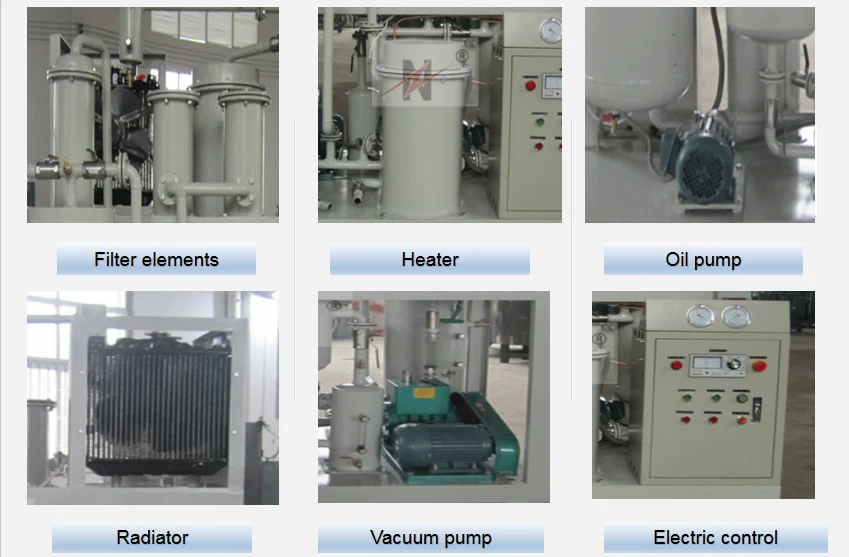

Machine Mainly Parts





Machine’s Main Advantaged Technologies



1.Dehydration System

The free water and water vapor pass through the coalescing separation device (mainly with oleophilic hydrophobic and hydrophilic oleophobic materials), which mainly allows the oil to pass smoothly and the water is automatically separated; for the dissolved water and the emulsified water, the polymer is broken. The emulsification system, the German three-dimensional flashing technology, the atomization generating device, the three-dimensional evaporation device, the thin film vaporization, the Bower's expansion device for the micro water, the binary dehydration device is truly realized, the moisture in the oil is quickly separated, and Deep dewatering, reaching ≤50PPM





2.Degassing system

Adopts the most advanced low-temperature plasma, micro-gram technology, circulating distillation and other technologies, the water and gas in the oil are automatically dehydrated and automatically emulsified by the aggregation and separation technology to remove a large amount of water from the oil. This process removes 100% free water and free gas, 80% dissolved water and 65% dissolved gas. After that, the oil containing traces of moisture and gas is fully atomized by three-dimensional flash evaporation technology to increase the thinning of oil, water and gas molecules, and then the gas in the deep and more cut-out oil





3.Distinctive Filtering System

We adopt the double mesh type impurity removal method, firstly remove all the impurities containing impurities with particle size ≥5μm or more in the oil through the filter filter; then use the molecular adsorption material (HDM) imported from Germany to make the FH filter with ≤5μm impurities. By removing the impurities of 1-5 μm in the oil by adsorption, the cleanliness of the oil is guaranteed to reach NSA level 6.





4.Pressure Overload Protection System

It has pressure overload protection, automatic anti-dry burning, automatic defoaming, and unique infrared liquid level automatic control device (better than photoelectric automatic control device), which can automatically adjust the balance of oil in and out to achieve man-machine separation and make the operation more convenient and reliable.





Oil Parameter After Purification

After Treatment
Water Content	≤ 50 PPM
Particle Size	≤5
NAS	NAS 1638 Class 6



OPTIONAL PARTS
1. PLC
2. Flow meter
3. Enclosure
4. Regeneration device
5. Explosion-proof motors and electric apparatus
6. Consumables, such as replacement filters
7. Customer’s design or any other special requirement











After-sale Service:



1.3 Years grarantee for whole machine.



2.24 hours technical support by e-mail.



3.Calling or door-to-door service.



4.Use-friendly English software,user manual and detailed Videos/CD.
