Нетканый Геотекстиль 1000 GSM Цена

Нетканый Геотекстиль 1000 GSM Цена

Category: Geotextiles >>>
Supplier: Shandong Debin Jiaxin New Materials Co. Ltd.

Price:

Quantity:

Product Overview

Description

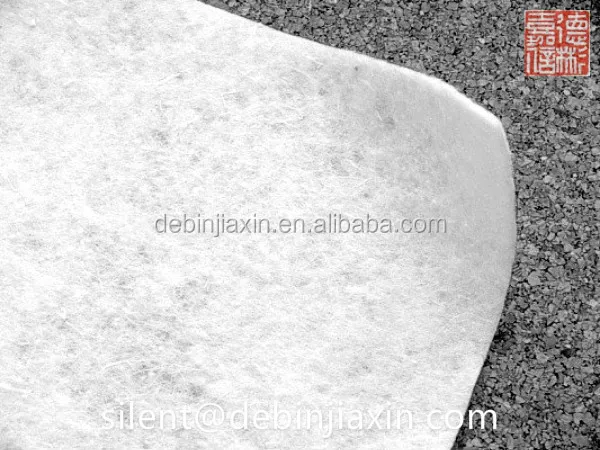

non woven geotextile 1000GSM price

Geotextile Description

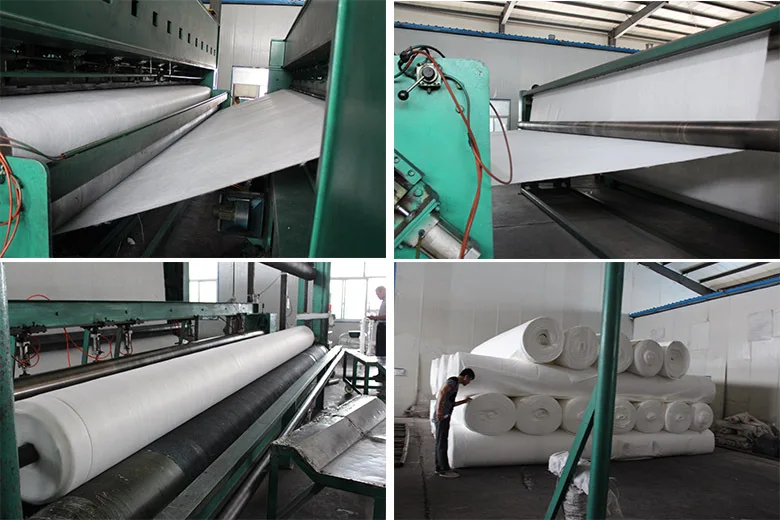

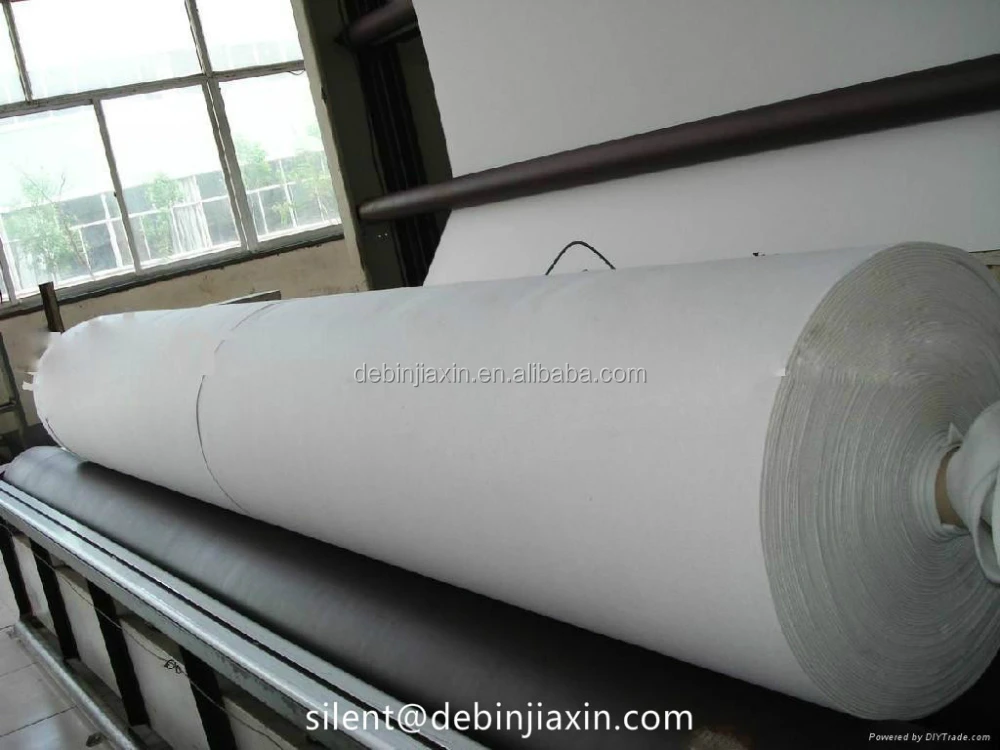

Made from PET(polyester) short fiber by nonwoven needle punched manufacturing process, it has isolation, filtration, drainage, reinforcement, protection and maintenance etc. function.

Geotextile property

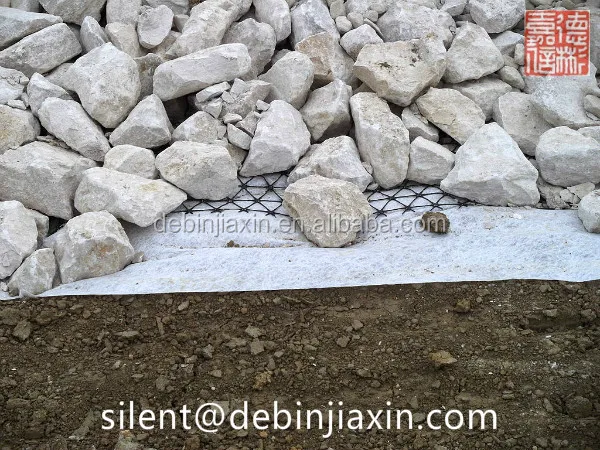

Separation: the loss of two or more materials, not mixed, maintain the overall structure and functional materials, the load bearing capacity of strengthened structures.
Filtration: when the water flows into the coarse material by fine soil layer, the use of staple fiber needle punched geotextile has good air permeability and water permeability, allows water to flow through, and effectively carrying current soil particles, sand, small stones and so on, in order to maintain the stability of soil and water engineering.

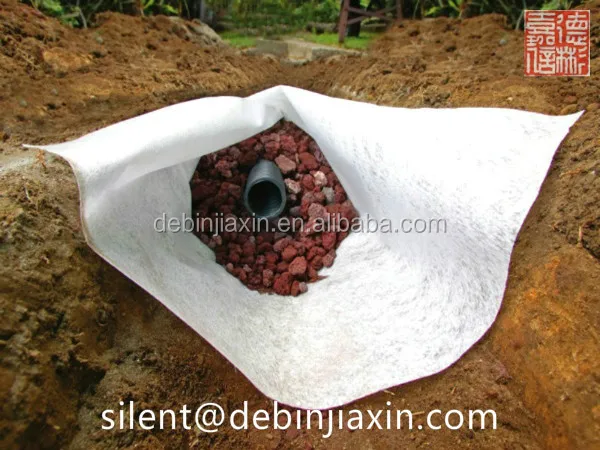

Drainage: the water guide with good properties and short fiber needle punched geotextile, it can be formed inside the soil drainage channel, the excess liquid and gas in the outer row of soil structure.
Reinforcement: the tensile strength of the reinforced soil and anti deformation capacity utilization of staple fiber needle punched geotextile, enhanced the stability of structures, to improve the soil quality.
Protection and maintenance function: water on soil erosion, effective will be concentrated stress diffusion, transfer or decomposition, to prevent soil from damage by external force.
Good flexbility, resistant to corrosion, resistant to acids and alkalis, anti-oxidation.

Geotextile specification

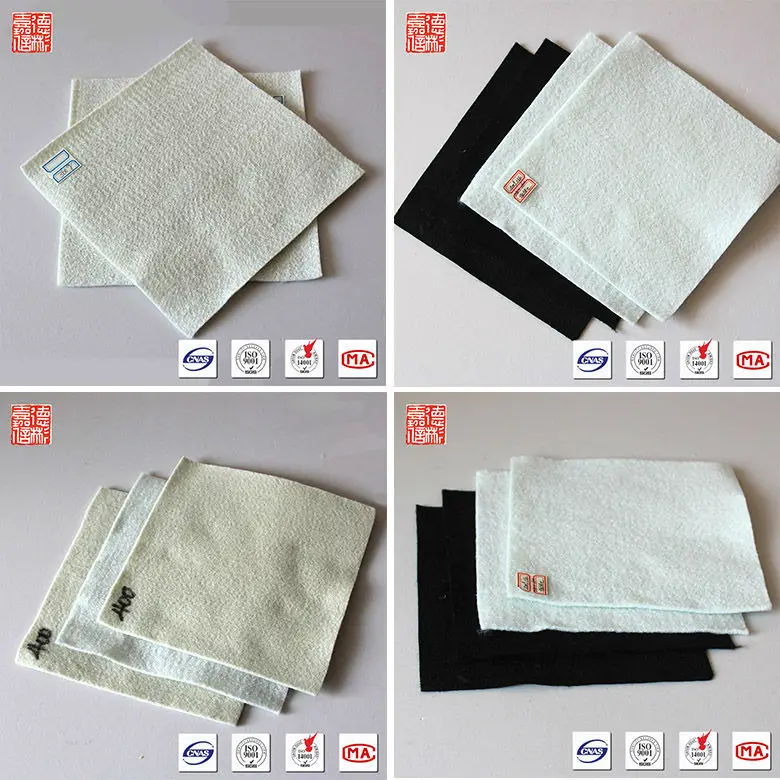

Short fiber nonwoven geotextile

Item	Value											Note
Item	100	150	200	250	300	350	400	450	500	600	800
Weight Variation(%)	-8	-8	-8	-8	-7	-7	-7	-7	-6	-6	-6
Thickness(mm)≥	0.9	1.3	1.7	2.1	2.4	2.7	3	3.3	3.6	4.1	5
Width Variation%	-0.5
Breaking Strength( KN/m)≥	2.5	4.5	6.5	8	9.5	11	13	14	16	19	25	MD and TD
Elongation at break%	25-100											MD and TD
CBR Mullen Burst Strength KN≥	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.2	4
Sieve Size O₉₀(mm)	0.07-0.2
Vertical Permeability Coefficient cm/s	K×(10^-1-10^-3)											K=1.0-9.9
Tearing Strength KN≥	0.08	0.12	0.2	0.2	0.2	0.3	0.3	0.4	0.4	0.5	0.6	MD and TD
