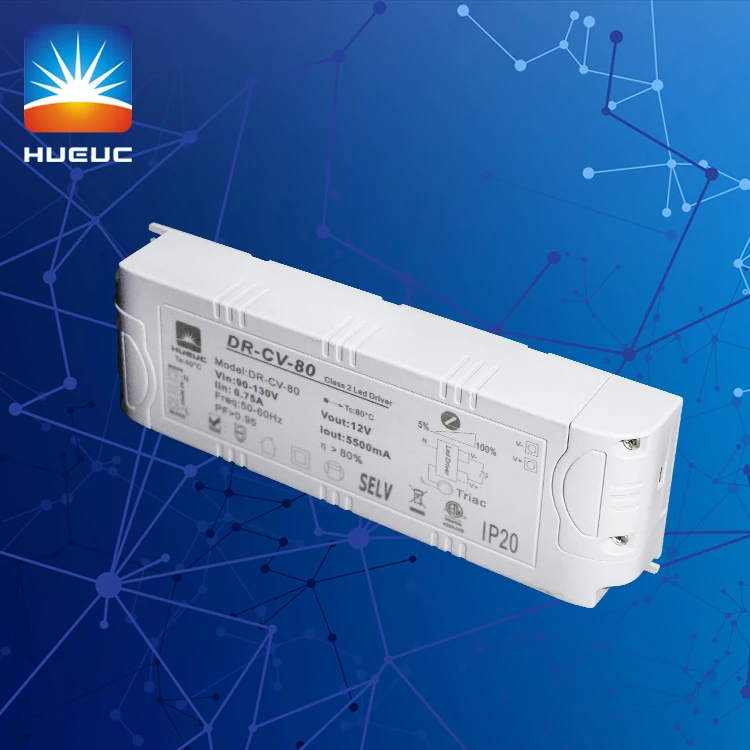

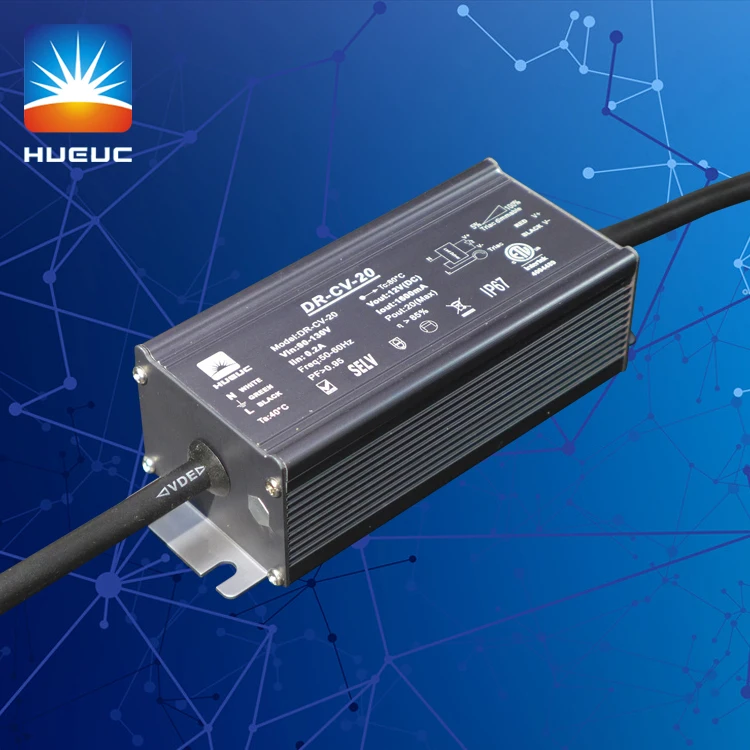

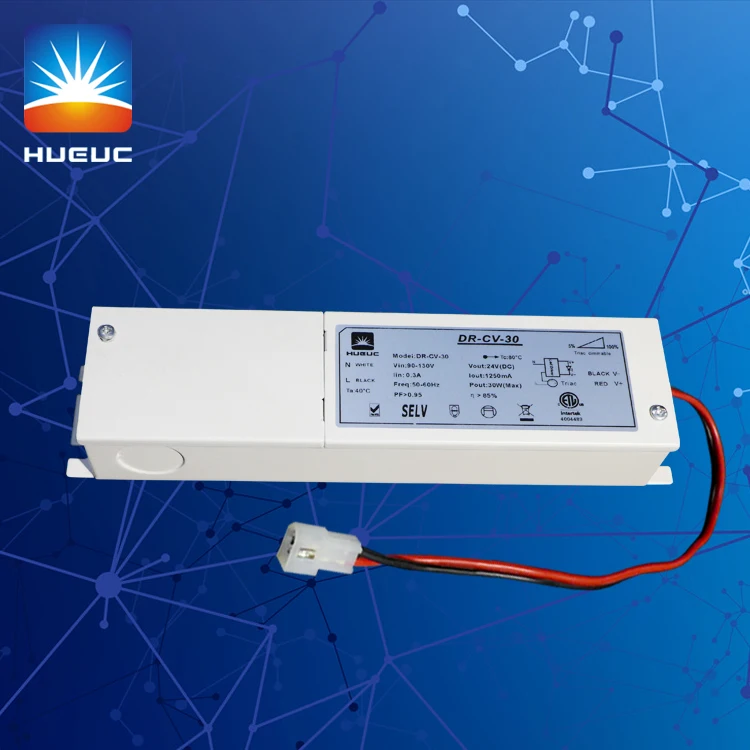

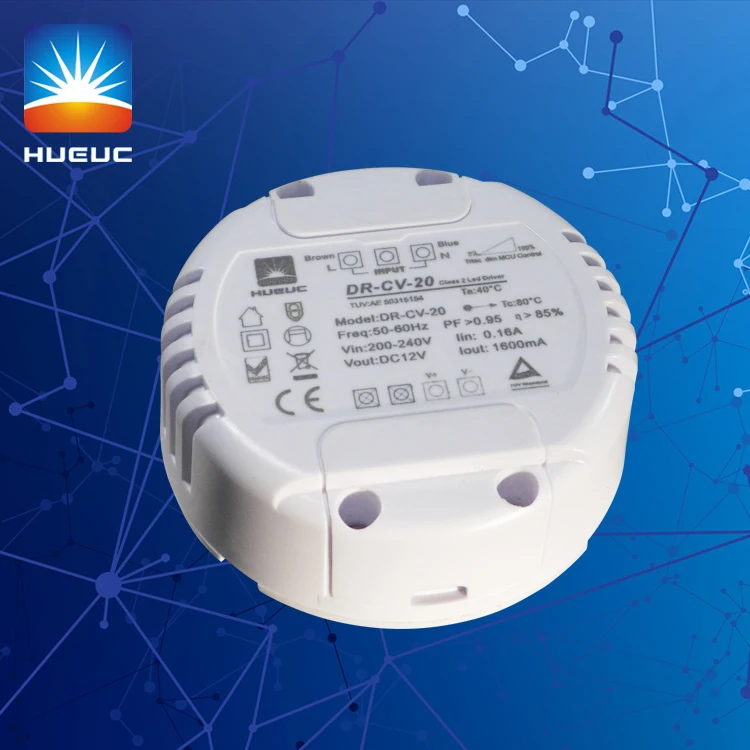

DALI 0 10 Triac Dimmable LED driver 900ma CC and CV 20w 40W power supply
- Category: >>>
- Supplier: Shenzhen Huayueke Technology Co. Ltd.
Share on (60303600357):
Product Overview
Description
DALI 0-10 Triac Dimmable LED driver 900ma CC and CV 20w 40W power supply
constant current :
| Model No. | HDL-CC-20 |
| Input Voltage Range | 100-240V/AC |
| AC Frequency | 48-62Hz |
| Input current | 0.26Amax |
| Output Mode | Constant current |
| On Load Voltage | 29-58V 20-40V 15-30V 11-22V |
| Output Current | 350ma 500ma 700ma 900ma |
| No Load Voltage | 70v 48v 40v 28v |
| Output Power | 20W Max. |
| Power Factor | >0.95 |
| Efficiency | >80% |
| Dimensions | 132*44*23(mm) |
| Environmental Specifications | |
| Operating Temperature | -25~+55°C |
| Storage Temperature | -40~+70°C |
| Thermal Dissipation | Nature |
| Relative Humidity | 5-95% |
| Isolation Voltage | In/Out 3000VAC |
| Vibration | 5-55Hz/2g,30 Mimutes |
| Life time | 50000Hours,at TC max |
| Conformity & Standards | |
 | |
| EN 55015 EN 61000-3-2-CLASSIC EN 61000-3-3 EN 61000-4-2,3,4,5,6,8,11 EN 60598 | |
| |
Product features:
1.Power supply output voltage stability;
2.High temperature stability of power supply;
3.Low power of the common-mode differential-mode noise;
4.Power supply has a high dynamic response capabilities;
5.There are soft-start power, high reliability products;
6.Higher power efficiency, small heat;
7.Margin component parameters, and long product life;
8.High-frequency output rectifier are low resistance with high-frequency electrolytic capacitors, low 9.product failure;
10.High-frequency transformers are the "sandwich" techniques, leakage of small, small distributed capacitance, EMI interference small;
11.Devices using the brand components, quality and stability.

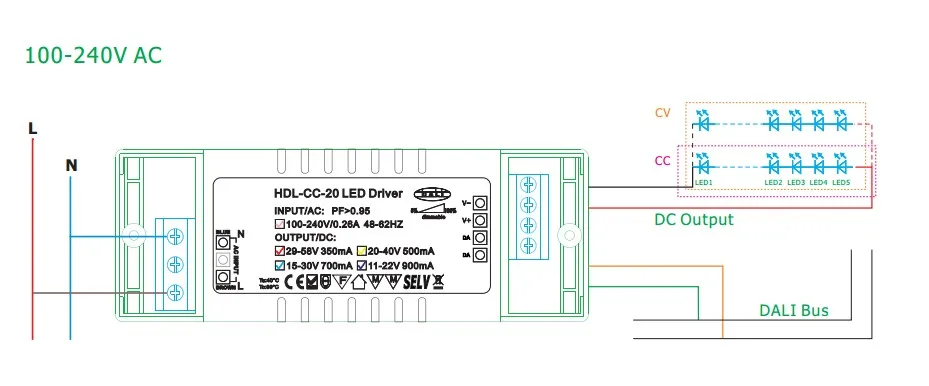

Installation:
Advantages:
1. a plant of 500 square meters,over 50 employees;
2. 5~9 days delivery time, 2 years warranty;
3. UL, ETL, CE, RoHS certifications;
4. Strong R&D teams,with at least 2 new models released monthly;
5. Large stock of materials;
6. Strict quality check process, tested for at least 24hrs before delivery;
7. Neutral Package, or customer color box package upon requirements.
8. Pay attention to innovation, high quality and reasonable price
Quality guarantee:
All the driver have automatic protection of overload, short circuit, temperature,etc.
Guarantee:1.The warranty period is 2~5years.
2.During the time ,if the product have any question ,we can change the same to you.
We can design the product according to your requirement.
About sample and mass production:
Dear buyer arrange the sample cost and freight(if you have express account,provide it),sample time:5 working days,after confirmed the sample,dear buyer arrange the deposit and we will finish it 10- 15 days after got the deposit,balance before deliver,your own courier or we arrange is possible.
Term of payment:
t/t,paypal,western union.30% as deposit,balance before delivery or t/t in advance.
Buy notes:
There are two basic types of LED transformer: constant current and constant voltage:
1.dear buyer need know which kind driver you need?constant current or constant voltage?
2.we are manufacture,can custom according to customer require,so in your requiry,you must tell me some parameter,such as input voltage/current,output voltage/current and power.
3.we have 0~10v led driver,triac led driver(dimmable and nondimmable),dali led driver,so please
tell me which kinds of you need.
About packing:
Bubble bag ,inner box,and carton etc
Our factory:
Shenzhen Huayueke Technology Co., Ltd. was established in October 2009 , is a professional photoelectric lighting technology development and application of high-tech enterprises . We are committed to the research and development field of energy saving applications, LED lighting applications will be our core business. rapid innovation and development throughout the company 's operating style of behavior .
LED driver and LED light is our mainly product.
Our company exporting led driver and led lighting with good qualiy and low price.
1. dimmable led driver:0-10v led driver,triac led driver(constant current/ constant voltage and dimmable/non-dimmable) and Dali led driver
2.led lighting(dimmable and color temperature adjustable)
A.COB led light non-dimmable/dimmable
B.led light dimmable or led light dimmable and color temperature adjustable.
Reply me if you are interested in our product,let’s talk details.
Welcome your inquiry!
