Haida 78tons cheap miniature injection molding moulding machines
- Category: >>>
- Supplier: Ningbo Haida Plastic Machinery Co. Ltd.
Share on (60303639601):
Product Overview
Description
Product Categories
Product Description
| HDJS78 Servo Energy-Saving Plastic Injection Molding Machine |
| Number Item |
| HDJS78 |
| Category |
| HDJS Series |
| OEM |
| Available |
| Warranty |
| 1 Year |
| Factory |
| Yes |
Application >>
Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.
Technical Parameters >>
| MODEL | HDJS78 | ||||
| ITEM | UNIT | DATA | |||
| INJECTION UNIT | Screw Diameter | mm | 34 | 36 | 40 |
| Screw L/D Ratio | L/D | 21.2 | 20 | 18 | |
| Injection Volume | cm3 | 110 | 125 | 154 | |
| Shot Weight | g | 100 | 114 | 140 | |
| Injection Rate | g/s | 72.2 | 81 | 100 | |
| Injection Pressure | Mpa | 180 | 160 | 130 | |
| CLAMPING UNIT | Clamping Force | KN | 780 | ||
| Opening Stroke | mm | 300 | |||
| Space Between Tie-Bars | mm | 330X330 | |||
| Mould Thickness(Min-Max) | mm | 150-300 | |||
| Ejector Force | KN | 25 | |||
| Ejector Stroke | mm | 80 | |||
| GENERAL | Pump Pressure | MPa | 16 | ||
| Motor Power | KW | 9 | |||
| Heater | KW | 6.5 | |||
| Machine Dimension | m | 4.0X1.1X1.8 | |||
| Machine Weight | t | 2.5 | |||
| Mould Orientation Ring Diameter | mm | Φ100 | |||
| Nozzle Radius | mm | SR10 | |||
Characteristics >>
HAIDA HDJS Series Servo Energy-Saving Injection Molding Machine.
Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0. Compared with the traditional injection molding machine can save electricity <80%. Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water. Living longer 2~3 Double.
Improve The Production Efficiency. Quick Response And High Efficiency. Injection molding machine to achieve maximum output in 0.05 s, 50 rpm can be up to 140 bar. High Repeat Precision, Save Raw Materials. Repeated injection precision can reach <=3%. Pressure Is Stable, Improve the Quality Of Molding. Pressure fluctuation quantity is less than + / - 0.5 bar.
Machine Service Life Longer And Cleaner Working Environment
Less Noise Emissions, Low Heat And Cooling Energy Demand Is Low, More Suitable For Production Environment With Air Conditioning.
Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C
Similar Products >>
HDX50
View Details>>
HDJS128
HDJS288
View Details>>
HDJS168
HDX438
HD210L

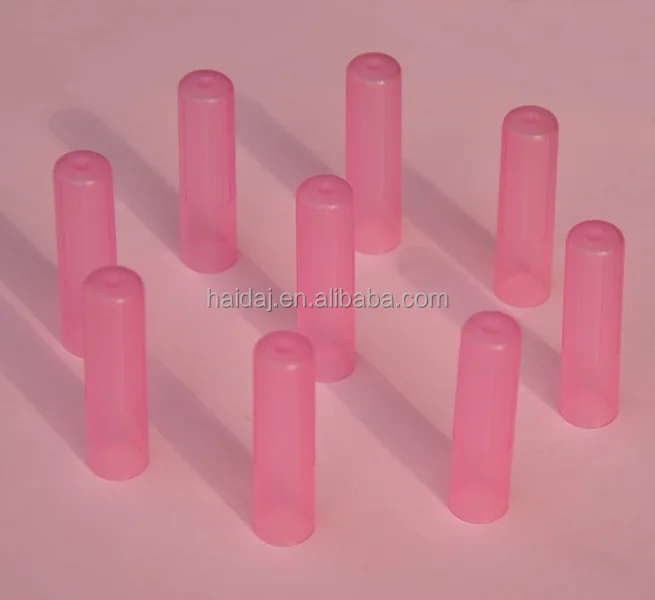

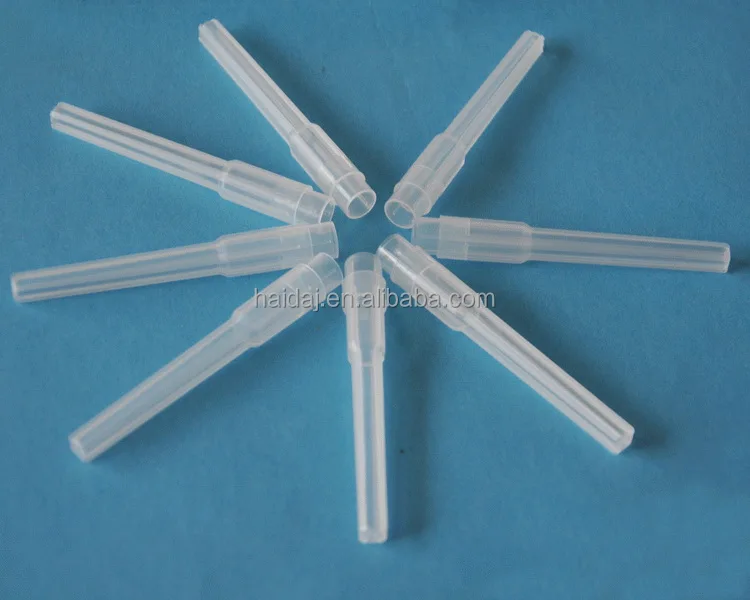

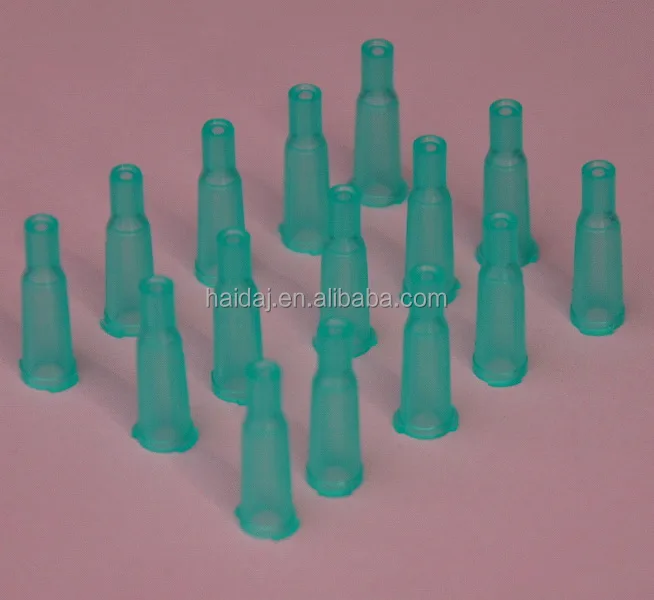

Detailed Images
