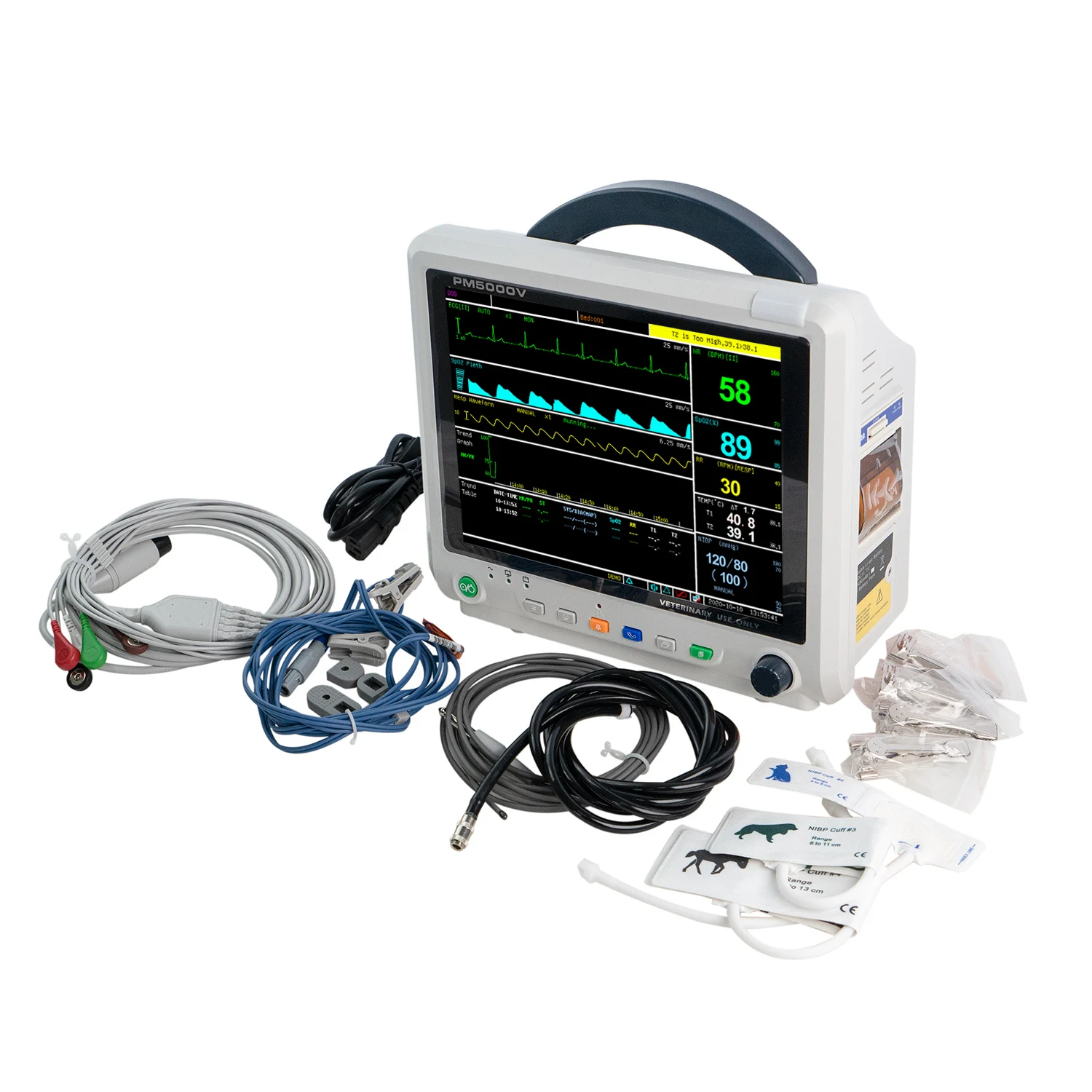

Dog Cat Horse Veterinary Equipment PM5000V Multiparameter Veterinary Patient Monitor

Product Overview

Description

Medical Device PM5000V Veterinary Patient Monitor from China







Features Description:

• 12.1'  colored and bright, high definition (800 x 600) TFT LCD screen;


• Parameters: SpO2, ECG, Heart Rate,NIBP, TEMP*2, RESP(Optional Sidestream ETCO2 and 2*IBP);


• Suitable for Horse,dog,cat ;


• 72 hours graphic and tabular trends of all parameters;


• 32 seconds full-disclosure waveform review ;


• 500 NIBP and SpO2 measurement data can be stored and recalled;


• Built-in large capacity( 4400mAh ) rechargeable Lithium battery(Optional Double Batterys,Up to 8800mAh,Support for up to more 10 hours of work time);


• Equiped with internal printer, Support for 3 channal waveform print ;


• 100M Base-T Ethernet Interface, Support to connect to IPMS8000 Patient Management System;


• USB Host interface;


• 3-level audible and visual alarms and alarm events can be stored and reviewed.


• Large measuring range of SpO2, Pulse rate and NIBP for veterinary.


• Special designed logo for veternary use only.

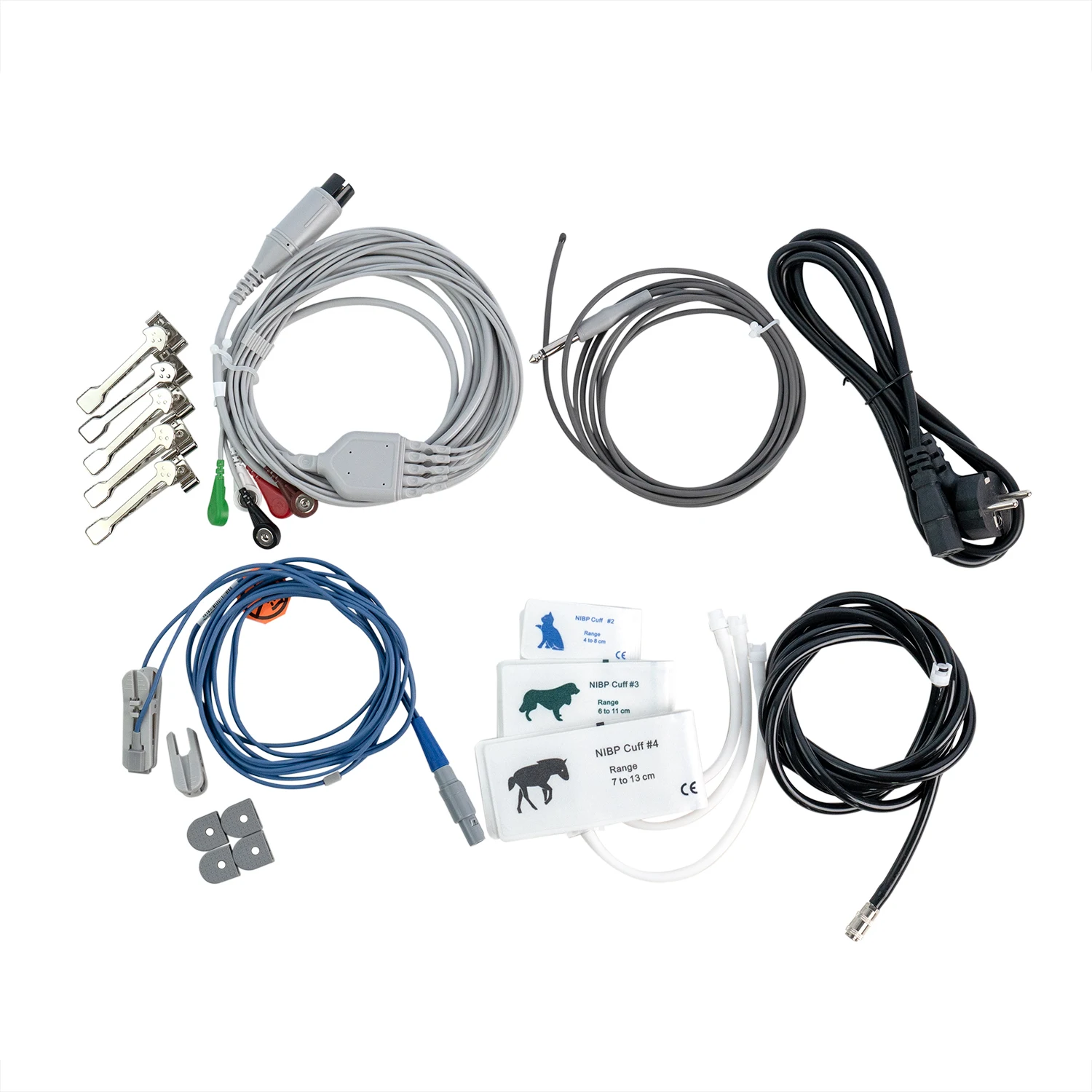

• Variety of accessories for veterinary application.


• Widely used in veterinary clinics and hospitals

Technical Specifications:







 Parameters: ECG/RESP/NIBP/SpO2/TEMP/ETCO2

ECG	Lead type: 5 lead Input: 5-lead: RA,LA,RL,LL,V ECG Waveform: 1 or 3 channels Heart rate range: 20-350 bpm Accuracy: ±2 bpm or ±2%
Resp	Measurement range: 0-120 rpm Accuracy: ± 1 rpm Resolution: 1 rpm
NIBP	Method of measurement: Oscillometric with step-down deflation Range of  Systolic: 40 to 270 mmHg Range of Mean Arterial: 30 to 220 mmHg Range of Diastolic: 20 to 220 mmHg Measurement time: 30 to 50 seconds typical, 120 seconds maximum Alarm range: 20-260 (in 1 mmHg steps), and OFF
SpO2	Measurement range: 0-100% Accuracy: ±2 at 70%-100% Resolution: 1%
TEMP	Measurement range: 25-45°C Accuracy:± 0.2°C Channel: Two
ETCO2	Sampling mode: Sidestream Measuring parameters: Respiration, ETCO2 and InsCO2 Range: 0-150 mmHg Respiration range: 2-150bpm Accuracy:± 2 mmHg



• Warranty: 2 years;


• OEM & ODM;


• Online Technical support(Skype, MSN);


• Remote software update;



1. Q: What's your SpO2 technology?

    A:  Digital  SpO2 technologu or Nellcor Compatible



2. Q: What are your payment terms?

    A: T/T, Western Union, Paypal, L/C, MoneyGram etc.



3. Q: What's your delivery time?

    A: 3 business days upon the receipt of payment.



4. Q: What are your shipping ways?

    A: DHL, UPS, TNT, Fedex, EMS etc, or By air , By sea.
