CE & ROHS MT300 Auto Diagnostic Tester Brake Fluid Testing Tester For DOT3,4,5

Product Overview

Description

MT300 Brake Fluid Tester   ---Testing the water % from brake fluid to see if the fluid need to be changed.



Product Simple Description

To check the quality of brake fluid quality

5 LEDs to indicate percentage of water in the brake fluid

Automatically power off

Operated by a LR03 AAA 1.5V battery





The tester can be used as a digital brake fluid tester suitable for determining brake fluid quality. Developed for professional use in automotive repair shops and in servicing. Quality it tested and indicated on five LEDs in terms of per cent of water in the brake fluid.



Ready for Brake Fluid Test

• Unscrew the brake fluid reservoir, and pull off the cap of the brake fluid tester.


• Dip the test probes into the brake fluid up to the plastic rim of the device.


• Battery(incl): one 1.5V, type AAA



To Check Fluid Quality

Press the button for power on, green LED will light up.

Insert the tester into reservoir for one second then the test result will be correctly indicated by LEDs.

The tester will automatically power off after 12 seconds of inactivity.



Product Labelling Indication

Geen: Battery OK, i.e: no water contained in the brake fluid.

Yellow: Less than 1% of water content in brake fluid.

Yellow/Yellow: Approx 2% of water content in brake fluid.

Yellow/Yellow/Red: Approx 3% of water content in brake fluid. The brake fluid should be changed.

Yellow/Yellow/Red/Red: At least 4% of water content in brake fluid. The brake fluid must be changed urgently!

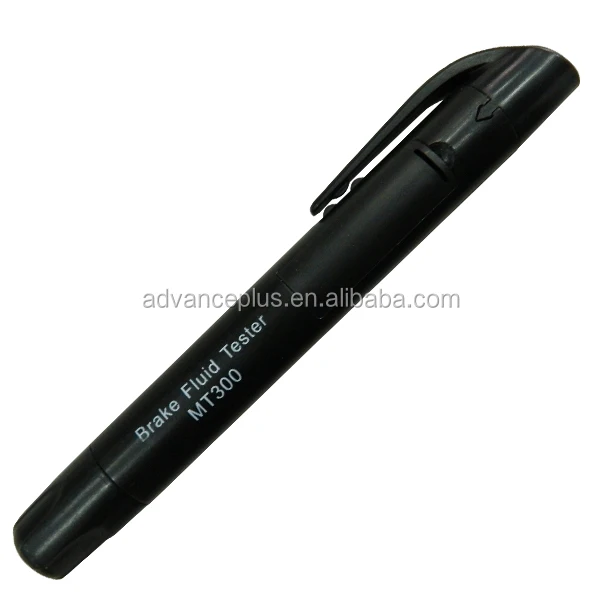

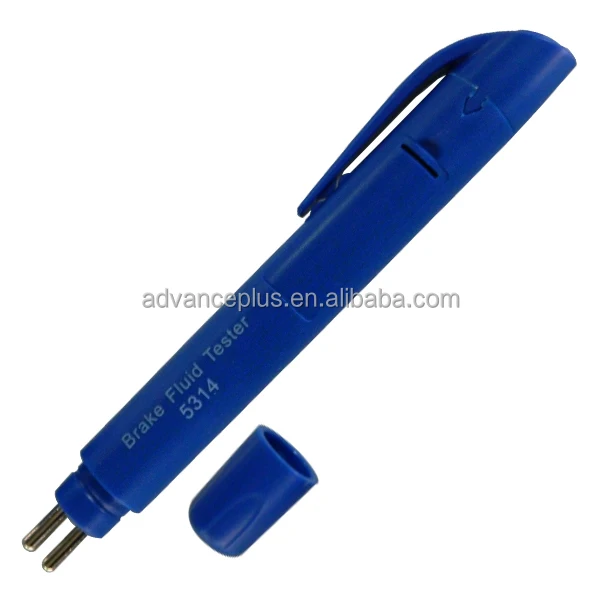

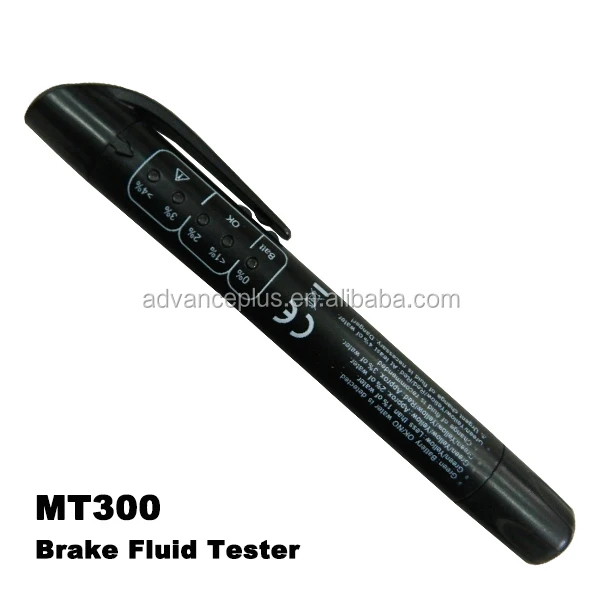

Product Pictures

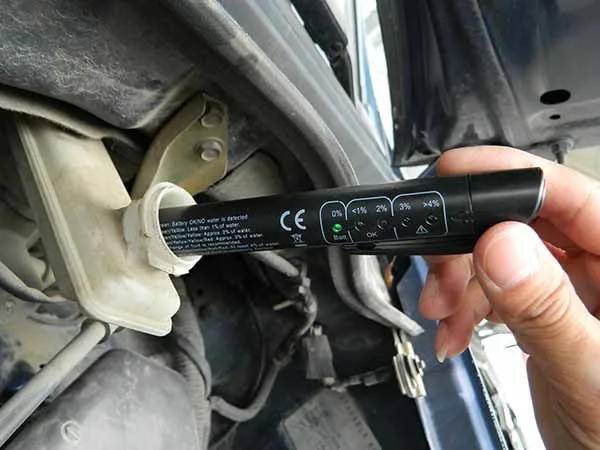

Operation Pictures
