Lab Liquid silicone rubber vacuum power mixing machine
- Category: >>>
- Supplier: Foshan Golden Milky Way Intelligent Equipment Co. Ltd.
Share on (60303948711):
Product Overview
Description
Product Description

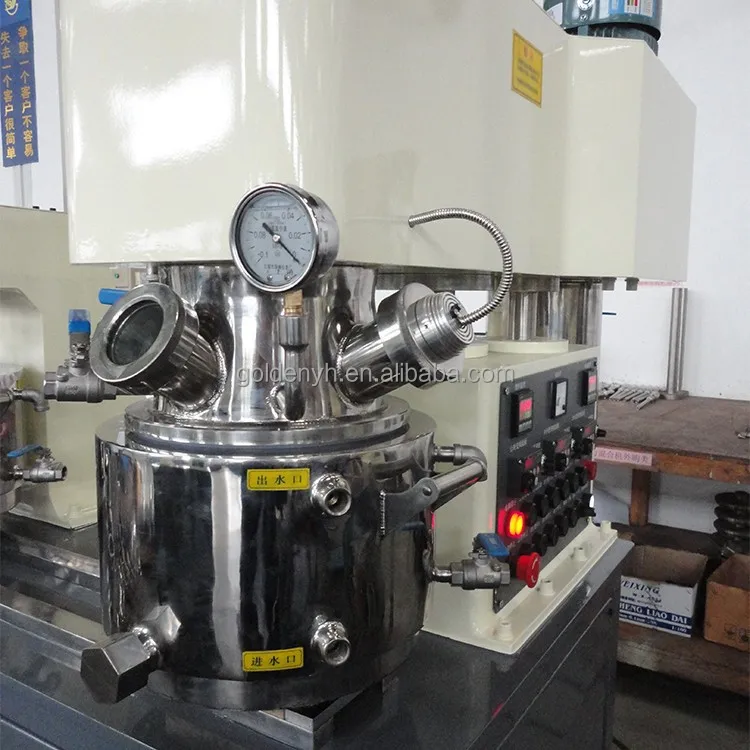

Lab Liquid silicone rubber vacuum power mixing machine
DLH series planetary dispersing power mixer is a kind of no-dead-spot power mixing and dispersion equipment. It adopts unique stirring mechanism, with bottom vessel fixed and unmoved, with dispersion discs and stirrers making planetary movement of revolution and rotation, with speed adjustment by frequency inverter. It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead spot. An automatic wall scraper mechanism is designed in the vessel, which continuously scrapes the materials adhering to the wall. The equipment is uniquely sealed, can be pressurized or vacuumized. It is widely used in solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, grinding, dissolving, homogenizing and emulsification, etc., in chemical, light industry, pharmacy, foodstuff, building materials, farm chemical industries, etc. It is an ideal equipment for production of ink, pigment, adhesive, sealant, paste, paste-type material, lubricant, paint, paste cosmetics, emulsion, cream food and additive, etc.
Specifications
1 | Vacuum Degree | -0.098MPa |
2 | Structure | Planetary power mixer and discharge extruder are installed on the same work table. |
3 | Rotation Speed r/min | Revolution:0~60r/min,Rotation:0~170r/min ( Frequency-converting); High speed:0~1210r/min ( Frequency-converting) |
4 | Slow Shaft | 2 shafts with hinge stirrers, with bottom scraper and wall scraper. |
5 | Fast shaft | Single fast shaft, one Φ56 dispersion disk structure |
6 | Lifting mode of vessel cover | Hydraulic |
7 | Lifting height of vessel cover | 250mm |
8 | Mode of Temperature Measurement | Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement, the patent no. of this device is Z200520112283.5. |
9 | Location of vessel | Adopt guiding device for pushing and location way of V shape |
10 | Total Power(KW) | 3.25kw |
11 | Power Supply | AC,3 phase, 5wire, 380v/50Hz |
12 | Dimension | L1060 W1020 H2330(mm) |
13 | Weight(kg) | Abt 750kgs |
Details
Material Extruder

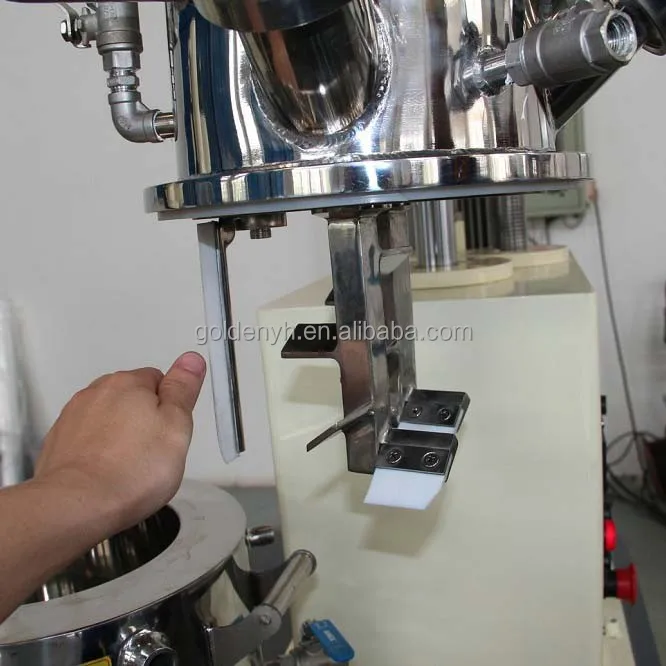

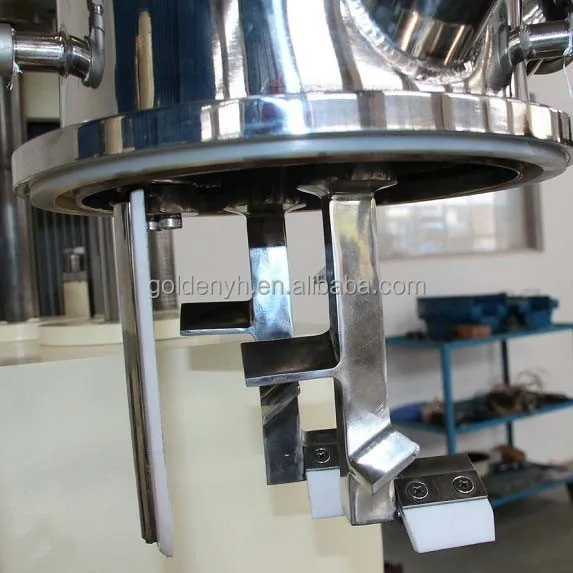

Hinge Stirrer
Flexible Scraper
Overview
Applications
Company Information
Established in 2002, Foshan Golden Milky Way Intelligent Equipment Co.,LTD(GMK)covers an area of
19,253squaremeters. Company existing staff 310 people,of which 101 people are technical personnel with
high education background (accounting for 32.58% of total staff), 38 people are whole-time researcher
( accounting for 12.26%of total staff).
GMK company mainly manufacture high-tech intelligent complete sets of equipment, including Silicone
Sealant Continuous Automatic Production Line, HTV Continuous Automatic Production Line, Planetary
dispersing power mixer, Static mixer, Automatic cartridge filling machine, Lithium battery pole
sheet coating machine, Lithium battery pole sheet rolling machine and so on. GMK company
has a good reputation in Fluorosilicone industry, Construction Sealant industry, Solar Power
and Wind Power specialized Sealant industry. Domestic market share in silicone sealant industry
reaches 25%.
GMK company is an innovation based company. It possesses 10 authorized invention patents, 31 authorized
utility patents, copyright of 7 computer software, 1 national key new product and 14 new and high-tech
products of Guangdong province.
Company Overview
Packaging & Shipping
Delivery details: 45 days after your deposit.
Package details: Export standard package
Our Services
1.One years (12 months) quality guarantee service . from the date when machine was shipped.
Duringthe warranty period, our company will provide replaced parts free of charge because of
quality issue.
2.Our technicians are available for oversea services. We have a professional aftersale service team,
who are experienced in oversea technical service
Our customers
FAQ
Why choosing us?
1. Professional team and company strength: More than 15 years in this area and owning a state brand "GMK".
2. One stop shopping service and competitive price: Including equipment design, manufacture, test and shipment, save your
time and purchasing cost.
3. Perfect after-sales service: One year warranty, offer technical support at any time.
4.Strong R&D capacity: Own more than 17 patents.
