Product Overview
Description
8-PORT HDMI KVM Switch
Features
* Using only 1 set of keyboard, mouse and monitor to control 8 host devices.
* Support Windows 95/98/2000/2003/NT/XP/WIN7/WIN8, Linux, Unix, MAC.
* Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
* Support auto switching (monitor the devices in a specified time interval.
* Support keyboard hot keys to control KVM switch.
* Available to use keyboard and mouse without any delay after switch host devices.
* Support auto switching host devices by just moving mouse.
* Support resolution up to 1920*1440.
* With mounting ears
* Support Windows 95/98/2000/2003/NT/XP/WIN7/WIN8, Linux, Unix, MAC.
* Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
* Support auto switching (monitor the devices in a specified time interval.
* Support keyboard hot keys to control KVM switch.
* Available to use keyboard and mouse without any delay after switch host devices.
* Support auto switching host devices by just moving mouse.
* Support resolution up to 1920*1440.
* With mounting ears
Specification
Function | KVM801 | ||||
Port Selection | HotKey, Pushbutton | ||||
Connectors | Console Ports | Keyboard | 1xUSB Type A Female | ||
Video | 1x HDMI Female | ||||
Mouse | 1x USB Type A Female | ||||
KVM Ports | Keyboard/Mouse | 8xUSB TypeB Female | |||
Video | 8xHDMI Femal | ||||
Power | 1xDC Jack | ||||
Switches | Port Selection | 8xPushbutton | |||
Reset | 1xPushbutton | ||||
Switch control way | Auto Switching, Timming Switch, Mouse movement switching | ||||
LEDS | USB Link | 8( Green) | |||
On line/Selected | 8( Green) | ||||
Rest | 1( Red ) | ||||
Emulation | Keyboard/Mouse | USB | |||
Bandwidth | 2.25Gbps | ||||
Vedio | Resolution (Max) reach up to 1080p(1920*1440) | ||||
Scan interval | More than 1's ( Default 6 secs) | ||||
Power Consumption | DC 12V,5watts ( Max) | ||||
Enviroment | Operation Temperature | +32 to +104 ℉ (0 to +40℃） | |||
Storage Temperature | -4 to +140 ℉ (-20 to +60℃） | ||||
Humidity | 20-90%RH(No condensation) | ||||
Physical Properties | Housing | Metal, Black | |||
Weight | 1.85kg | ||||
Dimensions(LxWxH) | 48.1X14.2X4.4cm | ||||

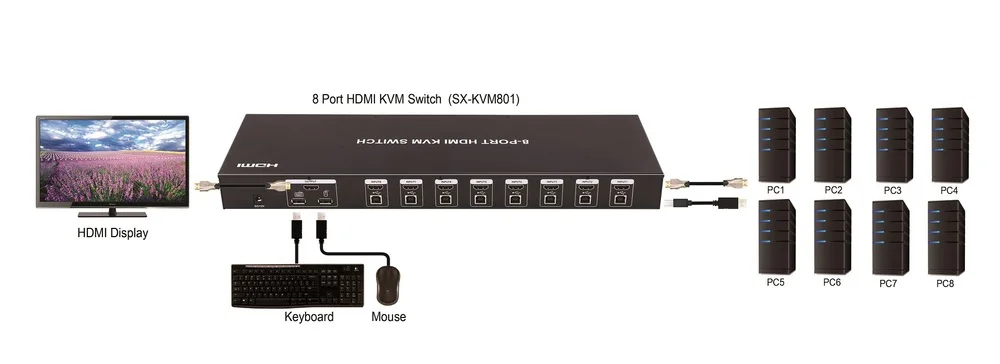

Wiring Diagram
Certifications
Packing & Delivery
* HDMI KVM switch
* 12VDC Power Supply.
* Mounting ear 1 pair.
* 12VDC Power Supply.
* Mounting ear 1 pair.
