new design lipstick production equipment lipstick making machine

Product Overview

Description

Silicone mold lipstick filling and packing machine includes 3 sets machines:

1. Automatic silicone mold filing machine

2. Automatic cooling machine

3. Automatic lipstick mold release machine







Automatic silicone mold filing machine

Model TZ-25L2-10A is an automatic lipstick/pencil molding machine designed for the production of cosmetic pencil, lipstick by silicone molding.



Target products

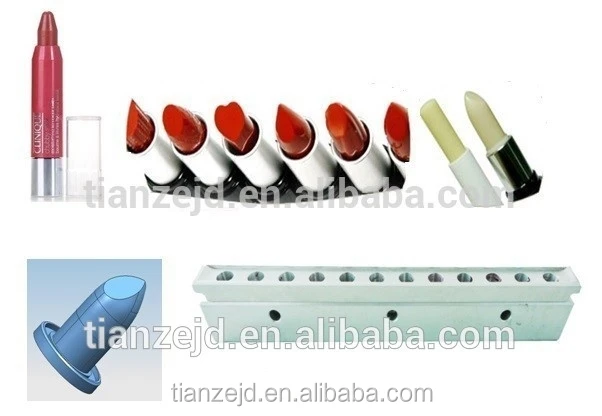

Silicone molding lipstick, lip pencil



Mold (options)



Silicone mold and silicone mold holder



Capacity



50pcs /min (10 nozzle filling heads)



Features



2 sets of 3 layers of jacketed vessels 25L capacity with stirrer



Servo motor controlled dosing pump



Dosing volume and pump speed controlled by digital input, accuracy +/-0.5%



Filling unit designed for easy strip-down cleaning and re-assembly to facilitate quick change over



Mold raise/lower system for bottom-up filling



Servo controlled mold raise /lower system



Mold heating (before and after filling)



Parameters



Voltage	AC220V/50Hz
Weight	600kg
Body material	T651+SUS304
Dimensions	2500*1200*2000







Automatic cooling machine



Model TC-5P is an automatic cooling machine designed for the production of hot filling/pouring

Design for two tunnel with 2-4 station(option) and frost moving

Stainless steel 304 frame

Temp control by digital T.I.C

Conveyor speed and cooling temp controlled according to the type of product

Parameters

Voltage	AC380V/50Hz
Weight	300kg
Body material	SUS304
Dimensions	2500*1045*1450
Temp range	0~-20°C
Efficient cooling area	1200*2000mm





Automatic lipstick mold release machine

Model TS-10A is an automatic lipstick/lip gloss releasing machine designed for the production of silicone mold lipsticks, cosmetic pencil.



Target products

Silicone molding lipstick, cosmetic pencil.

Mold

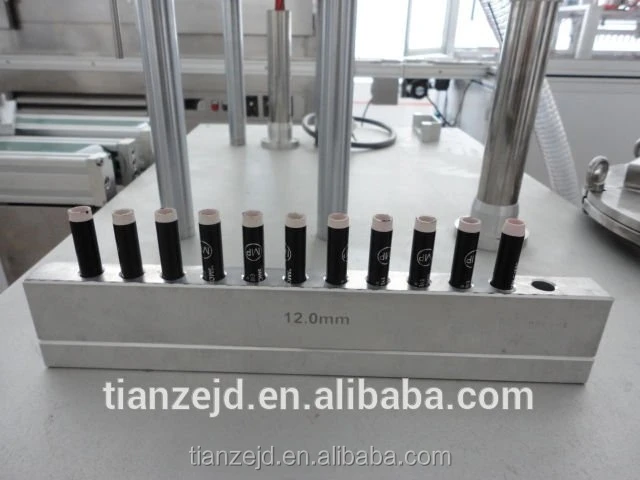

Lipstick tube or pencil tube holder (10 cavity for each holder)



Capacity

50 lipsticks, pencils/min

Features

Servo controlled mold raise /lower system

Automatic feed mold into/out of conveyor

Automatic releasing by robot

Cover of mold be put back with automation

Mold recycling with automation

Releasing unit designed for easy taking out from mold with back air blowing

Operation with digital input by PLC interface

Parameters

Voltage	AC220V/50Hz
Weight	550kg
Body material	T651+SUS304
Dimensions	2500*1200*1700
