Product Description

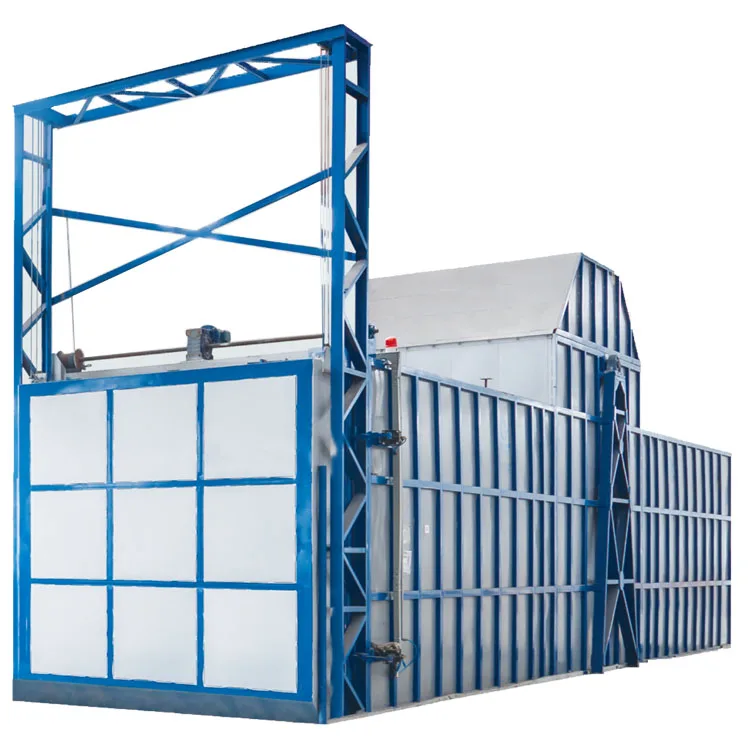

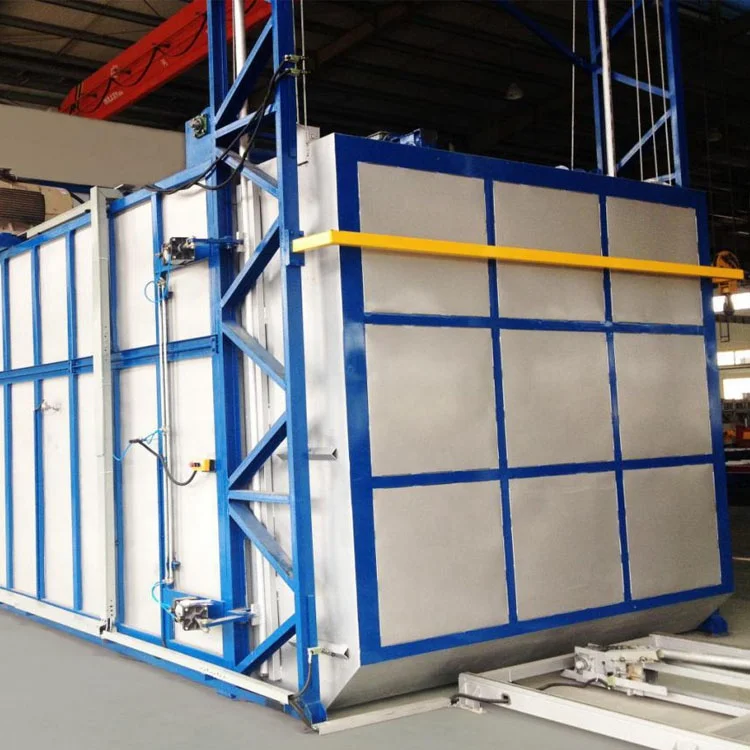

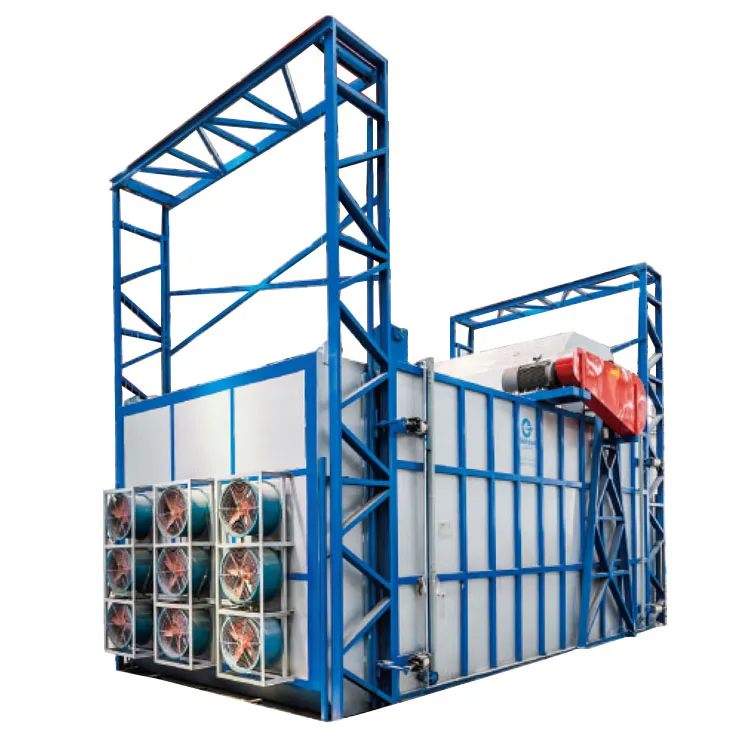

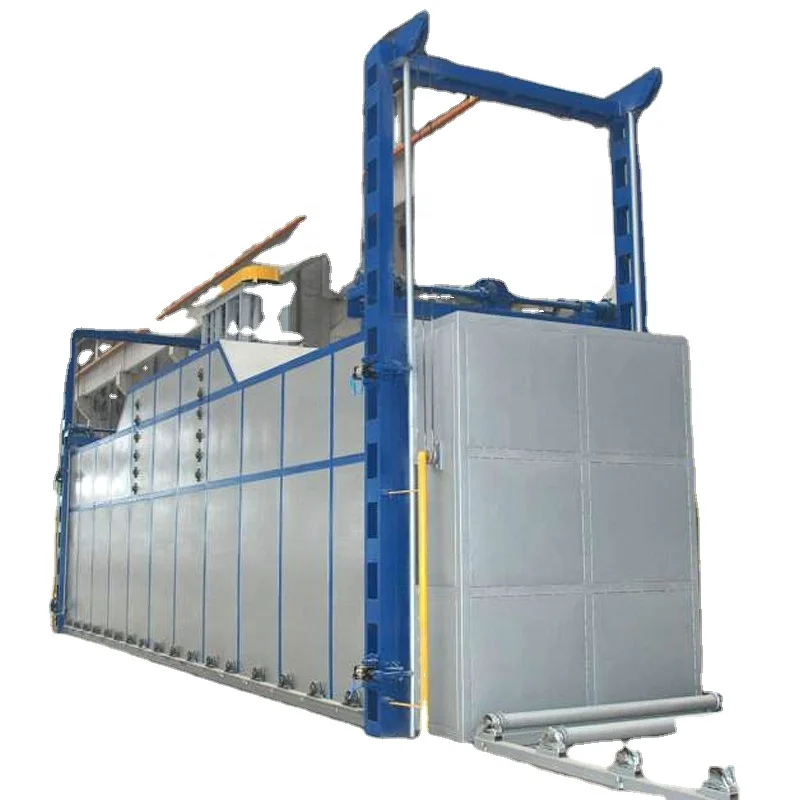

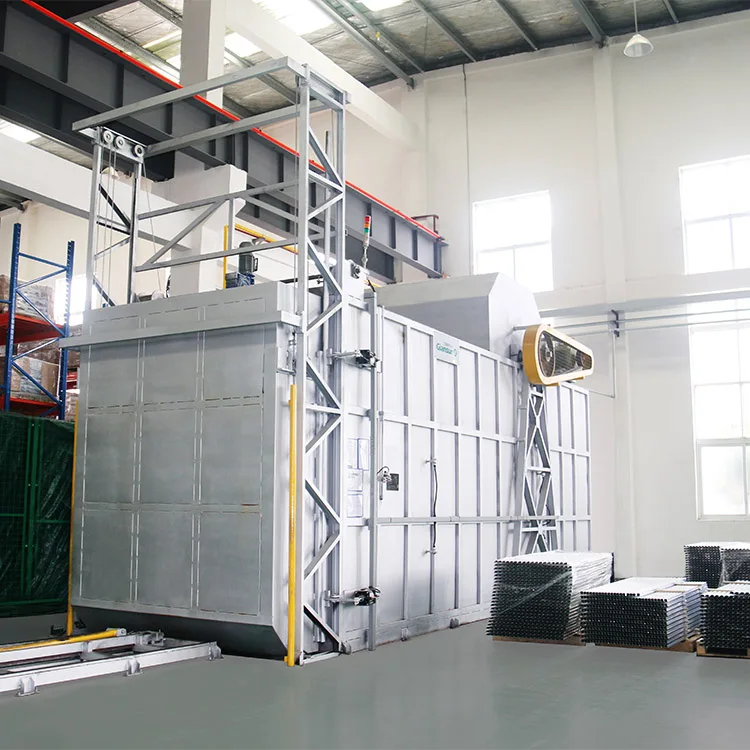

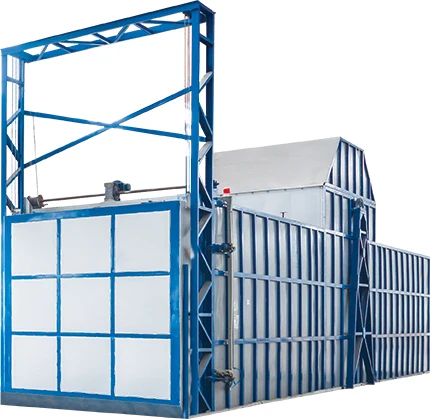

The furnace is made of pre-shaped steel plates,and equipped with special designed air blower,with advan-tages of high pressure and high flow,to circulate the hot air inside furnace more evenly,so as to ensure the aluminium profile quality after aging.
Ceramic fiber sealing embed along the furnace door and the pneumatic cylinder that locks the door ensure the best sealing and short heating time,thus less energy consumption compared to regular model.




Main Design parameters


Sr.
Item
Specification
Note
1.1
Layout
2 rows, 3 layers, 6 baskets

1.2
Maximum load capacity
6T/batch

1.3
Maximum heating temperature
250℃

1.4
Circulating fan power
30kw

1.5
Temperature difference
≤ ±5℃
After 30 minutes of heat
preservation
1.6
Heating time
＜120min

1.7
Feed motor power
2.2kw

1.8
Furnace door motor power
1.5kw

1.9
Total power
About 39KW

1.10
Burner
TBG30

1.11
Gas consumption
8-10m3/T aluminum profile
Condition:
1.Aging process heating1-1.5 hours, heat preservation2 hours; 2.Full loading;
3.Continuous production.
1.12
Furnace shell temperature rise
≤20℃
Relative to indoor ambient temperature, except for internal and external connections and
furnace door
1.13
Compressed air consumption
0.2m3/min

Note: the above parameters may vary slightly according to the design requirements.


Furnace Size


Maximum length(mm)
6000
Basket size(mm)
length：
6,000
width：
800
height：
600
Furnace chamber size (mm)
length：
6,500
width：
2,050
height：
2,250
Loading space(mm)
length：
6,000
width：
1,750
height：
1,800
Furnace size(mm)
length：
8,300
width：
2,530
height：
3,360
Totally length(mm)
26,900
Furnace door frame
height(mm)
6,170
Note: The above dimensions are for reference only.


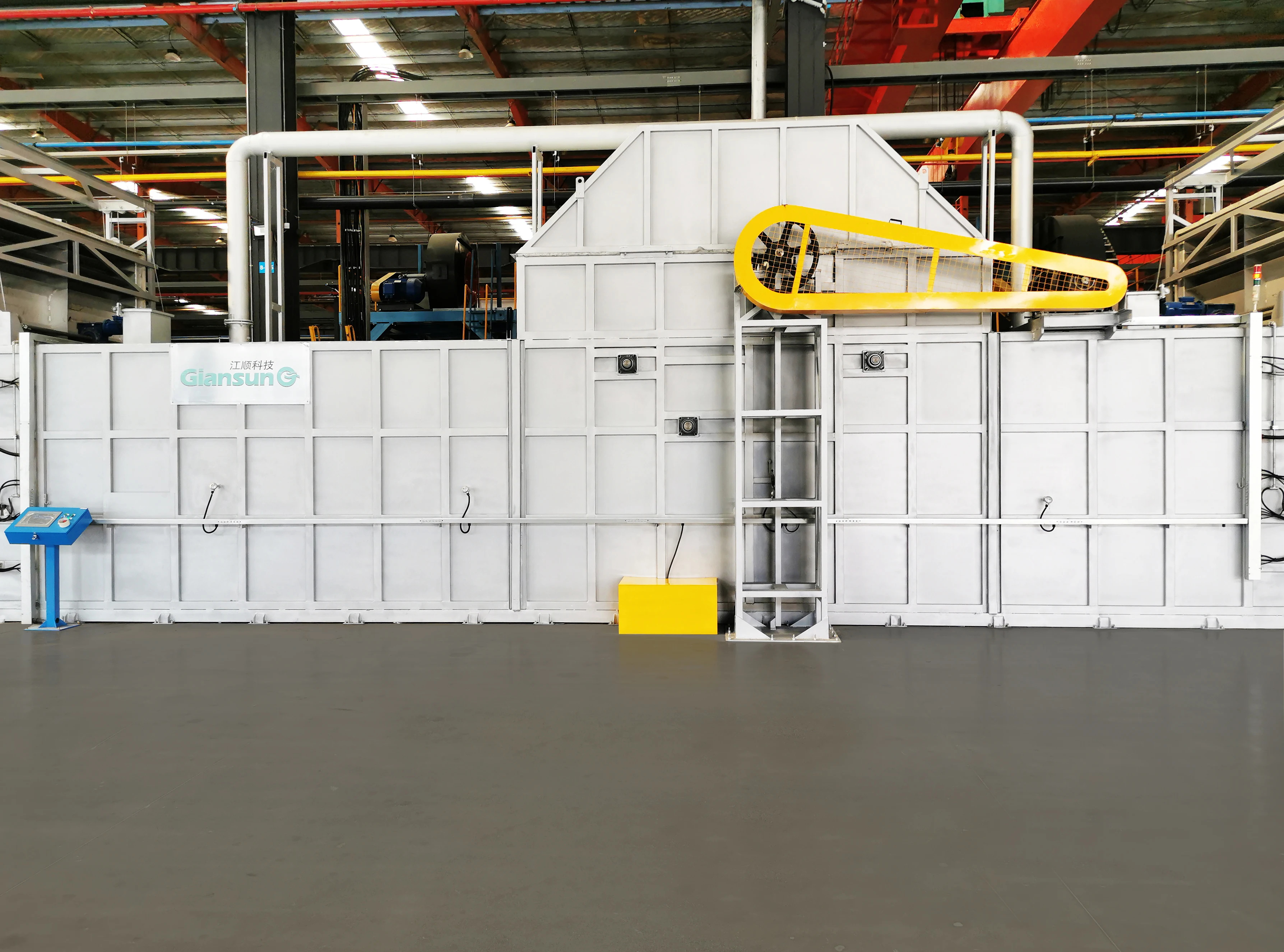

1.Circulating fan: the fan is installed on the upper part of the furnace body;

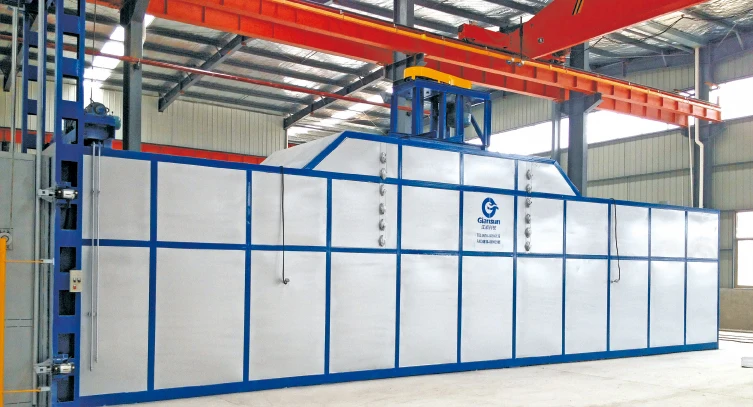

2. Furnace structure: the furnace body bracket is welded with channel steel, angle steel, rectangular welded
pipe, etc., and the furnace wall sealing plate is δ2-Q235 plate;
3. Insulation: the thickness of the insulation layer on both sides and top of the furnace body is 200mm, the
thickness of the insulation layer at the bottom of the furnace is 120, the thickness of the insulation layer of
the furnace door is 160mm; the insulation material is made of high-quality aluminum silicate fiber cotton;

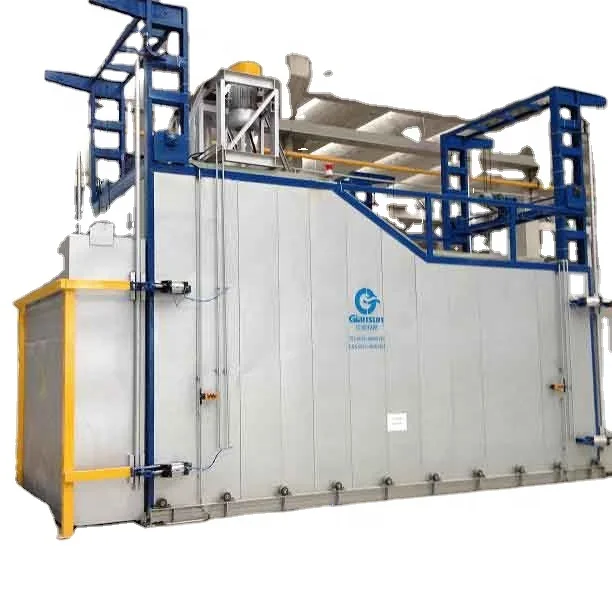

4. Furnace door: The thickness of the furnace door is 850mm, and the inside of the furnace door is
equipped with a circulating air duct; the furnace door is dragged and lowered by the electric hoist, each furnace
door is locked by the cylinder; the geared motor is the worm gear reduction motor.

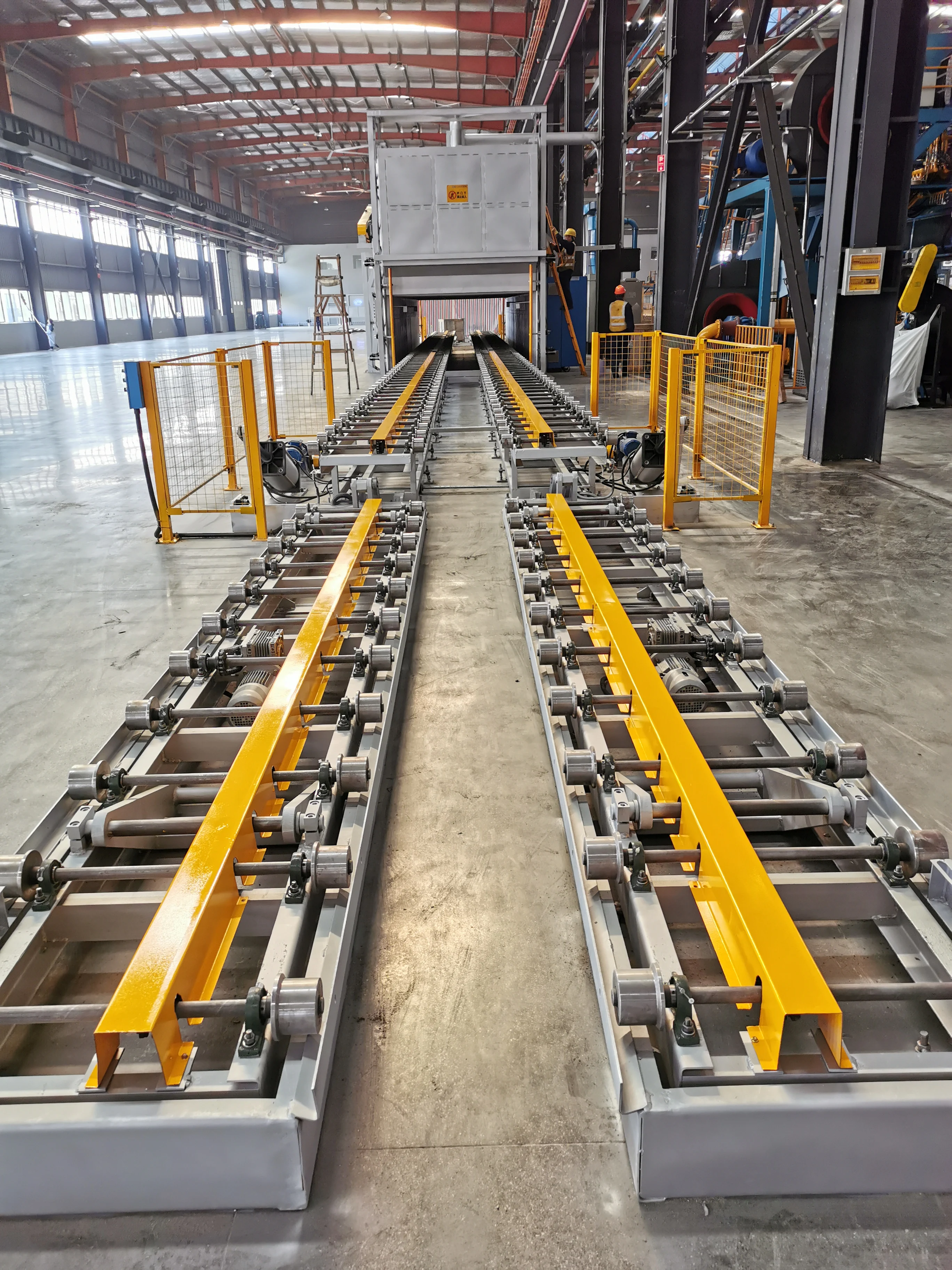

5.Trolley: The furnace is equipped with two trolleys. The trolley is a channel steel frame structure. The lower
part of the trolley is equipped with a plurality of rollers. Two roller bearings are mounted on each roller. The
trolley is placed in and out of the furnace. Needle reducer and chain push log drag;
6. Heating method: Integrated burner for direct heating.
