10cm short range access control contactless rfid card Reader Wiegand34/ 26 RS232 RS485

Product Overview

Description

10cm short range access control contactless rfid card Reader Wiegand34/ 26 RS232 RS485



Introduction:

WS-RD11 is an intelligent contactless high performance 125 KHz RFID ID card reader, reading distance up to 12cm, widely used for RFID Radio Frequency Identification system and project, such as Door access control, time attendance, Parking management system, Personal identification, Production Access control or other access control system.





Product Feature

1.     Low-cost and high-performance

2.     125KHz proximity with Wiegand output

3.     IP65 Waterproof design for outdoor application

4.     Easy-installation and less-maintenance

5.     Exquisite appearance with excellent quality

6.     Wall-mounted type installation



Specification:

Dimension	W108mm X L57 X H17mm (mainly body)

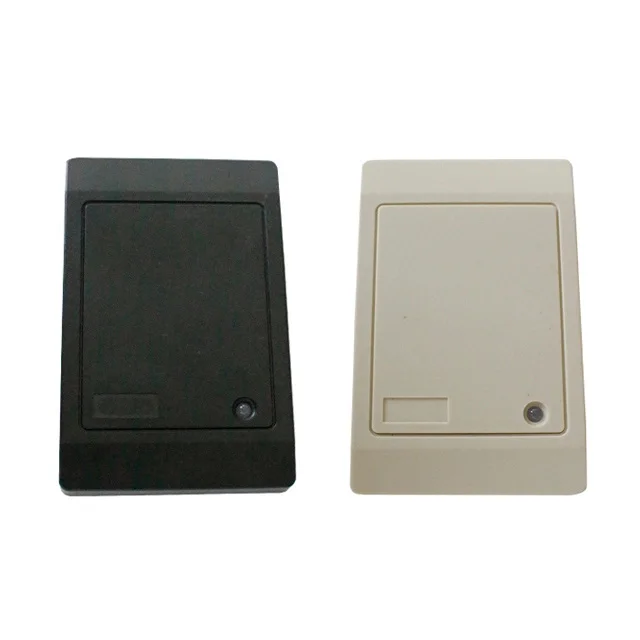

Color	Black or Black color
Communication Output	Wiegand26/34 bits, RS232/RS485(optional)
Operating Frequency	125KHz
Reader Card	TK4100/EM4100/EM4200 cards
Transmitting Distance	WG≤100M
Effective distance	4cm~ 12cm
Power Supply	DC9~12V
Working current	50~70mA
Temperature	-25º C to 75º C
Relative Humidity	10%-90%
Recognition Speed	<=5s
Data transfer	Real time data transfer
LED	Built-in LED (Double Color LED)
Buzzer	Built-in Loud Speaker(buzzer indicator)
Material	ABS Case Material (Black Resin for Water-Proof Function)

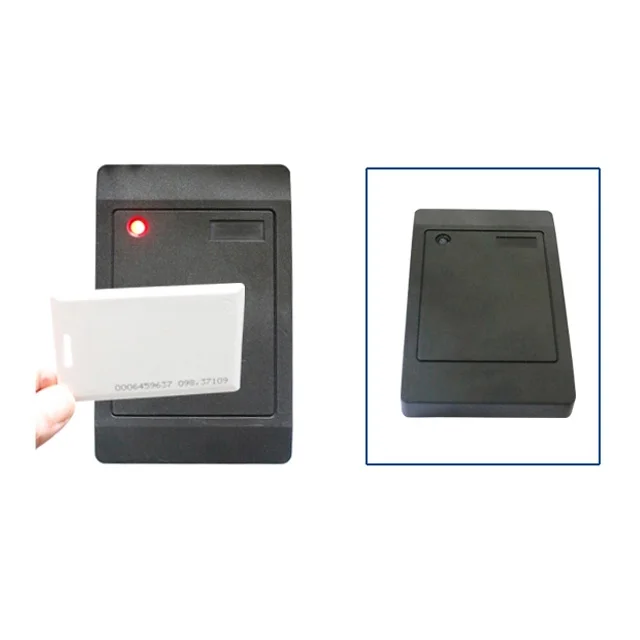

Audiovisual indication	When a registered card is presented to the reader, the red LED flashes green and the beep sounds

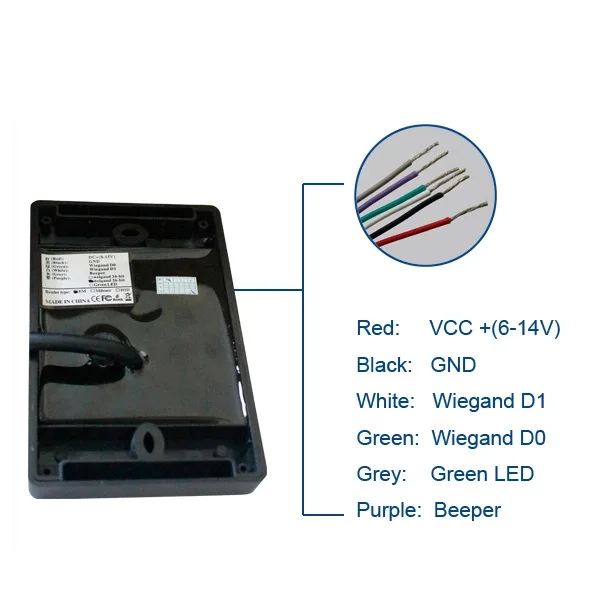

Wire connection:

 Red  -------------------- VCC +(6-14V)

Black -------------------- GND

White -------------------- WG D1

Green ------------------- WG D0

Grey  ------------------- Green LED

Purple ------------------- Beeper

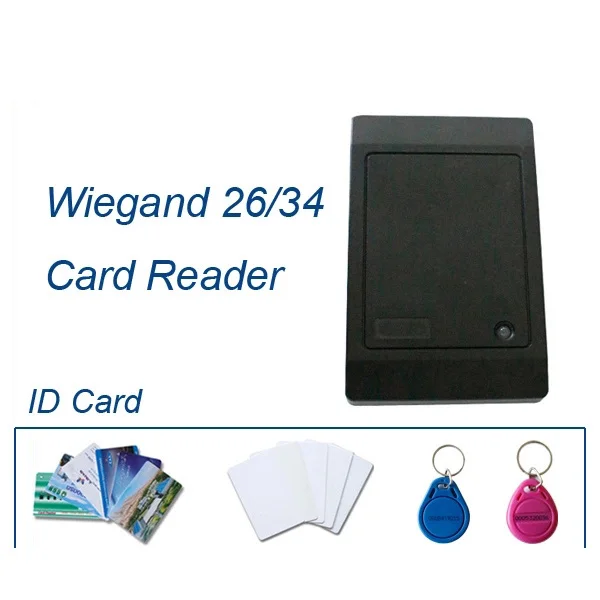

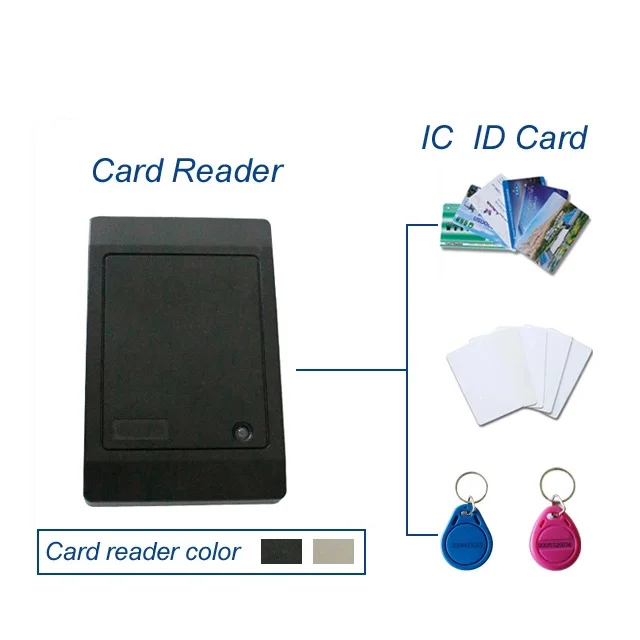

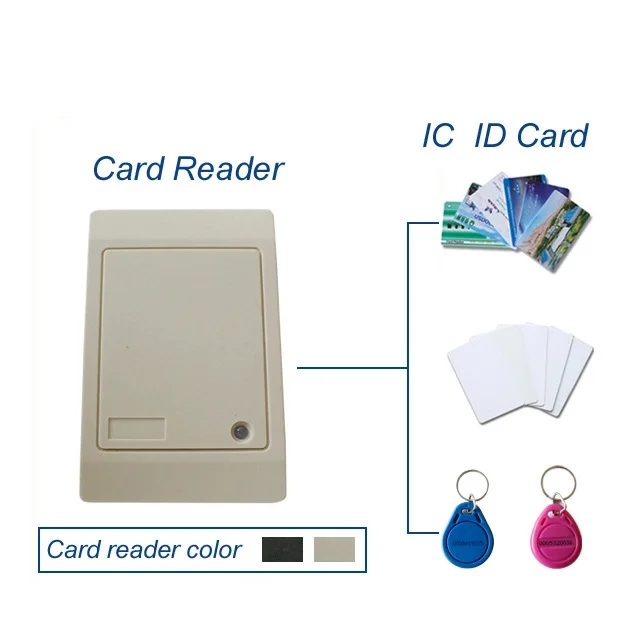

Product Appearance
