Product Overview
Description
WSFL07

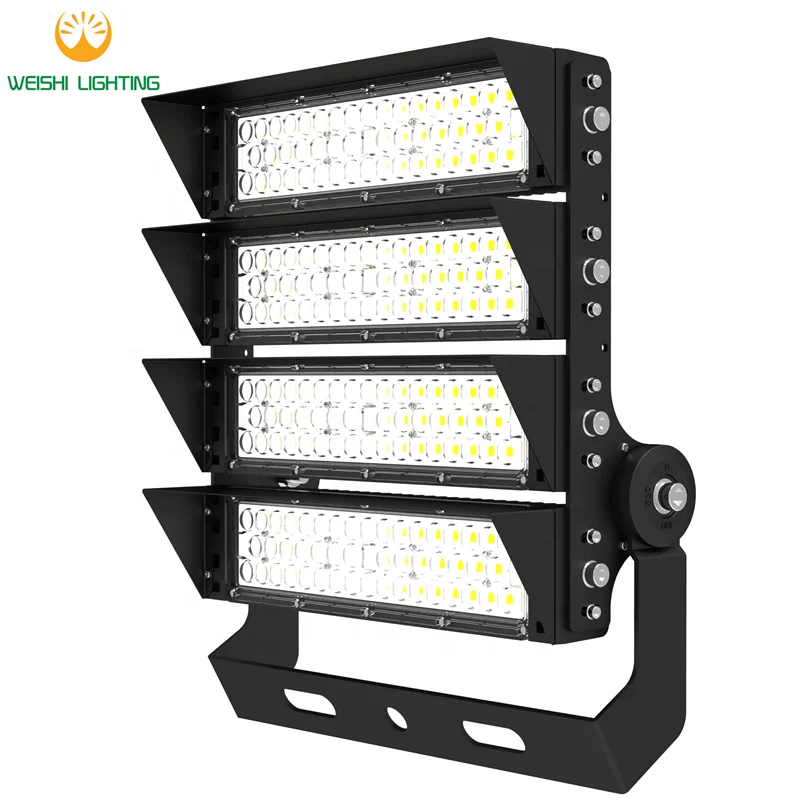

PRODUCT INTRODUCTION
This series of modular flood light is well designed with features of high light efficacy, well temperature management, anti-glare reflectors, rotating modules and brackets, IK10 and IP66 for all types of outdoor high power field lighting.
MODEL SERIES
DIMENSIONS
FEATURES
Top Standard CREE or Lumileds LEDs
• 170lm/W 5W 5050 LEDs (8 chips/LED)
• Lamp Efficacy >150lm/W
• Multi-optional Optical Lenses for the optimized lighting performance
• 125,000 hours life
• > 75Ra
• High Thickness Modular Aluminum for Better Heat Dissipation
• Modular Design with Air Flow to Reduce Temperature
• Wide Power Range
Anti-glare Reflectors
• Help to improve for a comfortable environment
• Friendly for eyes to improve sports performance
• A more comfortable environment can Improve audience experience
Rotating Module Design
• Each module's angle is adjustable
• Stainless steel 304 screws and nuts for a great outdoor performance
Special Designed Bracket for Higher Lighting Efficiency
• With special design not to block the light for the fields
• Target angle can be adjusted with angle marks
Rotating Brackets
• High strength brackets
• Rotating design
• With target angle marks
IP66 Waterproof
• IP67 waterproof LED modules
• Waterproof male and female connectors for each connection and future maintenance
• IP67 waterproof LED drivers
Compact Design with IK10 Impact Resistant
• Compact and modern design• 1-7 modules upto 1000 watts
• High transparent PC optical lenses for a high grade shock and impact resistance
SPECIFICATIONS
LED Type: CREE 5050 LEDs
LED Efficacy: >170lm/W
Lamp Efficacy: >150lm/W
CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥75Ra
LED Life: >125,000hrs
Beam Angle: 30°/60°/90°
PF: >0.97
Power Supply Efficiency: >92%
Power Supply Efficiency: >92%
THDi: ≤10%
Surge Protection: 10KV
Control: 0-10V Dimming , Photocell, Dali Dimming , Intellectual Control Optional
Material: Aluminum and PC Optical Lens
Color / Finish: Black/ Light Grey (Power Coating)
Protection Grade: IP66
IK Grade: IK10
Warranty: 5 years
MODEL NO. | WSFL08-1 | WSFL08-2 | WSFL08-3 | WSFL08-4 | WSFL08-5 | ||||||
WATTAGE | 150W | 300W | 450W | 600W | 750W | ||||||
POWER RANGE | 100W - 150W | 200W - 300W | 400W - 450W | 500W - 600W | 700W - 750W | ||||||
INPUT VOLTAGE | 100 - 305V AC | ||||||||||
LEDs | CREE or Lumileds 5050 LEDs | ||||||||||
DRIVER BRAND | Meanwell / Philips IP67 LED Power Supplies | ||||||||||
LED QTY | 48pcs | 96pcs | 144pcs | 192pcs | 240pcs | ||||||
DIMENSIONS | 410*145*106 | 447*280*119 | 447*380*119 | 447*480*119 | 447*580*119 | ||||||
NET WEIGHT | 7.2kg | 8.5kg | 9.8kg | 10.5kg | 12.3kg | ||||||
PROTECTION | IP66 | ||||||||||
LIGHT DISTRIBUTION
APPLICATIONS
