Industrial Energy Saving Coconut Conveyor Mesh Belt Dryer
- Category: >>>
- Supplier: Henan Nanyang Environmental Protection Machinery Co. Ltd.
Share on (60304897166):
Product Overview
Description

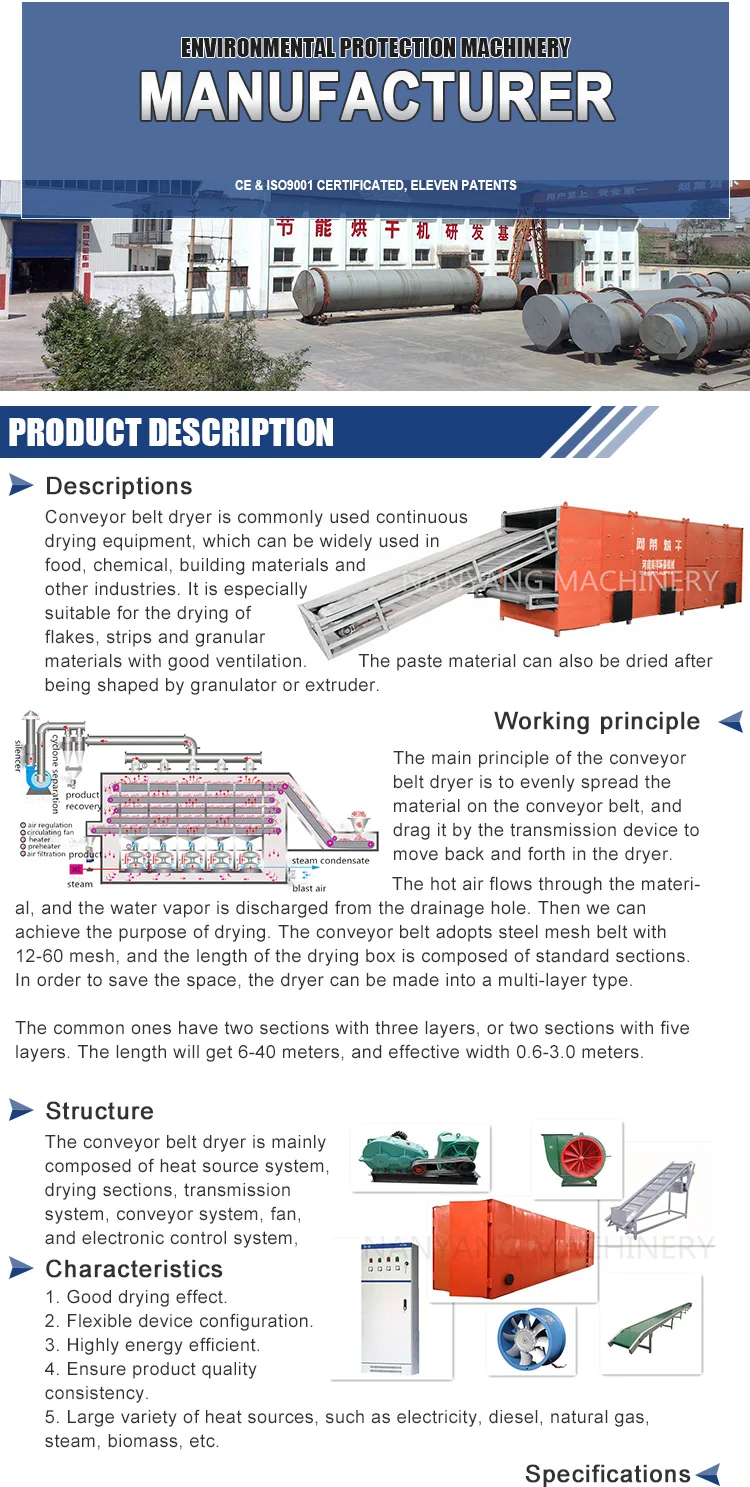

Product Description

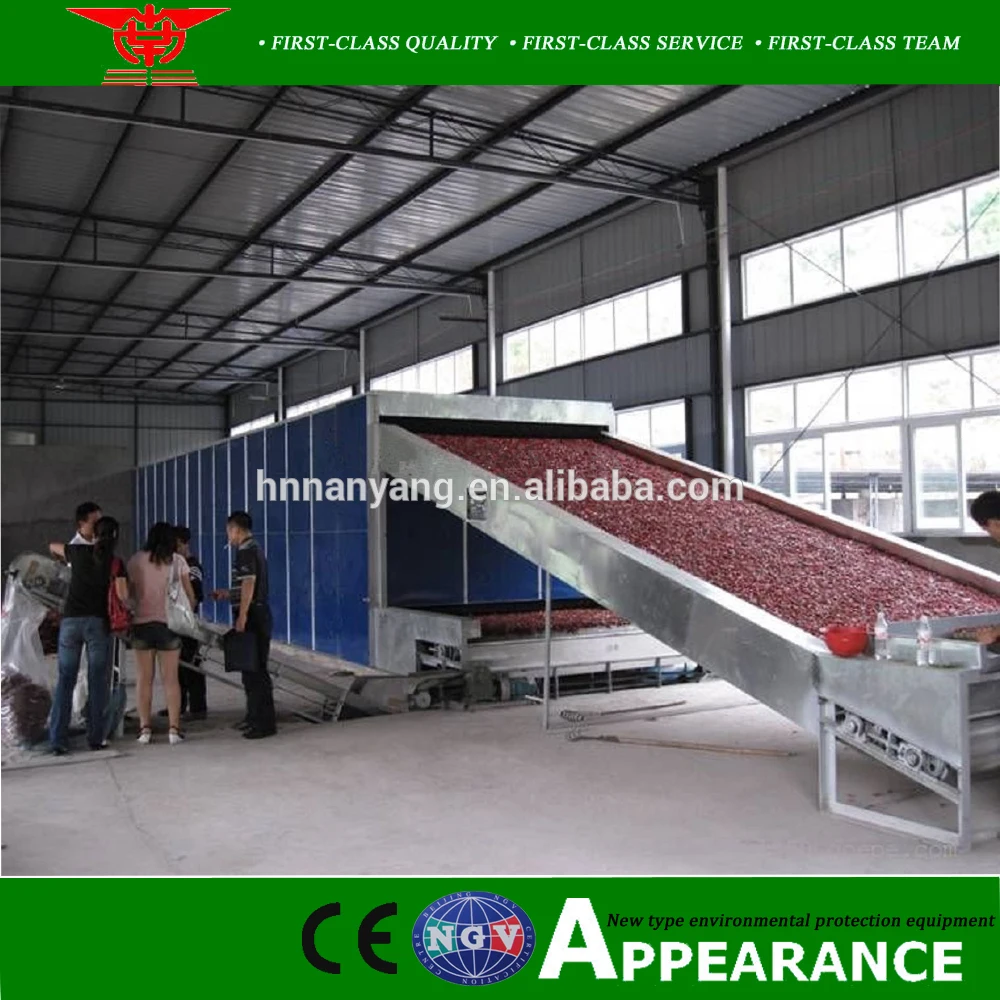

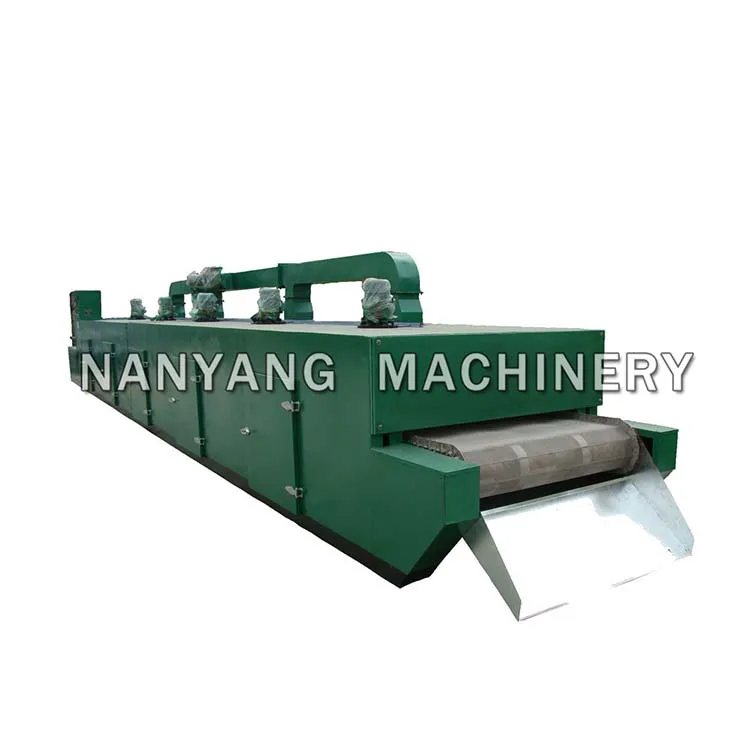

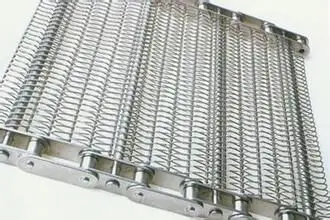

coconut conveyor mesh belt dryer
| Model | NY-12-8 | NY-12-10 | NY-16-8 | NY-16-10 | NY-20-8 | NY-20-10 | |
| Units | 4 | 5 | 4 | 5 | 4 | 5 | |
| Belt width (mm) | 1200 | 1600 | 2000 | ||||
| Drying length (mm) | 8 | 10 | 8 | 10 | 8 | 10 | |
| Paving thickness (mm) | 10-80 | ||||||
| Temperature (℃) | 50-120 | ||||||
| Steam pressure (Mpa) | 0.2-0.6 | ||||||
| Steam consumption (kg/h) | 120-130 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | |
| Heat exchange area (m2) | 275 | 340 | 355 | 440 | 450 | 560 | |
| Drying time (h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | |
| Dehydration intensity (kg/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | |
| Fan quantity (set) | 5 | 6 | 5 | 6 | 5 | 6 | |
| Fan power (kw) | 9.9 | 12.1 | 9.9 | 12.1 | 18.2 | 22.2 | |
| Total power (kw) | 11.4 | 13.6 | 11.4 | 13.6 | 19.7 | 23.7 | |
| Dimension | Length | 10050 | 12050 | 10050 | 12050 | 10050 | 12050 |
| (mm) | |||||||
| Width | 1500 | 1500 | 1910 | 1910 | 2330 | 2300 | |
| Height | 3150 | 3150 | 3150 | 3150 | 3650 | 3650 | |
| Weight (kg) | 4800 | 5780 | 5400 | 6550 | 6350 | 7800 | |

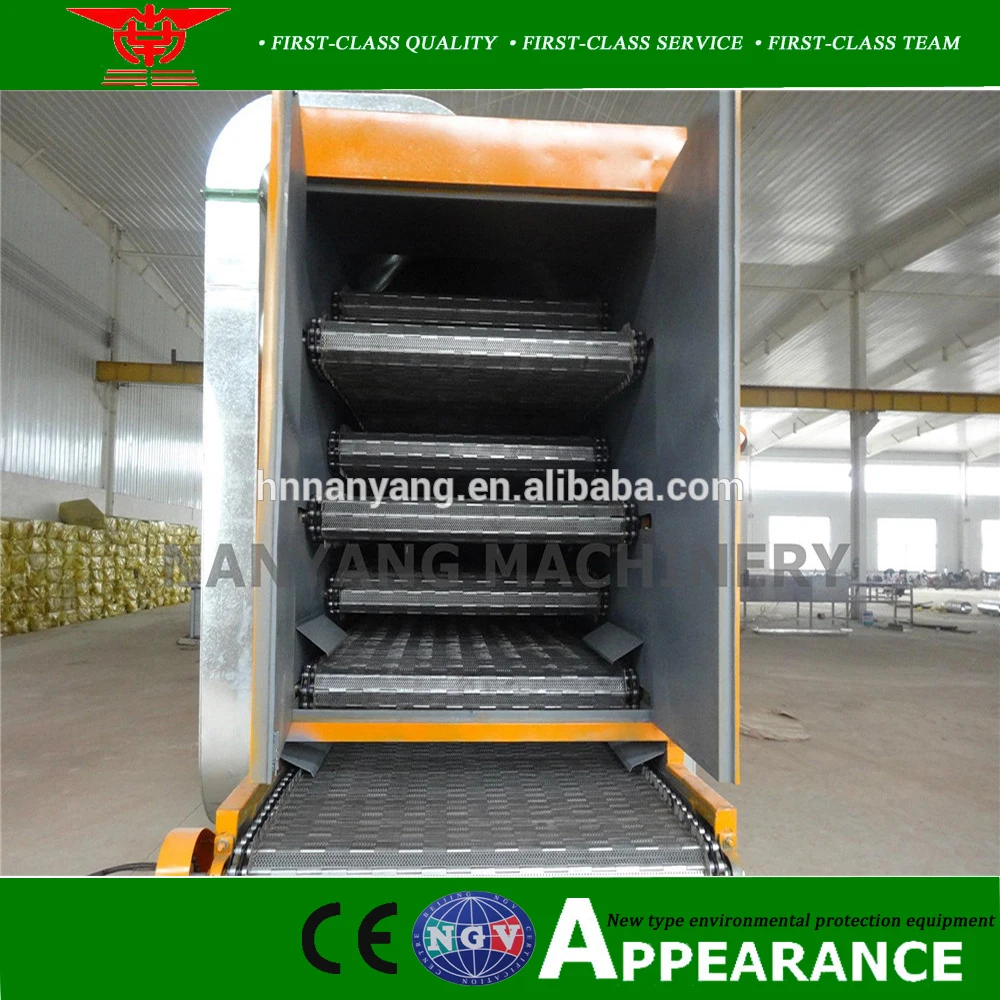

coconut conveyor mesh belt dryer
FAQ
Q1.Are the engineers available overseas?
A: Yes. We provide comprehensive after-sales services, remote guidance or live teaching, whichever you like.
Q2.MOQ
As we are the manufacturer, the MOQ is one set.
Q3.Transportation
A: We provide many kinds of transportation and multimodal transportation, which under customers' requirments.
Q4.Warranty
A: Normally 12 months.
Q5.Packing
A: Wooden cases or containers directly.
Q6.Payment
A: T/T, L/C, Western Union, etc.
Q7.Discount
A: Factory direct supply, we will provide each customer the products with highest quality and best price. We will offer discounted prices during the promotion period or for the old customers.
Q8.Lead time
A: According to the kinds of the machine, it will be 7-10 working days or 15-30 working days.
