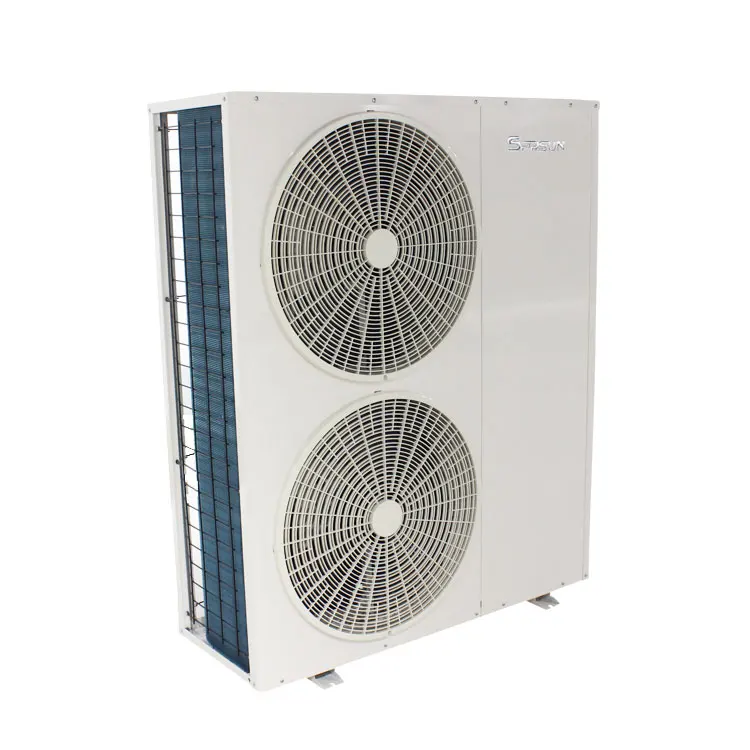

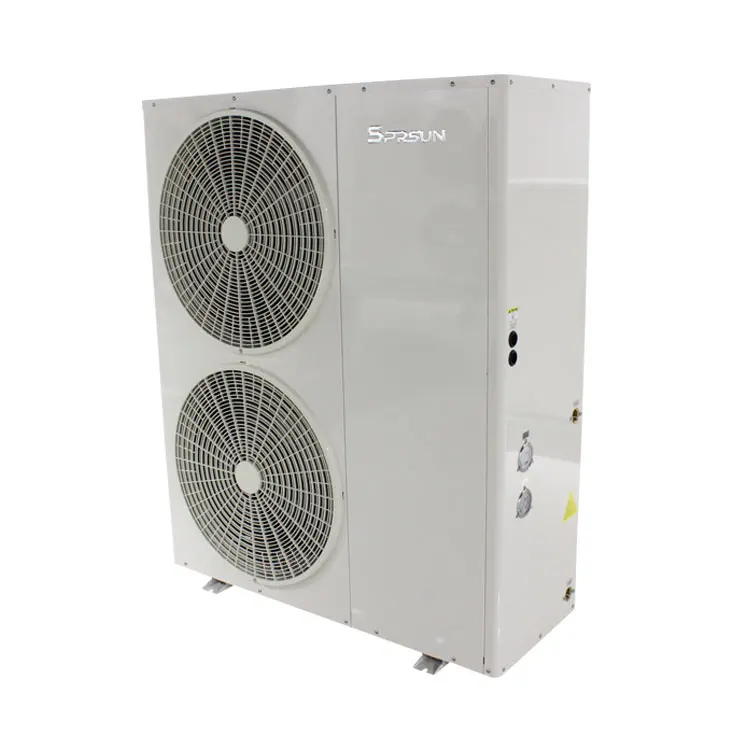

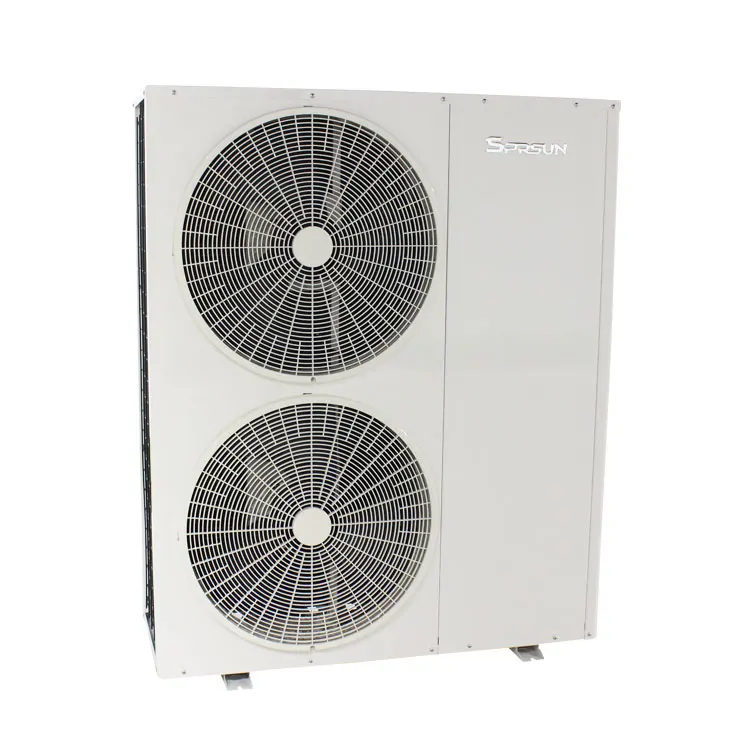

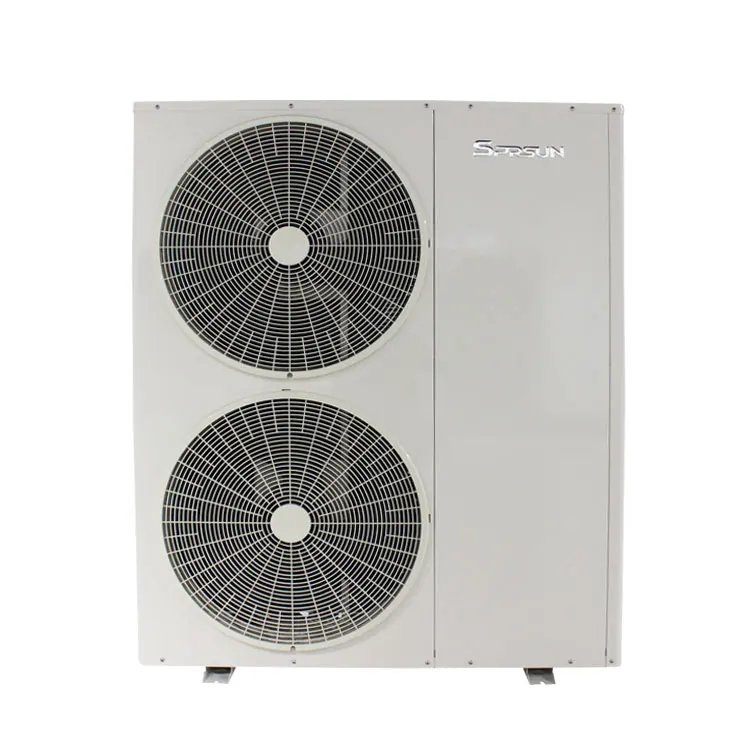

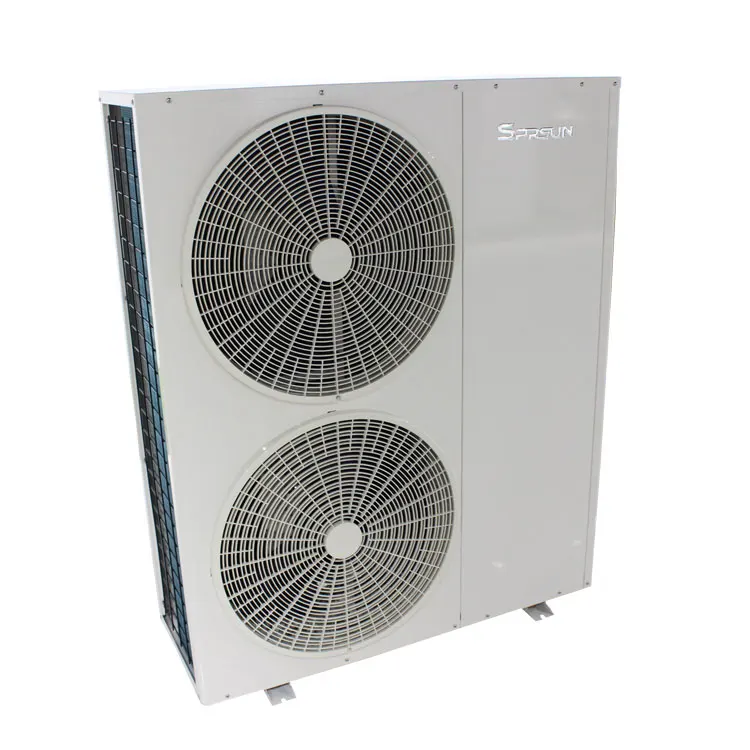

sprsun DC inverter air water heat pump heating cooling hot water for household
- Category: Heat Pump Water Heaters >>>
- Supplier: Guangzhou Sprsun New Energy Technology Development Co. Ltd.
Share on (60305318872):
Product Overview
Description
With 24-month long warranty, SPRSUN Monoblock DC Inverter Air Source Heat Pumps are designed for sanitory hot water, house heating and cooling with lowest ambient temperature -20℃.
* Higher Energy Efficiency
Achieving the ERP A+++ energy class, our DC inverter heat pumps save energy by more than 30% compared with other ordinary air source heat pumps. The maximum COP of SPRSUN DC inverter heat pumps reaches 5.65!
* Low Noise
With Panasonic rotary compressor and DC inverter brushless fans, our DC inverter heat pumps adopt new noise reduction measures so that the sound of the unit is controlled at a satisfactory level.
* Smart Control
The intelligent CAREL controller with RS485 WIFI APP is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple units can be controlled with one panel.
* Wide Voltage Application
The DC Inverter Air Source Heat Pumps operate normally within the voltage range of 150V-260V (1ph) or 330V-450V (3ph) to reduce the impact of voltage instability on the environment.
* Intelligent Defrosting
The smart defrosting technology makes optimal defrosting decisions to minimize energy consumption and improve customer satisfaction.
Achieving the ERP A+++ energy class, our DC inverter heat pumps save energy by more than 30% compared with other ordinary air source heat pumps. The maximum COP of SPRSUN DC inverter heat pumps reaches 5.65!
* Low Noise
With Panasonic rotary compressor and DC inverter brushless fans, our DC inverter heat pumps adopt new noise reduction measures so that the sound of the unit is controlled at a satisfactory level.
* Smart Control
The intelligent CAREL controller with RS485 WIFI APP is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple units can be controlled with one panel.
* Wide Voltage Application
The DC Inverter Air Source Heat Pumps operate normally within the voltage range of 150V-260V (1ph) or 330V-450V (3ph) to reduce the impact of voltage instability on the environment.
* Intelligent Defrosting
The smart defrosting technology makes optimal defrosting decisions to minimize energy consumption and improve customer satisfaction.
Specification
Model | CGK050V2 | CGK-050V2 | |||
Power supply /Refrigerant | V/Hz/Ph | 220-240/50/1 R410A | 380-420/50/1 R410A | ||
Max. heating capacity(1) | KW | 16.5 | 16.6 | ||
C.O.P(1) | W/W | 4.48 | 4.52 | ||
Heating capacity Min/Max.(1) | KW | 7.59 / 16.5 | 7.636 / 16.6 | ||
Heating power input Min/Max.(1) | W | 1353 / 3683 | 1352 / 3673 | ||
COP Min./Max.(1) | W/W | 4.48 / 5.6 | 4.52 / 5.65 | ||
Max. heating capacity(2) | KW | 15.5 | 15.6 | ||
C.O.P (2) | W/W | 3.58 | 3.62 | ||
Heating capacity Min/Max.(2) | KW | 7.13 / 15.51 | 7.18 / 15.6 | ||
Heating power input Min/Max.(2) | W | 1676 / 4328 | 1672 / 4315 | ||
COP Min./Max.(2) | W/W | 3.58 / 4.26 | 3.62 / 4.29 | ||
Max. cooling capacity(3) | KW | 14.7 | 14.8 | ||
E.E.R(3) | W/W | 3.48 | 3.51 | ||
Max. cooling capacity(3) | KW | 6.78 / 14.73 | 6.82 / 14.82 | ||
Cooling power input Min/Max.(3) | W | 1625 / 4953 | 1620 / 4939 | ||
E.E.R Min./Max. (3) | W/W | 2.97 / 4.17 | 3.00 / 4.21 | ||
Max. cooling capacity(4) | KW | 11.6 | 11.7 | ||
E.E.R(4) | W/W | 2.61 | 2.63 | ||
Max. cooling capacity(4) | KW | 5.35 / 11.63 | 5.38 / 11.70 | ||
Cooling power input Min/Max.(4) | W | 1458 / 4601 | 1454 / 4587 | ||
E.E.R Min./Max. (4) | W/W | 2.53 / 3.67 | 2.55 / 3.70 | ||
Rate current | A | 17.6 | 7.8 | ||
Max current | A | 25.55 | 11.24 | ||
Compressor Type -Quantity/system | Twin rotary-1 | Twin rotary-1 | |||
Fan | Quantity | pc | 2 | 2 | |
Airflow | m3/h | 5000 | 5000 | ||
Rated power | W | 200 | 200 | ||
Water side heat exchanger | Type | Plate heat exchanger | Plate heat exchanger | ||
Water pressure drop | Kpa | 23 | 23 | ||
Piping connection | Inch | G1" | G1" | ||
Allowable water flow | Min./Rated /Max. | L/S | 0.49/0.79/1.31 | 0.5/0.79/1.32 | |
Noise level | dB(A) | 62 | 62 | ||
Net Dimension(L*D*H) | mm | 1100*490*1350 | 1100*490*1350 | ||
Net Weight | KG | 124 | 124 | ||
Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃;
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃;
COP- Efficiency in Different Working Condition
Get SCOP 4.88 A+++ ERP label from TUV
Key Component
Condenser (Copper)
Coaxial heat exchanger
Evaporator
Hydropilic aluminum foil and internal thread copper pipe heat exchanger
High Pressure Sensor
0/4.5MPa
Compressor
Panasonic rotary compressor
Expansion Valve
Danfoss electronic expansion valve
Low Pressure Sensor
0./3.5MPa

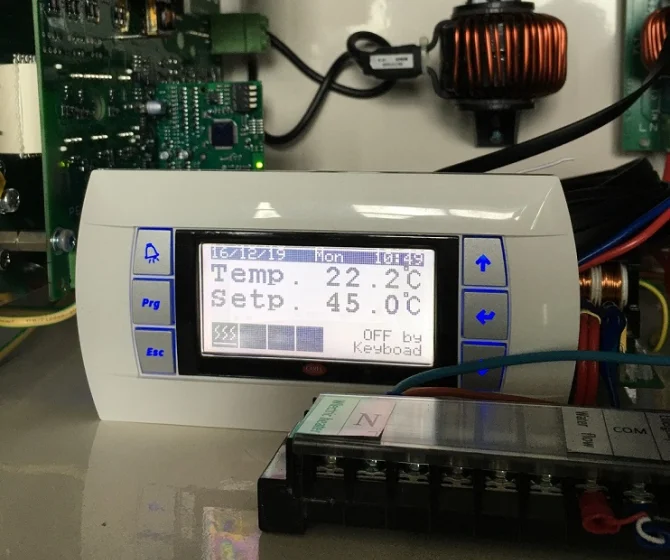

CAREL Controller
SPRSUN multiple function controller
AC Contactor & Thermal Relay
Brand: Eaton
4-way Valve
Brand: SANHUA
Our CAREL controller is customized model and we will keep updating the functions . Now we have the below smart functions :
>>Multi-languages -- 8 languages are available
>>Optional WIFI APP control --- Remark: WIFI adapter should be added
>>Optional WIFI APP control --- Remark: WIFI adapter should be added
>>Optional Cascade function --- Remark: Cascade adapter should be added
>>RS485 smart control : Easy to solve after-sales problems; Save maintenance cost.
>>Heating and cooling Linkage :The mode can be changed by room thermostat
>>Mode switch according ambient temp. : The mode can be changed by room thermostat
>>Economic mode :The frequency will be limited in this mode, more power saving
The frequency and fan speed will be limited, more silence in the night
>>Night mode : The mode for heating or cooling can be automatic changing according ambient
>>RS485 smart control : Easy to solve after-sales problems; Save maintenance cost.
>>Heating and cooling Linkage :The mode can be changed by room thermostat
>>Mode switch according ambient temp. : The mode can be changed by room thermostat
>>Economic mode :The frequency will be limited in this mode, more power saving
The frequency and fan speed will be limited, more silence in the night
>>Night mode : The mode for heating or cooling can be automatic changing according ambient
Manufacturing Technique
222

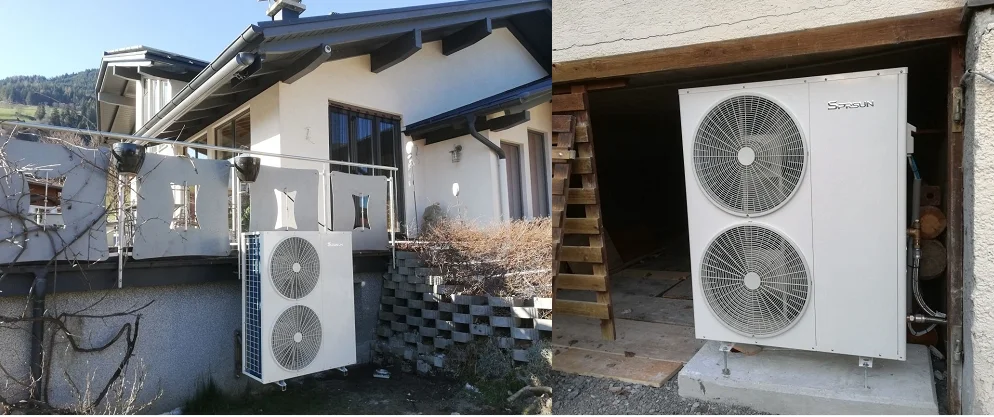

Feedback photos from Clients around the world
Our R&D Lab
SPRSUN R&D Lab Upgraded to Issue Heat Pump Test Reports Approved by TUV
R&D is an important pillar of the business development of SPRSUN. Based on this, in order to adapt to more market changes, SPRSUN R&D team improved our air source heat pump performance testing laboratory in March 2020, enabling the company to continuously upgrade product performance, energy efficiency, reliability, noise level and environmental compatibility. At present, SPRSUN R&D lab can directly issue heat pump test reports approved by TÜV SÜD, the world's leading technical service provider of product testing, certification and inspection.
Certifications
Focusing on hot water, heating and cooling, SPRSUN is built up to meet customers'special energy saving needs with advanced technology support from Germany while ISO9001 and ISO14001 have been obtained. Our heat pump products are produced based on EN14511 standard with CE, CB, SAA, ETL and ERP certificates.
Our Company
SPRSUN - Professional Heat Pump Manufacturer since 1999
As one of the Top 10 brand in China's heat pump industry, SPRSUN has been in the heat pump industry for 20 years. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps and other high efficient heat pumps for the HVAC market. Our products are welcome all over the world, such as Germany, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.
