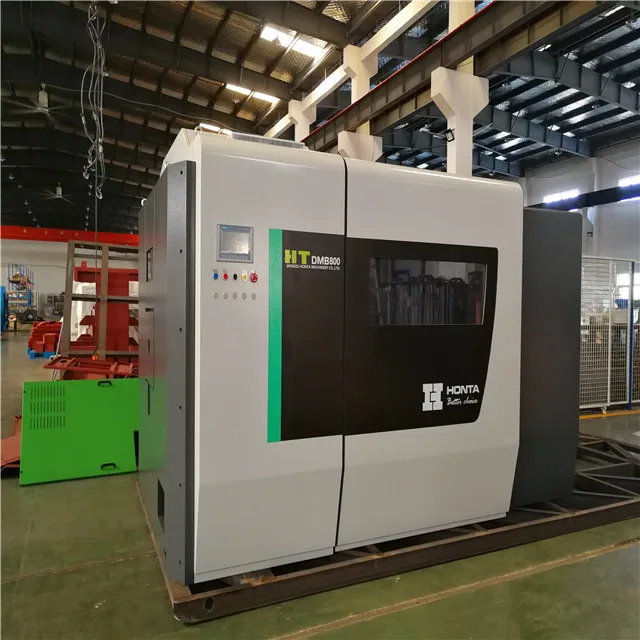

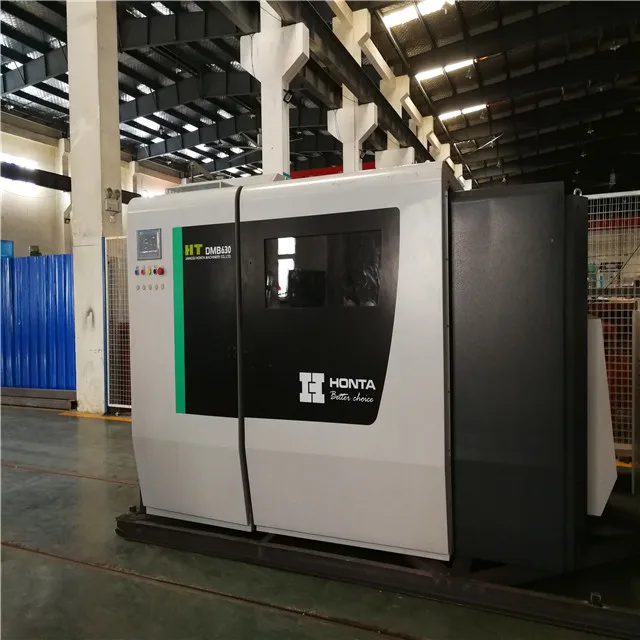

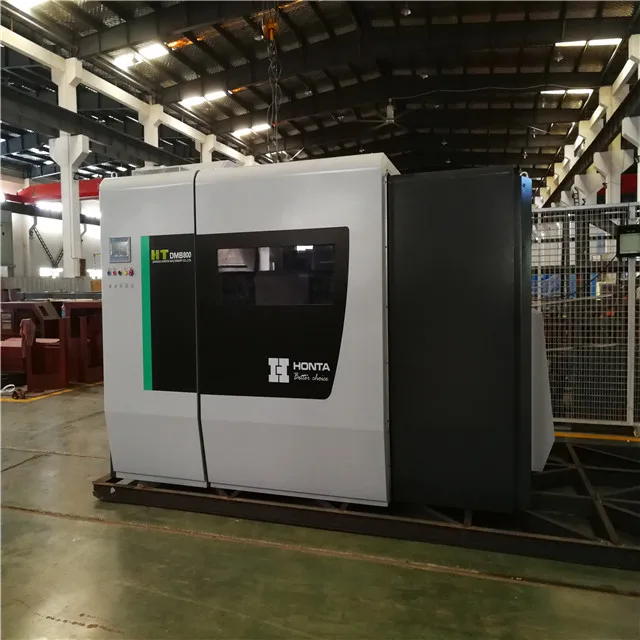

JiangSu Kunshan HONTA factory double twisting bunching machine for cable wire
- Category: >>>
- Supplier: Kunshan City Hongtai Machinery & Electric Equipment Co. Ltd. [Jiangsu China]Kunshan
Share on (60305401674):
Product Overview
Description
Product Description
Features:
- Ø Magnetic powder clutch tension auto control can ensure constant tension from
- empty bobbin to full bobbin;
- Ø Synchronous belt drive; mechanical pitch change; stable pitch;
- Ø Bobbin loading and unloading is controlled by hydraulic with motor; it’s easy to
- oprtate.
Technical Specification:
|
Machine model |
HT-500P |
HT-630P |
HT-800P |
HT-1000P |
HT-1250P |
|
Sectional area twisted(mm2) |
0.50-2.50 |
0.75-6.00 |
2.50-16.0 |
6.0-25.0 |
10.0-50.0 |
|
Inlet wire dia. |
0.08-0.45 |
0.25-1.00 |
0.30-1.60 |
0.40-1.80 |
0.60-2.50 |
|
Twisting pitch |
4.22-39.64mm |
11.15-100mm |
17-200mm |
35-200mm |
35-300mm |
|
Main motor power |
AC7.5KW |
AC11KW |
AC18.5KW |
AC22KW |
AC37KW |
|
Max. rotating speed |
2200RPM |
1800RPM |
1200RPM |
1000RPM |
800RPM |
|
Tension control |
Magnetic powder clutch automatic adjustment |
||||
|
Traverse type |
Polished rod traverse, wire lay is adjustable |
||||
|
Wire break sensor |
Digital display, machine auto-stop if wire break |
||||
|
Rotating direction |
S.Z Direction |
||||
|
Spooling bobbin |
500mm |
630mm |
800mm |
1000mm |
1250mm |
------------------------------------------
Finished Products

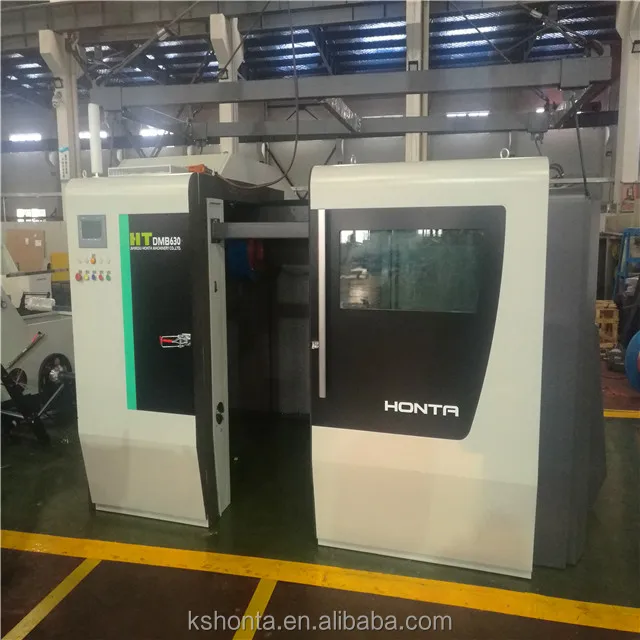

HT-630P Bunching machine:
Company Information
Our factory show:
Certifications
CE for multi wire drawing machine:
Trade show

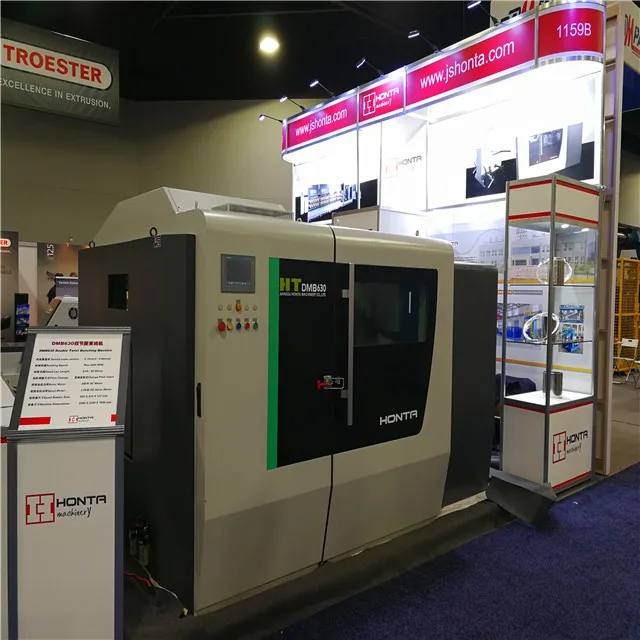

Exhibition is shanghai city:
Commissioning
Commissioning wire drawing machine in Turkey :
Customer show
Our customers come from different countries around the world.
