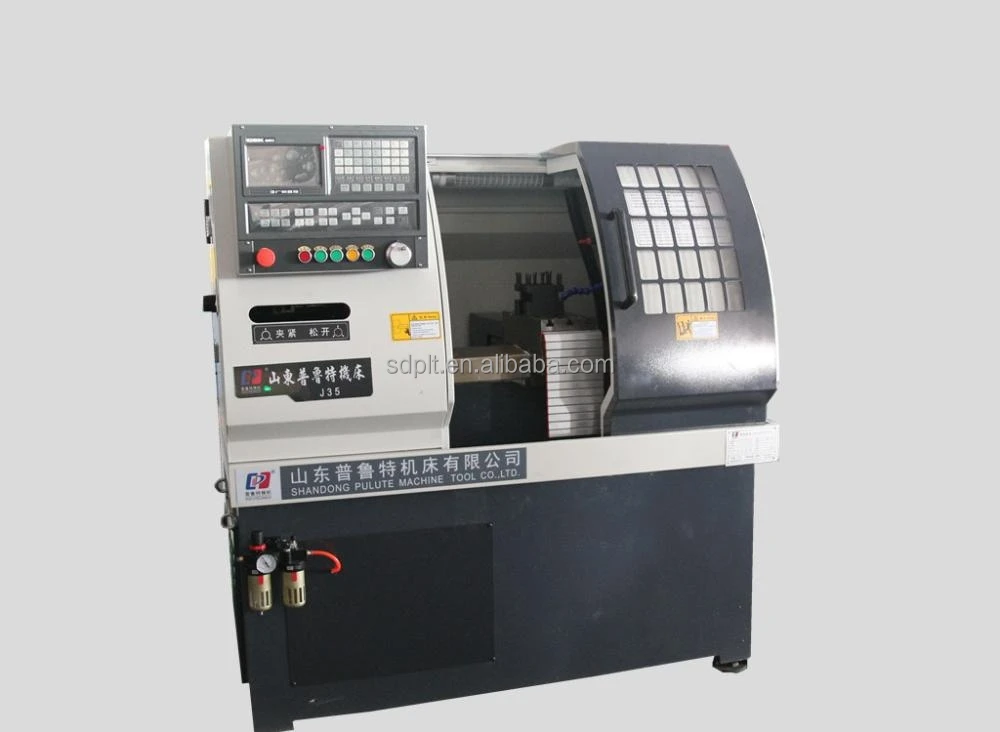

Economic CNC Lathe J35 mini lathe
- Category: >>>
- Supplier: Shandong Pulute Machine Tool Co. Ltd.
Share on (60305890877):
Product Overview
Description
Product Description

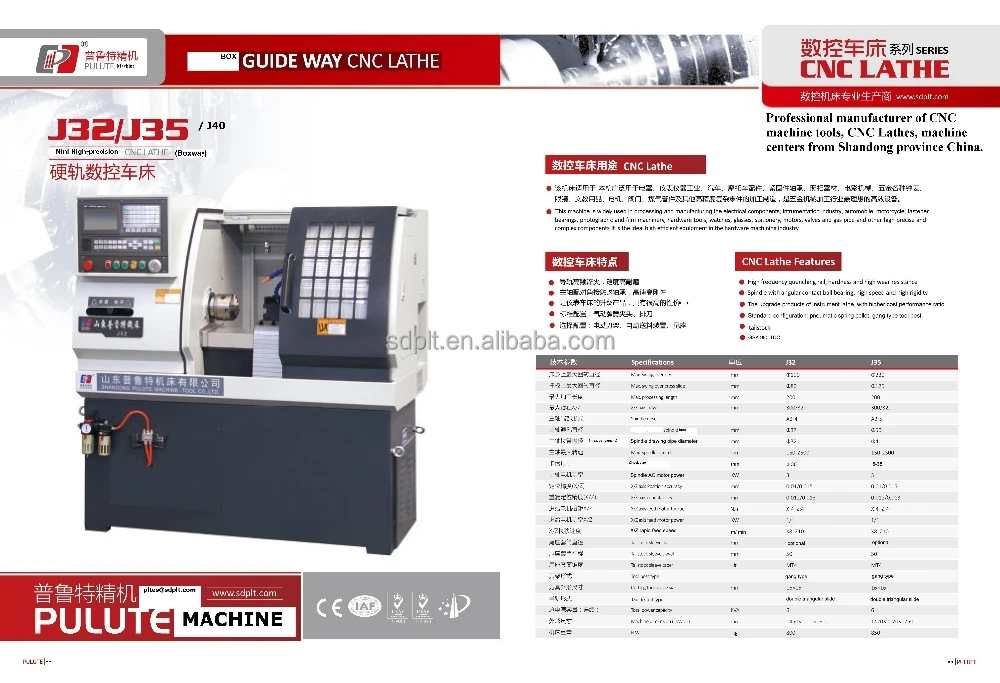

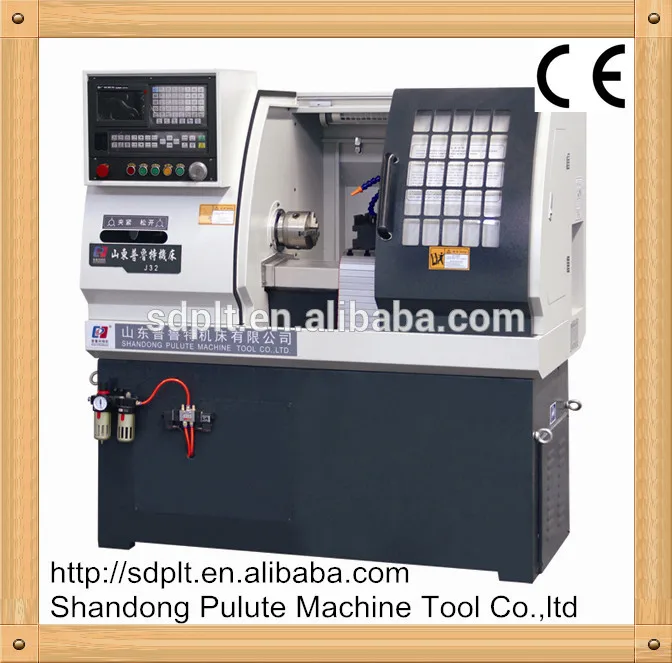

J32 J35 J40
fLAT BED BOXWAY CNC mini LATHE
1. SPECIFICATION
| J35 |
Max. swing over bed | Φ230 mm |
Max. swing over cross slide | Φ125mm |
Max. turning length | 200 mm |
Spindle bore | Φ50 mm |
Max. bar capacity | Φ41 mm |
Spindle nose | A2-5 |
Spindle speed | 150-2500 rpm |
Spindle motor power | 3 kw |
X/Z axis travel | 300/320 mm |
X/Z axis torque | 1/1 kw |
X/Z axis rapid feeding speed | 8/10 m/min |
X/Z axis position accuracy | 0.01/0.015 mm |
X/Z axis repeatability | 0.012/0.013 mm |
Tool bar section | 16*16 mm |
Tailstock sleeve dia. | Φ45mm optional |
Tailstock sleeve travel | 50 mm optional |
Tailstock taper | MT4# optional |
N.W. | 850 kg |
Machine dimension (L*W*H) | 1420*1120*1750 mm |
2. FEATURES
Frequency stepless speed
With servo system
4-position electric turret, or Gang type tools-Row tools
3. USAGE
This machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle, fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors, valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment in hardware machinery industry.
4. STANDARD ACCESSORIES
GSK980TDC or Siemens 808d NC system
inverter motor 3kw
4-station gang type tool post
spring collet
5. OPTIONAL ACCESSORIES
KND100Ti or Fanuc 0I mate-TD
servo motor 3.7/5.5 kw
Frequency inverter motor 4 kw
4-station electric turret
5" manual chuck
6" manual chuck
tailstock
auto feeder device
Packaging & Shipping
Ply wood cases with steel frames, or per customers.
Our Services
One year Warranty.
Online traning, video, calls, e-mails, etc avail for technique supports.

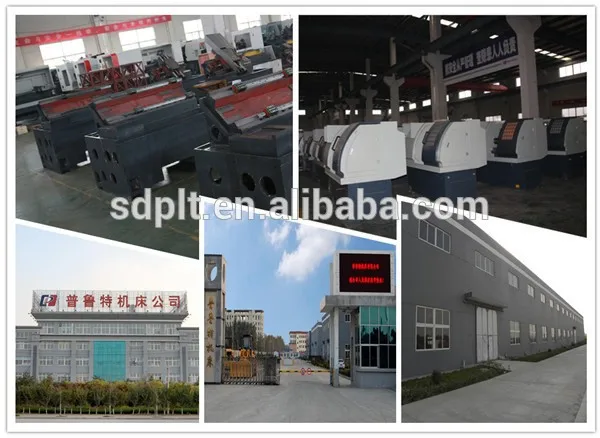

Company Information
We're ISO9001, ISO14001 certified professional manufacturer.
FAQ
Welcome to contact us for more info, welcome to pay a visit to our factory at Tengzhou City, Shandong Province China.
Tengzhou Dong station is about in the middle of Beijing-Shanghai express railway (JINGHU GAOTIE)
