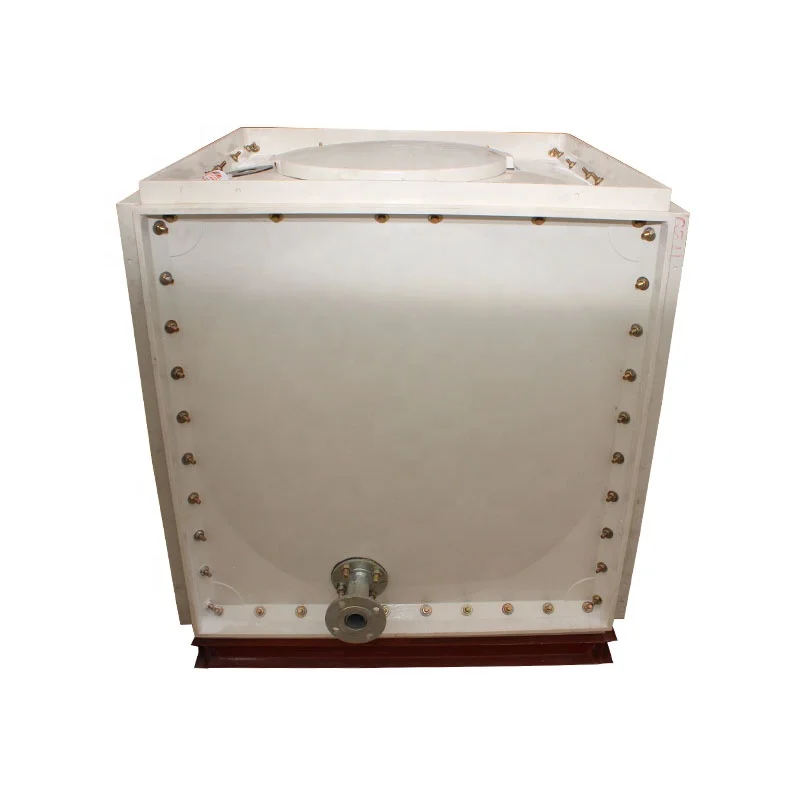

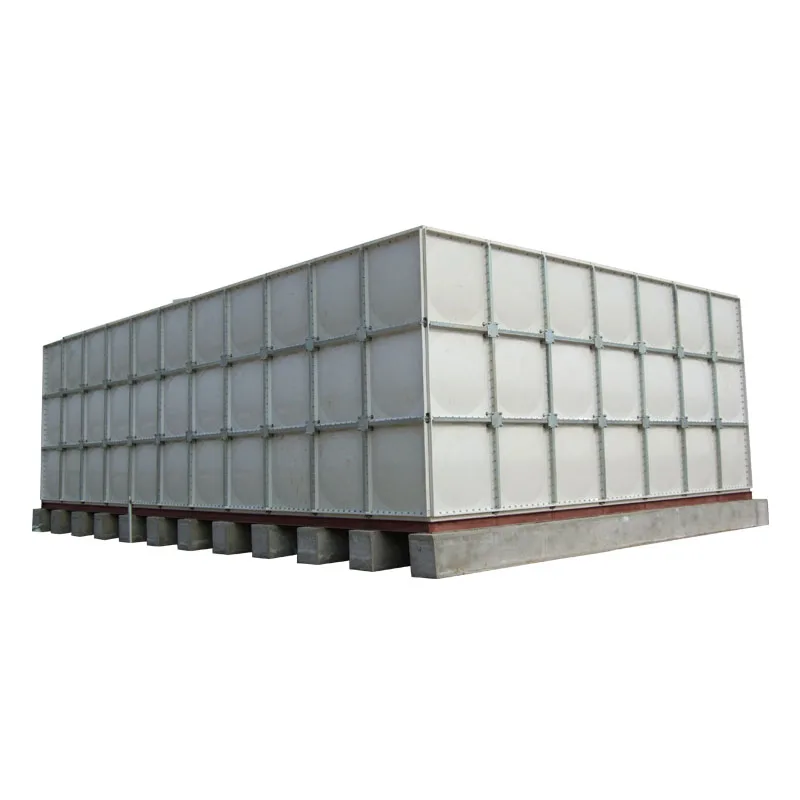

50000m3 GRP Sectional Modular Water Storage Tank

Product Overview

Description

We are Hebei Sinta Co., Ltd in the North of China,  specializing in the manufactureing and exporting water tank, mainly include galvanized steel water tank, stainless steel water tank, frp/grp /smc water tank.

 ♣Modular Water tank brief Introduction

Modular water tank is consist of high quality mild carbon steel Q235 A class grade, This product manufacture, installment are not affected by the civil construction, do not need welding equipment, Using hot zinc corrosion surface treatment,, attractive and durable. To prevent secondary pollution, water quality is beneficial to human body health.

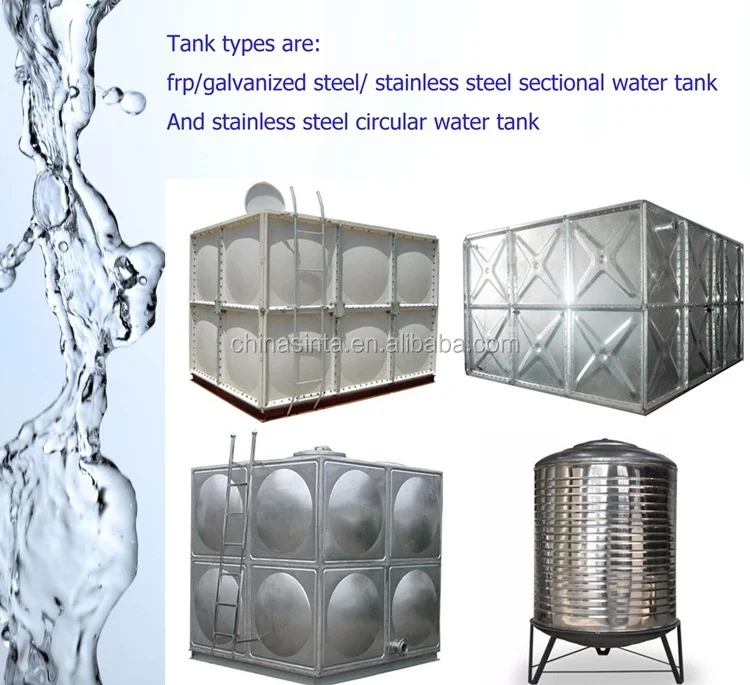

We produce three types modular water tank as follow picture



♣Modular Water tank specification

Fiberglass sectional  water storage tank	Material	FRP/GRP/SMC
	Capacity	1m3-5000m3
	Dimension	According to tank volume
	Color	White & blue
	Panel size	1*1m, 1*0.5m, 0.5*0.5m
	Panel thickness	4mm-16mm
	Accessory	C-channel, bolts&nuts, tie rod, support, internal and external ladders, angle steel, flange,  pressure seal, sealing rubber strip, manhole, inlet, outlet, washout,overflow nozzle
Galvanized steel sectional  water storage tank	Material	Galvanized steel
	Capacity	1m3-5000m3
	Dimension	According to tank volume
	Panel size	1.22*1.22m,1*1m, 1*0.5m, 0.5*0.5m
	Panel thickness	5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm

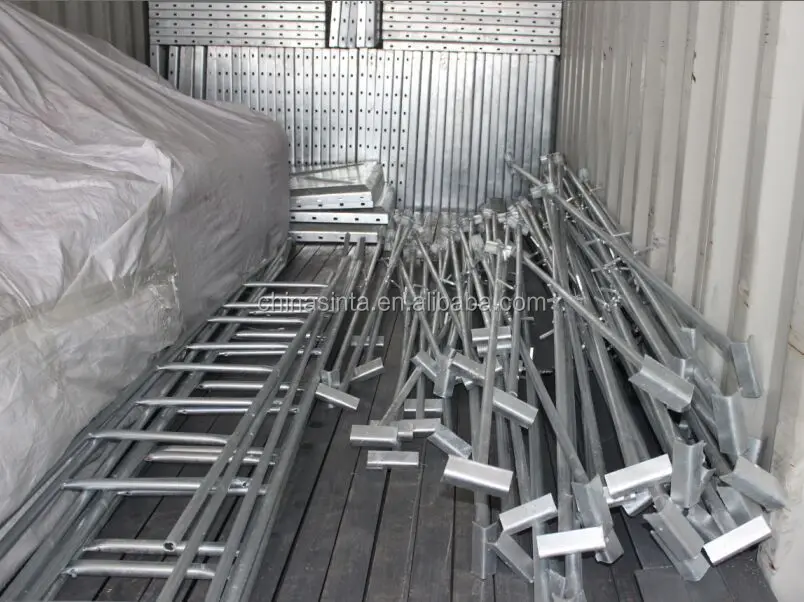

	Accessory	C-channel steel base, ladder, Internal tie rod, Internal support bar, Galvanized grade 8.8 bolts and nuts, Plugging, Sealing rubber strip,Water level indicator, ladder fixing clip
Stainless steel sectional  water storage tank	Material	Stainless steel 304/316
	Capacity	1m3-5000m3
	Dimension	According to tank volume
	Panel size	1*1m, 1*0.5m, 0.5*0.5m
	Panel thickness	4mm,6mm,7.5mm,8mm,10mm
	Accessory	Water inlet and outlet, Bolts, Sealing tapes, Draw rod, Flange connection, Ladder, Base channel(C channel) etc.

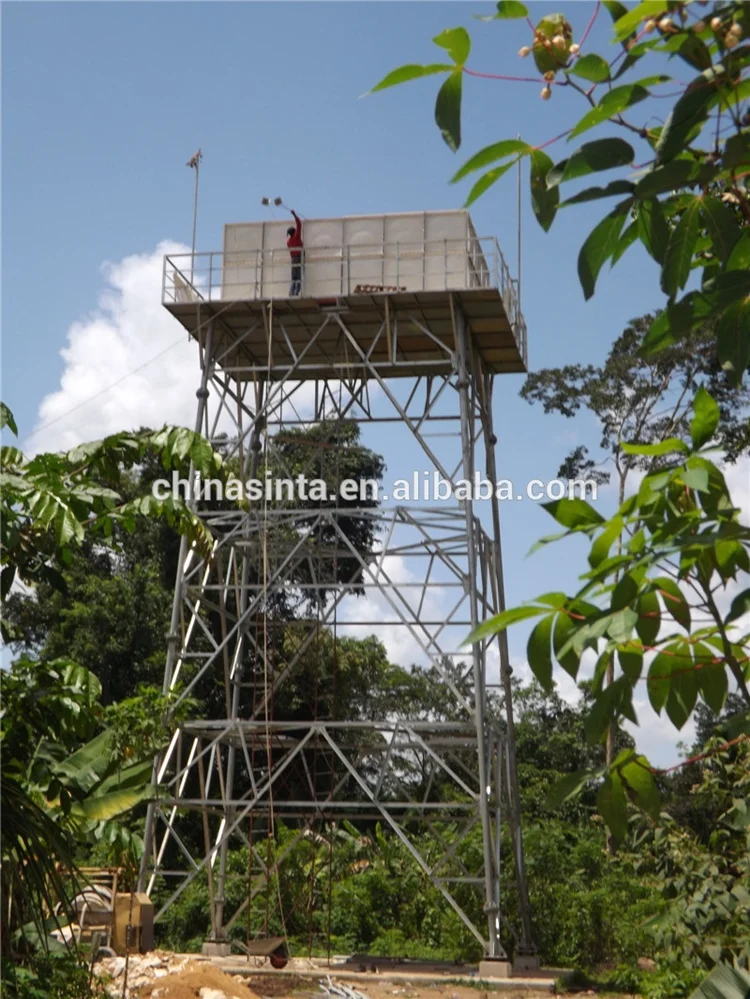

Our frp and galvanized steel water tank can be supplied with steel towers -6m/9m/15m and etc.

   •  Access ladder with safety cage

   •  Option of having a walkway around the tank

   •  Design certificate from registered professional engineer

♣Modular Water tank application

1). storage and regulation of living water supply & construction water supply

2). Rainwater Harvesting & Storage

3). Effluent/Acid and alkali solution treatment & Storage

4).Hospital,buildings,building site, school and other place

5). temporary water storage for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc

♣Modular Water tank features

1.  Excellent UV and weather-resistant characteristics; Corrosion resistant; anti-rusted.

2.  High strength and Durability.

3.  Non-leakage.

4.  Excellent Hygienic, good water quality: non-toxic and corrosion from panels and prevent bacteria increasing.

5.  High seismic tolerances; Does not deform or dent.

6.  Low thermal conductivity and excellent thermal insulation.

7.  Easy to clean and maintenance management convenient.



♣Modular Water tank photos

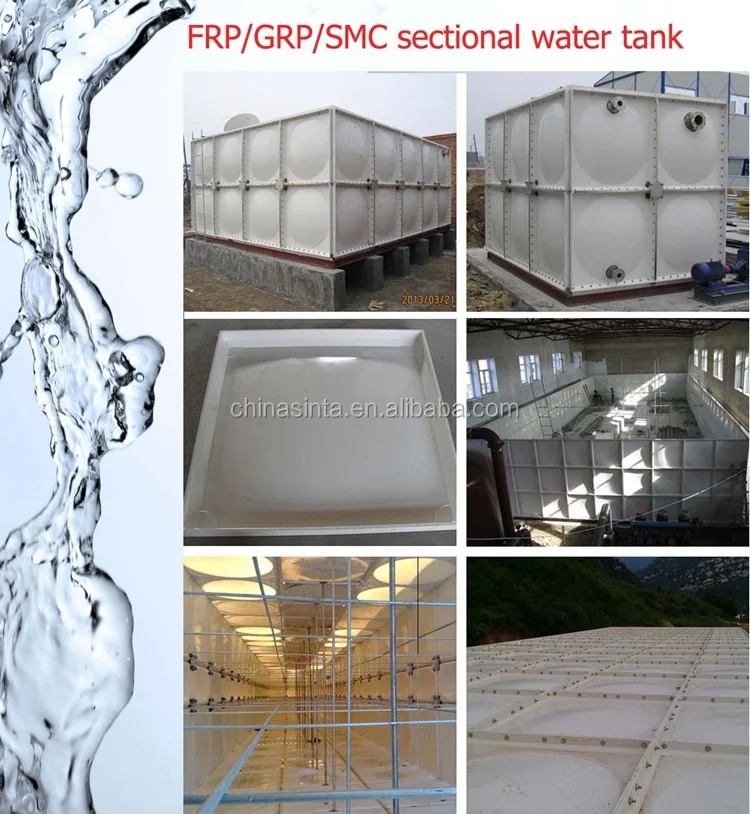

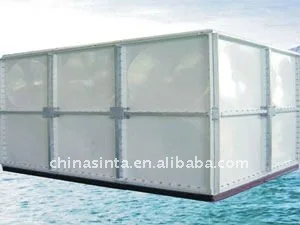

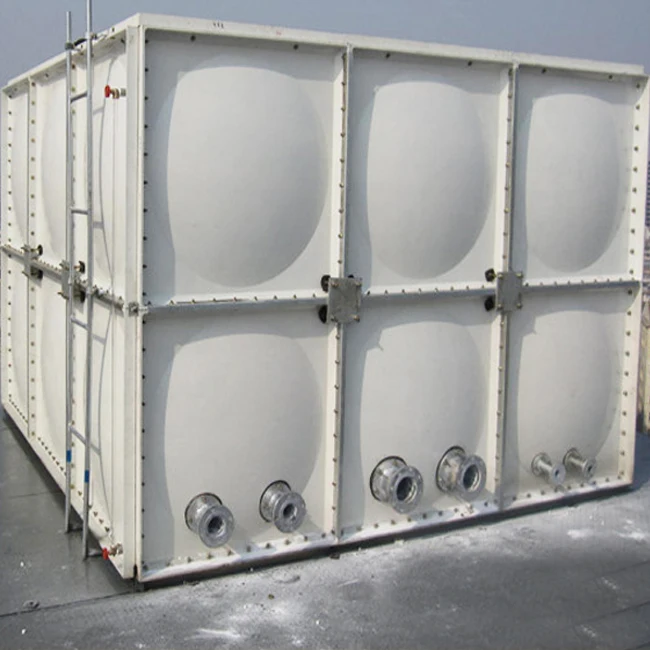

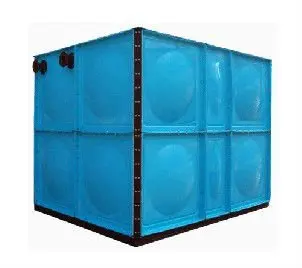

If you need frp water tank, pls click follow picture to see its detailed specification

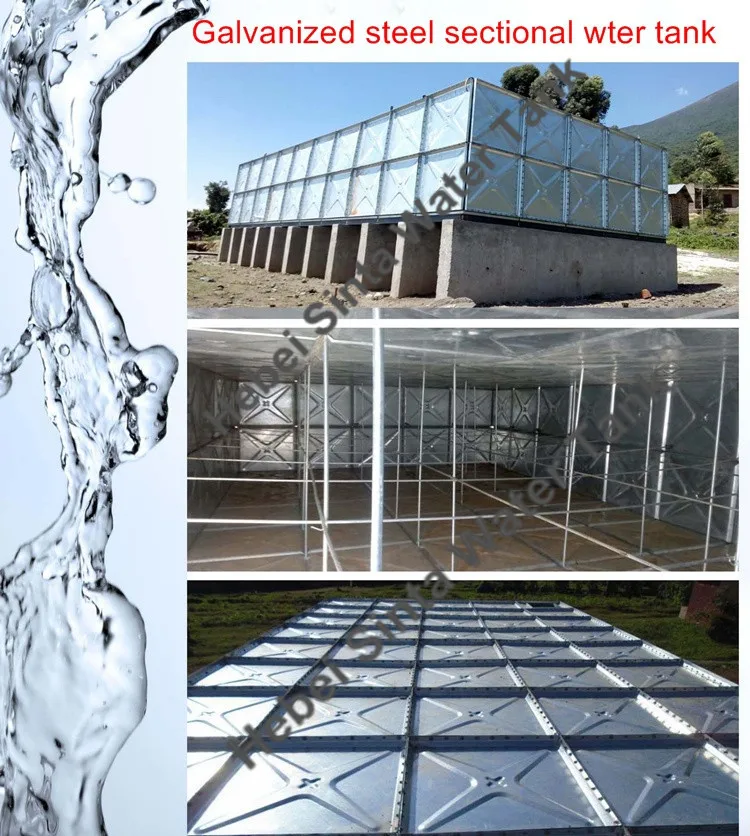

If you need galvanized steel water tank,pls click follow picture to see its detailed info.

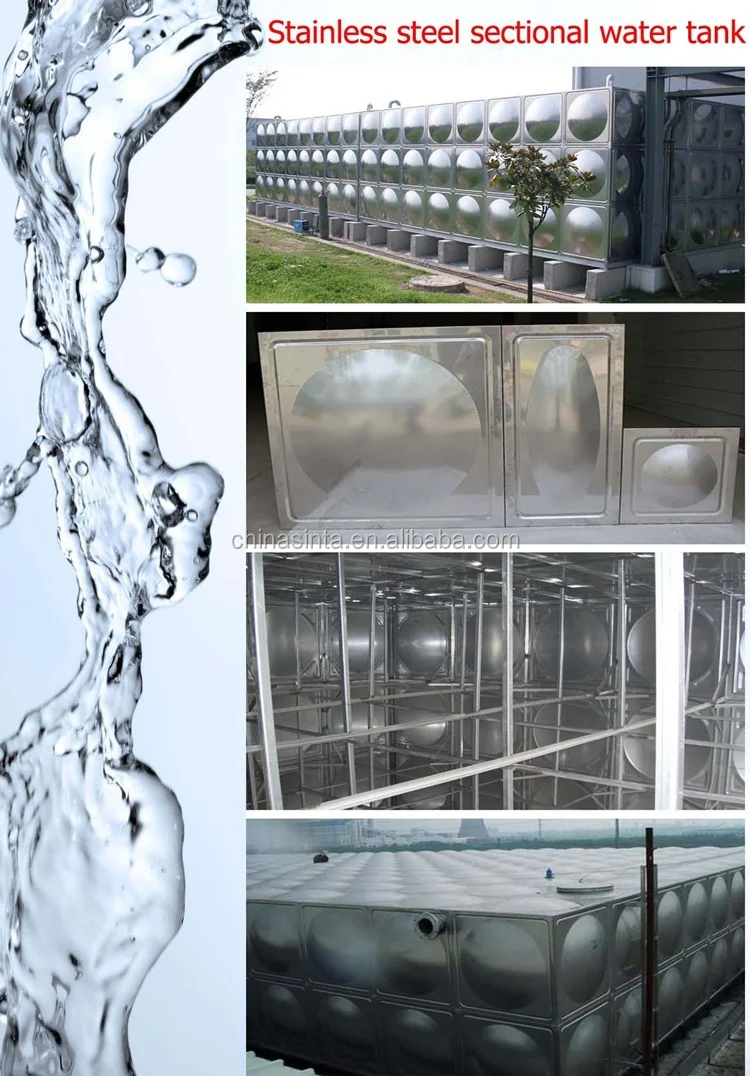

If you need stainless steel water storage tank,pls click follow picture to see its details.

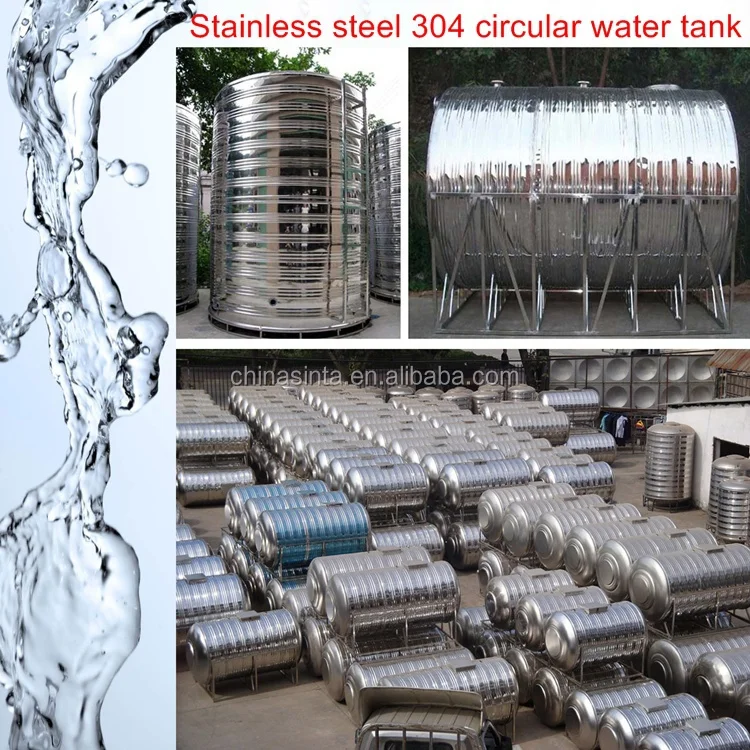

 If you need ss304 circular water tank, pls click follow picture to see its details.
