automatic edible sunflower oil filling machine / cooking oil production line
- Category: >>>
- Supplier: Zhangjiagang JST Machinery Co. Ltd.
Share on (60306407158):
Product Overview
Description
Product Overview

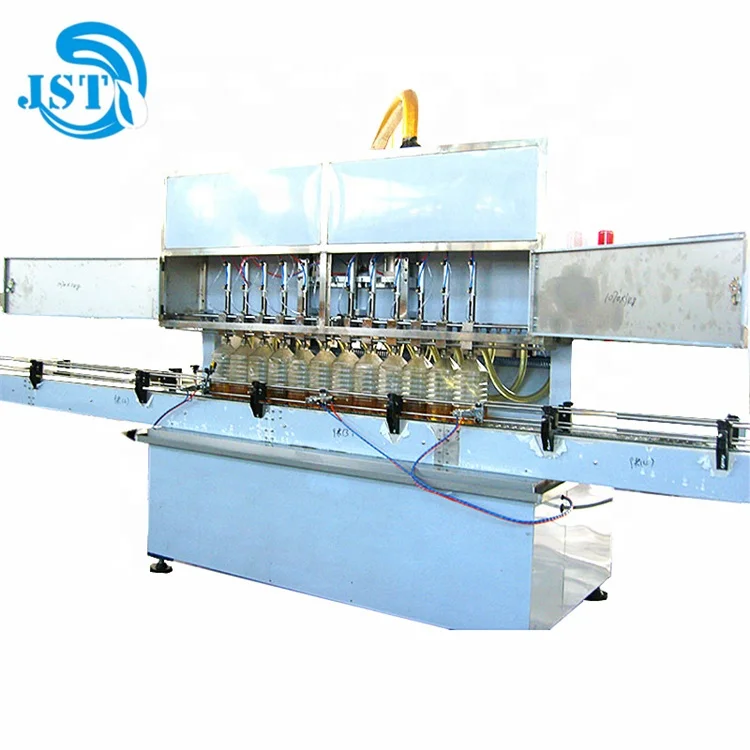

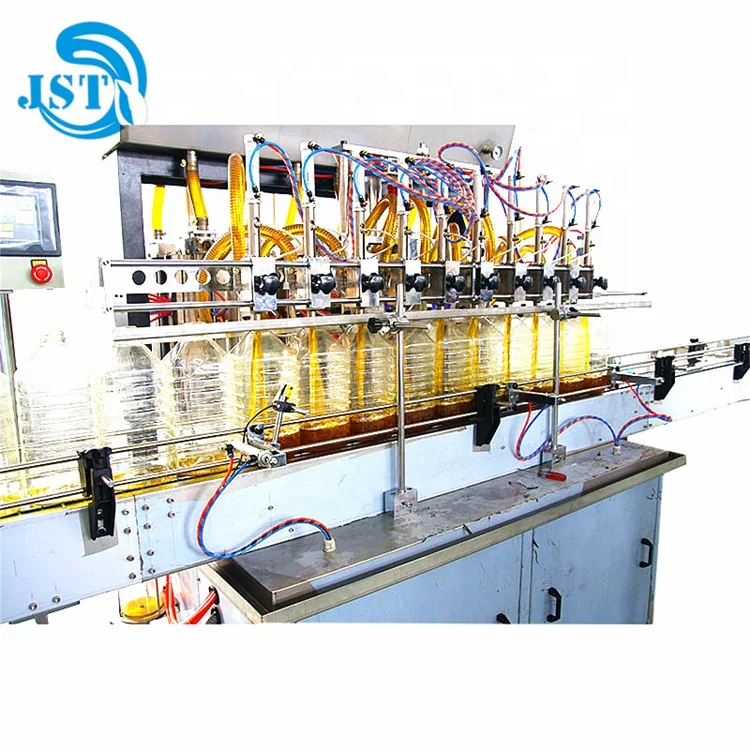

Automatic edible sunflower oil filling machine / cooking oil production line
The linear type filling machine is usually used to fill viscous ,inviscid and corrosive liquid ,it is widely applied in oil plant
,chemical liquid ,and daily chemical industry .
,chemical liquid ,and daily chemical industry .
FEATURES AT A GLANCE
1).Touch screen +PLC: Simens brand
2).Filling nozles : SS304 or SS316L
3).Vacuum anti-dropping
4).Electric adjusting for volume system
5).Frequency control and photoelectric detecting system .
2).Filling nozles : SS304 or SS316L
3).Vacuum anti-dropping
4).Electric adjusting for volume system
5).Frequency control and photoelectric detecting system .
filling machine
snap capping machine
connecting from filler to capper
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Filling nozzles | 10 heads |
2 | Filling speed for 1 liter | 3000 bottles per hour |
3 | Suitable bottle size | 100ml-1000ml, 1000ml-5000ml |
4 | Machine weight | 2500kgs |
5 | Machine power | 3.75kw |
6 | Suitable oil | Lubricant oil ,edible oil ,engine oil ,and so on |
7 | Bottle shape | Bottle can be round or square or irregular ,it |
can be tinplate can or plastic bottle or glass bottles. |
Detailed photos with description
Oil storage tank
This is storage tank which is installed at the top of the filling machine .The material is :stainless steel 304 type
Capacity is : 150 liter，if you need bigger capacity ,just feel free to let me know .
Inside the storage tank ,we can make one heating device for you so that the oil will not freeze easily .
Capacity is : 150 liter，if you need bigger capacity ,just feel free to let me know .
Inside the storage tank ,we can make one heating device for you so that the oil will not freeze easily .

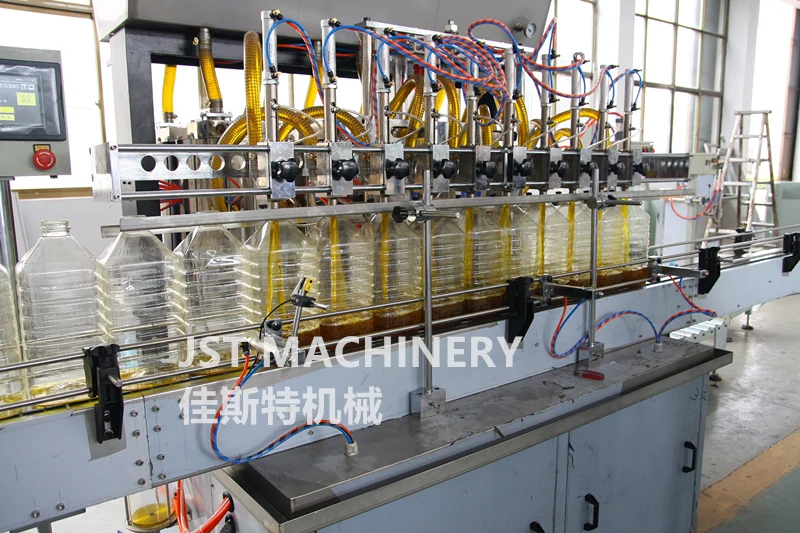

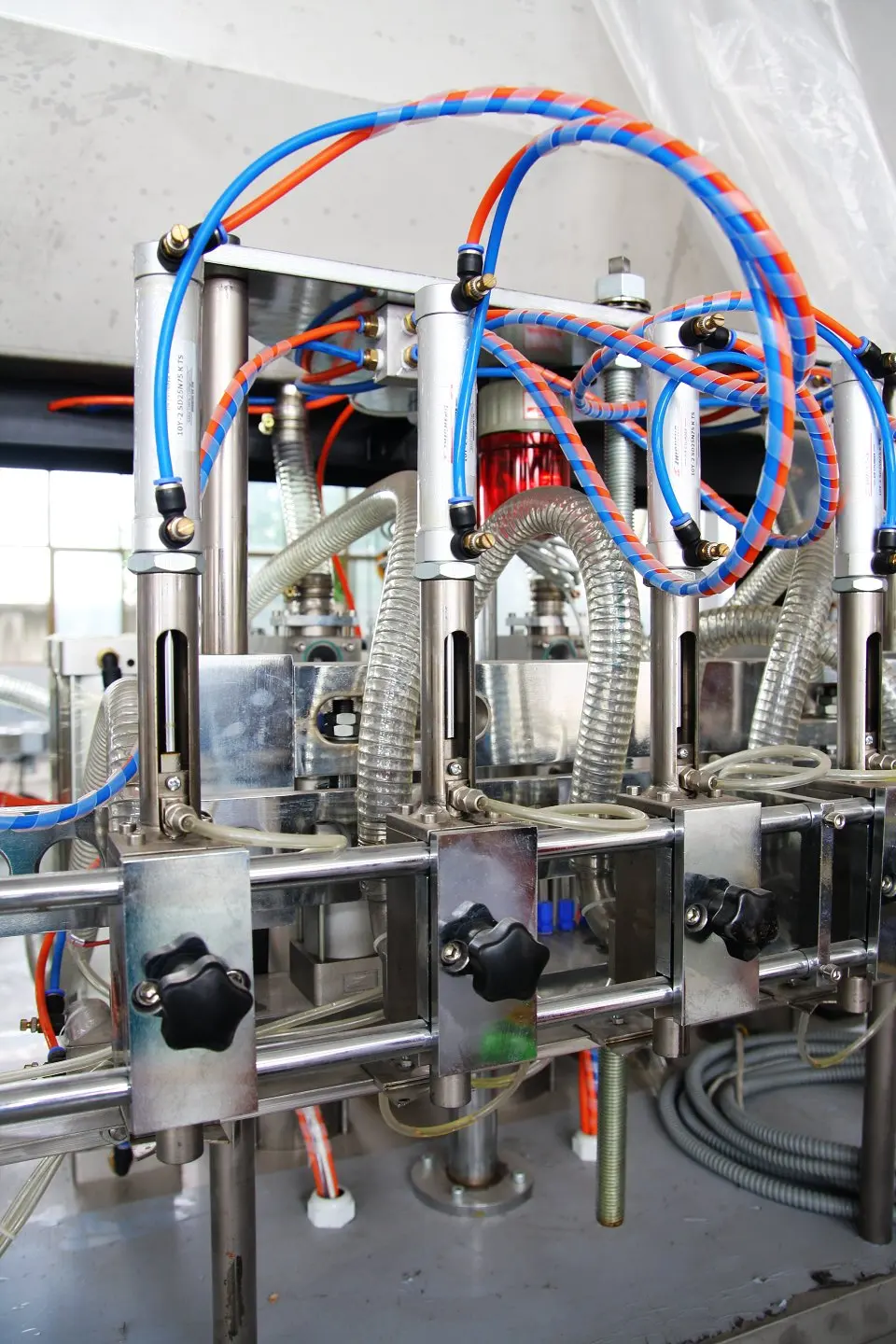

Oil filling nozzles
3.The distance between each filling nozzle can be adjusted .
4.The height of each filling nozzle can be adjusted .
5.No bottle ,it will not fill.
6.Filling will be controlled by PLC +touch screen .
7.Filling nozzles can be : 4 heads ,6 heads ,8 heads ,10 heads ,12 heads and so on .

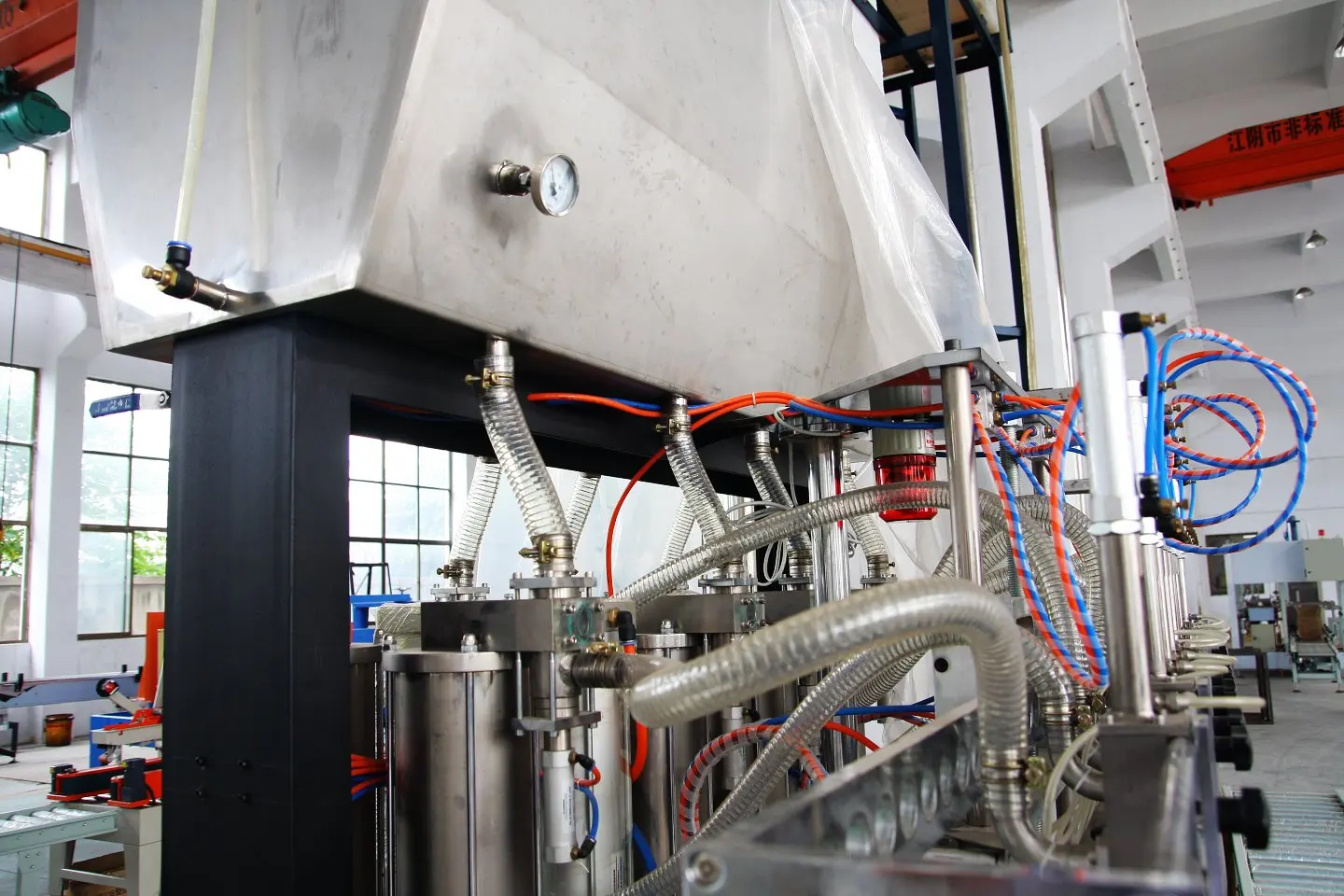

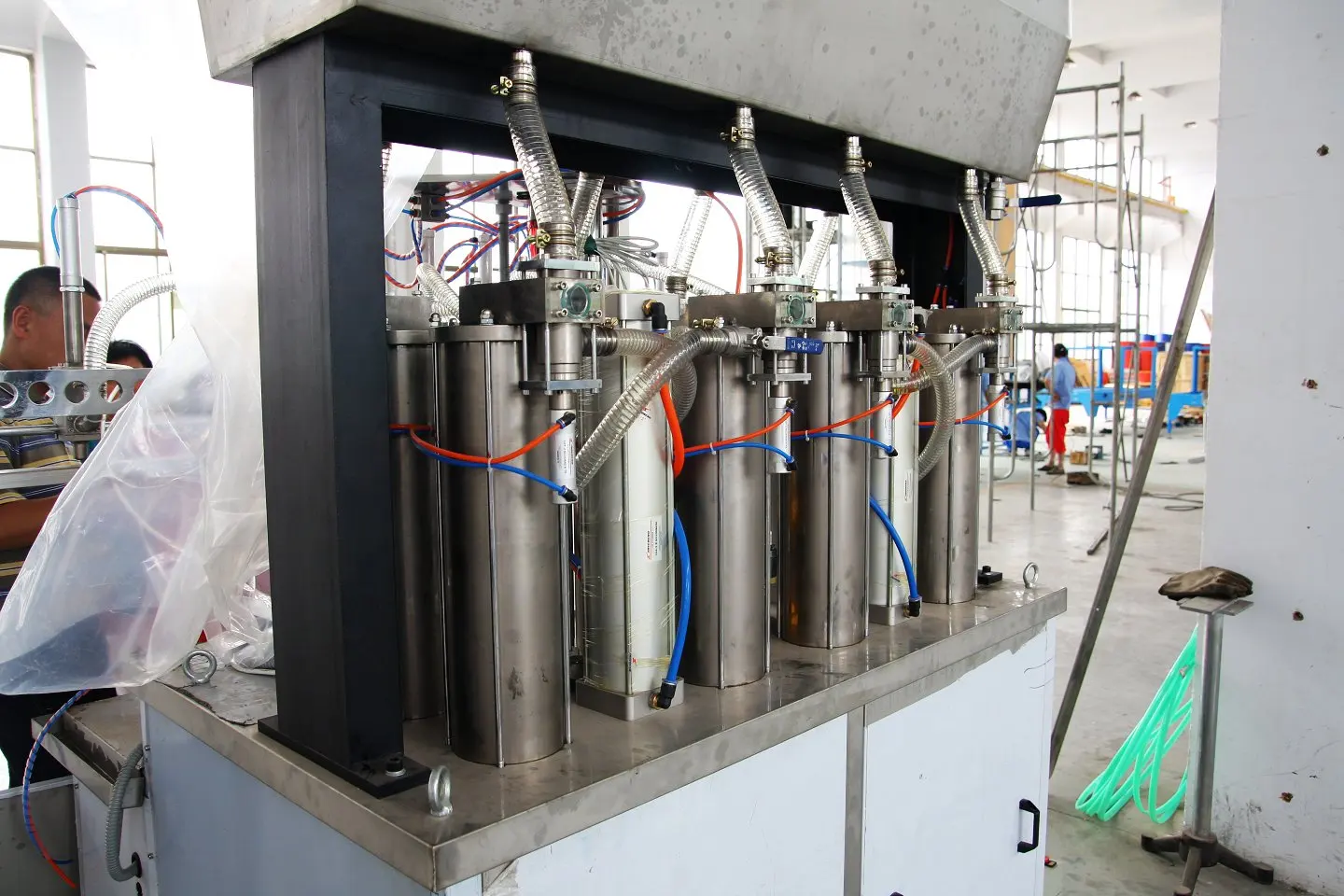

Oil storage cylinder at the back of the machine
Material : SS304 ,if you need SS316L, just feel free to let me know .
Thickness for the cylinders, it can be 6mm.

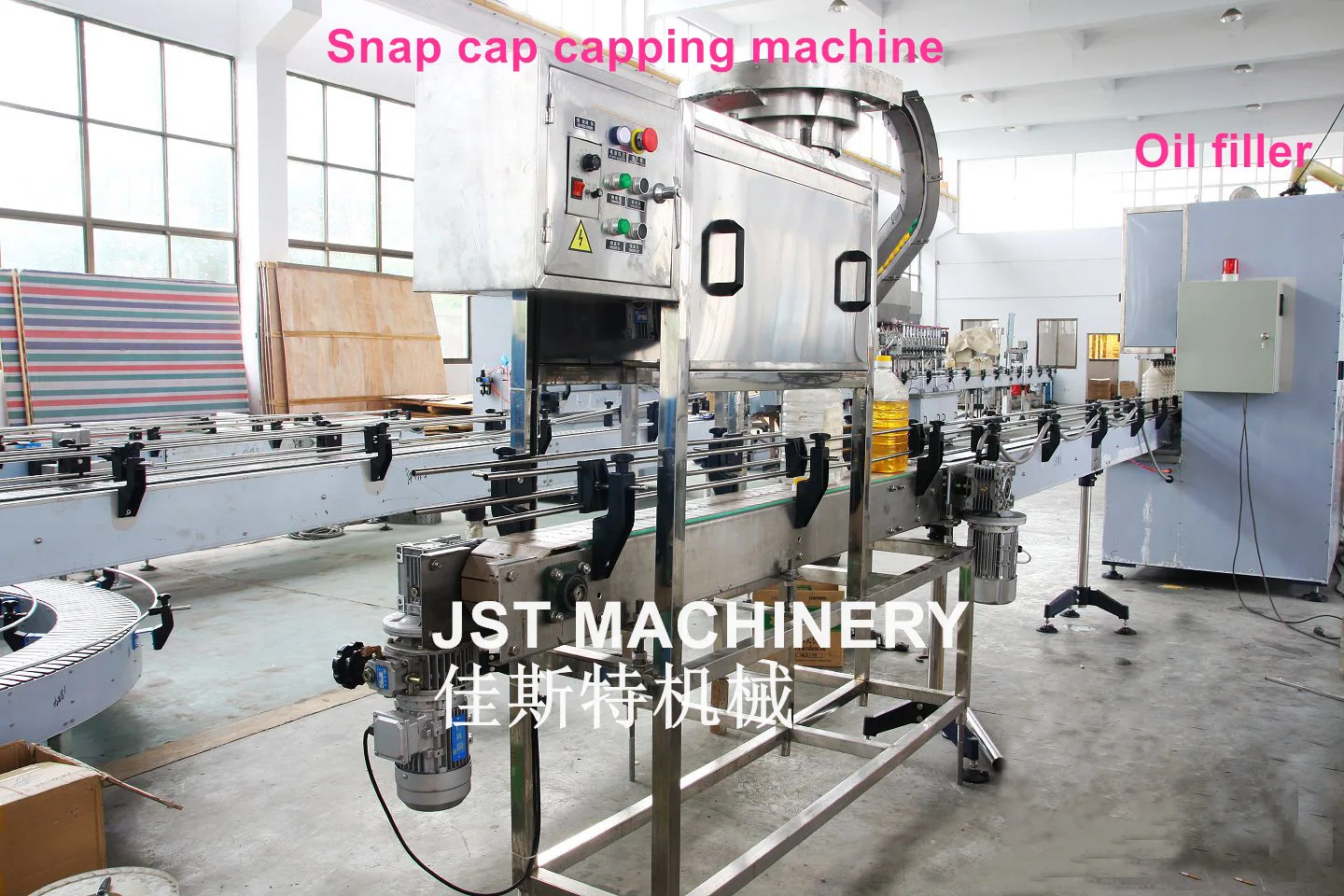

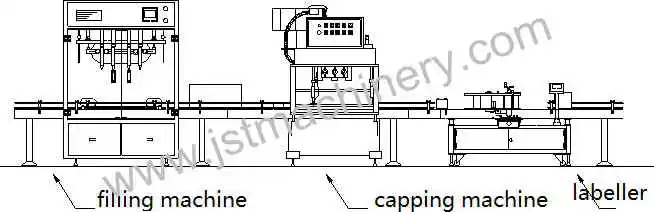

from oil filler to oil bottle capping machine
1.The capping machine in the photo ,it is snapped cap .If your cap is screw one ,the capping machine structure will be different .
2.It has cap sorter together .
3.It can be connected to the filling machine directly by flat type sending belt
2.It has cap sorter together .
3.It can be connected to the filling machine directly by flat type sending belt
Exhibition
Customer Photos
Pre-sales service &After sales service
Pre-sale Service
1.We welcome you to visit us, and we can go to pick you up at shanghai pudong international airport by car.
2.We have professional English sales persons who can make the complete quotation for you, and can guide you how to choose the machines, (such as how to choose labeling machine, how to choose packing machine, how to choose blowing machine, how to design PVC labels, how to calculate PE packaging films, how to arrange your workshop layout and so on).
After-sales Service
1.We will send operation book, electricity drawing by email to you .
2.For all of our machines, the warranty time is: 24 months since delivery.
3.Once machine arrives to your country, we will guide you to prepare the electricity, welding machine, and raw material. At the
same time, we will begin to make the visa for our engineers.
4.Usually for complete filling line, it will take engineer 15 -20 days at least to install in your country . For single machine,

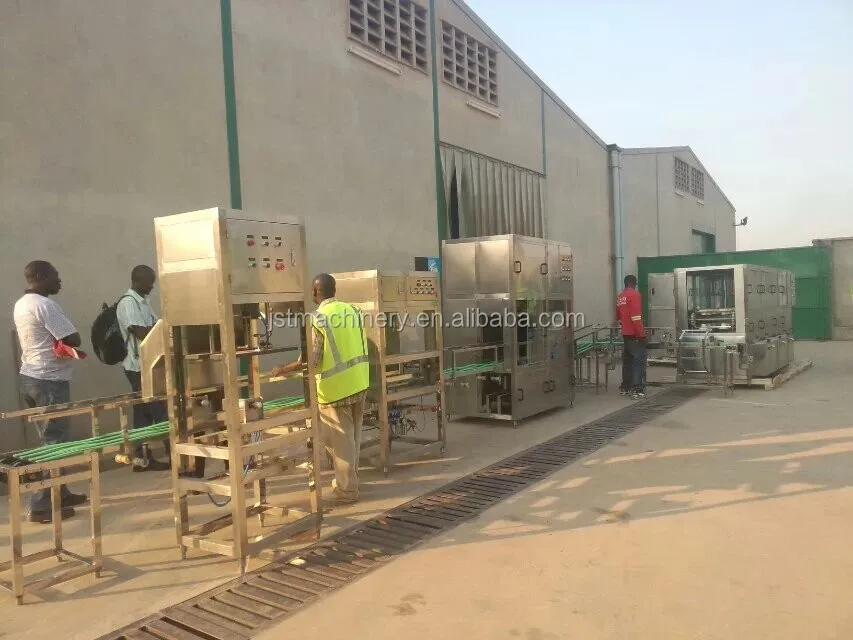

usually it will take him 7-10 days to install in your city. Please check the following installation photos by our engineer:
1.We welcome you to visit us, and we can go to pick you up at shanghai pudong international airport by car.
2.We have professional English sales persons who can make the complete quotation for you, and can guide you how to choose the machines, (such as how to choose labeling machine, how to choose packing machine, how to choose blowing machine, how to design PVC labels, how to calculate PE packaging films, how to arrange your workshop layout and so on).
After-sales Service
1.We will send operation book, electricity drawing by email to you .
2.For all of our machines, the warranty time is: 24 months since delivery.
3.Once machine arrives to your country, we will guide you to prepare the electricity, welding machine, and raw material. At the
same time, we will begin to make the visa for our engineers.
4.Usually for complete filling line, it will take engineer 15 -20 days at least to install in your country . For single machine,
usually it will take him 7-10 days to install in your city. Please check the following installation photos by our engineer:
