Impressive Lighting Design led meteor shower light disco light

Product Overview

Description







Product description

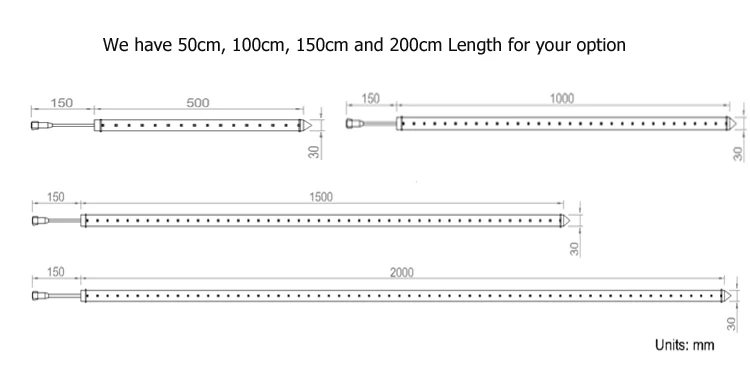

Transparent diffuser, 0.5/1/1.5/2m, diameter is 30mm.
Music control, sound activated,
smd 5050 on double side, 3D effect with Madrix software

Product Features
1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube.
2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure.
3,  Environment friendly, no harsh glare and buzzing noise, no flicker.

Applications

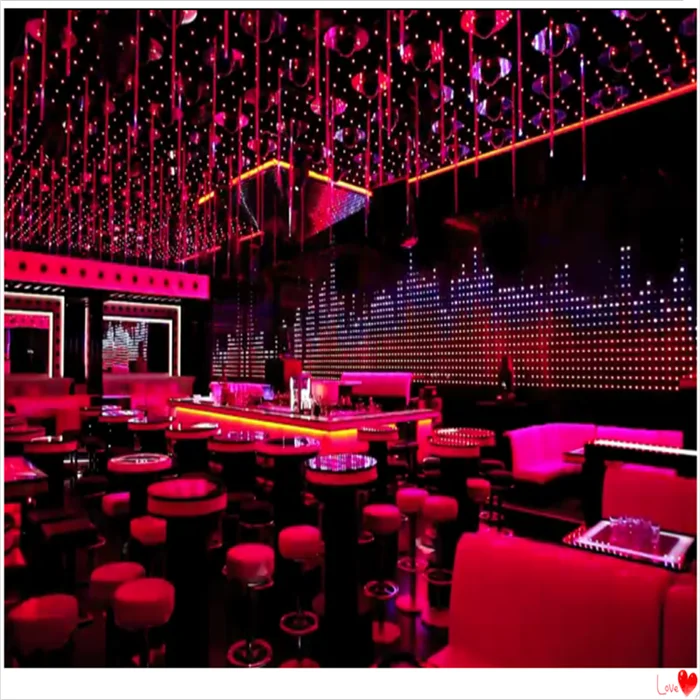

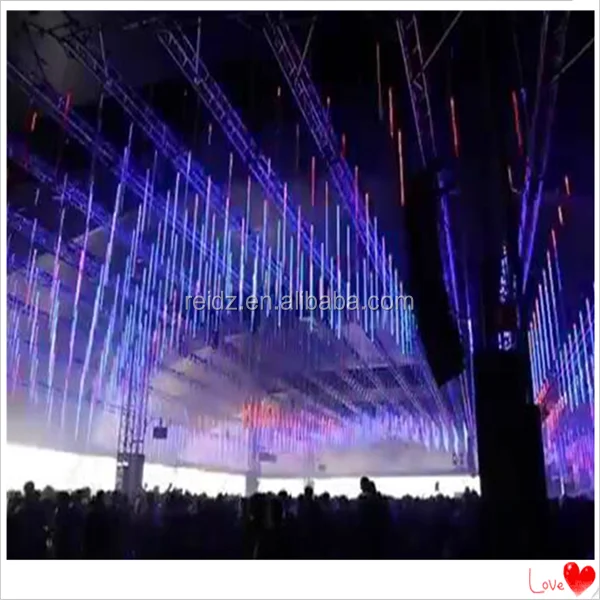

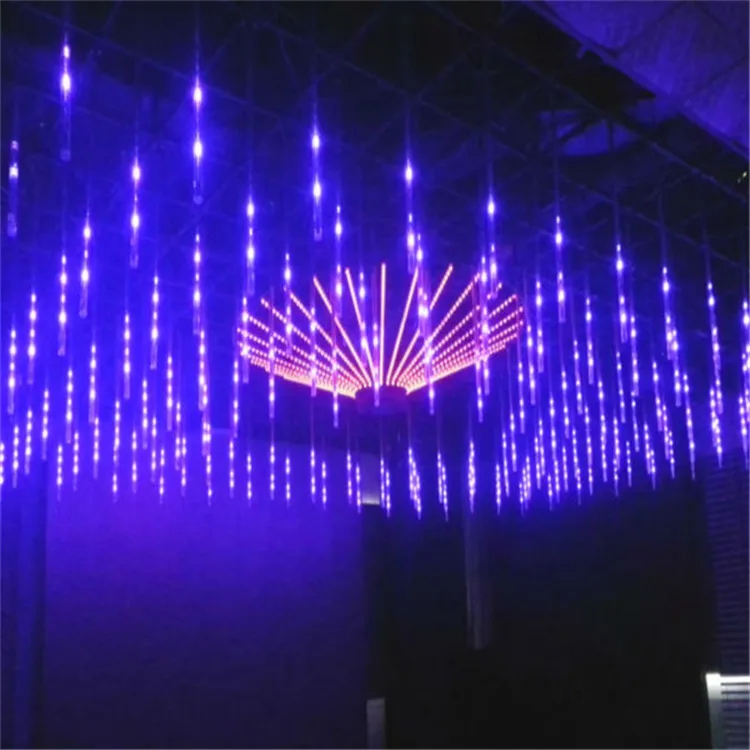

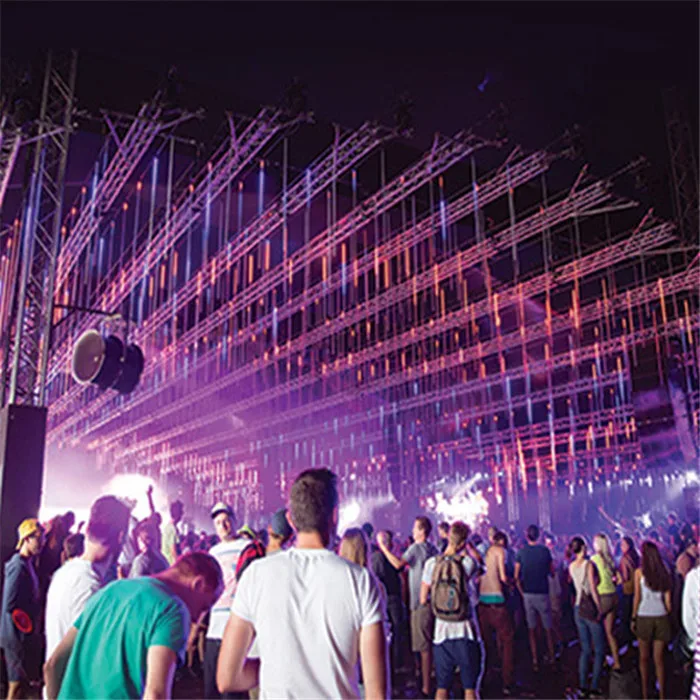

DJ, night club, television studio, theater and so on



Technical Parameters





Model	RZ-LXD1105	RZ-LXD1110	RZ-LXD1115	RZ-LXD1120
Length	500mm	1000mm	1500mm	2000mm
Led qty	32pcs smd5050	64pcs smd5050	96pcs smd5050	128pcs smd5050
Pixel qty	8pixels	16pixels	24pixels	32pixels
Power	16w	24w	35w	40w
Voltage	DC12V	DC12V	DC12V	DC12V
Protocol	DMX512	DMX512	DMX512	DMX512
Beam Angle	360 degree	360 degree	360 degree	360 degree
Capacity	20pcs/universe	10pcs/universe	7pcs/universe	5pcs/universe
Address setting	Manually	Manually	Manually	Manually
Temp	-20-50	-20-50	-20-50	-20-50
Protection	IP65	IP65	IP65	IP65

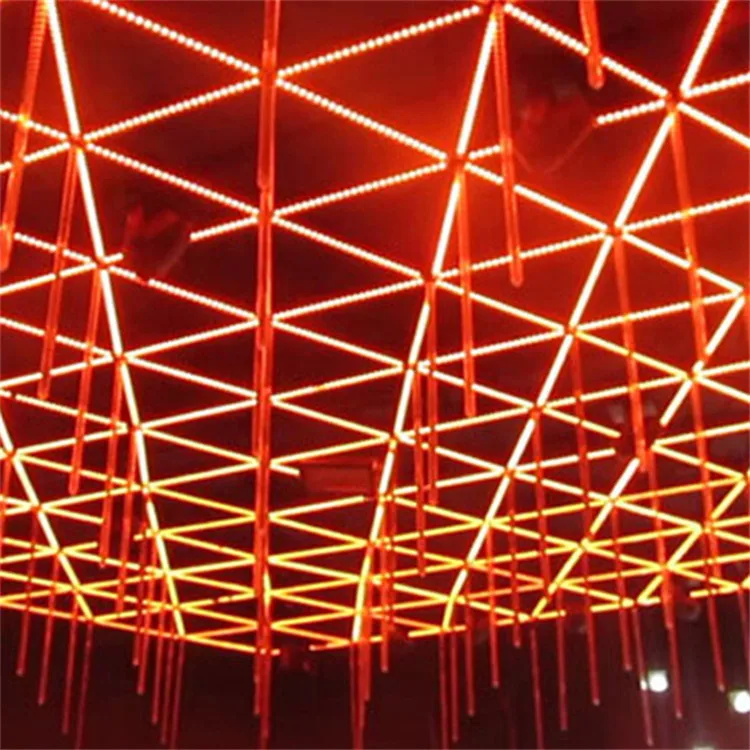

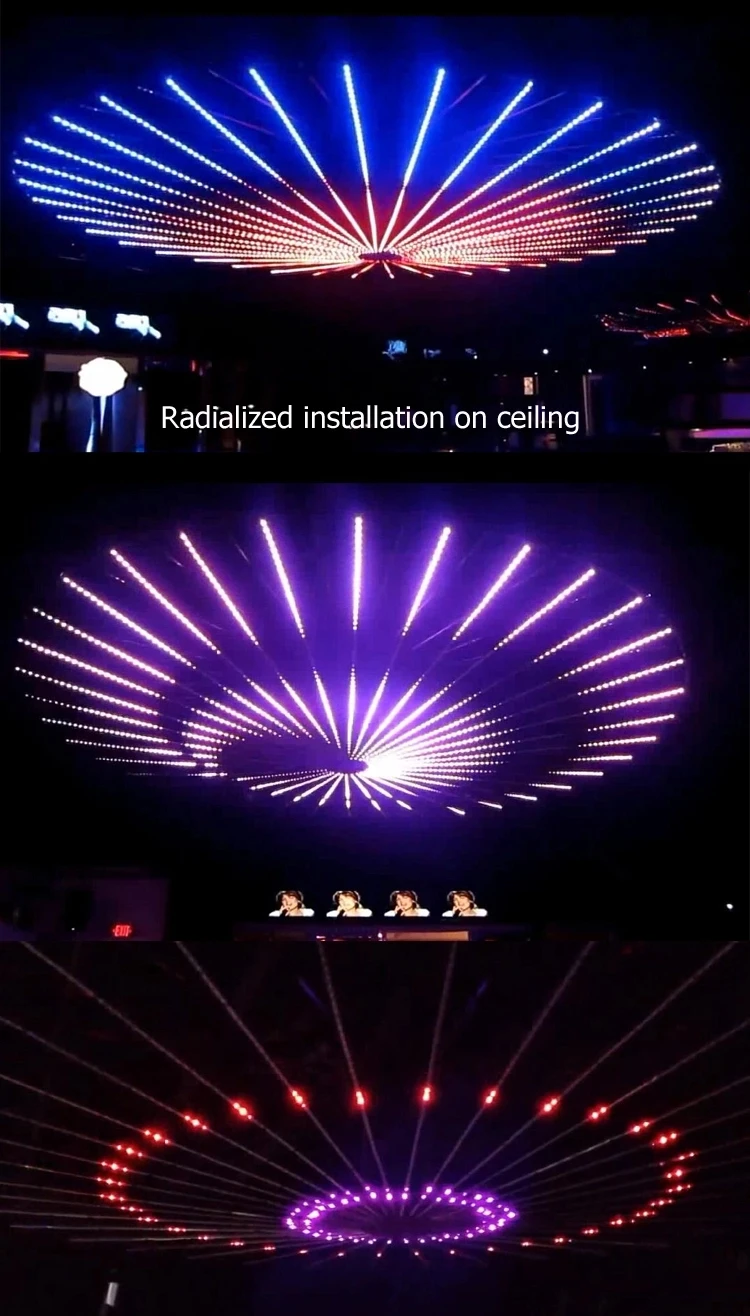

                     Install the led tube vertically, usually the distance between each light is 10cm-30cm

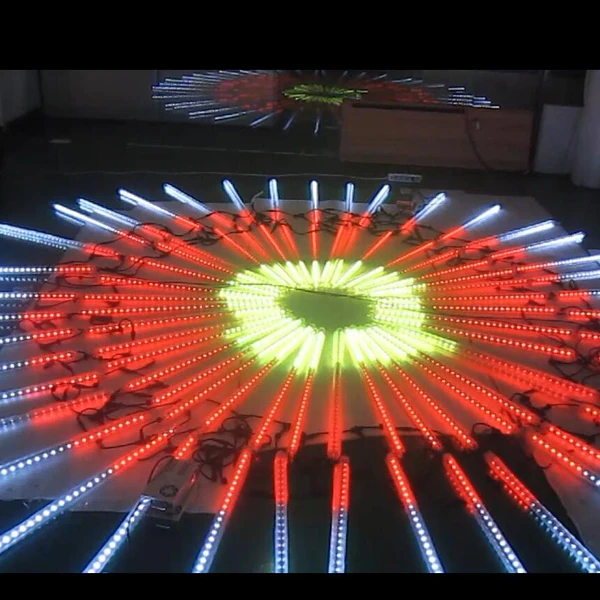

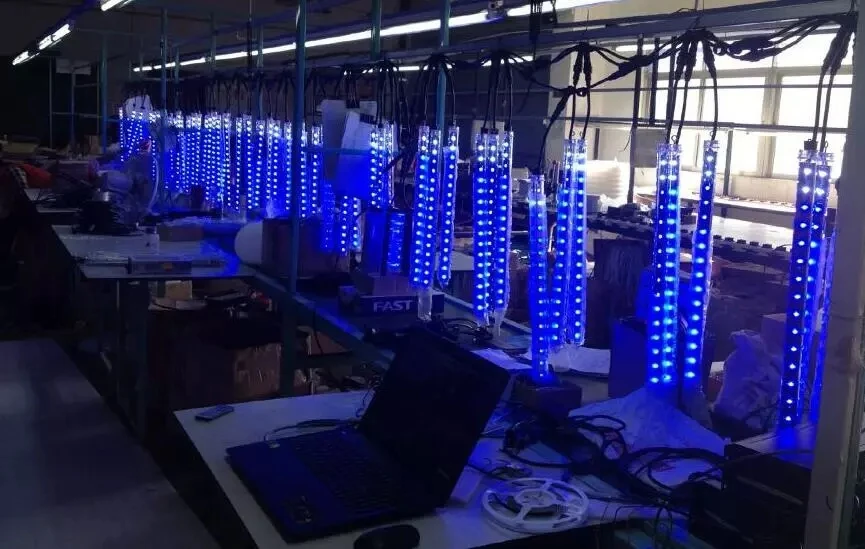

                                         Product Effect testing in factory

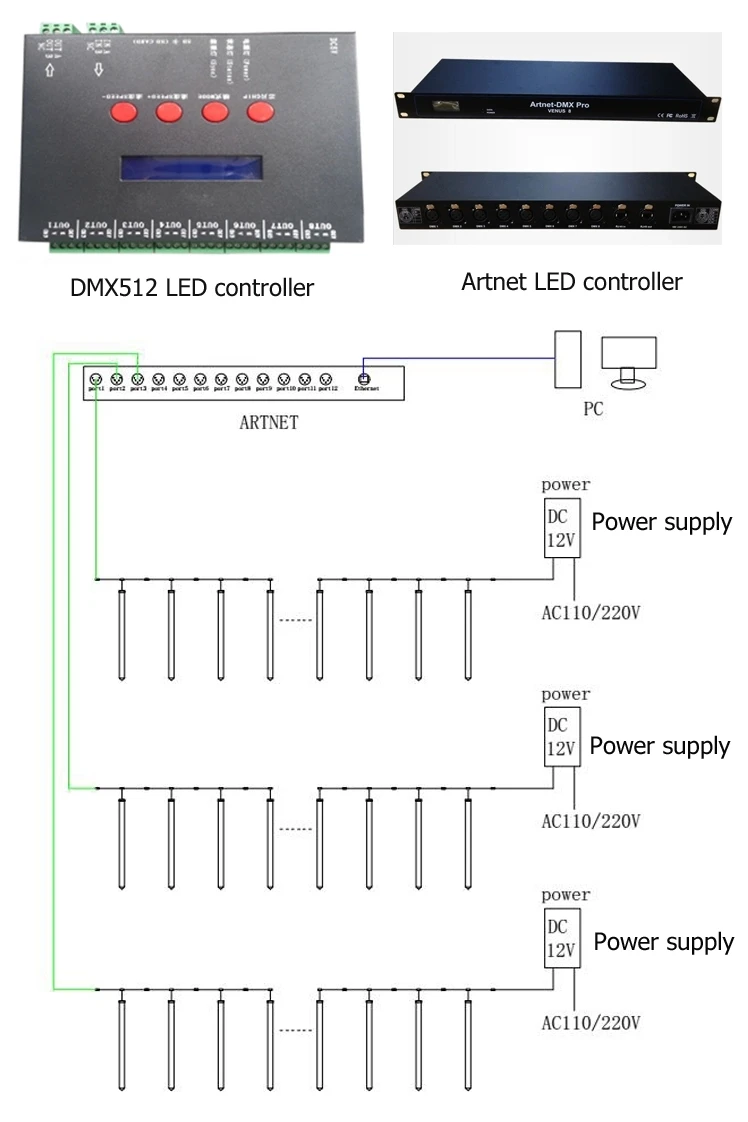

          We use DMX512 LED controller or Artnet controller for controlling the pixel tube lights







Thank you for your reading, and any questions, pls feel  free to contact me, my whatsApp: + 86 13691972710
