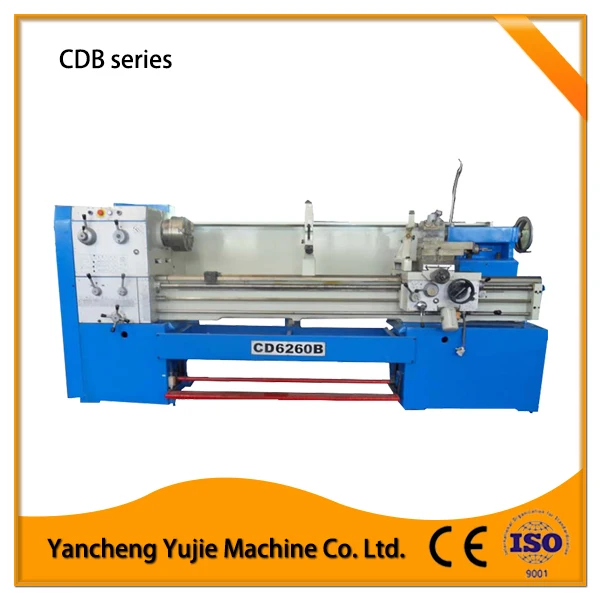

TOUR CNC / TOUR INDUSTRIEL CD6250B
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd. [Jiangsu China]Yancheng
Share on (60306581676):
Product Overview
Description
Product Description
Specification
Parameters As Following
Model | CD6 1/2 40B | CD6 1/2 50B | CD6 1/2 60B | |||||||||||
CAPACITY | Max.swing over bed | 400mm | 500mm | 600mm | ||||||||||
Max.swing over cross slide | 225mm | 325mm | 360mm | |||||||||||
Max.swing over gap | 540mm | 630mm | 730mm | |||||||||||
Effective length of gap | 260mm | |||||||||||||
Center Distance | 1000,1500,2000mm | |||||||||||||
Bed Width | 330mm | |||||||||||||
| Spindle hole | 65mm | ||||||||||||
Spindle nose | ISO-C6 or D6 | |||||||||||||
Spindle taper | Metric 70mm | |||||||||||||
Spindle speed(Number) | (15steps)22-1800rpm | |||||||||||||
FEEDS | Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | ||||||||||||
Cross feeds range | 66kinds 0.036-2.019mm/rev | |||||||||||||
Metric threads range | 66kinds 0.5-28mm | |||||||||||||
Inch threads range | 66kinds 1-56inch | |||||||||||||
Moudle threads range | 33kinds 0.5-3.5mπ | |||||||||||||
Diametral threads range | 33kinds 8-56D.P | |||||||||||||
CARRIAGE | Max.travel of top slide | 130mm | ||||||||||||
Max.travel of cross slide | 300mm | |||||||||||||
Max.size of toolshank | 25*25mm | |||||||||||||
TAILSTOCK | Dia.of tailstock sleeve | 65mm | ||||||||||||
Taper of tailstock sleeve | MT5 | |||||||||||||
Max.travel of tailstock | 120mm | |||||||||||||
MOTOR | Main drive motor | 5.5KW | 7.5KW | 7.5KW | ||||||||||
Rapid traverse motor | 250W | |||||||||||||
Coolant pump motor | 125W | |||||||||||||
1000mm | 245*115*170cm | |||||||||||||
1500mm | 288*115*170cm | |||||||||||||
2000mm | 345*115*170cm | |||||||||||||
1000mm | 1550/2050kg | 1600/2100kg | 1650/2150kg | |||||||||||
1500mm | 1750/2250kg | 1850/2350kg | 1900/2400kg | |||||||||||
2000mm | 2050/2550kg | 2100/2600kg | 2150/2650kg | |||||||||||
Standard Accessories | Optional Accessories |
3-jaw chuck (250mm) | Quick change tool post |
4-jaw chuck (320mm) | Turning tools |
Face plate | Leadscrew cover |
Steady rest | Chuck guard |
Follow rest | Tool post cover |
Splash guard | Digital readout system |
Stand & oil tray | Taper turning attachment |
Halogen work lamp | Rapid moving attachment |
Toolbox & tools |
|
Coolant system |
|
Foot brake |
Product Features
Features As Below
Precision ground
CE-conformity; Magnetoelectrical brake can be amounted
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapid traverse (optional)
Main spindle supported at 2 points with precision taper roller bearings
Company Information
Packaging & Shipping
Our Services
24 hours technical support by email or mobile, free instruction and problem solving.
User manual ( English version) and detailed video.
On-the-spot training and installation can be met if required.
12 months warranty period, any quality problem, please contact us.
