500W 48V DC DC Converter Meanwell SD 500H 48
- Category: Inverters & Converters >>>
- Supplier: Hangzhou Jiang Technology Co. Ltd.
Share on (60306856352):
Product Overview
Description

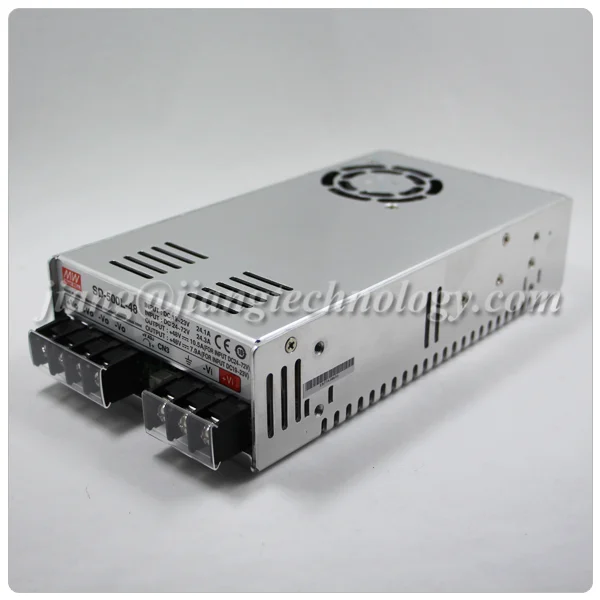

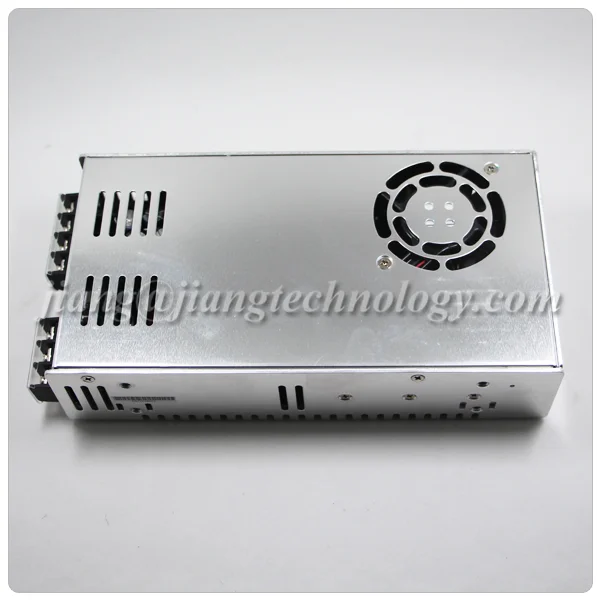

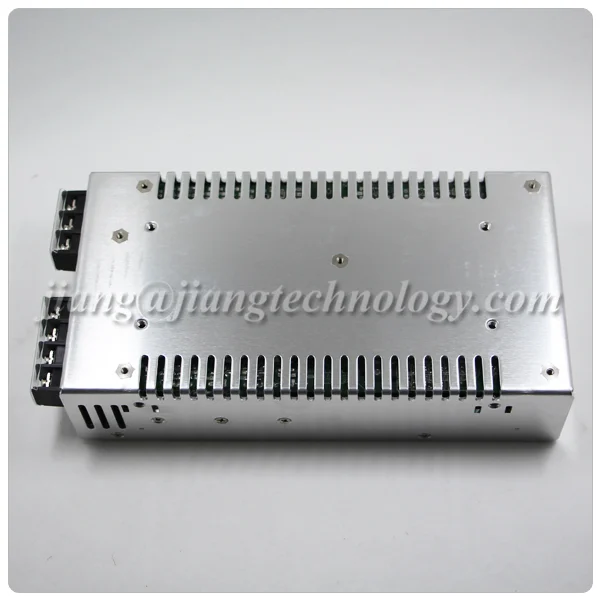

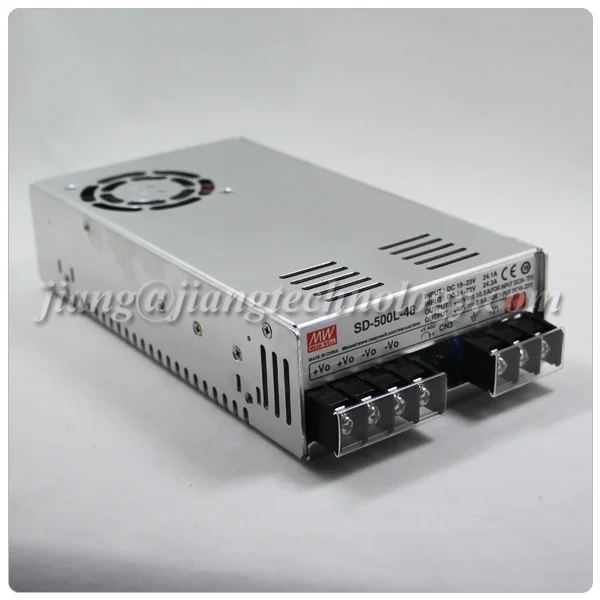

500W 48V DC DC Converter Meanwell SD-500H-48
Detailed Images
Product Overviews
Mean Well 500W DC-DC Boost Converter SD-500H-48 DC DC Converter CB CE Approved
Features:
- Meanwell DC-DC Boost Converter
- DC input active surge current limiting
- Wide 4:1~2:1 DC input range (24V: 19~72VDC, 96V:72~144VDC)
- Protections: Short circuit / Overload / Over voltage / Over temperature
/ Input polarity(by fuse)
- 2000VAC I/O isolation
- Forced air cooling by built-in DC fan with fan speed control function
- Output OK Signal
- Built-in remote ON-OFF control
- Built-in remote sense function
- 3 years warranty
Model Series:
SD-500L-12 / SD-500L-24 / SD-500L-48 / SD-500H-12 / SD-500H-24 /SD-500H-48

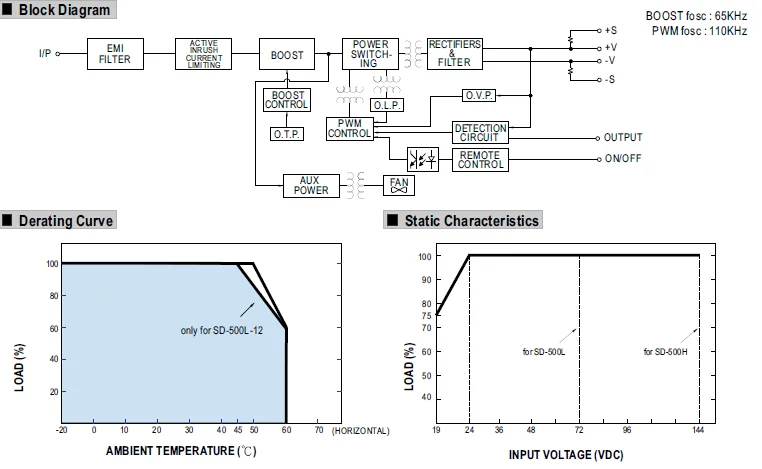

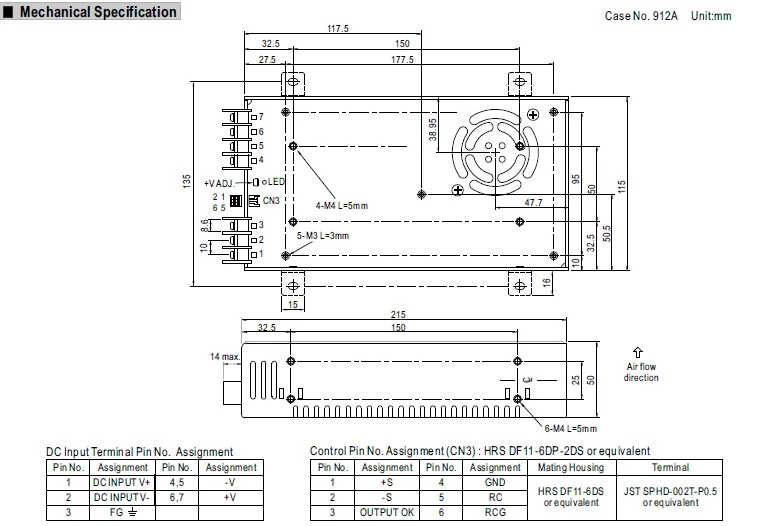

Detailes:
| MODEL | SD-500H-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 10.5A | |
| CURRENT RANGE | 0 ~ 10.5A | |
| RATED POWER | 504W | |
| RIPPLE & NOISE | 150mVp-p | |
| VOLTAGE ADJ.RANGE | 46 ~ 60V | |
| VOLTAGTOLERANCE | 1.00% | |
| LINE REGULATION | 0.50% | |
| LOAD REGULATION | 0.50% | |
| SETUP, RISE TIME | 500ms, 50ms at full load | |
| INPUT | VOLTAGE RANGE | 72 ~ 144VDC |
| EFFICIENCY (Typ.) | 90% | |
| DC CURRENT (Typ. | 24.2A/19VDC 24.8A/24VDC 12A/48VDC | |
| CURRENT (AT NO LOAD) | Max. 0.2A/48VDC | |
| INRUSH CURRENT | 60A/48VDC | |
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power |
| Protection type : Constant current limiting, shut down o/p voltage after about 5 sec., re-power on to recover | ||
| OVER VOLTAGE | 62 ~ 68V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | 80 5 (TSW1 ) detect on heatsink of power transistor | |
| 80 5 (L-48V,H-24V,H-48V), 85 5 (L-24V), 90 5 (L-12V), 95 5 (H-12V) (TSW2 : detect on heatsink of o/p diode | ||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||
| FUNCTION | REMOTE ON/OFF CONTROL | Please refer to function manual |
| OUTPUT OK SIGNAL | Open collector signal low when PSU turns on, max. sink current :10mA | |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60 ℃(Refer to output load dating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85 ℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | 0.02%/ (0 ~ 50 ℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | IEC60950-1 CB? approved by TUV |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC 25 70%RH | |
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,6,8; ENV50204, light industry level, criteria A | |
| OTHERS | MTBF | 196.3K hrs min. MIL-HDBK-217F (25 ) |
| DIMENSION | 215*115*50mm (L*W*H) | |
| PACKING | 1.15Kg; 12pcs/14.8Kg/0.92CUFT | |
| NOTE | 1. All parameters NOT specially mentioned are measured at 48, 96VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Derating may be needed under low input voltages. Please check the derating curve for more details. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies. | |
