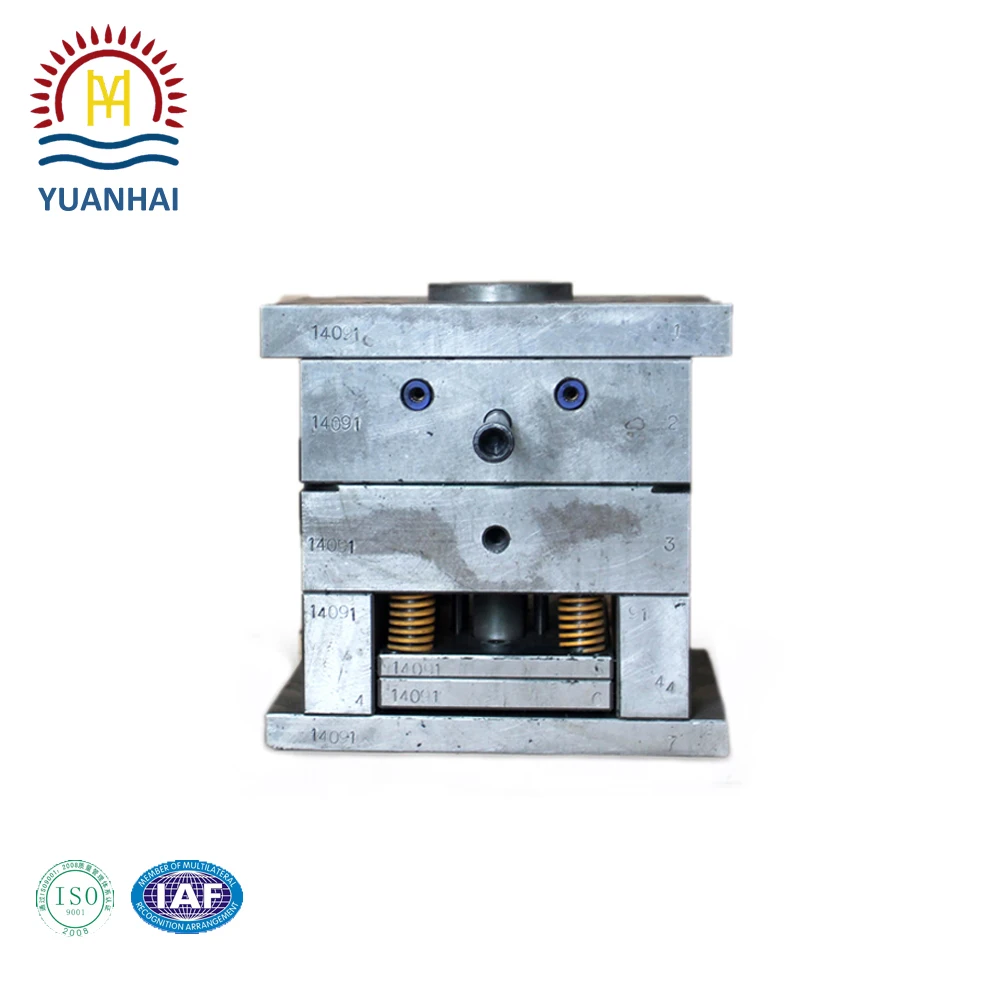

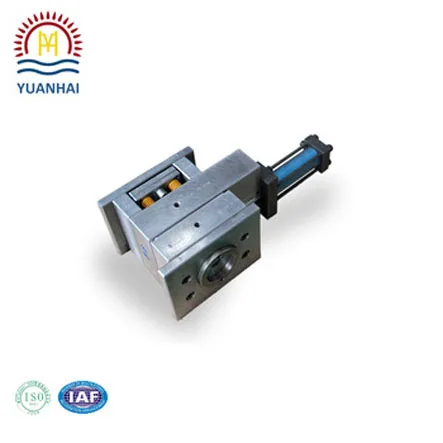

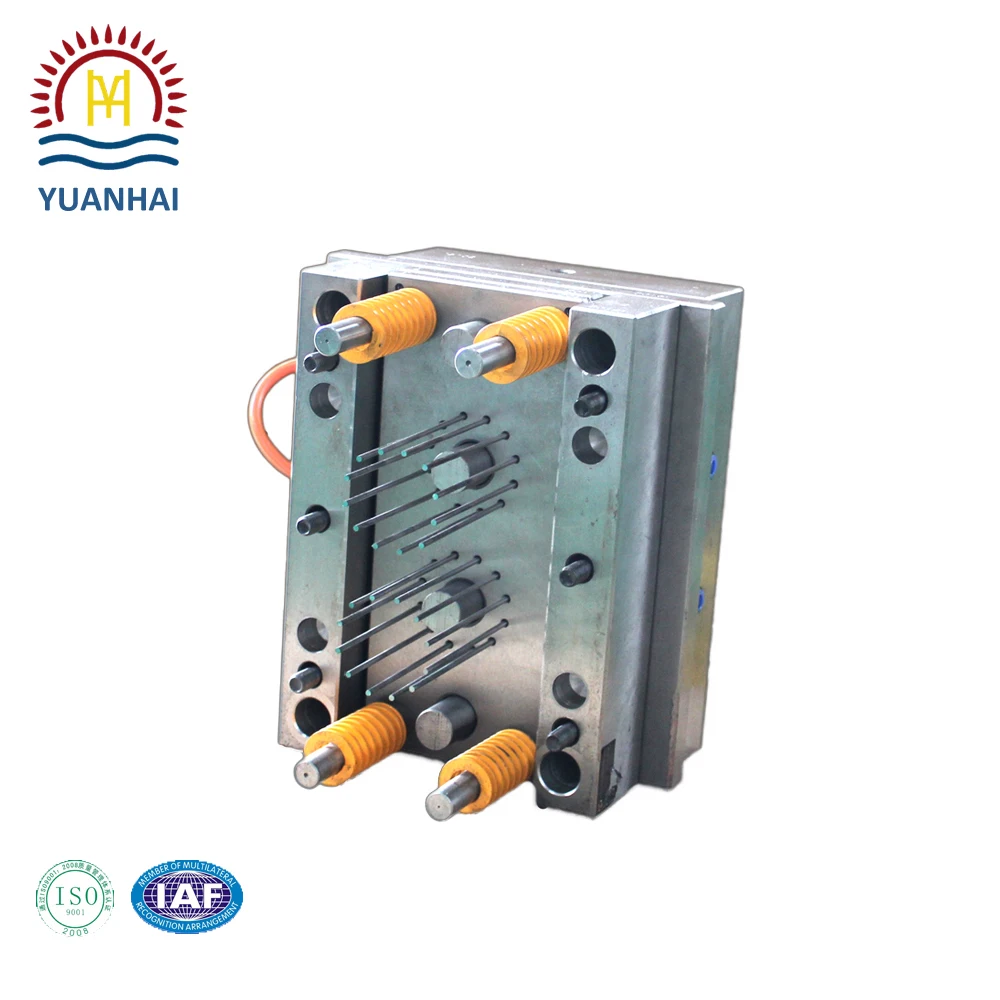

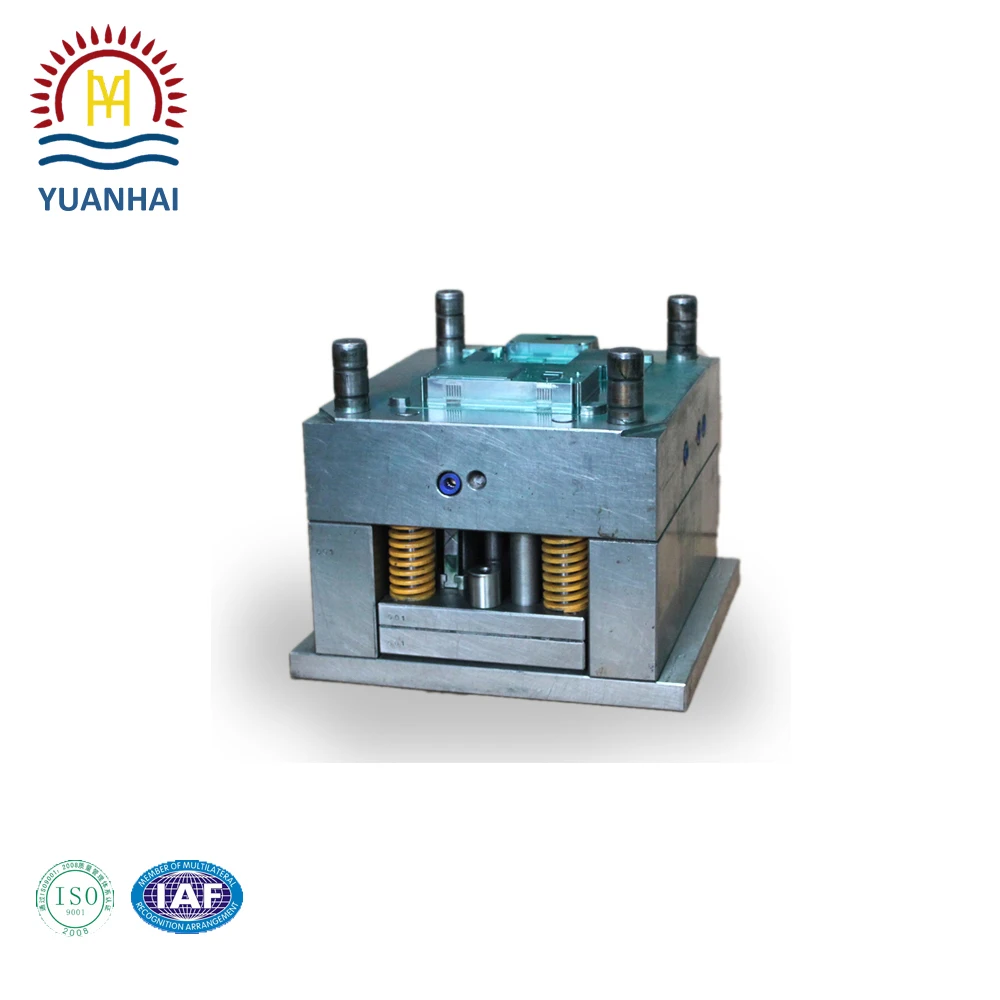

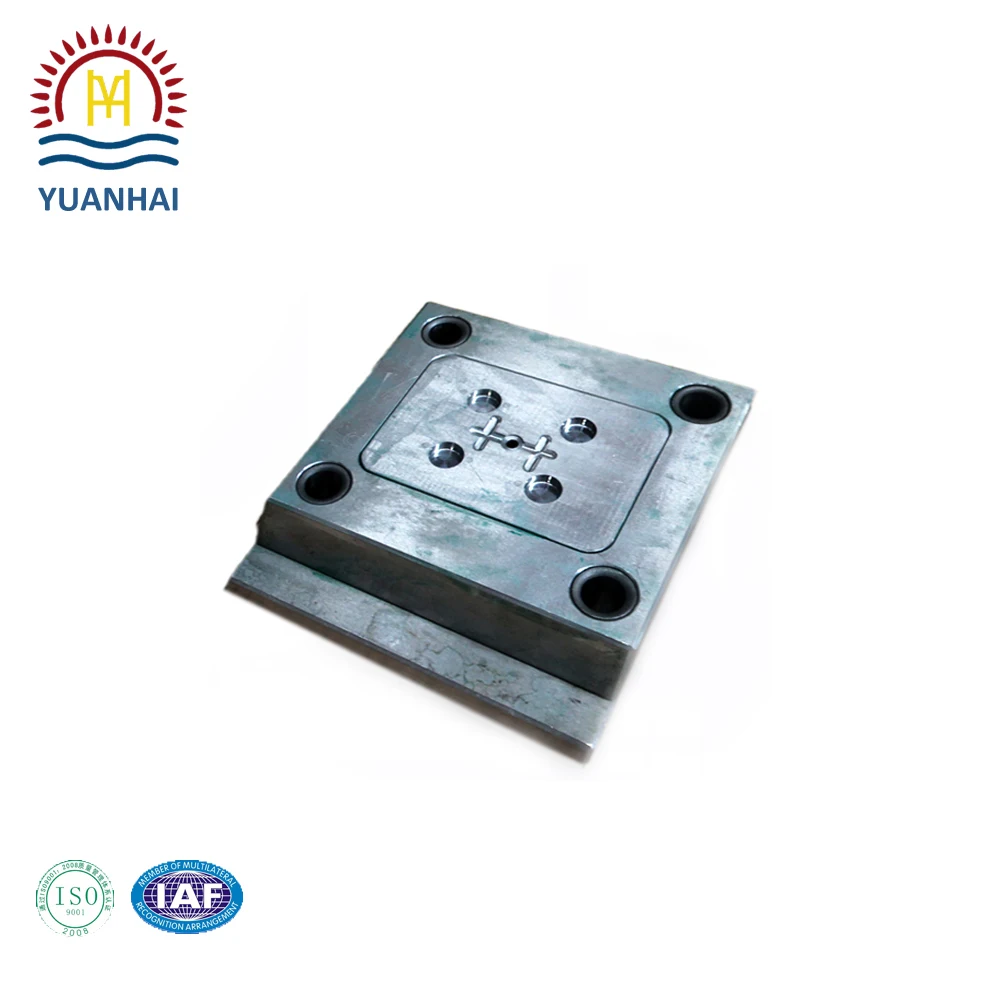

Solidworks software plastic customized injection mould drawings design
- Category: >>>
- Supplier: Shanghai Yuanhai Plastic Mould Co. Ltd.
Share on (60307101262):
Product Overview
Description
Solidworks software plastic customized injection mould drawings design
Mold Specifications
General specifications:
TECHNICAL SPECIFICATIONS | ||
Type of mould | Injection mould | Small,medium,large mold |
Mold Material | S136, P20, 718H , 2738 , NAK80 ,1.2311 etc | |
Nr of Cavities | 1+1,1+2+1,2+2,4+4,Single or mutilcativies | |
Cycle time | 10-30seconds | |
Injection machine | 90-1000ton | |
Life span of mold | 300k-1000k | |
Shrinkage | ||
Product Material | PE , PP, HDPE , PPR , PVC , PP , PS , PET , ABS , PC , etc | |
Injection Type | Hot Runner | QTY of Drops |
| Cold Runner | Hot sprue,Sequential Injection |
Gate Point | Edge gate, Pin point gate, Sub gates, Fan gate, bayer | |
Surface finish | Tech polish, High gloss, Texture,VDI 3400 | |
Mould hot treatment | Tempering , Quending , Nitriding | |
Main Processing Equipment | Sodick, Seiki, CNC , high speed carve , EDM ,wire cut , drill | |
About us
YUANHAI MOULD started in 2006 is a company with at least 21 years experiences of making mould.We have a high-level designers team and we adopt advanced machine.
We have our own mold tooling workshop,specialize in OEM service.
1 Our strength:
a) Advanced R&D technic
b) Strict Inspection;
c)Timely delivery time
d) Excellent Service.
2. Send to us your 3D drawing or sample,we supply service:
a) rapid portotyping
b) survey and draw
c) mold fabrication
d) injection molding
e) spray painting,printing etc.
f) assembly and art package
3. Our products including: Auto parts,electrical &electronic accessaries and parts,home products,office supplies,baby appliance ,medical parts,etc.
4. More than 40 sets plastic machinery with 80-1600MT
5.All our opetations are ISO9001:2008 Certified.
Engineering capabilities include:
- Product design
- R&D products
- Prototype design and product assembly

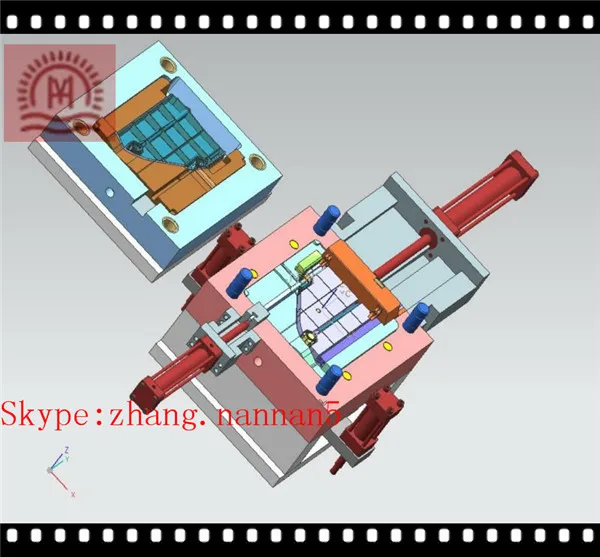

- Mould design
- Hot runner design
- Cold runner design
Detailed Images

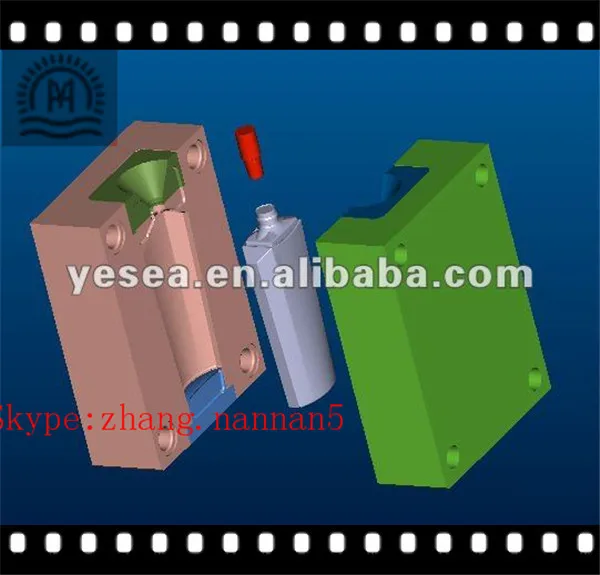

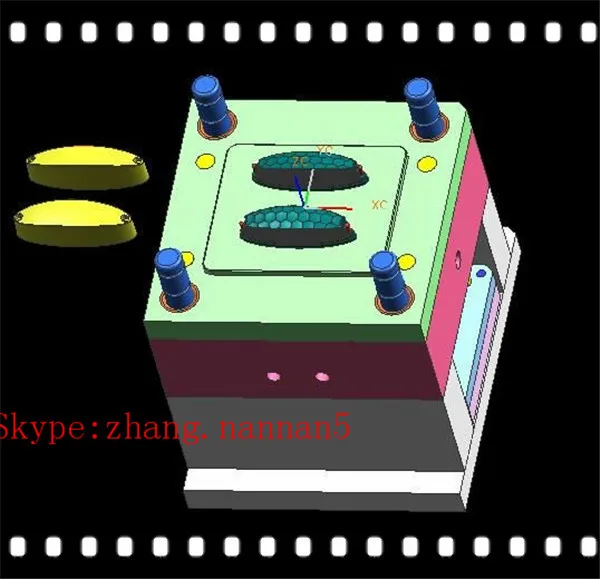

Design Group

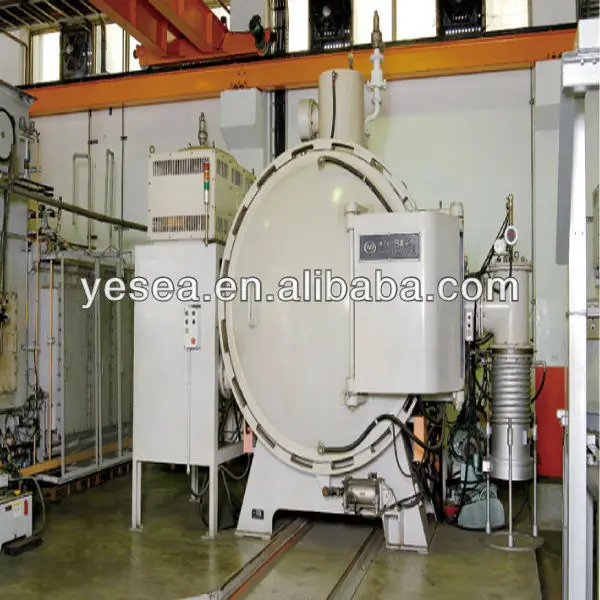

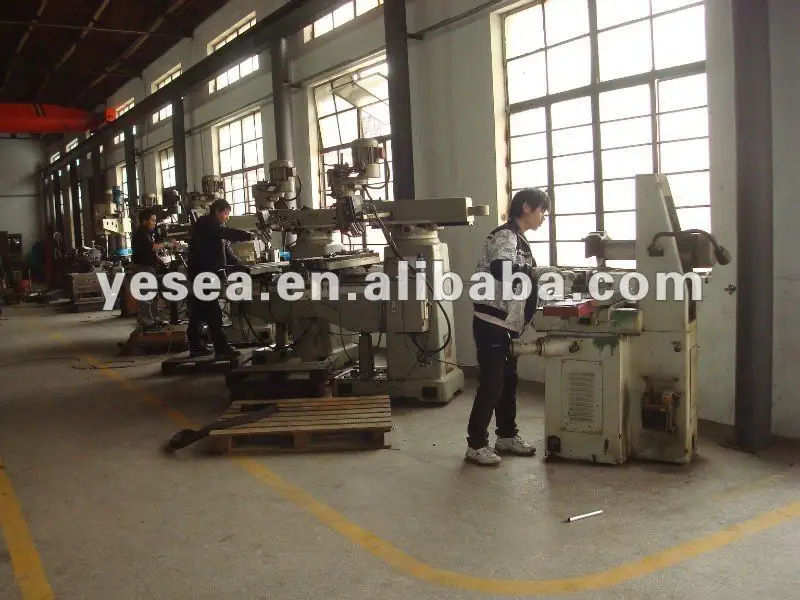

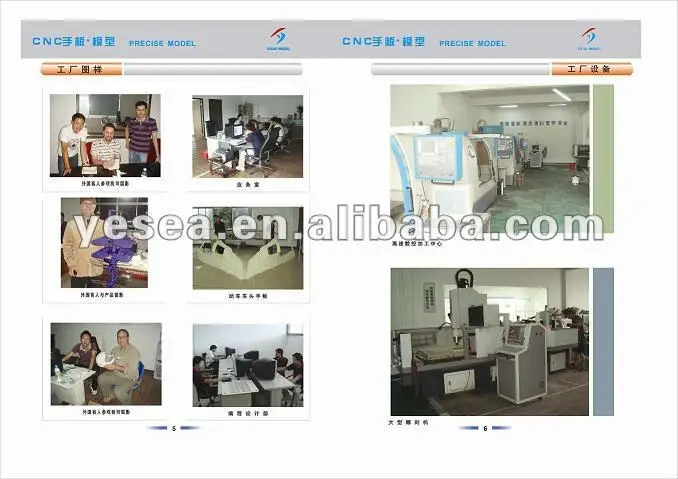

Tooling Workshop

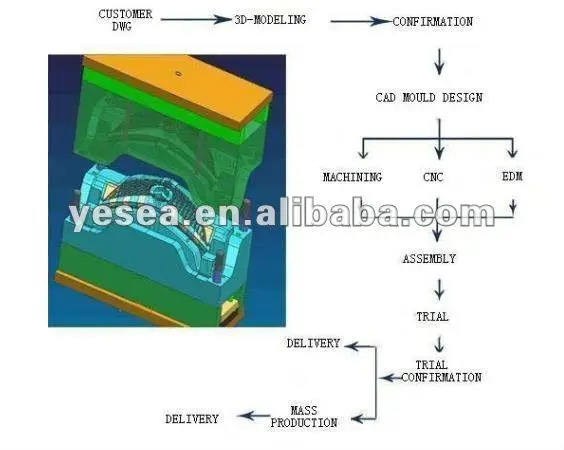

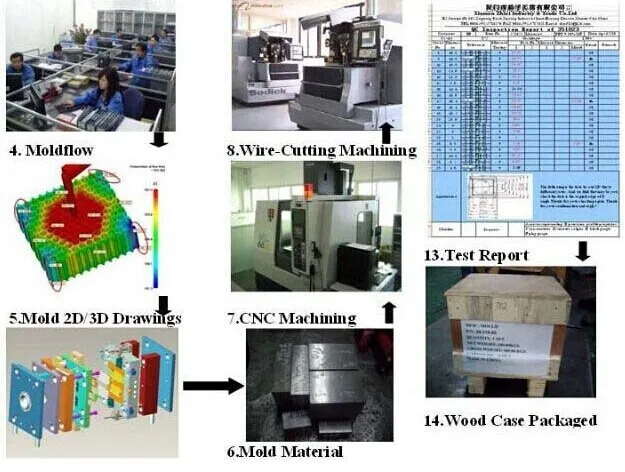

Mould Making Step
Advantages of YH
1.Competitive price.
2.Continuance service and support.
3.Diversified rich experienced skilled workers.
4.Custom R&D program coordination.
5.Application expertise.
6.Quality,reliability and long product life.
7.Mature,perfect and excellent ,but simple design.
8.Good after-service
9.Punctual delivery time
Packaging & Shipping
Package
- Moulding Parts
- Inner Packing:Pack in Wrap bag or Paper Box
- Outer Packing:Strong Carton
- Plastic Mould
- Inner Packing:Pack in Wrap bag
- Outer Packing:Wooden Pallet
- Our Package is strong enough for sea ,inland shipping and air
- As Per customer Request
Payment Terms
- Shipping Porting :Shanghai China
- T1(First Testing) Sample :25 Days more or less
- Leading Time:35 Days around
- Payment Method:30% for deposit by T/T ,40% for first Testing ,the balanced paid before shipping,L/C,Western Union ,MoneyGram ,etc .
After Sales Service
- Pls contact us in team after you receive the moulds
- Tel:0086-21-67679181 Fax:0086-21-57670797
