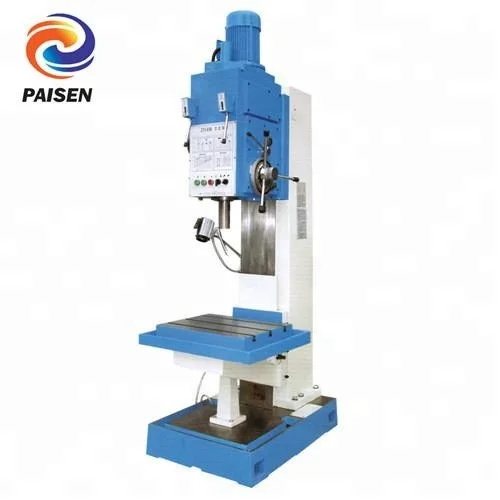

220v/380v column/upright/pillar/vertical drilling machine/vertical driller machine
- Category: >>>
- Supplier: Xingtai Paisen Commercial Co. Ltd.
Share on (60307400910):
Product Overview
Description
40/50/63/80mm diameter vertical/column/upright/pillar drilling machine/driller machine
Product Description
The vertical drilling machine, is a universal machine tools. This machine can be used for drilling, reaming, milling, drilling, tapping, spot facing and countersunk hole boring work. automatic spindle tapping reversal and micro feed, very convenient for blind hole and deep hole.
The machining function and use range can be enlarged by installing special accessories, which makes it a universal machine tool with extensive functions. So this type of machine can be not only applied to part manufacturing shops but also maintaining shops.
Features of the vertical drilling machine
I the vertical drilling machine is a ideal choice for single piece, small batch and mass production for drilling, counter boring reaming, tapping, spot facing etc. The machine has a lot of advantages including: good rigidity, variable speed range, intensive operation, convenient use and easy maintenance.
1, Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.
2, The main key pieces are using high strength cast iron and special steel.
3, Have good safety protection device and the outer column protection.
4, High accuracy, high efficiency, high automation and high flexibility.
technical data
Model | Z5140A | Z5150A | Z5163A | Z5180B |
Max Drilling Diameter | 40MM | 50MM | 63MM | 80MM |
Max spindle feeding Strength | 16KN | 16KN | 30KN | 30KN |
Spindle motor power | 3KW | 3KW | 5.5KW | 5.5KW |
Max spindle Torque | 350Nm | 350Nm | 800Nm | 800Nm |
Spindle feed step | 12Step | 12Step | 9Step | 9Step |
Spindle speed range | 31.5-1400 r.p.m | 31.5-1400 r.p.m | 40-570 r.p.m | 40-570 r.p.m |
Spindle taper(Morse) | 4 | 5 | 5 | 6 |
Spindle travel | 250MM | 250MM | 250MM | 250MM |
Spindle box travel | 200MM | 200MM | 250MM | 250MM |
Distance between spindle axis to surface of column | 335MM | 335MM | 375MM | 375MM |
Distance between spindle end and table surface | 750MM | 750MM | 50-850MM | 50-850MM |
Working table travel | 300MM(manual) | 300MM(manual) | 300MM | 300MM |
Working table size | 560*480MM | 560*480MM | 550*650MM | 550*650MM |
T-slot(numbers of slot×width) | 3x18 | 3x18 | ||
Net weight | 1250KG | 1250KG | 2500KG | 2500KG |
Overall size | 1090x905x2530 mm | 1090x905x2530 mm | 1300x980x2790 mm | 1470x986x2797 mm |
