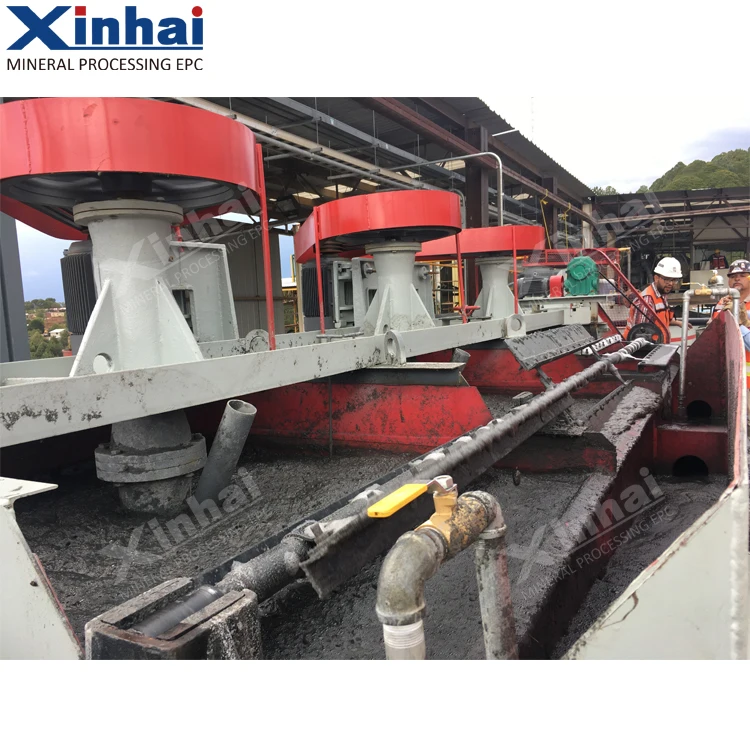

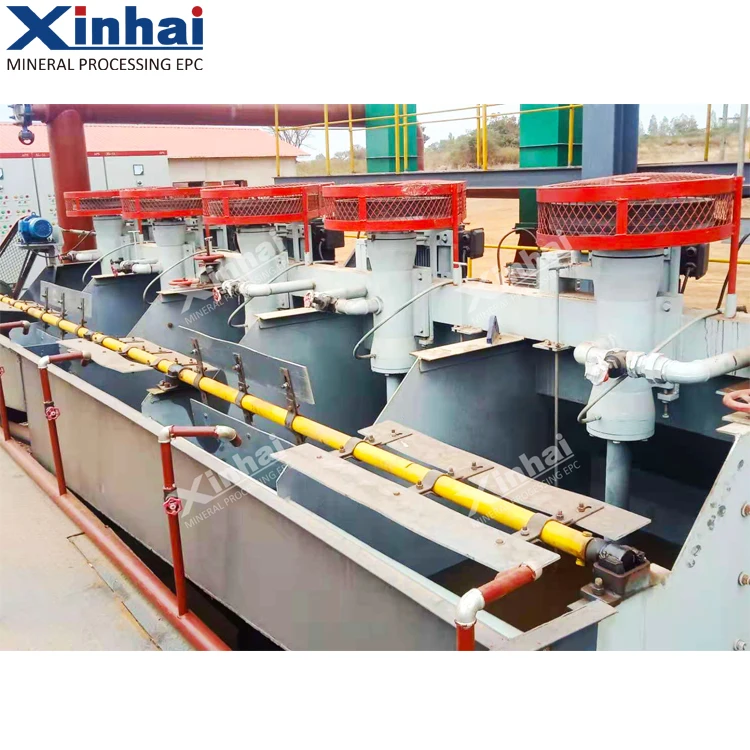

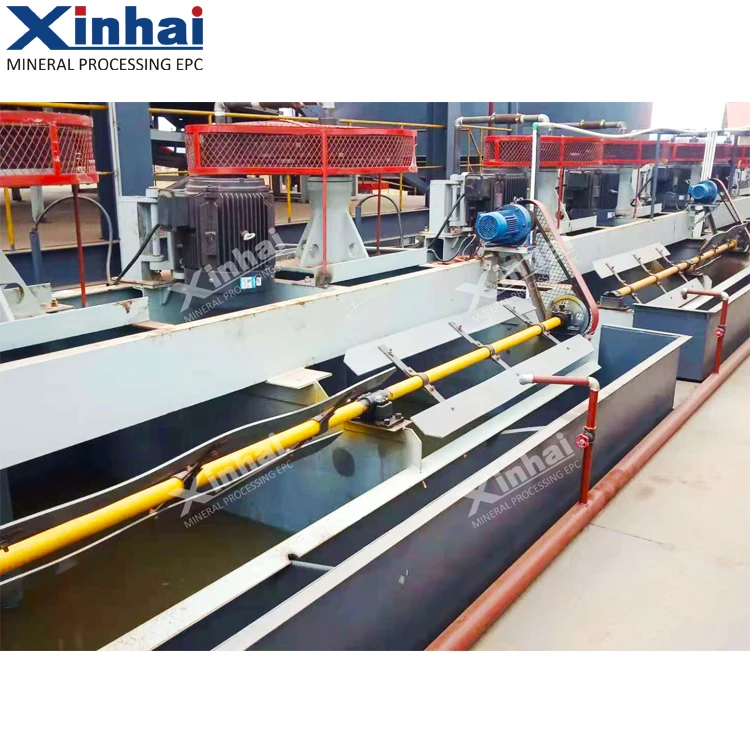

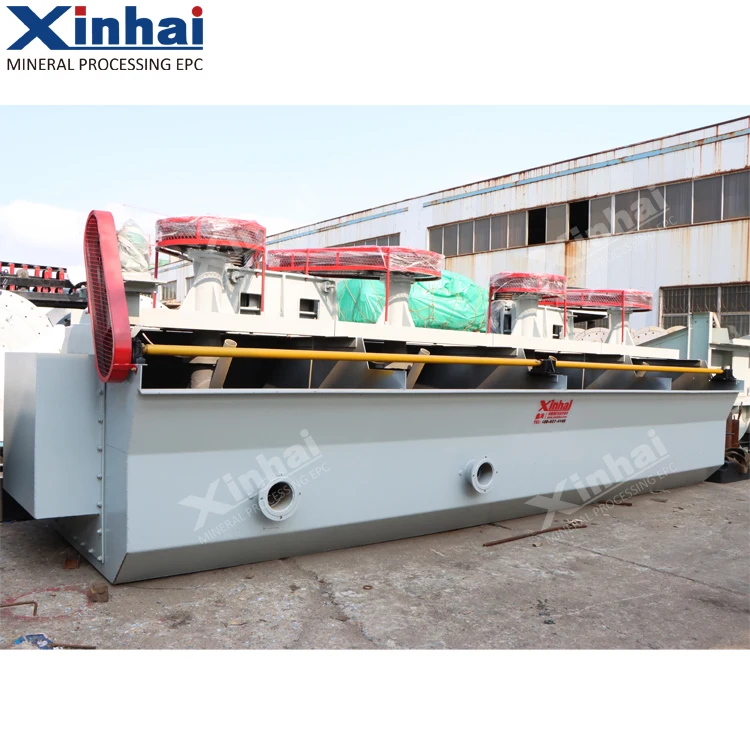

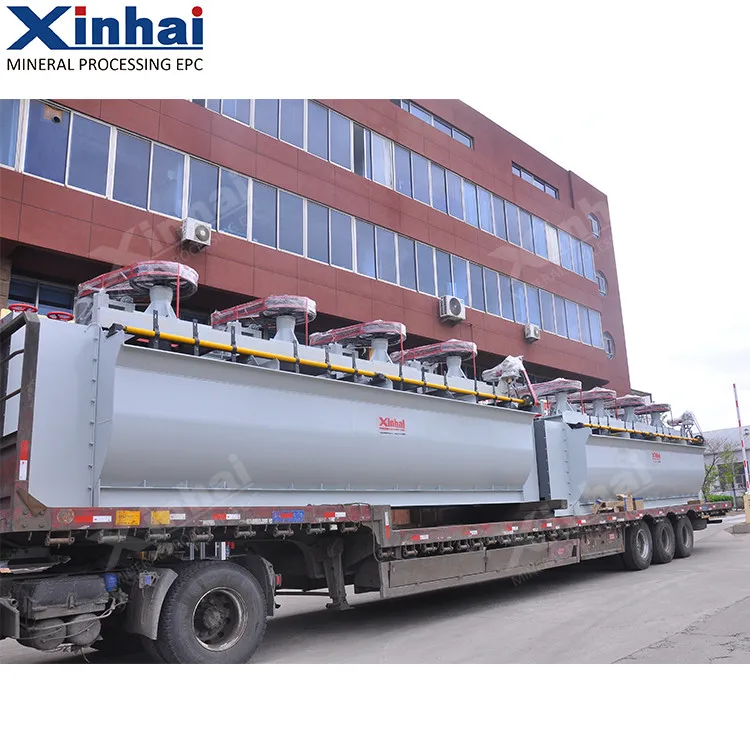

China Good Quality Flotation Cell Machine For Mining
- Category: >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (60307502985):
Product Overview
Description
Note!!! The current price is not the actual transaction price, the specific price is subject to the sales quotation.
Products Description
Flotation Cell For Mining---Product Description
【Introduction】:SF flotation cell is a mechanical agitation type flotation machine with self-slurry suction and self-air suction
【Volume】:0.37～20m3
【Improvement】:Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank.Forward type tank, small dead end, fast foam movement
【Volume】:0.37～20m3
【Improvement】:Both sides of the impeller with back rake blades ensures double circulating of slurry inside the flotation tank.Forward type tank, small dead end, fast foam movement
Product Advantages
Flotation Cell---Product Advantages
Large air suction volume, low power consumption;
Long service life of wear parts Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing;
The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of coarse particle;
Auto-control device of slurry volume, convenient adjustment ;
Long service life of wear parts Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing;
The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of coarse particle;
Auto-control device of slurry volume, convenient adjustment ;

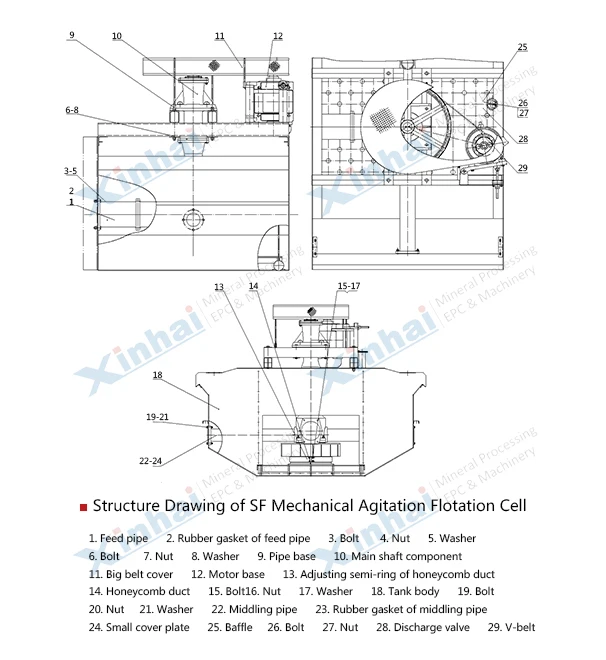

Product Structure
Flotation Machine---Product Structure
The air is sucked into the upper impeller chamber through the suction tube and the central tube, and mixed with the pulp to form many fine bubbles. After steady flow through the cover plate, the air is evenly dispersed in the tank to form mineralized bubbles.
The mineralized bubbles rise to the foam layer and are scraped out by the scraper.
The mineralized bubbles rise to the foam layer and are scraped out by the scraper.
Technical Parameters
Model | Effective Volume(m3) | Capacity (m3/min) | Impeller Diameter (mm) | Impeller Revolutio(r/min) | Motor Power for Stir (kW) | Motor Power for Scraper (kW) | Single Tank Weight (kg) |
SF-0.37 | 0.37 | 0.2~0.4 | 300 | 352~442 | 1.5 | 0.55 | 468 |
SF-0.7 | 0.7 | 0.3~1.0 | 350 | 336~384 | 3 | 1.1 | 629 |
SF-1.2 | 1.2 | 0.6~1.6 | 450 | 312 | 5.5 | 1.1 | 1373 |
SF-2 | 2 | 1.5 ~3 | 550 | 280 | 11 | 1.5 | 1879 |
SF-2.8 | 2.8 | 1.5~3.5 | 550 | 280 | 11 | 1.5 | 1902 |
SF-4 | 4 | 2.0 ~4 | 650 | 235 | 15 | 1.5 | 2582 |
SF-6 | 6 | 3~6 | 760 | 191 | 30 | 2.2 | 3540 |
SF-8 | 8 | 4.0 ~8 | 760 | 191 | 30 | 2.2 | 4129 |
SF-16 | 16 | 5.0 ~16 | 850 | 169~193 | 45 | 1.5 | 7415 |
SF-20 | 20 | 10 ~12 | 850 | 169~193 | 45 | 1.5 | 9828 |
