BY300 engineering construction machinery ce mini dumper crawler concrete dumper

Product Overview

Description

concrete dumper



BY300 engineering construction machinery ce mini dumper crawler concrete dumper





*Features of concrete dumper

1. BY300 is hydraulic design and 4wheels driven.
2. The main parts are imported from USA with global warranty.
3. The max loading weight is 300kgs and the width is 78cm narrow.
4. It's powerful to carry bricks, sand, stones, wood, crops, fruits around varous sites.

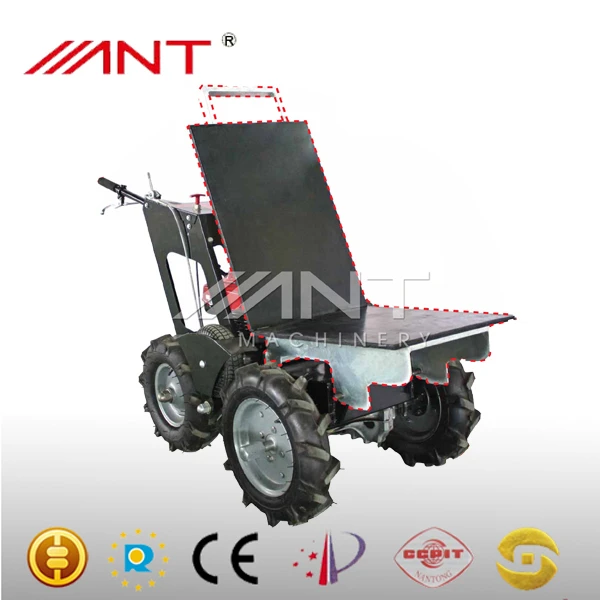

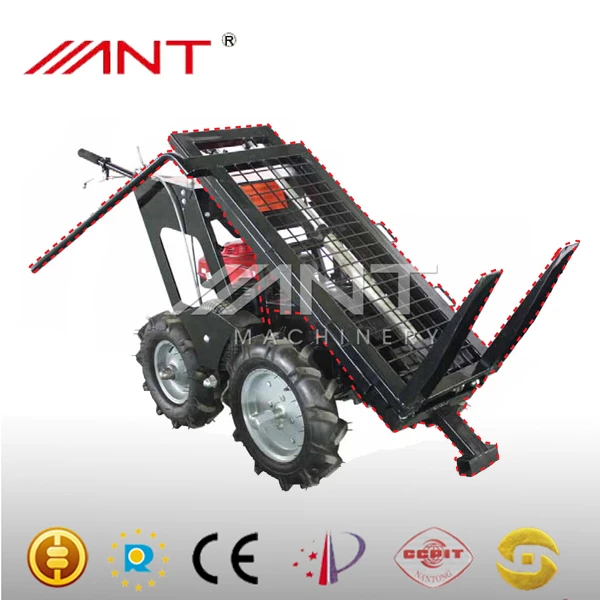

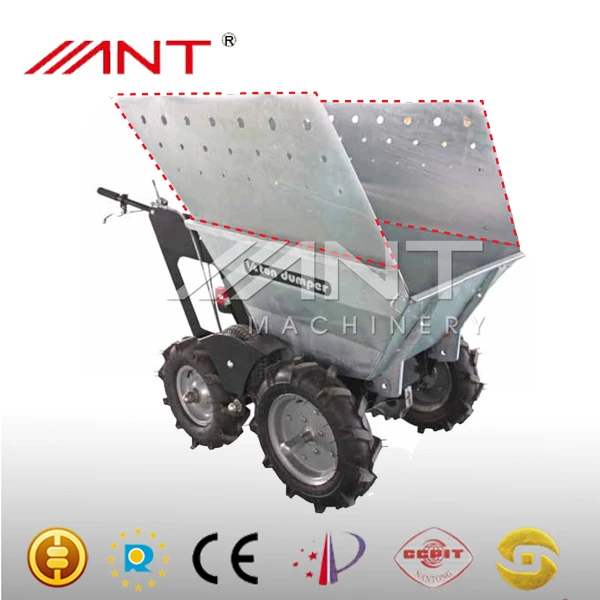

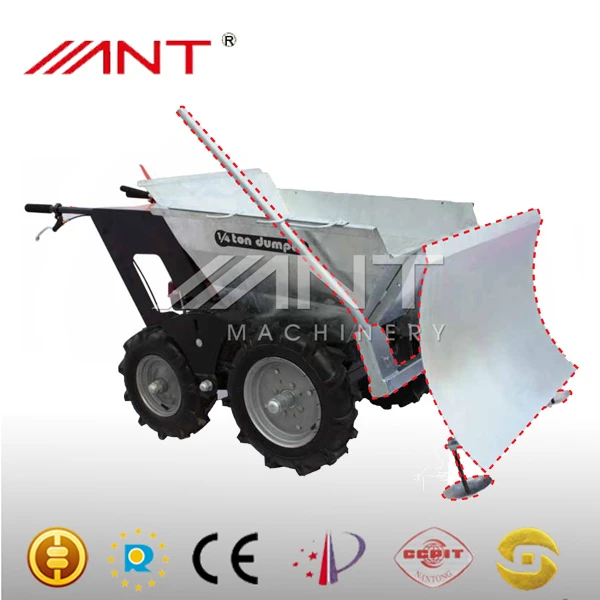

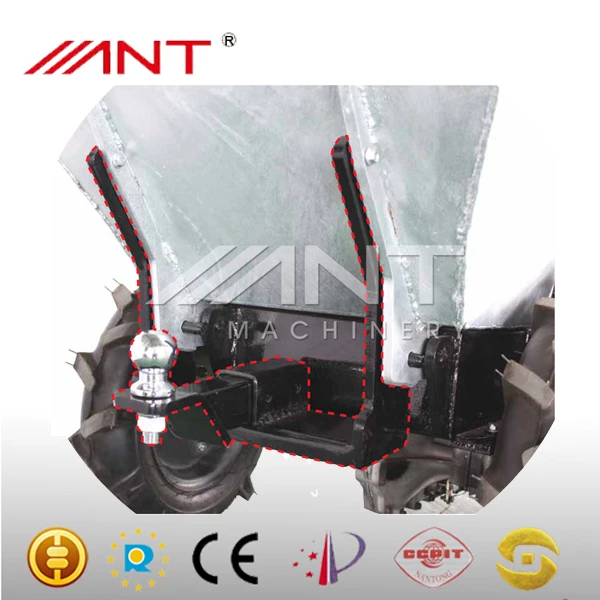

5. There are rich accessries to add the value, such as flat bed, extension sides, snow plough, ball hitch, power lift and so on.





*Rich Accessories of concrete dumper









*Specifications of concrete dumper



MODEL	BY300
Engine	Honda GXV160 5.5HP
Engine type	4stroke,1cylinder,OHV,air-cooled
Transmission	hydro-gear assembled in USA
Speeds	stepless forward and reverse
Capacity	6cu.ft.(170L) or 300kgs
Brake	Disk
Cabels	protected
Wheels	Front 400×10,4 ply,rear 400×8
Drum Material	red plastic spray
Packing
Weight	131kgs
Dimension	128*74*108(L*W*H cm)
20GP	24PCS
40GP	54PCS



This model is hydraulic design and 4wheels driven. The main parts are imported from USA with global warranty. The max loading weight is 300kgs and the width is 78cm narrow. It's powerful to carry bricks, sand, stones, wood, crops, fruits around varous sites. There are rich accessries to add the value, such as flat bed, extension sides, snow plough, ball hitch, power lift and so on.





CE





EPA





*Packaging of concrete dumper







Model	Weight	Dimension	Engine	Loading weight
BY150	86kg	1720*960*670mm	4HP gas engine	150kg
BY250S	121kg	1700*890*1050mm	Honda GXV160 5.5HP	250kg
BY250X(self-unloading)	121kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300S	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300X(self-unloading)	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300C	175kg	1600*70*820mm	B&S 5.5HP	800kg
BY800	650kg	2170*900*1650mm	Honda GX390 13HP	800kg
BY800S	625kg	2170*900*1170mm	Honda GX390 13HP	800kg
BY800W	600kg	1740*900*1170mm	Honda GX390 13HP	800kg
BY1000	600kg	2170*900*1550mm	Honda GX390 13HP	1000kg
BY1000M	800kg	2300*900*1470mm	Honda GX390 13HP	1000kg











*Q:What's your MOQ of this term?

  A:1 unit



*Q:Could you stick customer's brand on the products?

  A:Of course,we welcome the OEM orders.



*Q:How long is your warranty?

 A:6 months for used or 1 year after leave factory



*Q:What's your packing?

 A:Solid carton,steel frame with carton cover or wooden case



*Q:What's your payment method?

 A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight



*Q:What's your delivery time?

 A:Delivery timely about 15-20 days after receiving the deposit



Thanks for your time, more details please send inquiry!
