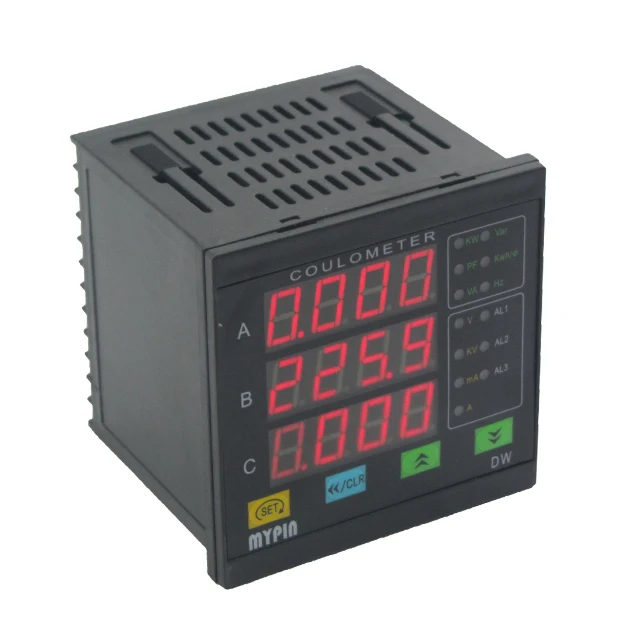

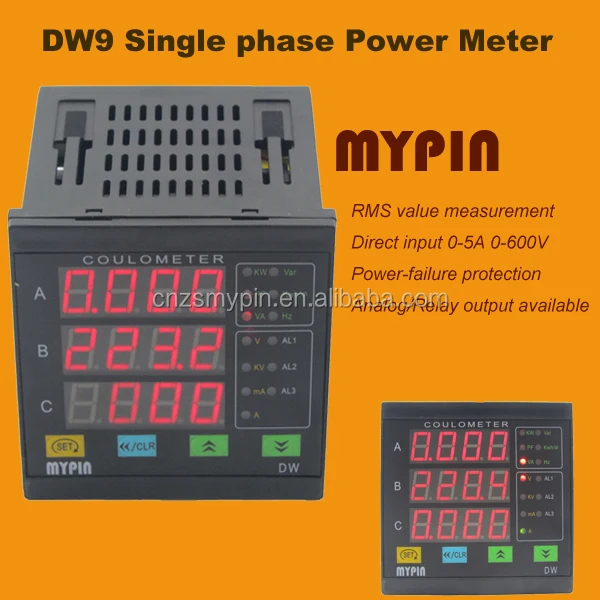

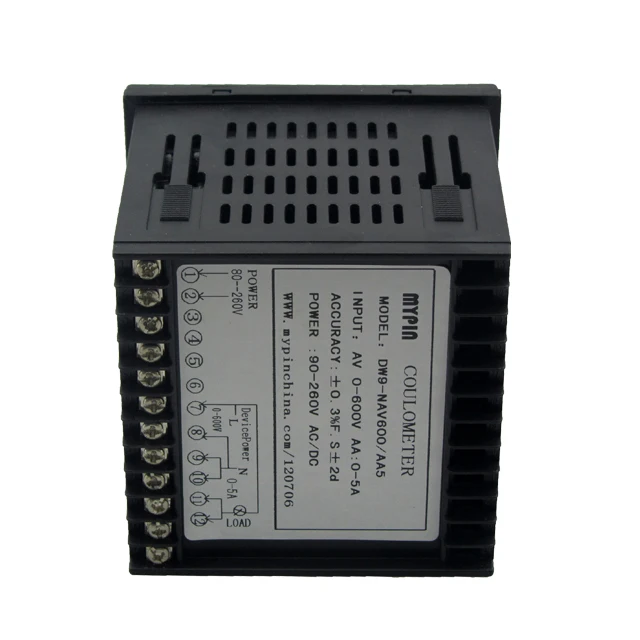

Smart Multi function Smart Power Meter modbus Energy Meter,DW9 digital panel meter

Product Overview

Description





 Dimensions:    96W*96H*80L mm

Power Supply:  90-260V AC/DC

Measure parameters: True effective value measurements for single phse Amp, Volt, Power,

                                       Power  factor,Frequency, Kwh, Inactive power

Input: AC 0-600V 0-5A( large current/volt can be input by working with relative CT/PT.

Amp/Volt ratio:  CT/PT set freely

Frequency: 0-2.5KHz

Accuracy:  Volt:  ± 0.2%FS± 2 digit

                  Amp:  ± 0.2%FS± 2 digit

                  Power: ± 0.3%FS± 2 digit

                  Power factor: ± 0.3%FS± 2 digit

                  Frequency:0-400Hz ± 1Hz

Alarm output: None( available when any need)

Sampling speed:about 2 times/sec.

Communication: None ( available when any need)

Withstand voltage:AC 1500V/1min, (between terminal and outshell)

Resolution resistance: 100MΩ

Work environment: 0~50°c humidity: 35-85%RH

Weight: about 350g.







 Others can be selected in below chart





Shipment by Sea, Freight, or DHL/UPS/FEDEX/TNT/EMS/CHINA POST MAIL as per client's requirements



 We provide 18 months warranty for all Mypin products.

OEM / ODM service available to meet up to client's requirements.

  In addition to supply MYPIN brand products, We have successfully cooperate in more than 20 domestic and international customers on OEM basis, and provide customer PRIVATE brand services so as to achieve mutual benefits and the exchangeof needed goods. you are welcome to contact us at any time, we are ready to offer you the immediate answer.
