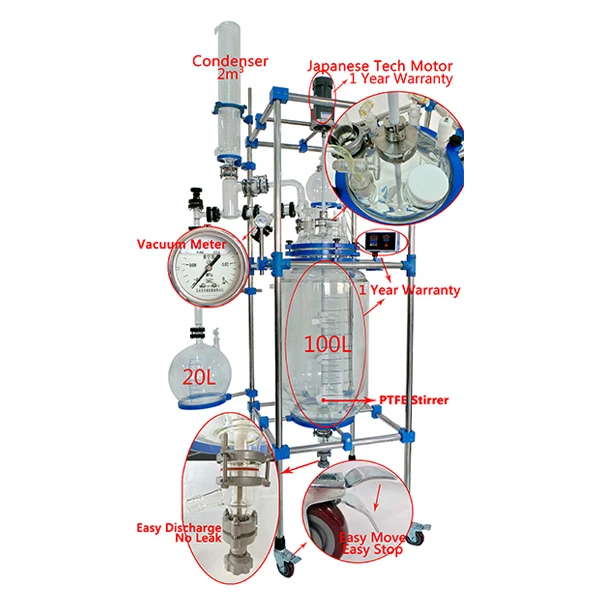

Maillard reaction kettle chemical glass reactor
- Category: >>>
- Supplier: Shanghai Biochemical Co. Ltd.
Share on (60307644041):
Product Overview
Description
Product Description
Reaction vessel commonly used in biochemical,modern fine chemical,pharmaceutical,scientific experiments and other industries.
Maillard reaction kettle - food flavor production, food additives
Reaction vessel can do concentration,distillation,reflow,separation,purification reaction in the condition of constant speed,constant force,constant temperature.
SHBC can design under your instructions. Accept OEM.
| FEATURES |
- G3.3 Borosilicate glass
- Compact stainless steel mobile frame,
- PTFE seal,diameter 20mm PTFE stirrer(stainless steel core, PTFE coated)
- PTFE active discharge valve, electronic temperature measurement
- Constant speed stir controller
- Anti acid, anti alkali
- Explosion-proof device is optional
- With reflow and distillation system
- Temperature range: -80 to 300 degree
- Size: 1L, 2L, 3L,5L,10L,20L,30L,50L,80L,100L,150L,200L
- Easy connect with HUBBER heating/cooling device by special valve
Jacketed reactor chemical reactor STANDARD DETAILS:

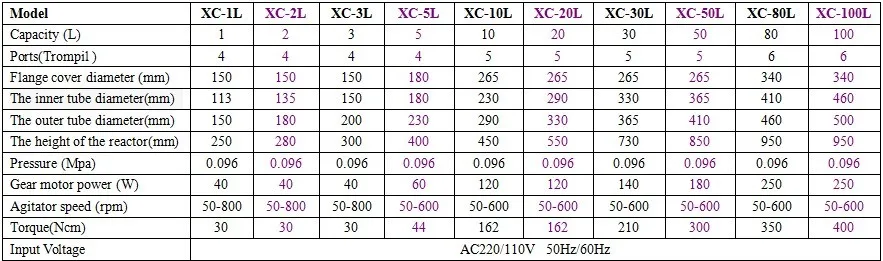

| TECHNICAL PARAMETERS for Double Jacket Glass Reactor |
Jacket heating reactor Reactor biodiesel, Reaction vessel chemical reactor
Diamension of standard chemical reactor double glass reactor:
————Matched Equipments————
Chiller/Heater Circulator
( RT to 200℃, RT to 300℃ , -25 to 200℃ ,-50 to 250℃ )
Control the cooling/heating,temperature of glass reactor,metal reactor,
bio-reactor,in particular to control the process of heat or exothermic in reaction.
Packaging & Shipping
Accept customize of jacket glass reactor chemical reactor .
Our Services
| About us |
Our Advantages:
1. Our chemical reactor have good price with nice shape.
2. Stable avilibility, adequate stock, complete specification.
3. MOQ 1 unit.
4. The strong support of advanced tachnology and detection capability.
5. ISO certification.
6. Your reliable factory, 20years experience.
7. Professional service and technology support.
8. Delivery about 7days upon receipt.
Main Markets:
North America
Europe
Australia/New Zealand
Middle East
Central/South America
Asia
FAQ
Q:Are you a factory or a trading compay ?
A:We are manufacture.
Q:The reactor could be used for sterification,in an acidic invironment?
A: Yes.
Q:Wheather the impeller is durable for strong acids sch as H2SO4 or HNO3?
A:Yes.
Q:Is the standard model suitle for working under vacuum?
A:Yes.
Q: Is there a possibility of connecting an external system via an 'extra' output to the cove lid?
A :Yes.
Q:Is it possible to use oil instead of water in the jacket? What is the max.temperature possible?
A : Yes. Water heating equipment temperature range RT to 100 celsius degree, oil heating equipment range RT to 300 celsius degee.
Q:Is it possible to connect a reflux column instead of the condenser?
A : No. Condenser is necessary, otherwise the gas can't became liquid. Our stanard fitting have condenser and liquid/vapor devider, it could finish the function of distillation and reflux.
Q: Accept customize or OEM?
A : Yes.
Q:Warranty ?
A : 1 year international warranty.
Q:The MOQ ?
A : 1 Unit.
Q:Delivelye time:
S:About 7days upon receipt.
Q :Shipping method:
A :By air, by sea, FedEx,DHL ,etc
| How to Place an Order |
Step1 : Getting inquiry
Step2 : Quoting based on details provided
Step3 : Confirmation of prices and design layout
Step4 : Schematic diagram confirmation
Step5 : Shipping notice
Step6 : Getting the freight and balance
Step7 : Shipment
Step8 : After-sale service
Click " inquire" to contact with us!
