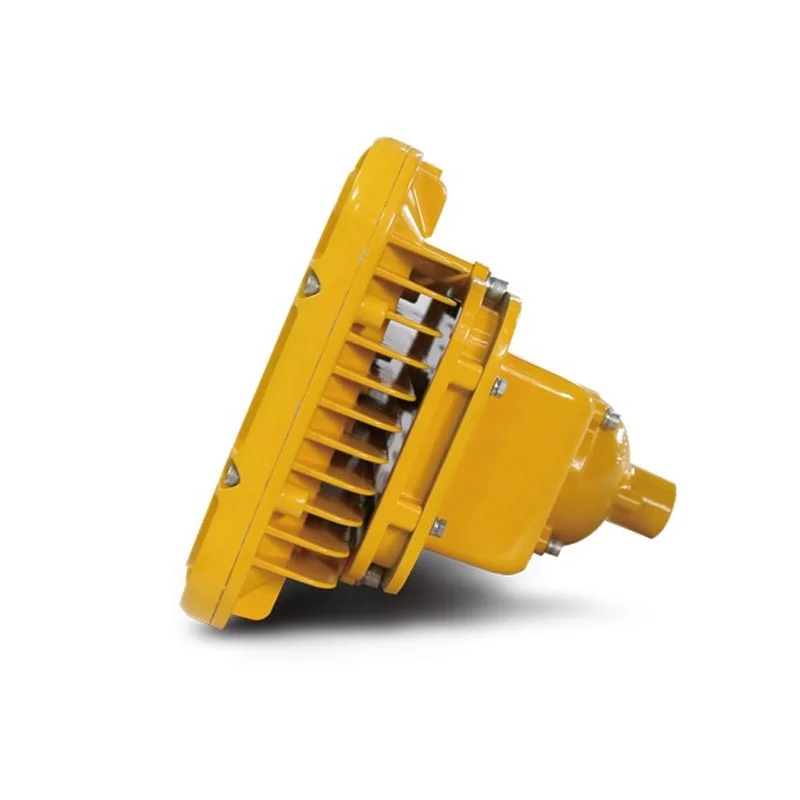

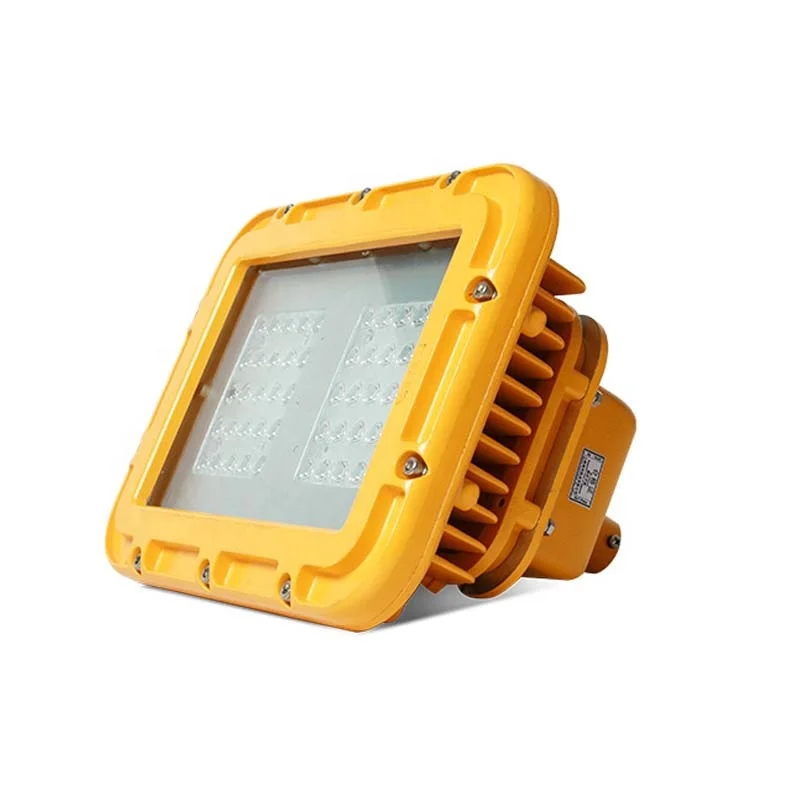

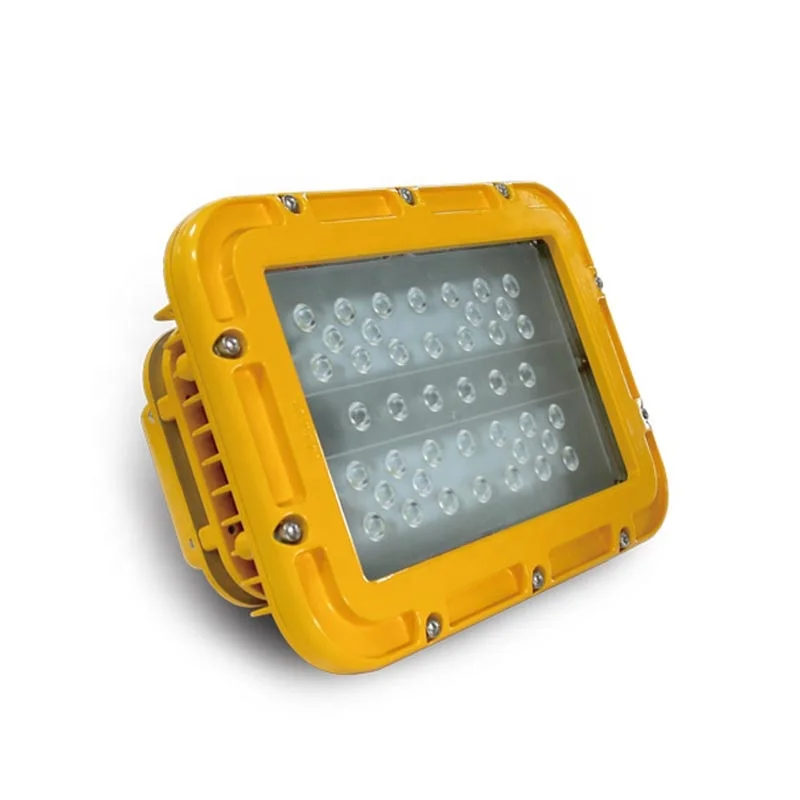

NANHUA LP1X oil & gas industry ATEX led lights/explosion proof light
- Category: >>>
- Supplier: Shanghai Nanhua Electronics Co. Ltd.
Share on (60307697992):
Product Overview
Description
Product Description
● LP1X atex gas station led lights was designed specially to offer the lighting system in a variety of hazardous area applications like oil & gas industry, chemical industry, marine and offshore platform, both indoor and outdoor.,
● Applied to gas zon 1 and 2, gas zone IIA and IIB
● Applied to dust zone 21 and 22, temperature class T1-T6.
● Applied to dust zone 21 and 22, temperature class T1-T6.

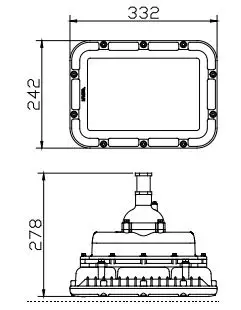

Product Size
Product Presentation
General Specifications
ELECTRIC | ||||||
Operating voltage | AC 110-240V (50-60Hz) | Power consumption | 43W/55W/70W/100W | |||
MECHANICAL | ||||||
Humidity | 10%~95%RH | Anti-corrosion | C4/WF1/WF2 | |||
Operating temperature | -30 ̊C ~ +60 ̊C | Cable entry | M25*1.5/NPT 3/4”cable entry, suitable for ø10 ~ ø14mm² cable ≤2.5mm² conductor | |||
Weight | 8Kg | IP Class | IP66 | |||
Installation | Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, jib mount, guardrail mount, flange mount | |||||
CERTIFICATION LABEL | ||||||
Standard | GB3836.1-2010、GB3836.2-2010、 GB12476.1-2000、 IEC60079-0：2011、 IEC60079-1：2007、IEC60079-31：2008、 EN60079-0:2009、EN60079-1:2007、EN60079-31:2009 | |||||
• Aluminum alloy body.
• PC lens processed by the professional optics design
• Tempered glass clear lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
• Exd structure design to offer more reliable explosion proof quality.
• Independent Exe connection cavity to improve the safety
• Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions
• High duty LED light source to ensure long life operation and superb energy saving.
• Constant current design to guarantee the operation stability
• PC lens processed by the professional optics design
• Tempered glass clear lamp housing with the features of 4J energy impact resistance and thermal shock resistance.
• Exd structure design to offer more reliable explosion proof quality.
• Independent Exe connection cavity to improve the safety
• Specialized corrosion resistance, vibration resistance and water & dust proof design, both indoor and outdoor application in the harsh conditions
• High duty LED light source to ensure long life operation and superb energy saving.
• Constant current design to guarantee the operation stability
