Crane Lifting Spreader Beam
- Category: >>>
- Supplier: Jiangsu Xingzhou Industrial And Mining Equipment Co. Ltd.
Share on (60307769046):
Product Overview
Description
Product Description

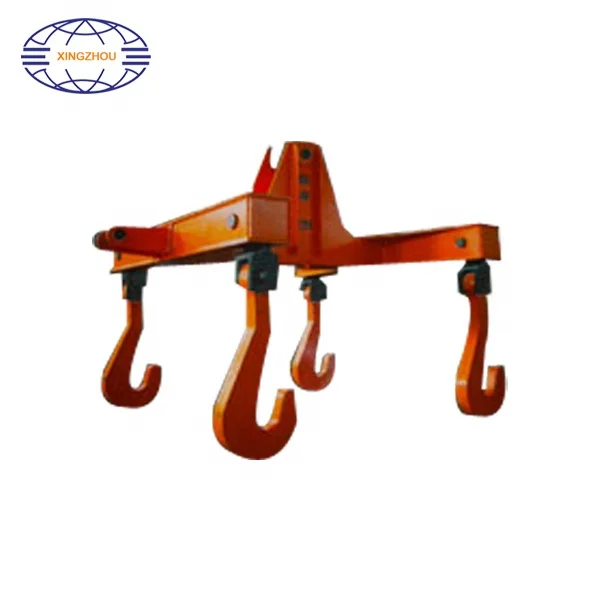

Crane Lifting Spreader Beam
Item No. | LB Series |
| Features | - Main Usage: Heavy duty, lifting and moving a wide range of industrial loads - Material: High-quality low-carbon alloy steel - Load Range: 1Ton-100Tons according to different beam - Mechanical Structure: iron channel structure and box-beam structure - Other Type: single beam/double beam/H-beam/T-beam/Tic-Tac-beam/rotor beam, etc. |
| Performance | lifting and moving a wide range of industrial loads |
| MOQ | 1 unit |
| Warranty | 2 Years |
| Payment | L/C, T/T, Western Union |
| Packing Details | Iron Pack |
| Diagrammatic Drawing |  |

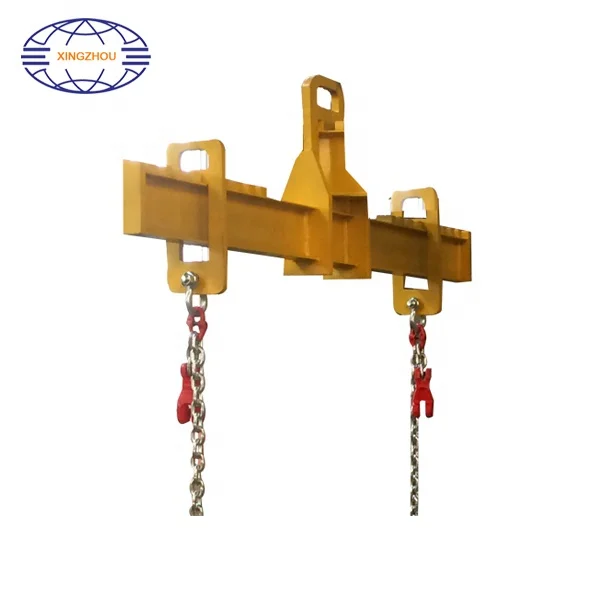

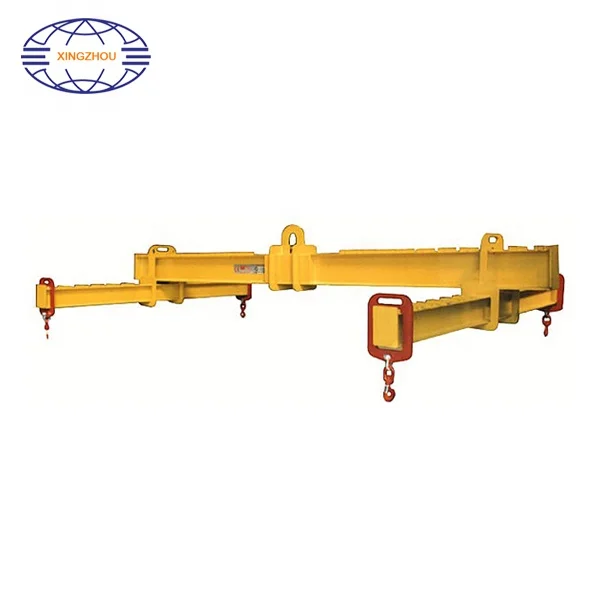

Steel Lifting beam can be used to lift and move a wide range of industrial loads. The hooks on both ends can be adjusted to any location you want. Lifting beam is a good choice when the headroom is limited and restricts the use of overhead rigging in the application. Lifting beam is usually made from a beam and a single lifting point at the top with several lift points at the bottom.
The strong facility and capacity of lifting beam can make big size structure and the lift unit can reach 150 Tons. Xingzhou Industrial & Mining Equipment Co. Ltd can design and produce other lifting beam according to your specific application.
Technical Parameter (For Reference Only):
Rated Load Ton | Adjustable Range m | Effective Length m |
| 2 | 2-3 | 3 |
| 3.2 | 3-5 | 5 |
| 5 | 3-5 | 5 |
| 8 | 4-6 | 6 |
| 10 | 4-6 | 6 |
| 12.5 | 4-6 | 6 |
| 16 | 6-8 | 8 |
| 20 | 6-8 | 8 |
| 25 | 6-8 | 8 |
| 32 | 8-10 | 10 |
| 40 | 8-10 | 10 |
There are other type of Metallurgy Clamps and coil lifter including lifting beam, roll lifter, steel bar lifter, single roll lifter, double roll lifter and Round ingot lifter. We can also produce lifter for lifting hot steel water gantry hook. Hanging ears and hooks are made by molded steel or round steel, multi-ply slab Welded. There are abrasion ply in the contacted position among hanging hook, ear and the hot steel box ear.
They all can be designed by three structures, mechanical structure, electrical motorized structure or hydraulic structure.
We can design and produce other type of lifters and sclamps according to your specific requirement.
Product Uses
Care & Use of Lifting Device
1. Do not stand under the working billet lifter.
2. Never exceed the working load limit of the sheet metal clamp.
3. The lifter should be in the centre of the sheet metal when working, otherwise the lifter will be inclined and easily damaged.
4. If the fixture gets a small damage, it should be repaired immediately. Otherwise, the damage will be speed up.
