J212 zinc alloy small hot chamber die casting machine with lower price in Ningbo

Product Overview

Description

Our company

In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 30 years, we always have perisitently pursue to provide perfect cold and hot chamber die castingmachine and sincere service. We are devoted and sincere service. We are devoted ourselves to higher and better die c asing techbology in die casting area in China and even the world.

  Features and applications of 16Ton hot chamber die casting machine

• 16Ton small Die-casting Machine
• Suitable for zinc and lead alloy
• 3 kind management methods---Manual, Semi-auto and Auto operation mode.
• PC program controlled.
• J212 type is one kind of samll die casting machine, which could process colored alloy parts from low melting point metal as zinc and Lead, which are used widely in automobile and motorcycle parts, instruments, household hardware and home appliances industry.
•
  Though J212 die casting machine is in small size, we also design 3 kinds of driving methods as manual, singly circulating and automatic circulating. The operator could manage several machines at the same time in automatic mode.
• J212 macgube is an effective machine which could send up 290g of zinc alloy in 2.5 seconds.J212 hot chamber die casting machine is equipped with electronics and hydraulic pressed parts of high grade. The electronics are controlled by PC program which is stable and reliable.

• the project	the unit	J212
  Die locking force	kN	160
  Stroke of moving platen	mm	125
  Inner space between the bars(HXV)	mm	230x200
  Thickness of die block(Min./Max)	mm	150/220
  Injection force	kN	19
  Diameter of shot sleeve	mm	38
  Dosage of fluid metal per shot(zinc)	kG	0.56
  Injection pressure(Min./Max)	MPa	0.5-0.7
  Dry cycle	s	2.5
  Working pressure of vane pump	MPa	6.3
  Motor power	kW	5.5
  Machine weight	kg	2200
  Overall dimensions(H)+(Top space)	mm	1935(520)

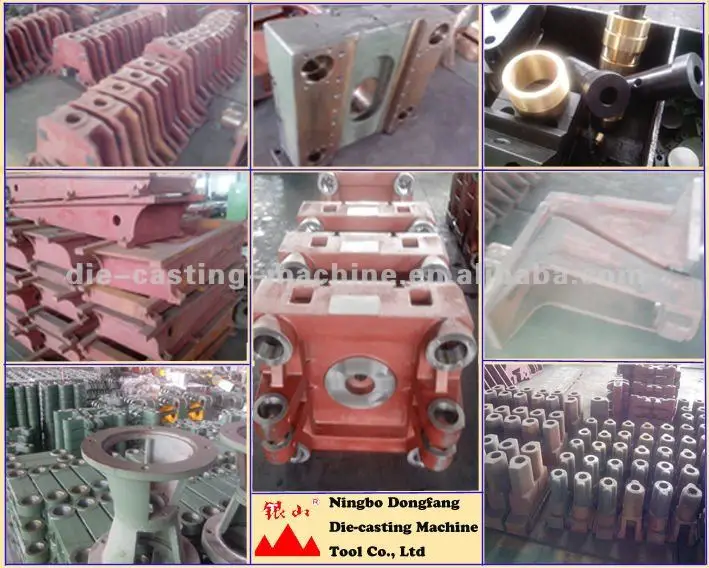

^{Product samples for reference}

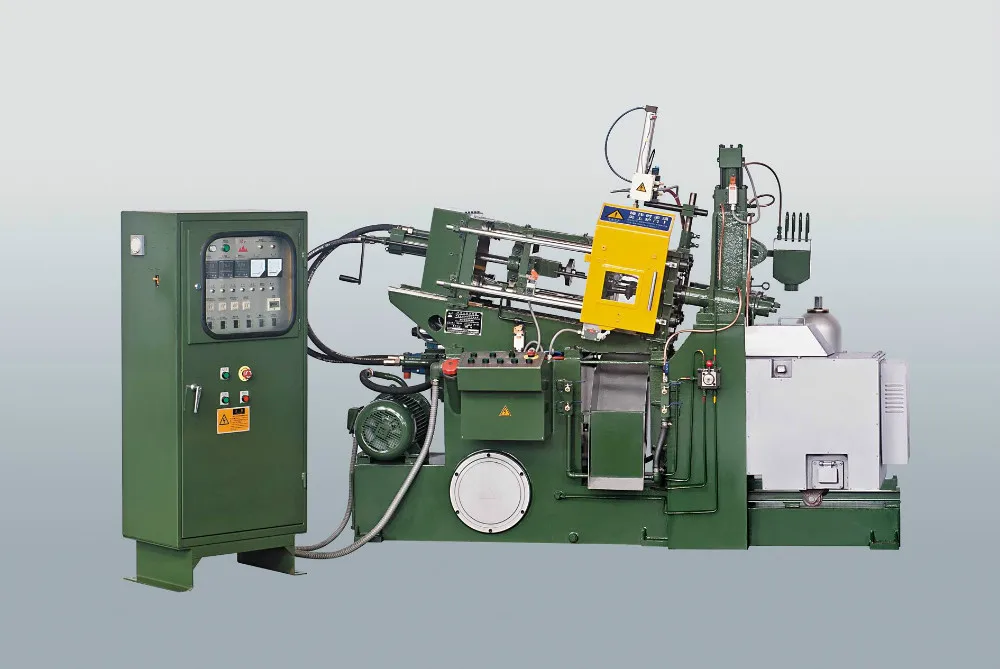

Model J212(16Ton) 160KN hot chamber die casting machine

After-Sales Services

We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.

Overseas available        Free training
