Plastic Film Machine Ldpe Film Blowing Machine QS A55 PE Extrusion Blow Moulding High Speed Queensense 380v,3phases 2000kgs 15kw

Product Overview

Description



Applications:

SJ-A55 PE film blowing machine  is used to blow low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) plastic films and other films, and is widely used in civil and industrial package such as food, clothes, garbage bags and T-shirt bags.

Optional:

1)Automatic suction machine
2)Air compressor
3)Quick screen change
4)Rotary die device
5)Twin-station winding-up machine
6)Automatic lifting



Main technical parameters:

Model	A50	A55	A65	A65-1
Diameter of screw	ø50	ø55	ø65	ø65
Lay-flat width of film	100-600	200-800	300-1000	400-1200
Thickness of single film face	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max. extruding capacity	35	50	65	80
Length-diameter ratio	28:1	28:1	28:1	28:1
Power of main machine	11	15	18.5	22
Power of traction motor	1.1	1.1	1.5	1.5
Heating powe	15	17	23	25
Overall dimensions	4800 x 1900 x 4100	5500 x 2100 x 4700	6500 x 2300 x 4900	6500 x 2500 x 5600
Weight	1.5T	2T	2.3T	2.6T

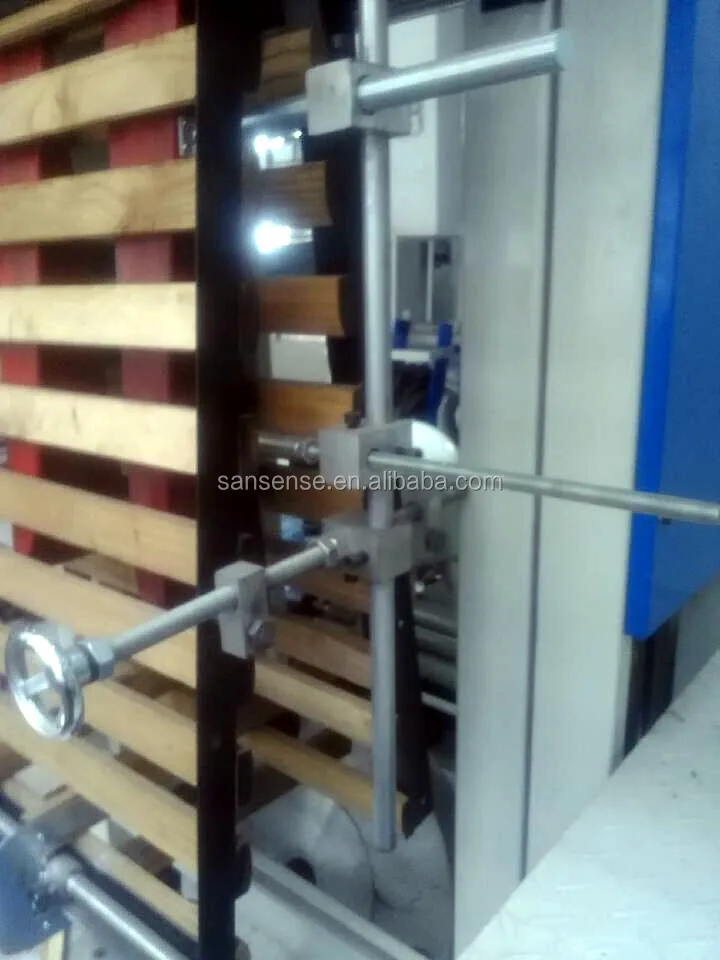

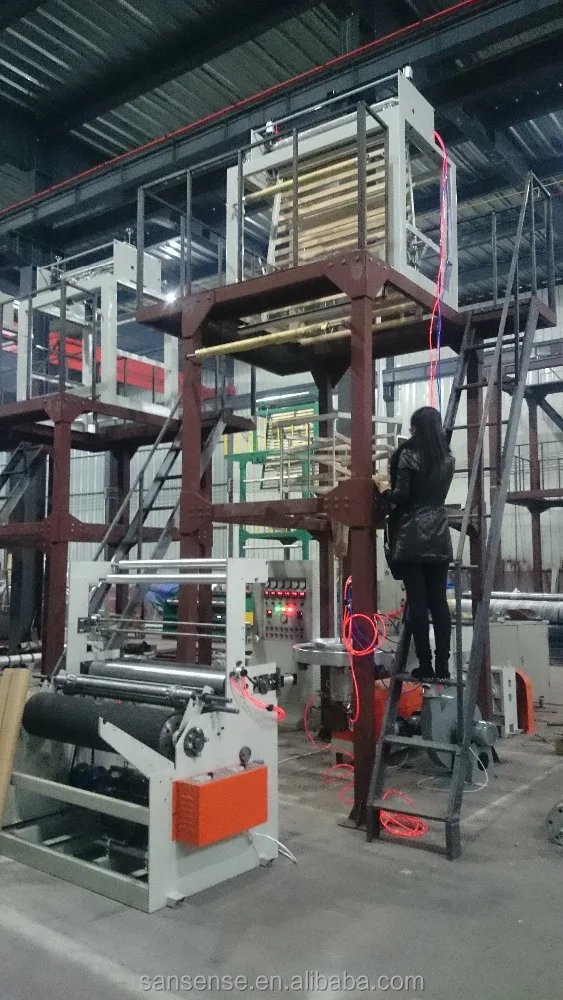

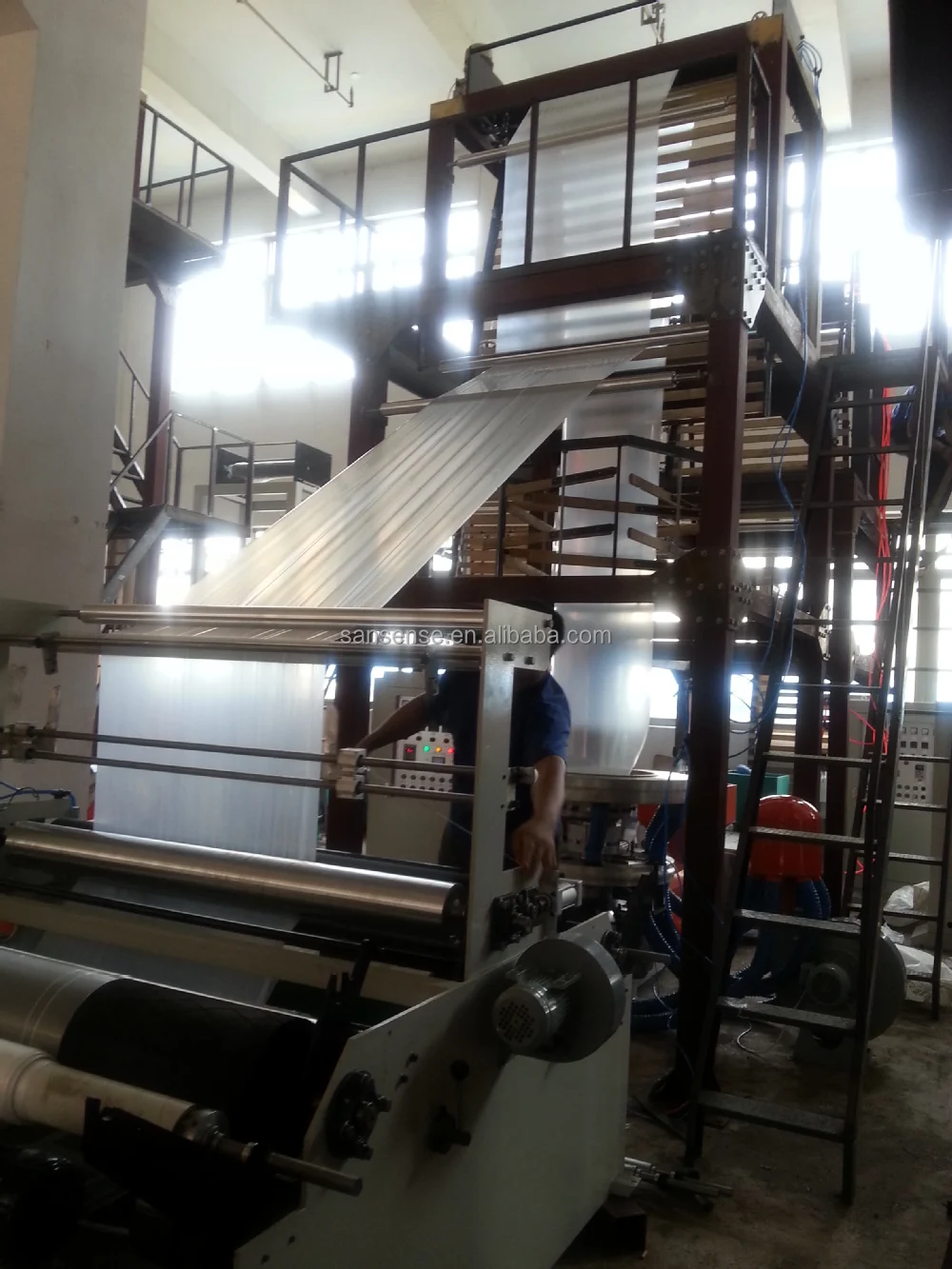

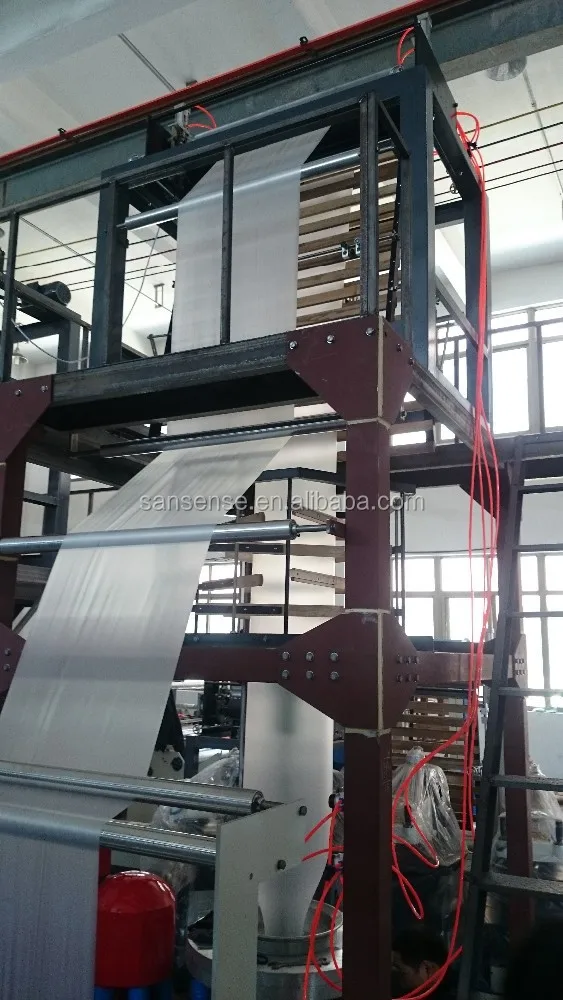

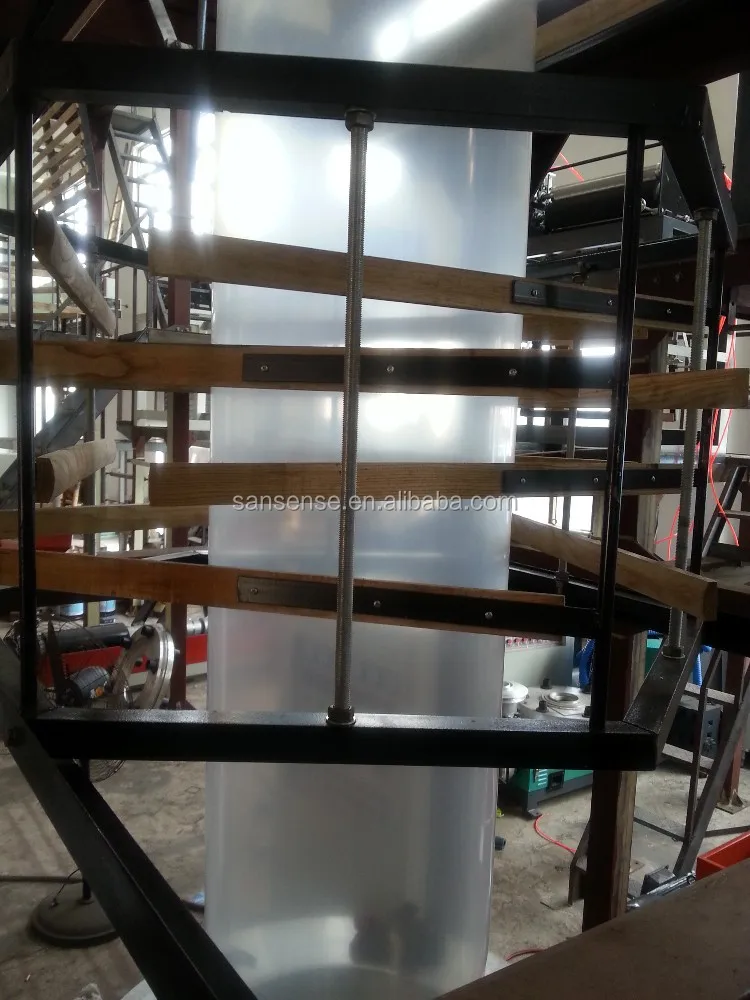

Machine photos for reference:







Exhibition and custome's visiting to the factory



Packing&shipping
