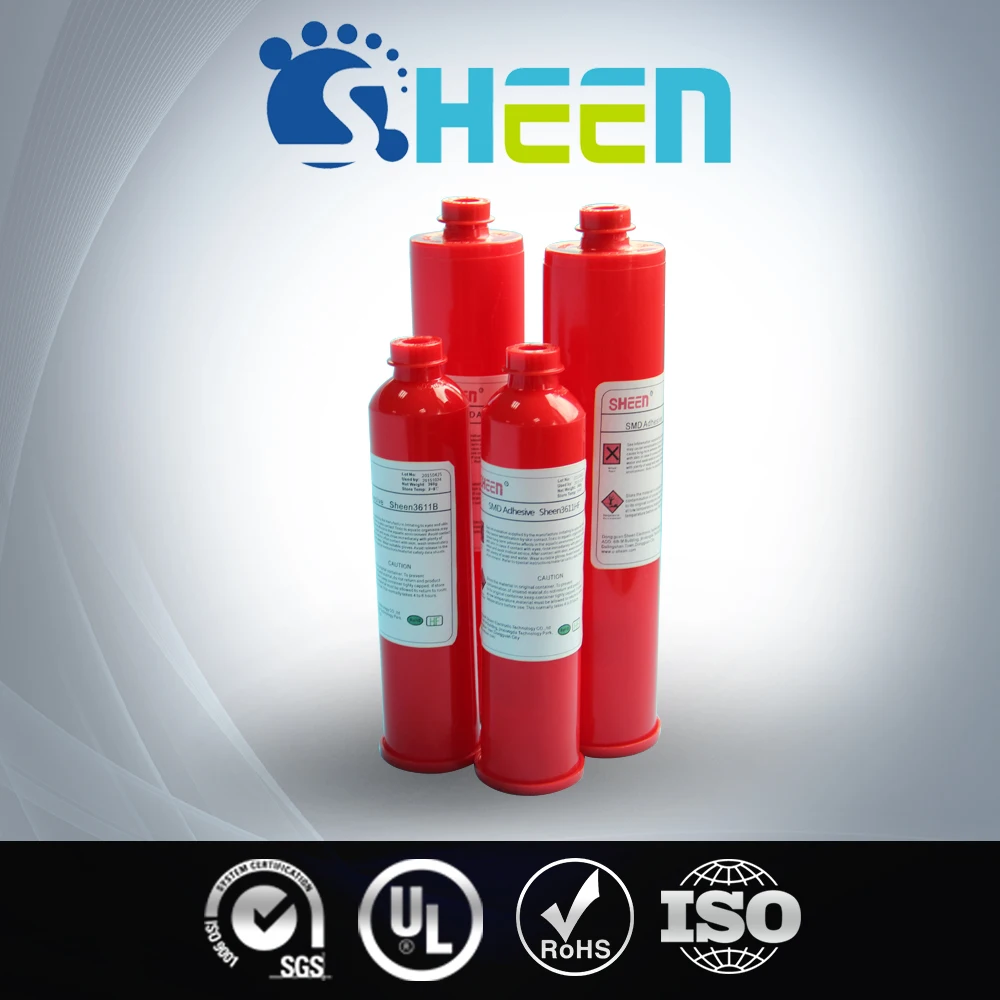

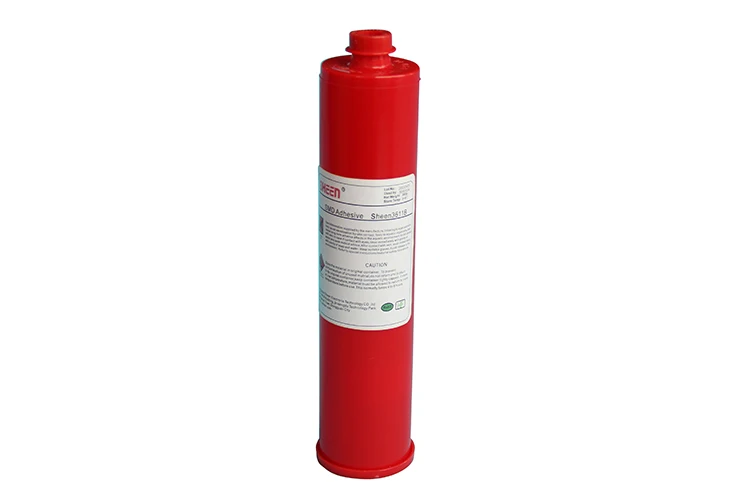

SMT red adhesive glue for dispensing machine
- Category: >>>
- Supplier: Dongguan Sheen Electronic Technology Co. Ltd.
Share on (60307934727):
Product Overview
Description
No Heavy Metals (Cd, Se) SMT Excellent For Thick Plate (3.0MM) Print
Product Description
| Product Information |
| Product Name | SMT red adhesive glue for dispensing machine | |
| Item No. | 3611B | |
| Appearance(uncured) | Red paste | |
Yield Value@25oC, Pa(uncured) | 560 | |
| Particle Size (microns)(uncured) | ||
| Density (g/cm3 )(uncured) | 1.20 | |
| Copper Corrosion(uncured) | NO | |
| Shelf Life (months)(uncured) | 6 months | |
| Modulus DMTA @ 1kHz (GPa)(cured) | 3.3 | |
| Glass Transition Temperature(cured) | 128°C | |
| Thermal Conductivity (W/m.K)(cured) | 0.29 | |
| Specific Heat, kJ.kg-1.K-1(cured) | 0.32 | |
| Introduction | 3611B is an epoxy surface mount adhesive that cures rapidly at elevated temperatures and has been specially designed for thick cupper and plastics plate (3.0MM) print. The very low moisture absorption allows expose to humidity in open baths, without causing void formation in the cured adhesive. 3611B has been successfully used for print, particularly suited for thick plate print, high wet strength and good electrical characteristics are required. | |
| Curing Condition | 3611B is designed to cure in 90 to 120 seconds at 150 oC and in 4 minutes at a temperature of 120 oC. Rate of cure and final strength will depend on the residence time at the cure temperature. The following graph is recoMMended curing curve. | |
| Features and Benefits | 1. Excellent for thick plate (3.0MM) print. 2. 3611B can be cured in 90 to 120 seconds at 150°C. 3. No Heavy Metals (Cd, Se). 4. Easy Clean Up of Uncured Adhesive.
| |
| Typical Applications Include | Designed for thick cupper and plastics plate (3.0MM) print. The very low moisture absorption allows expose to humidity in open baths, without causing void formation in the cured adhesive. | |

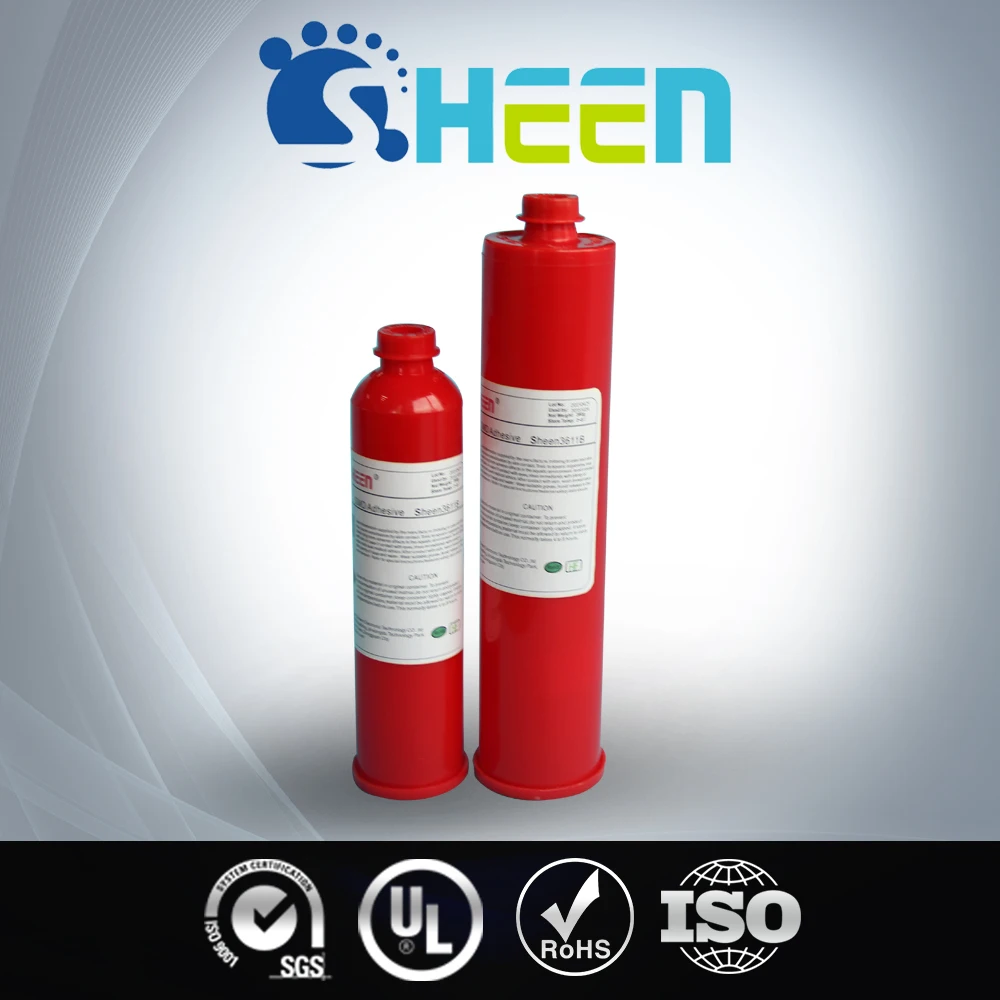

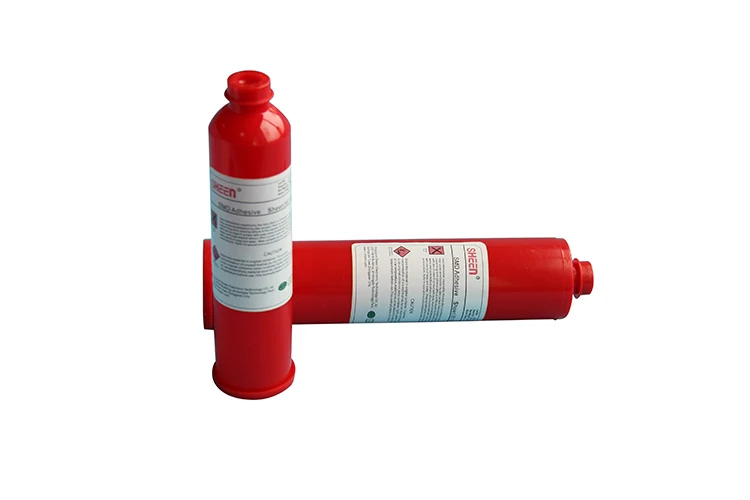

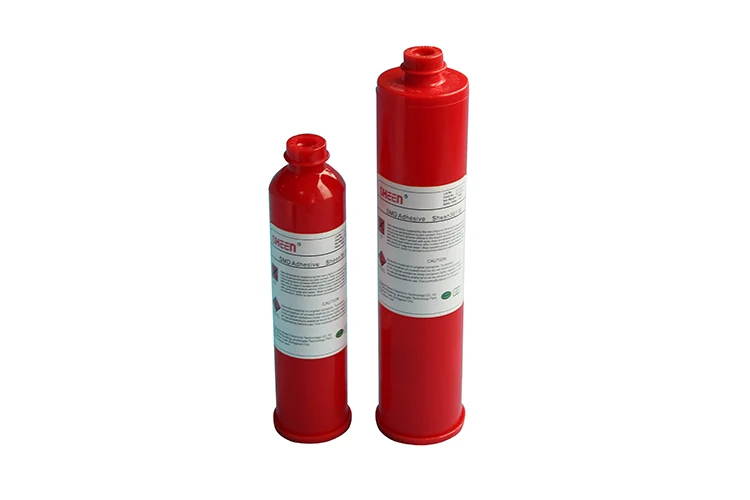

| Product Display |
| Hot Sale |
| Product Advantage |
|
|
|
|
Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid. |
Company Information
| Company Overview |
| Certificate |
| Contact |
| We can make many specifications according to your request! For more information. Please contact us. | ||||||||||
|
FAQ
| FAQ |
1. What are your main products? We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of weather ability glue for led module are available, but the freights need to be paid by the buyers. 2. What about the product quality and which certificate do you have? We have UL certificate and RoHS certificate. 3. How long does it take to deliver after order? For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements. 4. What about your after-sale service? We fully guarantee our product quality and will provide free technical guidance on operations. |
