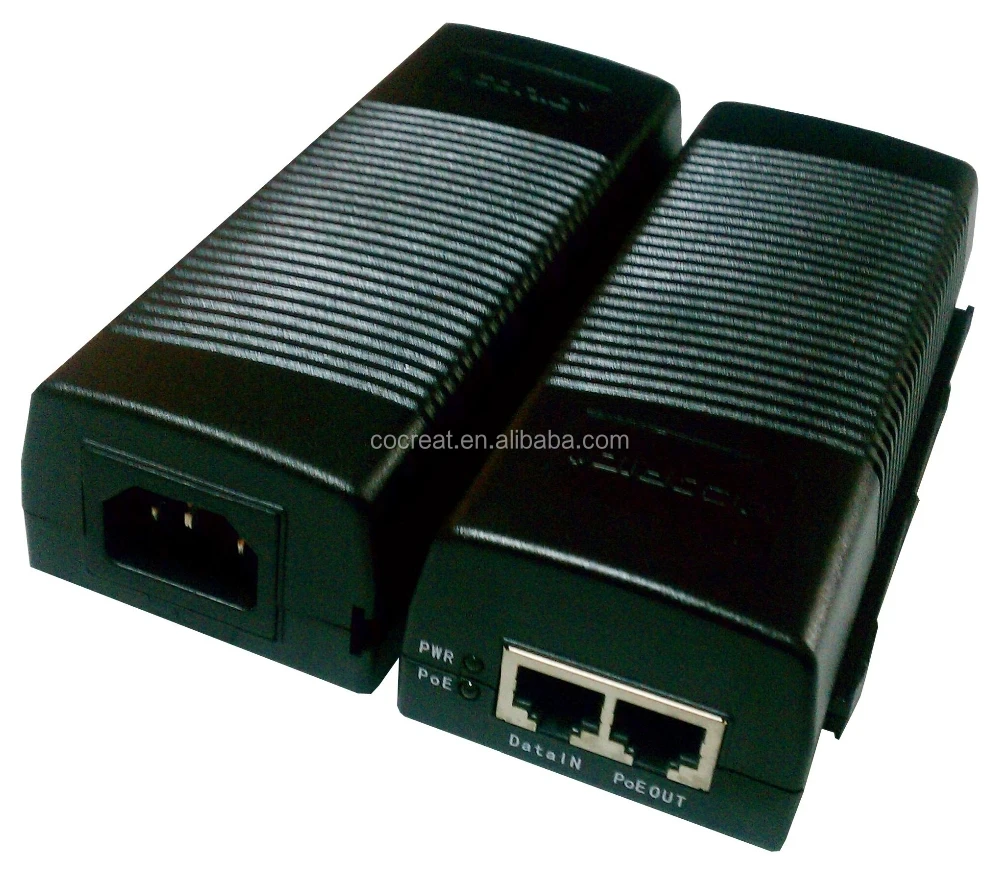

PoE injector cost effective fully IEEE802.3af solution

Product Overview

Description

Overview

PoE midspan injectors offer a cost effective fully IEEE802.3af /at compliant solution to upgrade existing infrastructures with PoE providing a Max. of 15.4W/25.4W of power through each port and ensuring safe operature of any standard PoE data terminal. It allows IP telephones wireless LAN access points security network cameras and IP terminals to power along with data at up to gigabit speed over ethernet standard cables, leaving infrastructures completely unaltered.



NP300 series comprises 1/4/8/16/24 ports models making an even wider range of flexible Power over Ethernet installations possible. With PoE data and power flow smoothly and safely over a single LAN cable with no interface.

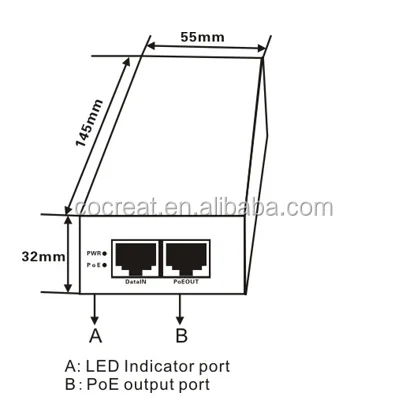

Devices measurement picture



Features

Reduced Installation cost

Fully IEEE802.3af/IEEE802.3at compliant

10/100/1000 Mbps supported

Plug & Play. No configuration required

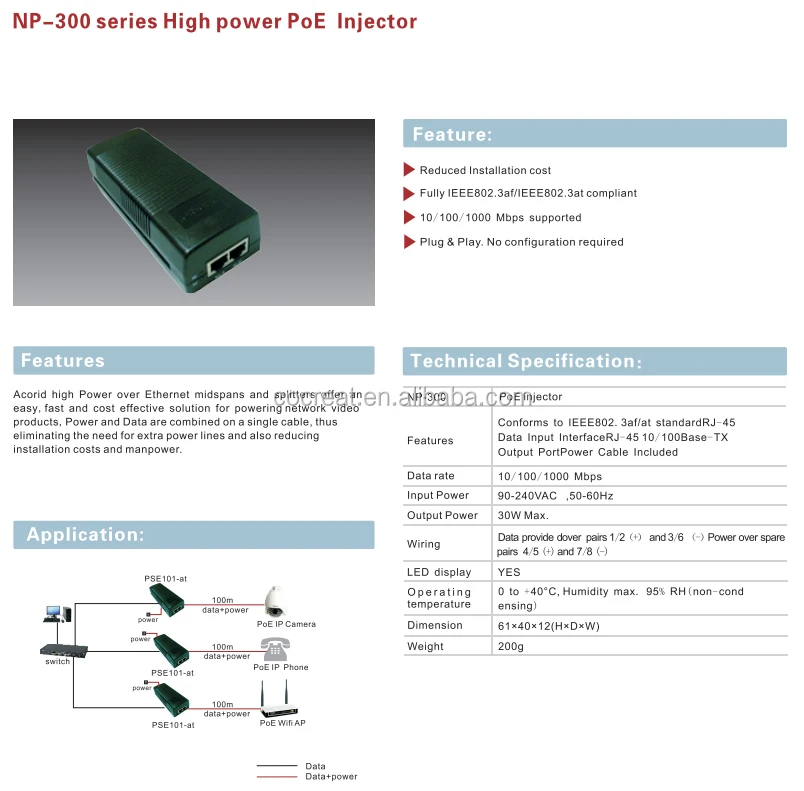

Datasheet











Technical Specification:

N-300	PoE injector
Features	Conforms to IEEE802.3af/at standard RJ-45 Data Input Interface RJ-45 10/100Base-TX Output Port Power Cable Included
Data Rate	10/100/1000 Mbps
Input Power	90-240VAC ,50-60Hz
Output Power	30W Max
Wiring	Data provide dover pairs 1/2(+)and3/6(-) Power over spare pairs 4/5 (+)and 7/8 (-)
LED Display	YES
Operating Temperature	0 to +40, Humidity max. 95% RH(non-condensing)
Dimension	37×142×35(H×D×W)
Weight	200g
