100 Tons Per Day Mgo Production Machine/Magnesium Oxide Production Line/Mgo From Dolomite Calcination

Product Overview

Description

100 Tons Per Day Mgo Production Machine/Magnesium Oxide Production Line/Mgo From Dolomite Calcination

We are a leading manufacturer of magnesium production line both at home and abroad, in the year of 2011, we signed an contract of annual output of 100000 tons of magnesium metal project with the world iron and steel giant Korean Pohang iron POSCO.

We can provide plant design, equipment/spare parts supply, consultation and technical service for dolomite & magnesite calcination.
- More than 50 years experience in magnesium industry.
- Design capacity of magnesium line: 5,000-25,000 tons per year.
- Professional Process Design Engineers, Equipment Engineers, Electrical Engineers.
- Leading supplier of magnesium production line, and we take up over 90% of the market share.

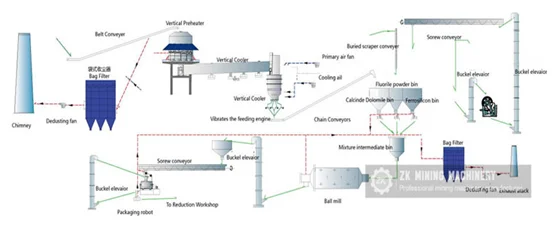

Magnesium Calcination Process

step1: Calcining

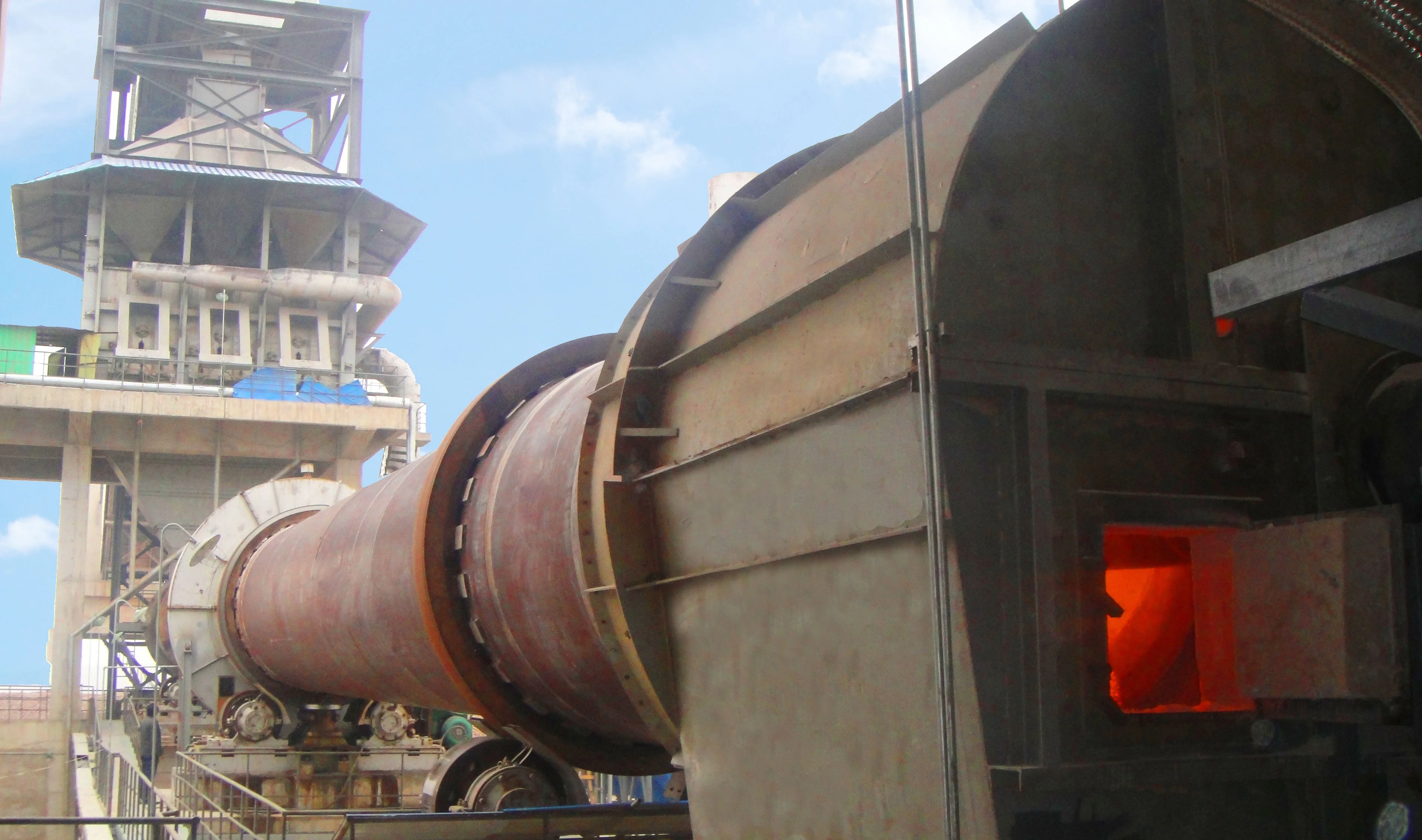

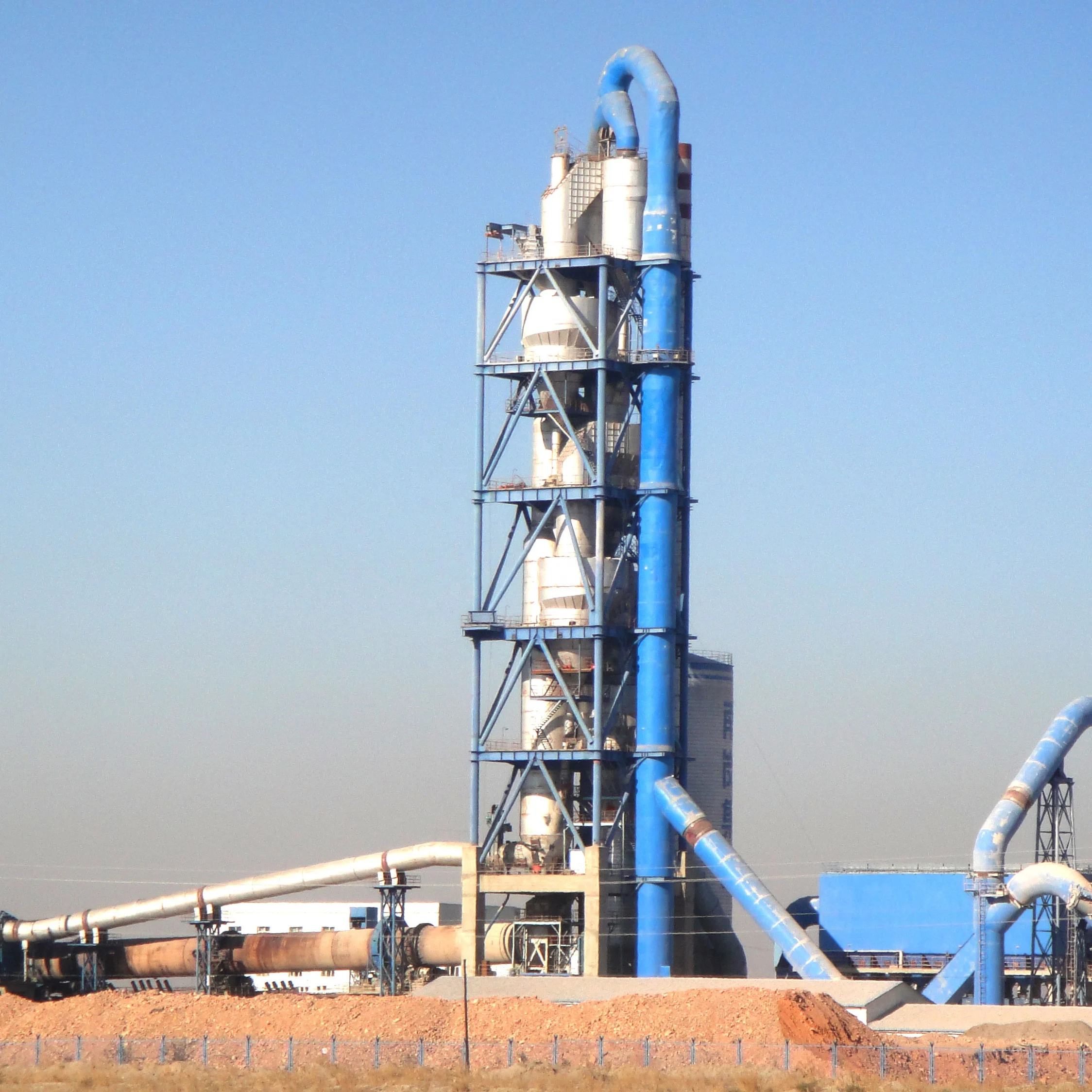

       a. Process introduction: Selecting proper dolomite (size from 10-50mm),crushing and screening after it is carried to the factory, then feed the dolomite (>20mm) to the calcination system(including preheater,rotary kiln and cooler), after calcination and cooling, then the calcined dolomite will be conveyed to the hopper.

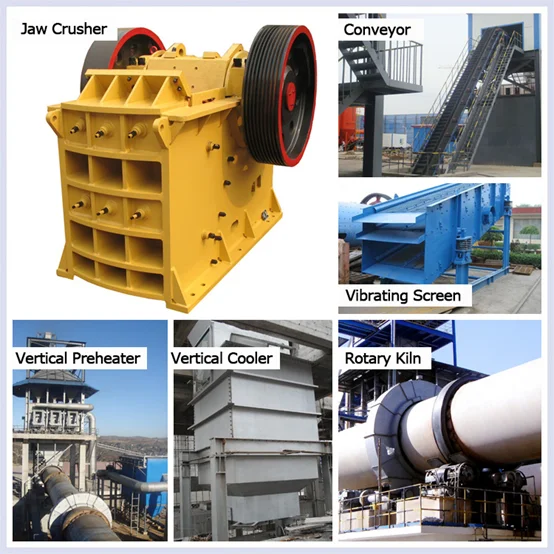

       b. Main Equipments: Jaw Crusher, Conveyor, Vibrating screen, Vertical preheater, Rotary kiln, Vertical cooler, etc.





step2:Grinding and balling
       a.Process introduction: Using jaw crusher and ferrosilicon crusher to crush and grind ferrosilicon to the size of less than 20mm, then grinding these three kinds of minerals(calcined dolomite,ferrosilicon and fluorite), after grinding, convey them to the briquetter.

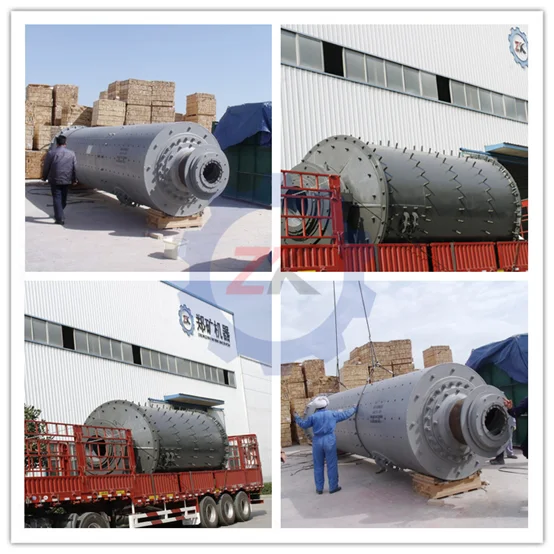

       b.Main equipment: Electronic batching scale, Bucket elevator, Ball mill, Screw conveyer ,FU chain conveyor, etc.







step3:Reduction reaction and Refining
       a.Process introduction: To refine the raw materials, and produce qualified products.
       b.Main equipment: Reduction furnace, Refining furnace, Electronic moisture device, Wind machine, Vacuum pump, Electronic moisture device, Jet pump, Continuous casting machine, etc.



Model (m)	Basic Parameters(t/h)				Qty of Support (No.)	Equipment Weight(t)
	Reloving Speed (r/min)	Slope(%)	Capacity (t/h)	Power(KW)
φ1.6*32m	0.58-2.85	4	2	18.5	3	46.8
φ1.6/1.9*36m	0.53-1.59	4	2.5-3	22	3	57
φ1.9*39m	0.53-1.59	4	3-3.4	37	3	71.79
φ2.2*45m	0.214-1.64	3.5	4-5	45	3	142.6
				4
φ2.5*50m	0.62-1.5	3.5	5-6	55	3	180
				7.5
φ2.5*55m	0.62-1.5	3.5	5-6	55	3	185
				7.5
φ2.8*55m	0.62-1.5	3.5	6-7	75	3	215.6
				11
φ3.0*60m	0.5-1.5	3.5	7-9	125	4	310.9
				11
φ3.2*64m	0.4-1.5	3.5	8-10	190	4	337.8
				22
φ3.5*70m	0.4-1.5	3.5	12-14	280	4	394.6
				22
φ4.0*80m	0.4-1.5	3.5	16-20	355	4	564.8
				30

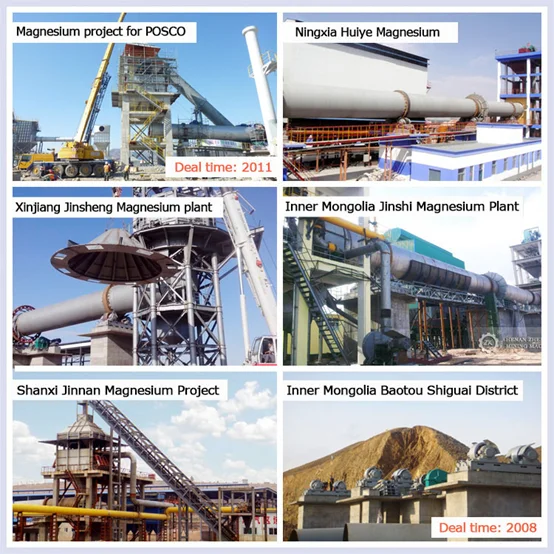

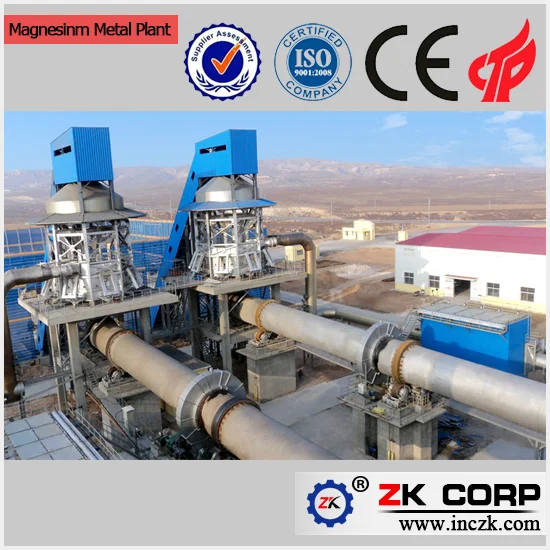

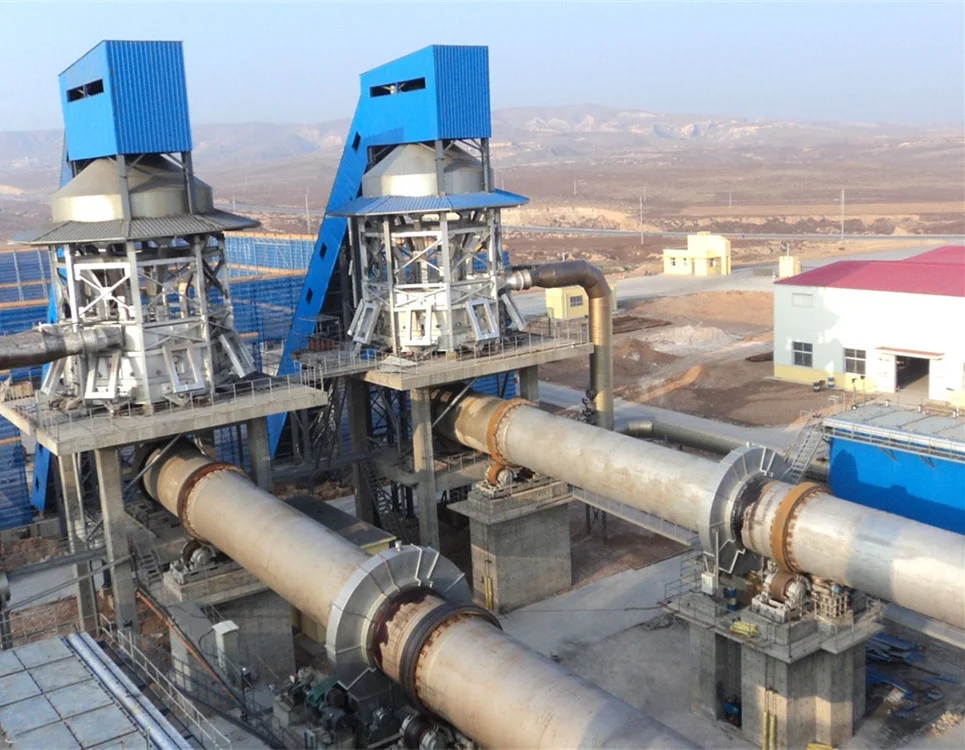

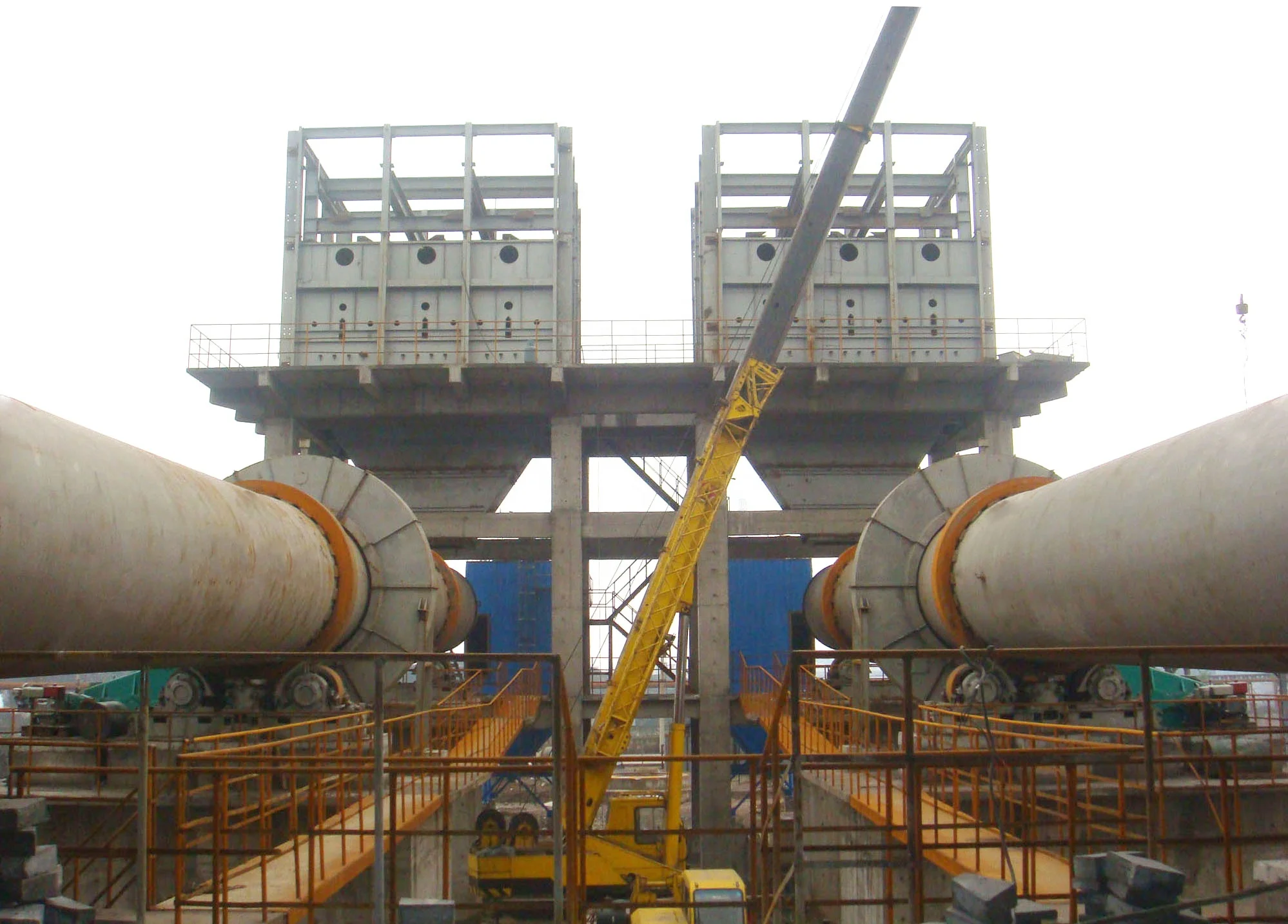

Projected Cases:

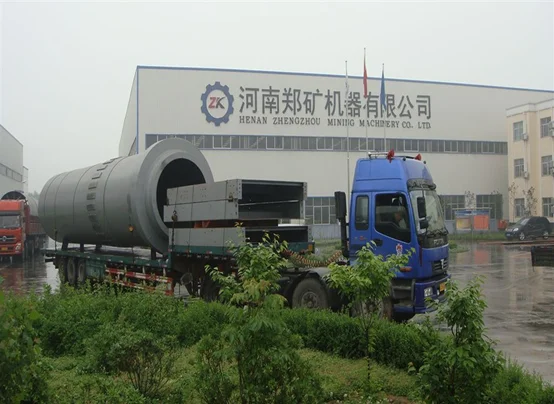

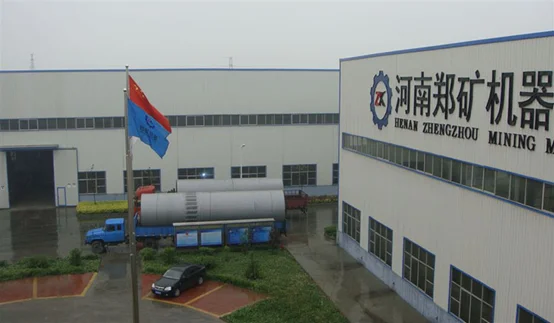

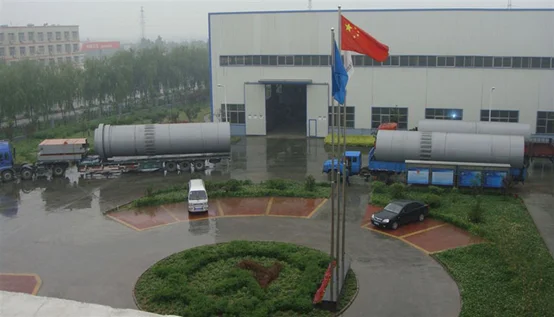

Henan Zhengzhou Mining Machinery Co., Ltd was founded in 1956, and it is located in Wulong Industrial District in Zhengzhou which is the capital of Henan Province. It is at the junction of 310 State Road and Xingmi Road, and it is close to downtown and Xinzheng International Airport. It is very convenient in transportation..



The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier, feeder, bucket elevator, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry. The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold all over the country and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America, etc.



At present, Henan Zhengzhou Mining Machinery Co., Ltd is the largest and most powerful equipment supplier for magnesium production and at the same time, our company has been playing an important role for 25 years in the market.

Certifications:

We have got

ISO9001:2008 Quality Management System Certification

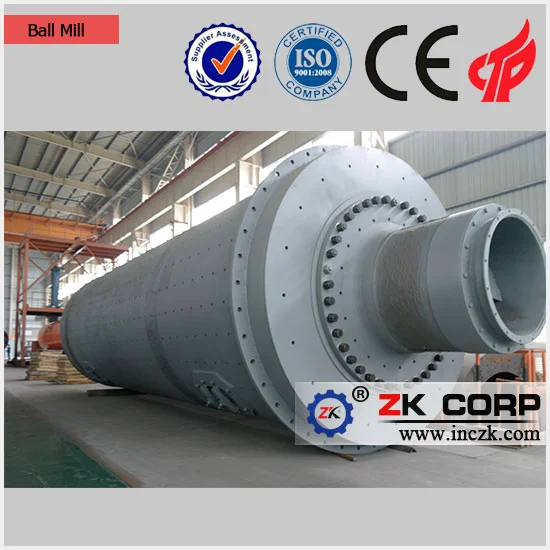

CE Certification (Ball Mill)

ISO14001:2004 Environmental Management System Certification

OHSAS 18001:2007 Occupational Health&safety Management System Certification
