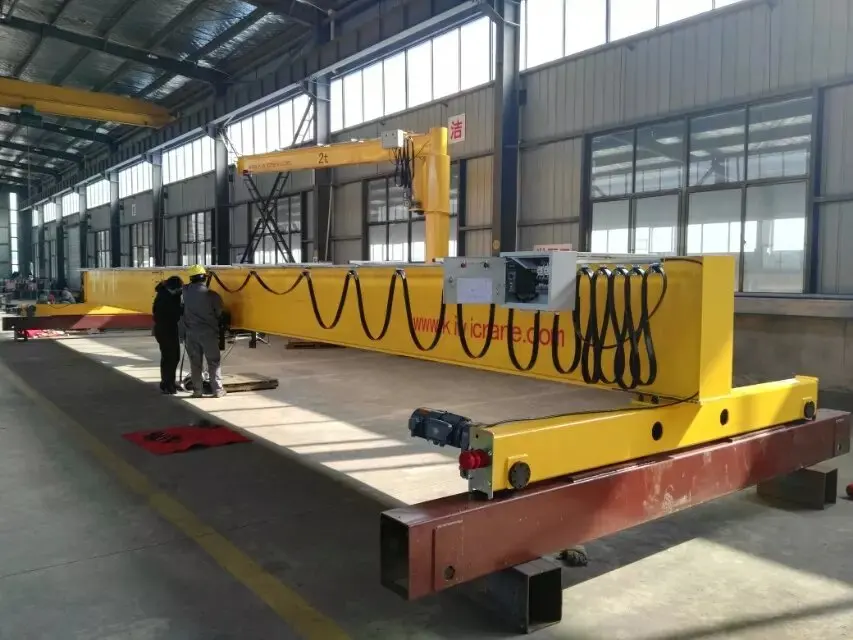

5t 16.5m EOT Type Single Girder/Beam Overhead Travelling Bridge Crane with Demag hoist

 electric single-girder bridge crane have reasonable structure, strong rigidity characteristics. With CD1, MD1 model electric hoist is a kind of small light lifting machinery. Lifting capacity from 1t to 20t and span from 7.5m-22.5m, working-level A3-A4, the working environment temperature between -25 ~ 40 ℃, wireless remote control operation optional.

1/Optimized designing, DIN/FEM standard, smaller wheel load, space saving

2/ Excellent driving properties, step less control, smoothly moving

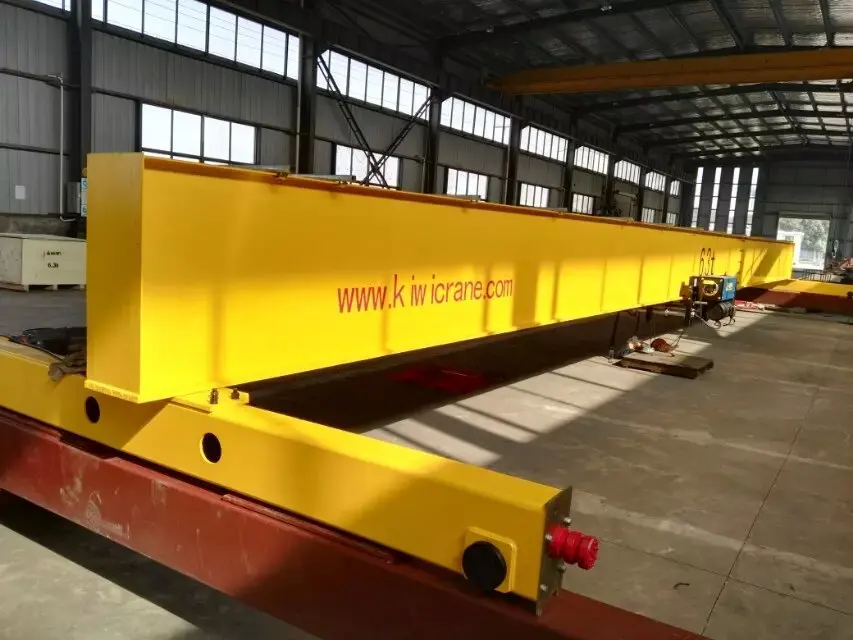

3/Single welding box girder, DIN/FEM standard deflection

4/Whole length CNC cutting for complete web plate, high deflection accuracy

5/High quality automatic welding and NDT inspection

6/ Shot-blasting Sa2.5 for complete girder after welding, stress release

7/Epoxy zinc rich high quality painting, 2x2 with 140μm

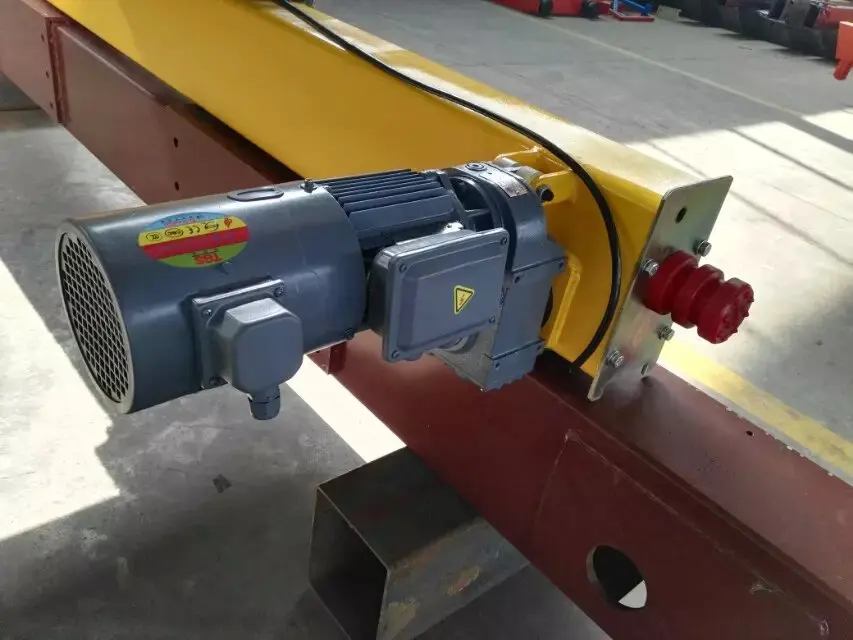

8/Compacted gear motor driving, step less control, harden gear, safety disk brake

9/Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors

10/ All hoist and crane movements are independent and can be run simultaneously.

11/The flat cables used for festoons are PVC insulated flexible flat cables rated for 450/750V, specially designed for cranes, hoists.

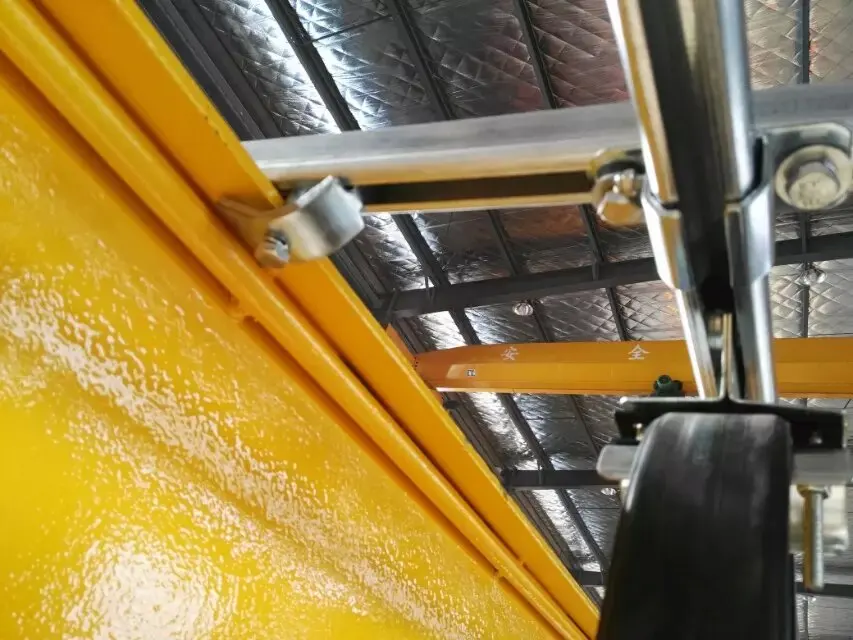

12/ Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanised C-track, which is connected to the main girder with bolted or welded support brackets.

13/Two steps push button or joy stick station with emergency stop, Easy control, no additional driver, remote access

  Hefei Kiwi Heavy machinery Co.,Ltd is manufacturing and trading company. We have a large number of professional engineers and advanced manufacturing equipment. Specialized in manufacturing and sales of various bridge cranes, gantry cranes, crane accessories, lifting hoist, lifting tools, steel structure plant and related industrial equipment. Each year provide a variety of products and services to more than 500 customers around the world, if you are interested in our products, welcome to our city and visits our factory.
