Jinou Ble Bluetooth Coin/ Cell Beacon OEM/ODM High quality can be customized
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (60308095862):
Product Overview
Description
Highlight:
* Size & Casing & Function [ OEM/ODM ]
* Distance: 50m ( 164 feet) in open air
* Battery life: 1~2 years
JINOU BLE Beacon JO-BEC01/ JO-BEC04 / JO-BEC05
Introduction
Jinou Beacon is developed based on Bluetooth 4.0 BLE technology; it can help you locate indoor.
The max searching range is up to 50m, and connecting range is about 25m.
It has a small factor, similarly a coin that can be easily placed/attached indoors.
Users can detect its UUID signal RSSI signal, and battery life signal with smart phones.
Users can change its paring code, transmitted power, and other customized functions.
It has a virtue of quick respond and less Latency. jBeacon is highly qualified with iBeacon standard, so that it can be tested via app LightBlue and we can provide test app for Android (version 4.3 and up).
JO-BEC01 JO-BEC04 JO-BEC05
Features
Bluetooth version | Bluetooth BLE 4.0 |
Main chipset | TI cc2540 / cc2541 |
Power supply | Button cell / AA battery |
Working time | About 12 months |
Searching range | 50m in open air |
Working current (3ms wake up) | About 235uA |
Matching APP | Android / iOS |
Features:
• Built-in firmware, compatible with iBeacon

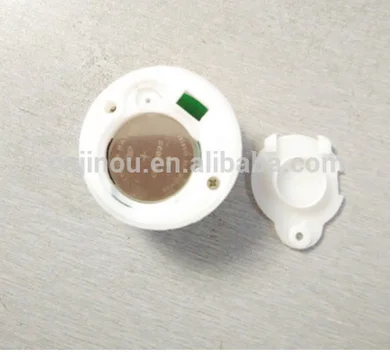

• JO-BEC01 and JO-BEC05 are powered by CR2032 button cell; JO-BEC04 is powered by CR2450 or CR2477.
• Bluetooth Low Energy
• Available for long distance transmission
• Precise figures indicate received signals strength
• CE/FCC standard
• High performance, low power consumption
• AES 128 bit Security
• Size:
JO-BEC01:DIA30.00*17.20mm

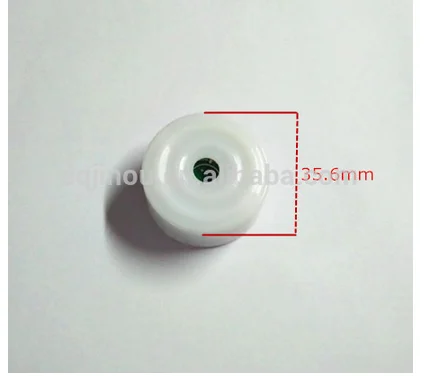

JO-BEC04:DIA34.75mm

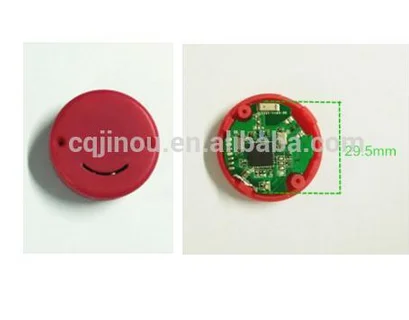

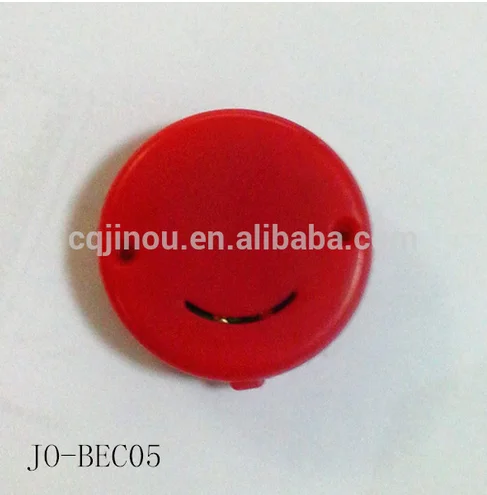

JO-BEC05:DIA29.5*10.00mm
Application
Kinds of sensors can be added to use it in logistics tracking, greenhouse, buildings, baby house, hospitals, ect.
Sensors:
Bluetooth low energy module(BLE module) with acceleration sensor ODM
Bluetooth ibeacon with acceleration sensor ODM
Bluetooth ibeacon with noise testing sensor ODM
Bluetooth ibeacon with environmental monitoring(pm 2.5) ODM
Bluetooth ibeacon with temperature and humidity sensor ODM
Low temperature resistant Bluetooth ibeacon with sensors ODM
High temperature endurable Bluetooth ibeacon with sensors ODM
Applications:
- advertising and positioning
- jBeacon firmware, compatible with jBeacon, supports CC2540 with CC2541 BLE module 4.0
- Built-in pairing password preventing others to modify Settings
- UUID, Major and Minor values can be amended by the users
- Broadcast cycle can be modified by the users
- The battery intelligent detection and notification
- Names shown on the IOS device can be modified by the user
- JBeacon compatible with iBeacon when connected with other IOS devices, it will continue broadcasting
