Biogas generator 150KW, power plant project
- Category: >>>
- Supplier: Camda New Energy Equipment Co. Ltd.
Share on (60308286195):
Product Overview
Description
Camda Biogas Power Generator /Natural gas generator/Electric engine/Biomass power plant/Biogas Cogeneration/Power Generation with CE certificates

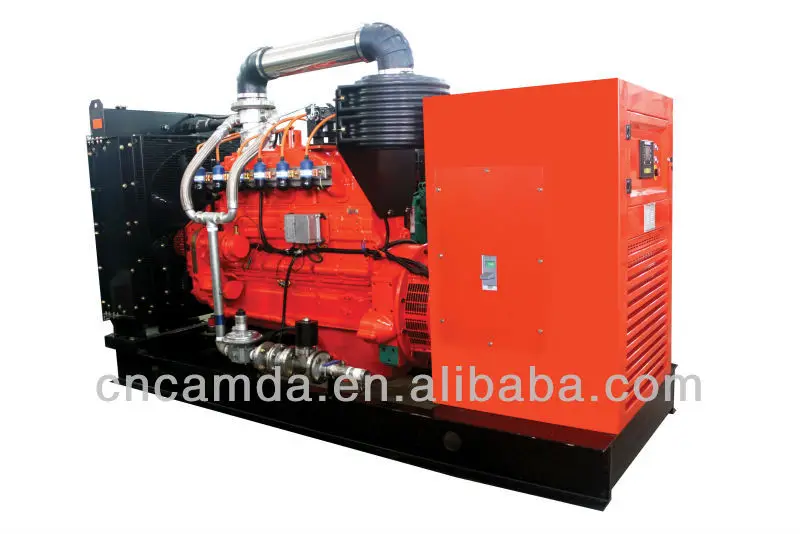

Genset Specification
Gas genset data | |||
Genset model | KDGH150-G | ||
Prime power(kW/KVA) | 150/188 | ||
Continuous Power(kW/KVA) | 150/188 | ||
Connection Type | 3 Phases 4 Lines | ||
Power factor cosfi | 0.8 lagging | ||
Frequency (Hz) | 50 | ||
Rated speed (RPM) | 1500 | ||
Open type Genset Overall Dimension (mm) | 3150x1100x1800 | ||
Soundproof type Genset Dimension (mm) | 4600x1600x2200 | ||
Net weight without canopy(kg) | 2525 | ||
Gas Engine Data | |||
Model | HGNT14 | ||
Brand | CAMDA | ||
Type | 4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning | ||
Cylinders& Arrangement | 6L | ||
BoreXStroke(mm) | 140X152 | ||
Displacement(L) | 14 | ||
Compression ratio | 11:1 | ||
Aspiration | Intercooled and Turbocharged | ||
Cooling Method | Radiator fan water cooling | ||
Governor type(speed regulating type) | Electronic governing | ||
Starting method | Electric, 24 V motor | ||
The lowest gas consumption(m3/kw.h) | 0.3 for natural gas/0.6 for biogas | ||
Idling speed(r/min) | 700 | ||
Oil recommended | SAE 15W-40 CF4 or above | ||
Oil consumption | ≤1.0g/kW.h | ||
Alternator Data | |||
Brand | France Leroy Somer | ||
Model | LSA46.2M5/160KW | ||
Rated power | 160kW / 3 phase | ||
Rated Voltage (V): | 380~480 (±0.5%)(AC) | ||
Type | 3 phase/4 wire, brushless, automatic voltage regulator, drip proof, protected type. | ||
Frequency (Hz) | 50 | ||
Efficiency: | 93.5% | ||
Voltage regulation | ± 0.5 %(adjustable) | ||
Insulation class: | Class H | ||
Protection class: | IP 23 | ||
cooling method: | wind-cooling, self-heat-rejection | ||
Voltage regulating mode | Automatic voltage regulator | ||
Compliant with international standards: | IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA, UL 1446, UL 1004B on request, marine regulations, etc. | ||
Main Service of Biogas Power Plant
Design of biogas plant.
Drawing books enable customer to do civil work and construction.
Detailed material list enables customer to choose and purchase the right equipments, devices and materials easily.
We offer services of construction and installation guide,project inspection and acceptance.

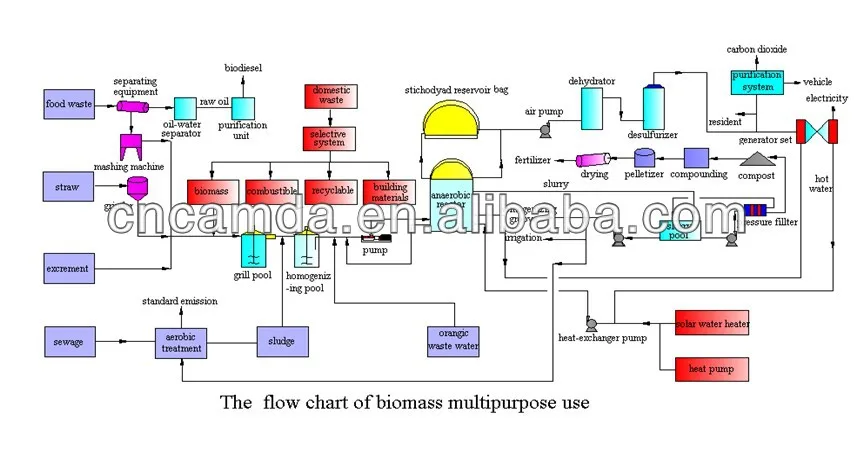

Application Scope of Biogas Power Plant
1. Farm Waste Management Biogas
2. Food Waste Management Biogas
3. Industry Water Waste Management Biogas
4. Landfill Waste Management Biogas
Product Description
300KW Biogas Genset/ Biogas Generator/ Biogas Waste Power Plant in Malaysia
All biogas equipments as below:
Power Capacity:(300KW)
Install and debuge: 2014
Biogas plant type: farm waste biogas
Biogas plant destination: Malaysia

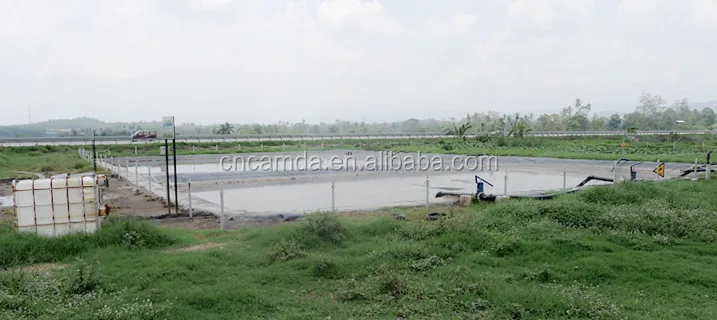

Biogas anaerobic digestor and biogas gas holder

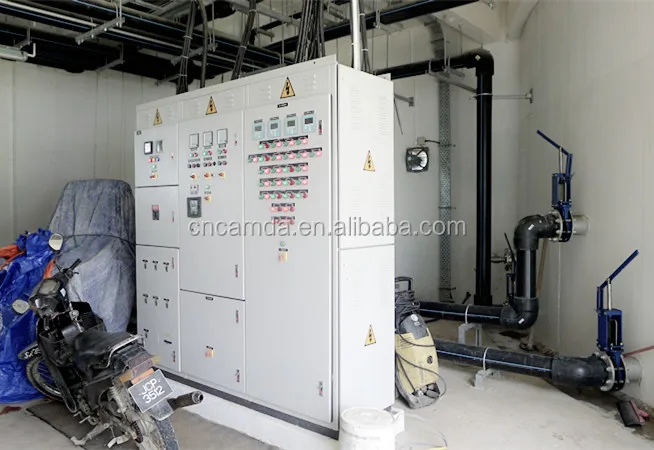

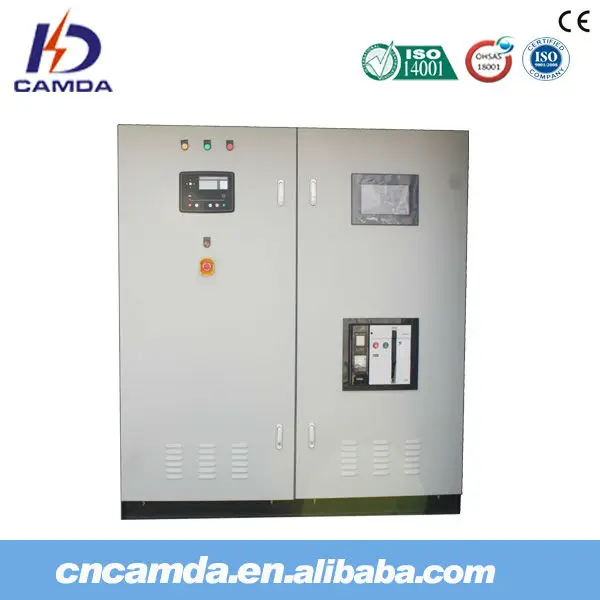

Electric control devices

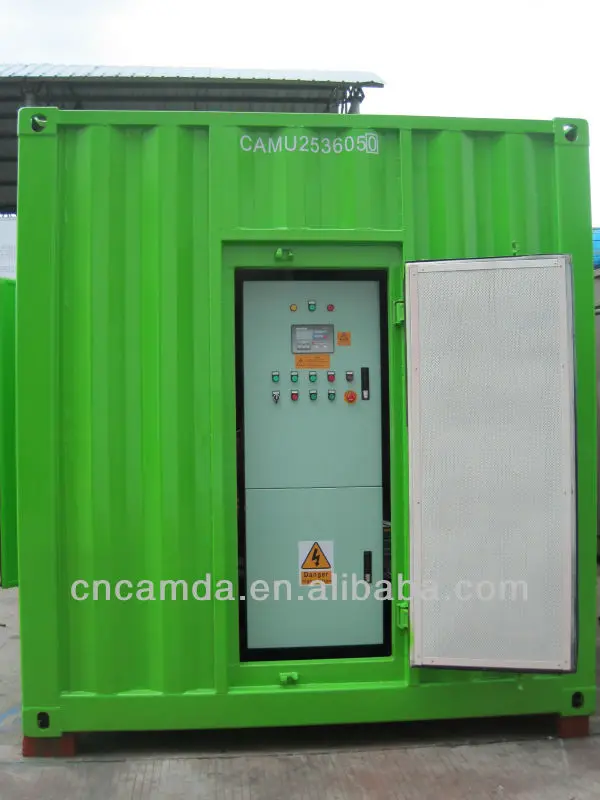

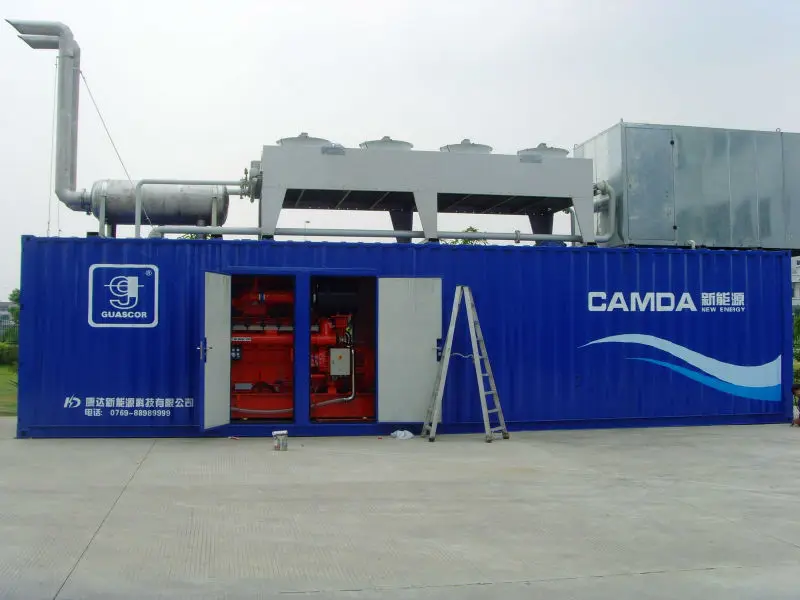

Biogas generator set with sound and water proof container,remote radiator, auto air/gas mixer system,sychronizing grid parallel control system

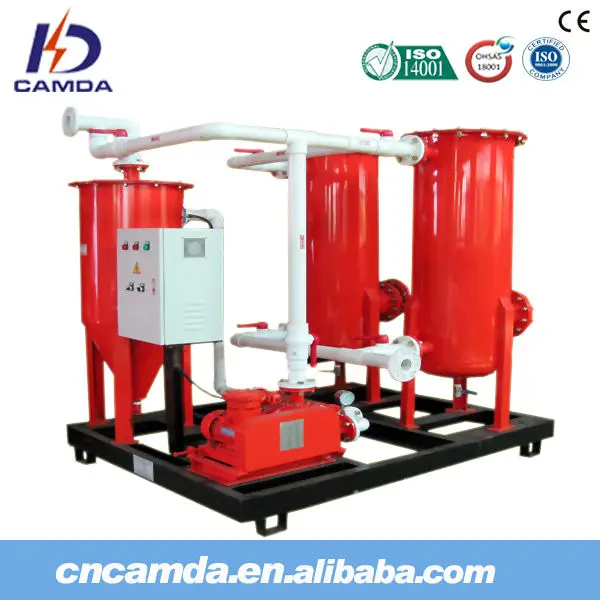

Auxiliary devices of Biogas Power Plant
Company Information
Camda is established in 1998, located in Dong guan City, with a new industrial park covering 34000m2, dedicated system supplier of energy production,100MW installation capacity annually,anual sales revenue 680 million dollars.
Camda is a dedicated system supplier of energy production by diesel and gas powered generator set, waste treatment projects and solar energy. The company, based in Dongguan of Southern China, is basically a manufacturer of generator set for various kinds of fuel such as diesel, natural gas, biogas coal bed methane (CBM), associated gas and syngas. With decades of development and innovation, it has expanded its business to provide one-stop solution for waste treatment based on landfill, food waste, animal manure and waste water. Meanwhile, its pioneering in solar thermal power enables it to compete both at home and abroad.
