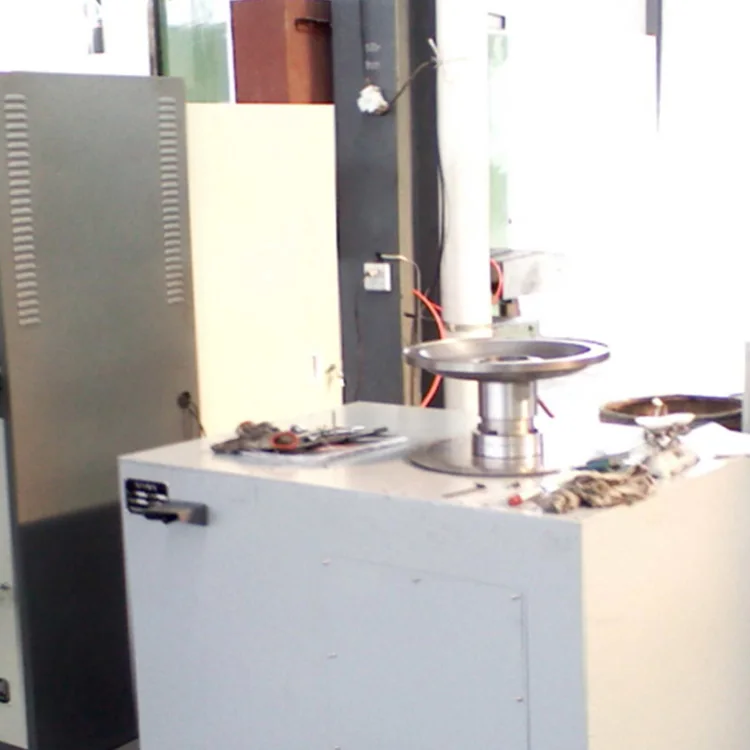

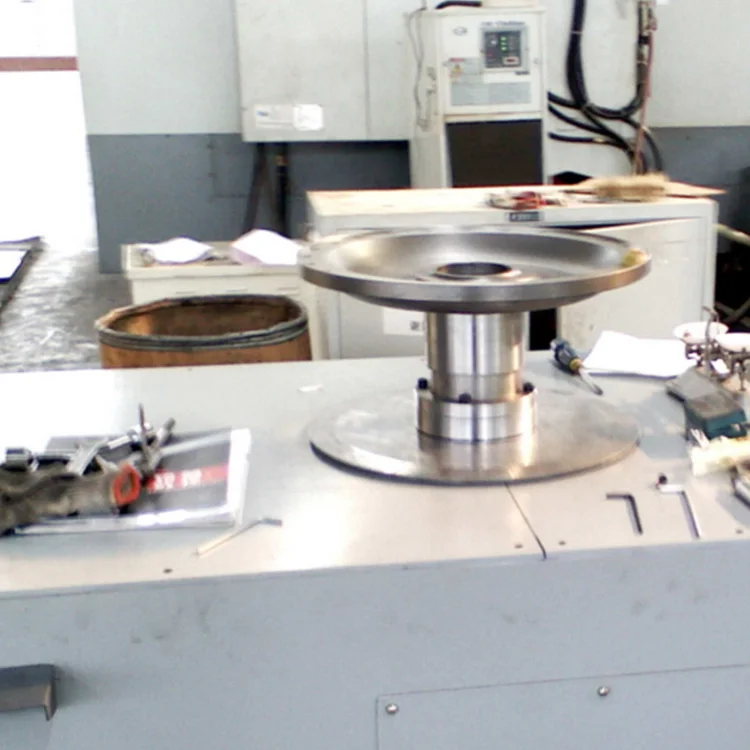

Saw Blade Balancing Machine schenck balancing machine
- Category: >>>
- Supplier: Jinan Bodihao Mechanical Equipment Co. Ltd.
Share on (60308373194):
Product Overview
Description
Model | YLD-1A | YLD-5 | YLD-16 | YLD-16A |
Max. Weight of workpiece(kg) | 0.05-1 | 0.1-5 | 0.5-5 | 15401 |
Max.diameter of workpiece(mm) | φ300 | φ500 | φ500 | φ500 |
Adjusting speed form | Variablefrequency speed regulation | Single speed motor | Two speed motor | Frequency control moor |
Balanncing speed min(r/mm) | 250-1500 | 900 | 600-900 | 250-2500 |
Min. achievableresidualun balance(g.mm/kg) | ≤3 | ≤3 | ≤3 | ≤3 |
Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 | ≥90 |
Drive power(kw) | 0.12 | 0.37 | 0.65-0.85 | 1.1 |
Model | YLD-42A | YLD-100A | YLD-200A |
Max. Weight of workpiece(kg) | 0.3-16 | 5-100 | 10-200 |
Max.diameter of workpiece(mm) | φ800 | φ800 | φ800 |
Adjusting speed form | Frequency control moor | Frequency control moor | Frequency control moor |
Balanncing speed min(r/mm) | 250-2500 | 250-2500 | 250-2500 |
Min. achievableresidualun balance(g.mm/kg) | ≤3 | ≤3 | ≤3 |
Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 |
Drive power(kw) | 1.5 | 4 | 4 |
